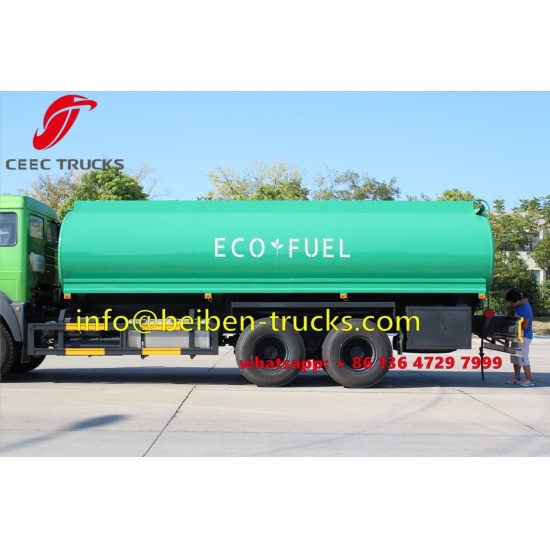

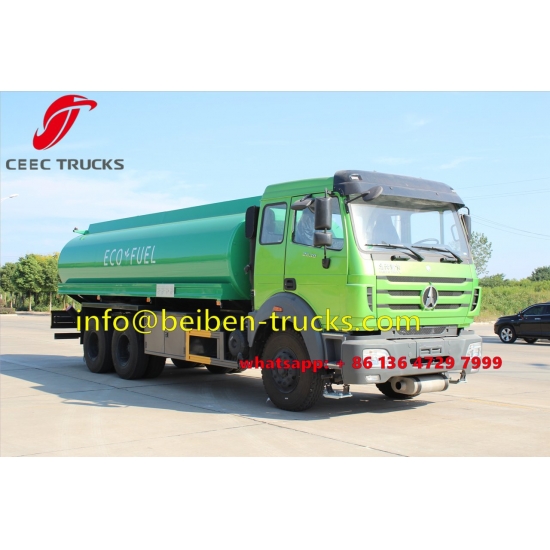

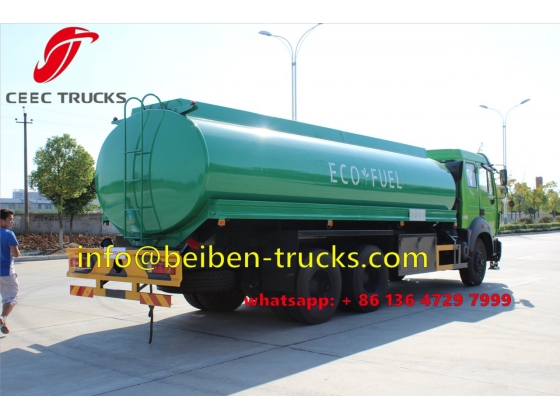

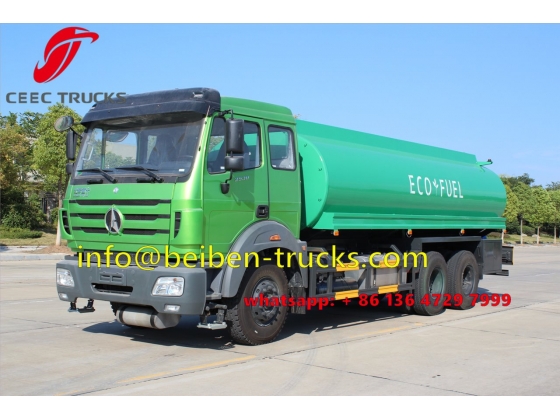

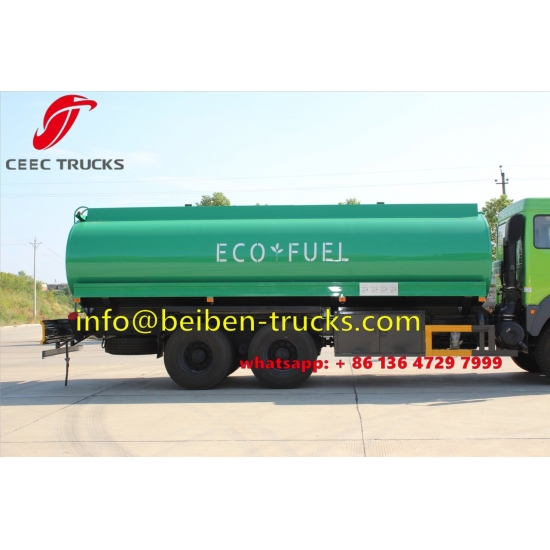

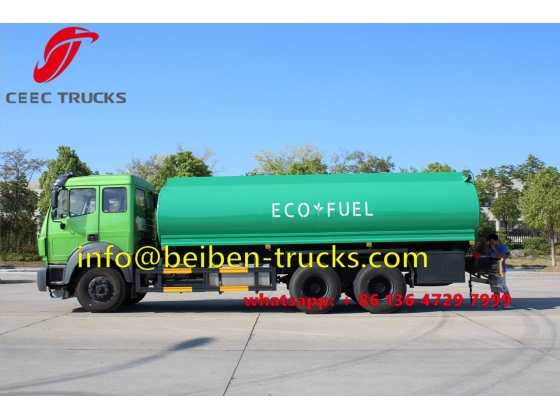

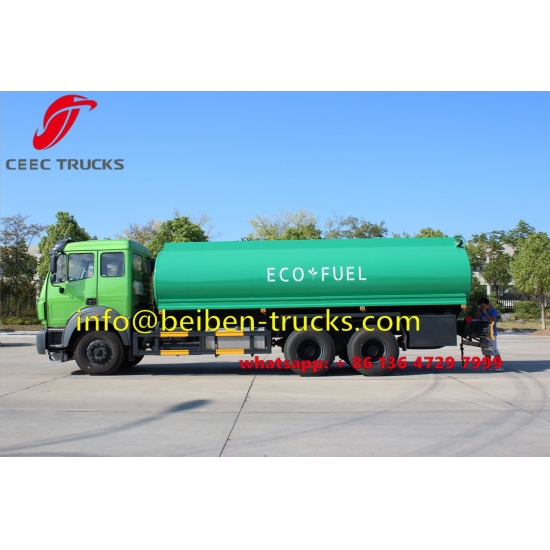

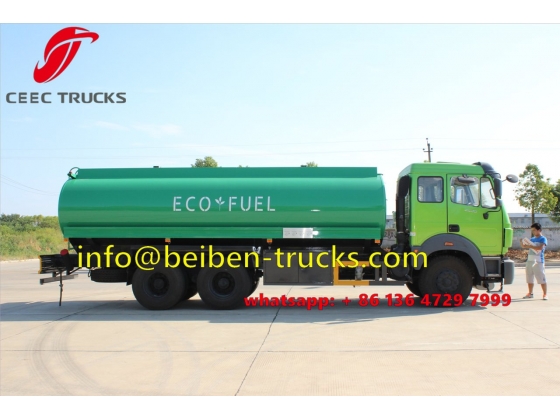

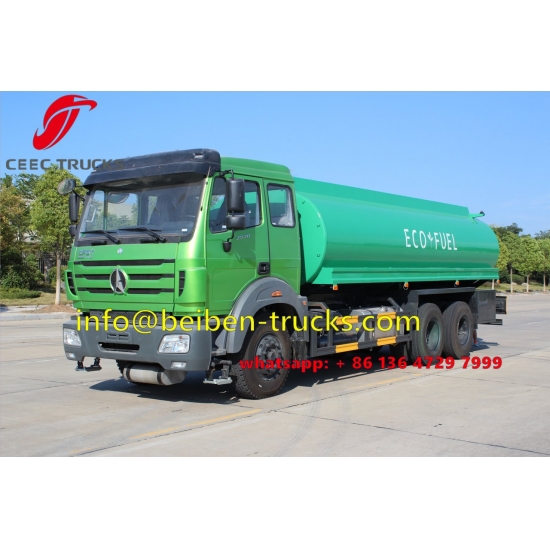

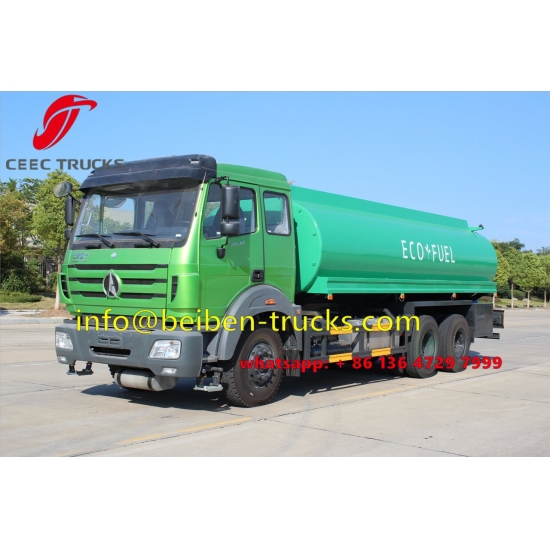

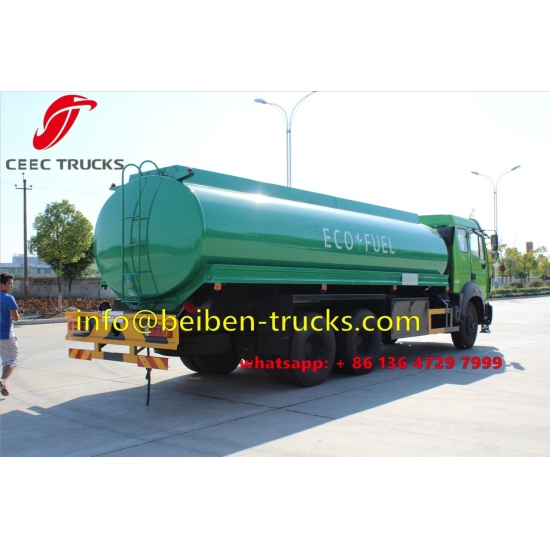

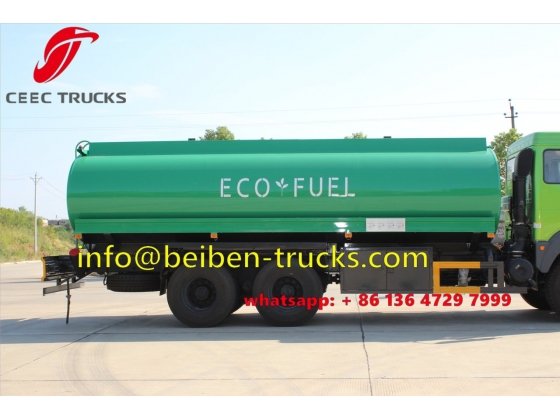

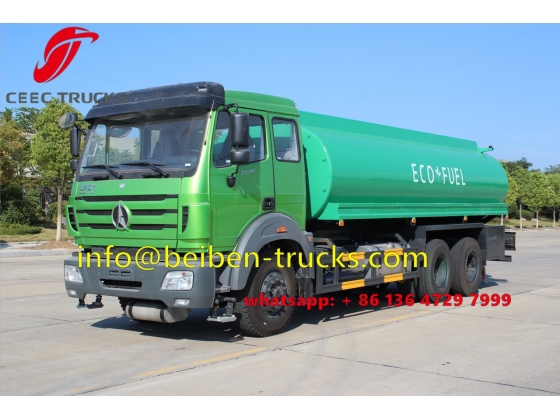

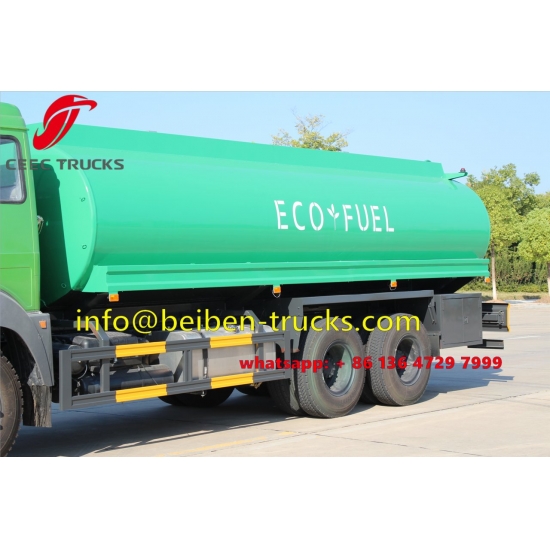

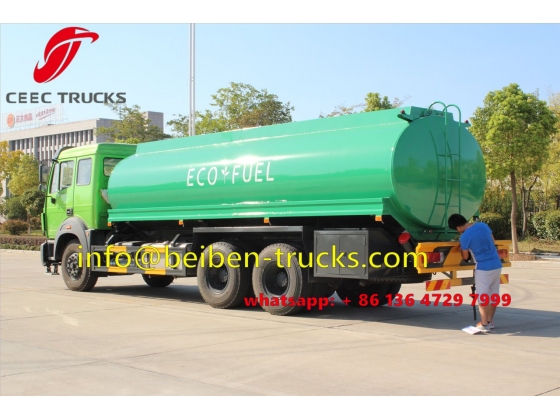

Beiben 2530 fuel tanker
-
FOB Price
$41000-$47000
-
Production time
30 days
-
Payment terms
T/T, West union
Beiben 2530 fuel truck
Function:
China beiben 2530 fuel truck is normally called as beiben 2530 oil truck, beiben 2530 oil transportation truck, beiben 300 hp engine fuel bowser. North benz 2530 fuel tanker truck.
Beiben
oil trucks thanks to German and Mercedes Benz technology and heritage are
manufactured to the highest international standards and the strictest military
quality controls.
Our prices are considerably lower than European, American and
Asian competitors; including Mercedes Benz Actros
fuel tanker trucks.
Advantage:
★ Beiben oil trucks and Mercedes Benz trucks share many features such as HL7, HD7 and VL4 axles used in the Actros and Atego models.
★ the only Asian heavy duty truck company capable of providing the quality found among European and American manufacturers.
★ Beiben fuel truck and benz trucks share familiar gearboxes - ZF and Fuller Fast.
★Mercedes
Benz and Weichai WD615, WP10 and WP12. They comply with Euro 2, 3 and 4; have
displacements of 10 and 12 liters and HP of 270 to 480.
★Bosch Common Rail injection, the Euro 2 with linear pump, motor and brake valve MAN Exhaust (Jack-Brake), among other qualities.
★ CEEC TRUCKS 20 years experience on beiben oil truck designing and manufacring.
Specification:
More than 15 years experience on beiben oil tanker truck manufacturing, we have great advantage on designing and producing beiben 2527,2530,2534,2538 fuel tanker trucks.
CEEC TRUCKS plant have export huge quantity tanker truck upper structure to congo, ghana, algeria, ethopia, nigeria, and other africa area. we welcome beiben truck dealer
Beiben 2530 oil truck /6×4/4500+1450 mm /Long Cab
| Best beiben 20 CBM fuel tanker |
||||||
| Dimension | 9800*2495*3095mm | |||||
| Approaching angle/Departure angle | 16/40° | |||||
| Overhang(front/rear) | 1410/1085mm | |||||
| Wheel base | 4450+1450 mm | |||||
| Max speed | 110km/h | |||||
| Curb weight | 12000kg | |||||
| Max towing weight | 20000kg | |||||
|
Max loading on fifth wheel, Permitted(kg) |
20070kg |
|||||
| Slope climbing capability | Max.40% | |||||
| Engine | Model | WP10.340E32，water-cooled，4 Strokes 6 cylinders in line，turbocharged, directly injection | ||||
| Displacement | 9.726L/Diesel | |||||
| Stroke | 126/130mm | |||||
| Max. power | 240/2200 (kw/rpm) | |||||
| Max.torque | 1160/1200-1600（Nm/rpm） | |||||
| Emission stantard | EuroⅢ | |||||
| Fuel tanker capacity | 400L | |||||
| Clutch | ∮420, Single dry frictional disc，Hydraulic boosting | |||||
| Gearbox | 9JS119B, mechanism,9 forward gears,1 reverse gear, manual operated | |||||
| Gear ratio of gear box | 11.02/6.55/4.64/3.36/2.71/1.95/1.38/1.00/0.81 R: 11.52 | |||||
| Suspension system | Front | Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 9pcs | ||||
| Rear | Non-free standing stablization spring, balance suspension system, 9+6pcs | |||||
| Brake system | Service brake | Brake gap can be adjusted automatically, double circulation air brake system | ||||
| Assistant brake | Engine exhaust brake | |||||
| Park brake | Potential springs pressing on middle and rear wheels | |||||
| Steering system | D50,whole circulation in ball, hydraulic booster | |||||
| Frame | Fish belly shape, variable width, variable sections | |||||
| Front axle (Mercedes Technology) | Double-shoe pneumatic brake, non-driving steering axle | |||||
| Middle and Rear axle (Mercedes Technology) | Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle | |||||
| Tyre |
12.00-20 |
|||||
| Electrical system | Battery | 2X12V/135Ah | ||||
| Generator | 28V-35A | |||||
| Starter | 5.4Kw/24V | |||||

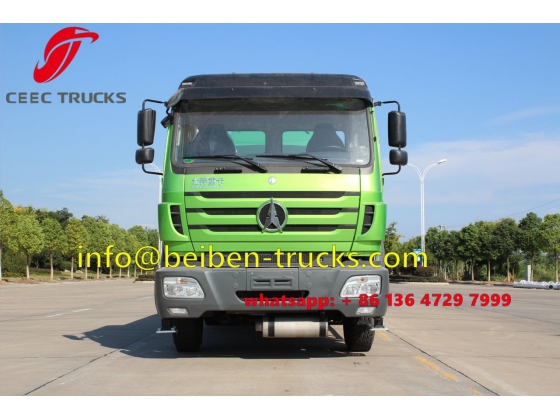

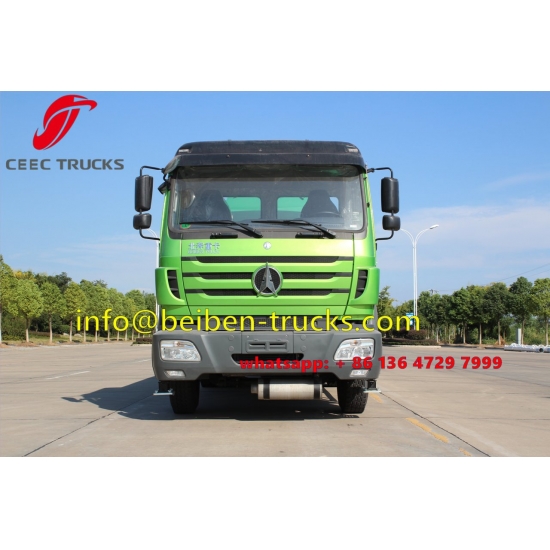

| Cabin |
NG80B Long-Flat roof cabin with single sleeper Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly; High back seat for driver;Electric lifting window ; With inner A/C |
|||||
Best beiben 20 CBM fuel tanker

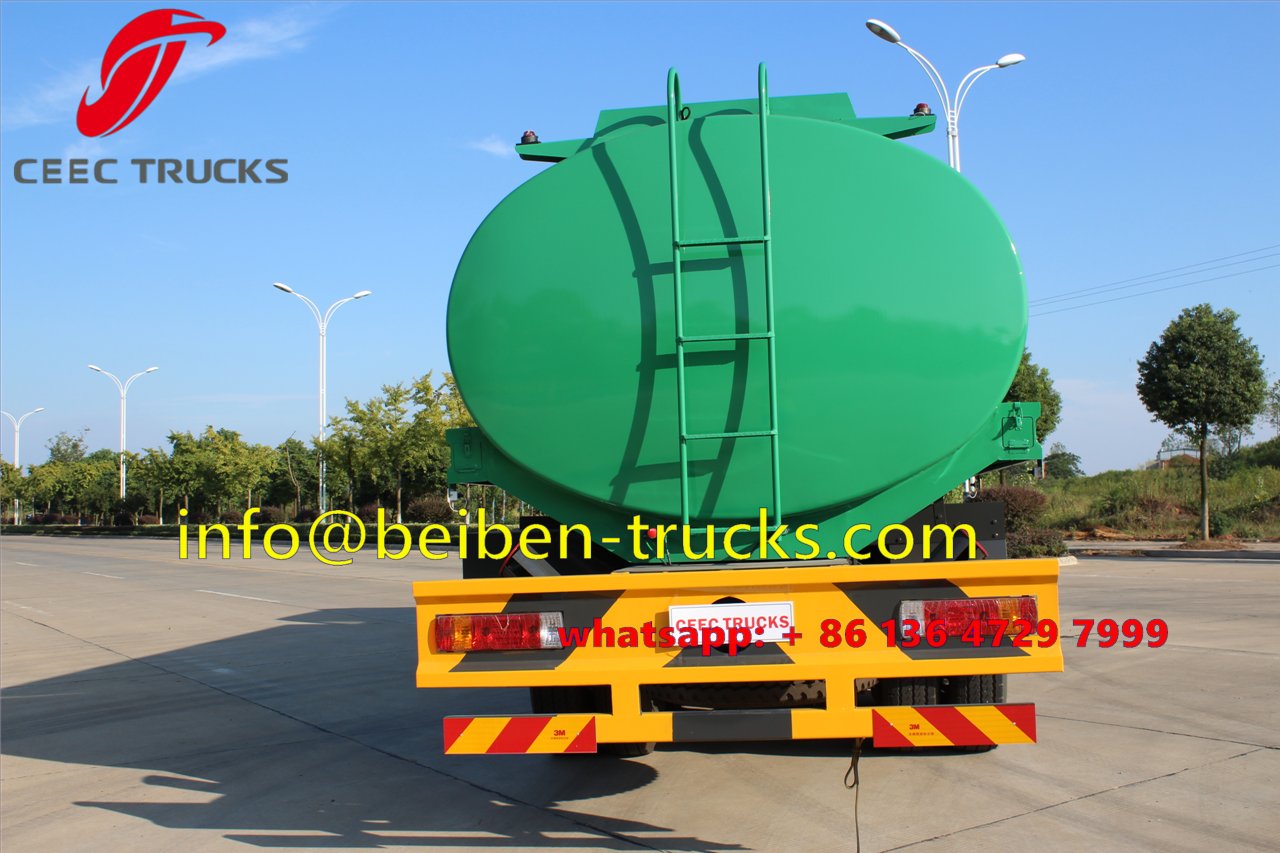

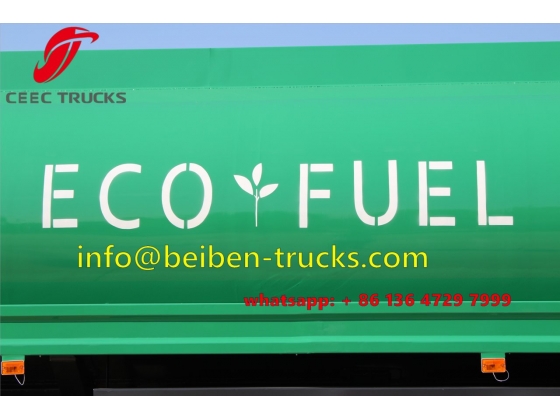

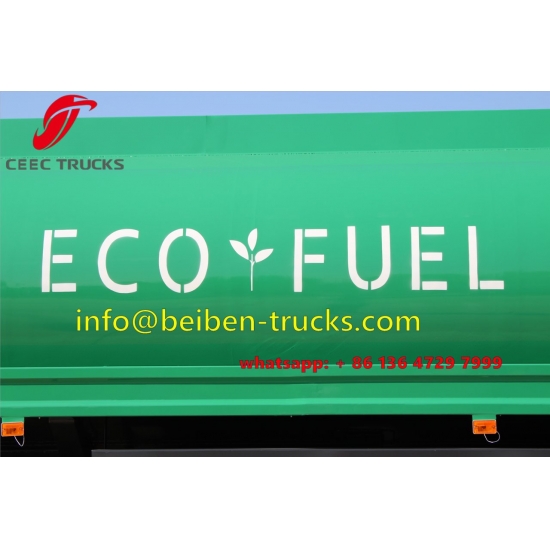

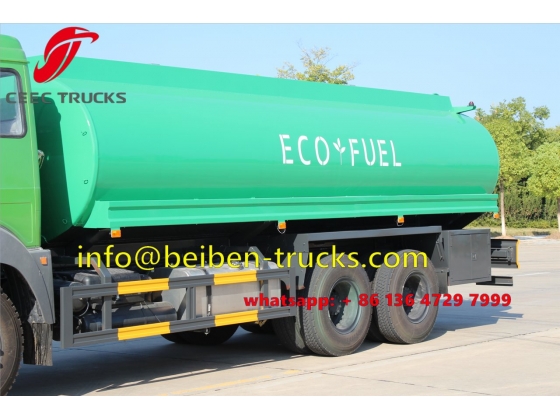

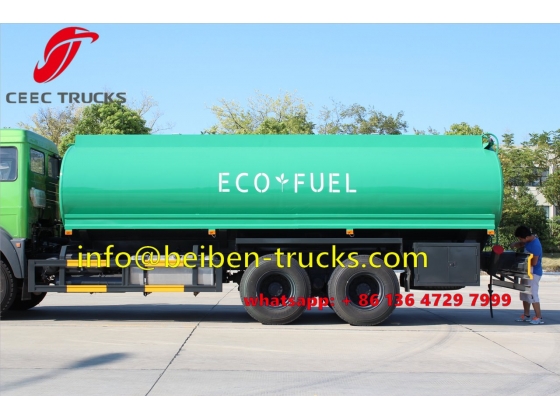

| Tank Body |
Shape Ellipse Style |
|||||
| Capacity ,liters | 20,000 | |||||
| Compartments,pcs | 2 | |||||
| Pressure,Mpa | 4450+1450 mm | |||||
| Outlet Pipe Diameter,mm | 80 |
|||||
| Baffles,pcs |
12000kg | |||||
| Manhole No.s | 2 | |||||
|
Filling Time,min |
<10 |
|||||
| Drainage Time,min | <22 | |||||
| Material Thickness,mm | 5 | |||||
| Cover Thickness,mm | 5 | |||||
| Tank Material | Carbon steel, Q235A 16Mn | |||||
| Pump | 80YHCB-6 | |||||
| Self-Suction Depth,m | 6.5 | |||||
| Capacity ,liters/h | 60 | |||||
| Flow Length,m | 20 | |||||
| Flow Speed, l/min | 960 | |||||
| Shaft Power,kw | 22.5 | |||||
| Starter | 5.4Kw/24V | |||||
Watch Beiben 2530 fuel truck on YOUTUBE.
Beiben 2530 dumper in production :
https://youtu.be/Il9tOyKQ-Cc
https://youtu.be/EIsld7ZdVvU
Beiben 2530 oil truck in road testing :
https://youtu.be/_wfqsZInTsA
https://youtu.be/DjfMTbdyy-I
https://youtu.be/U9qrJFRiOc4
