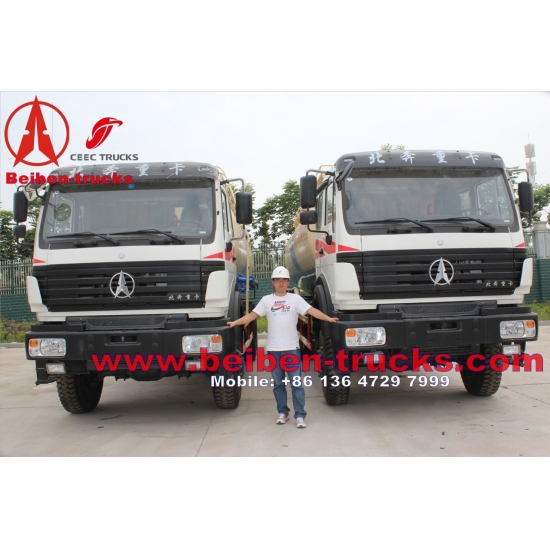

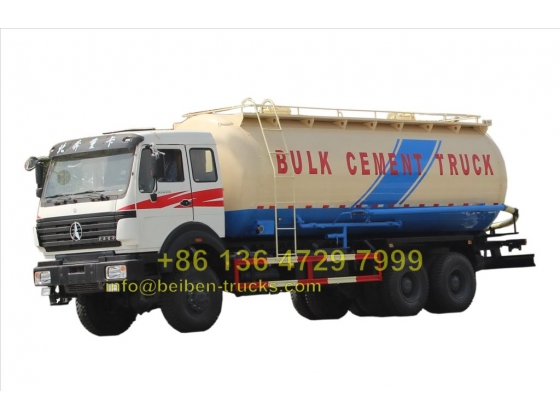

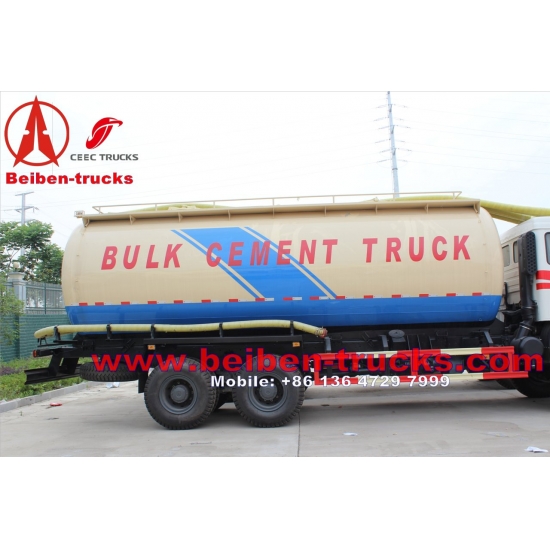

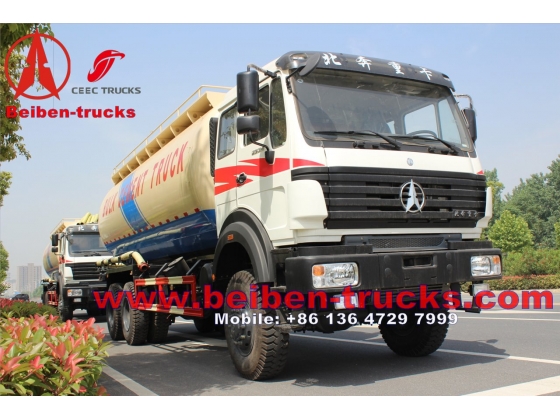

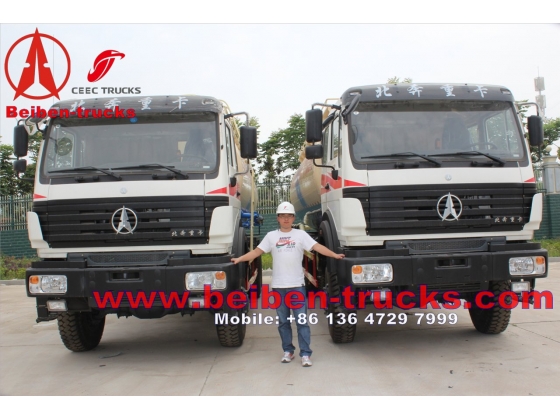

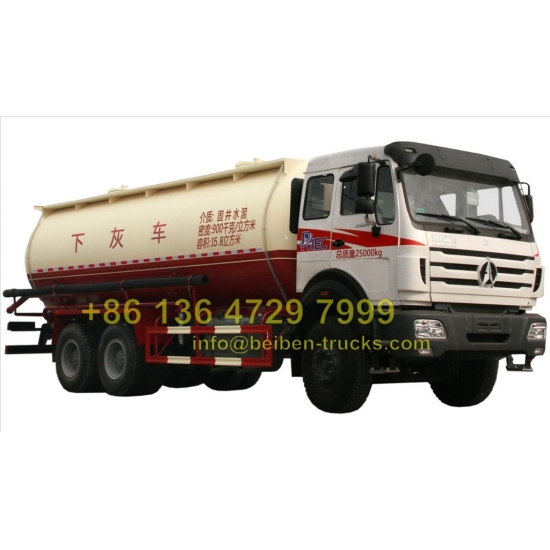

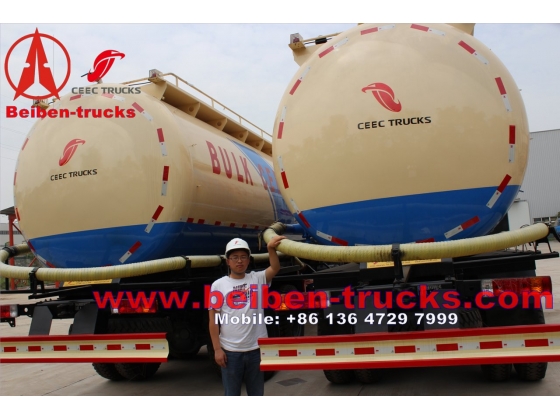

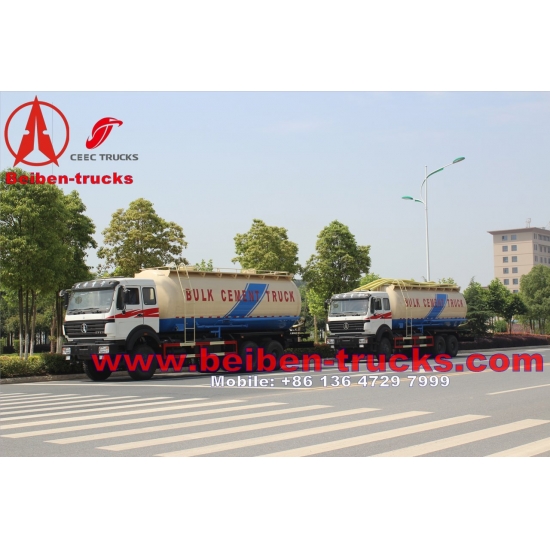

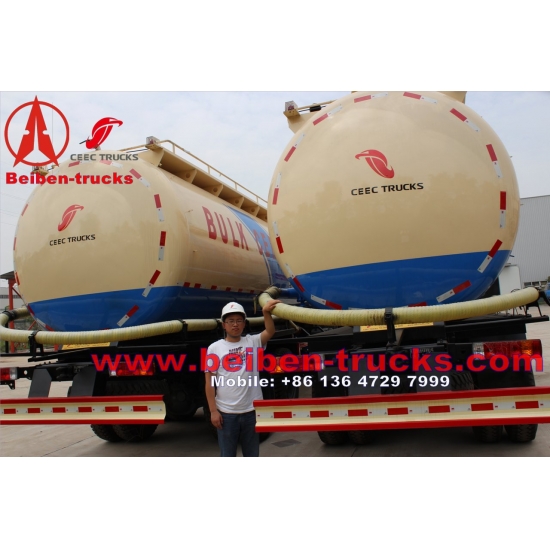

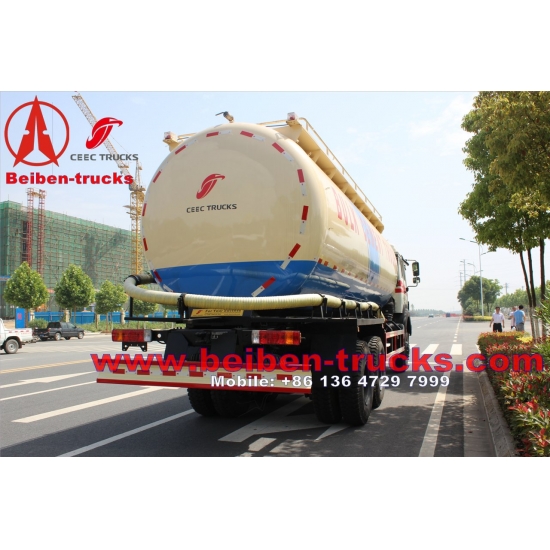

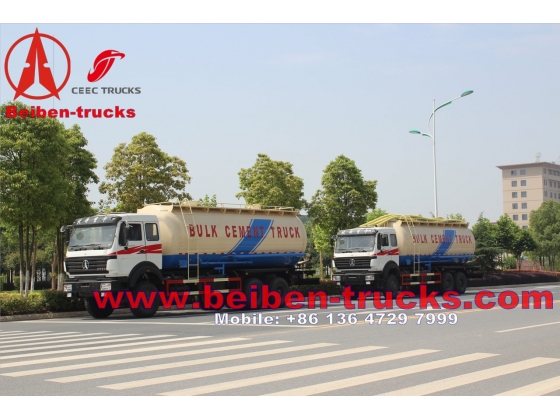

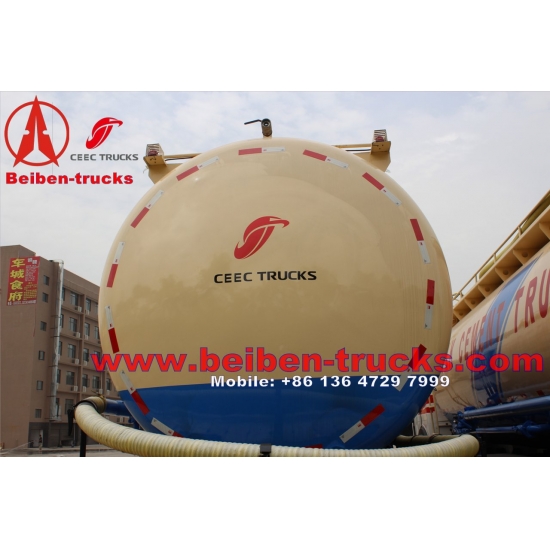

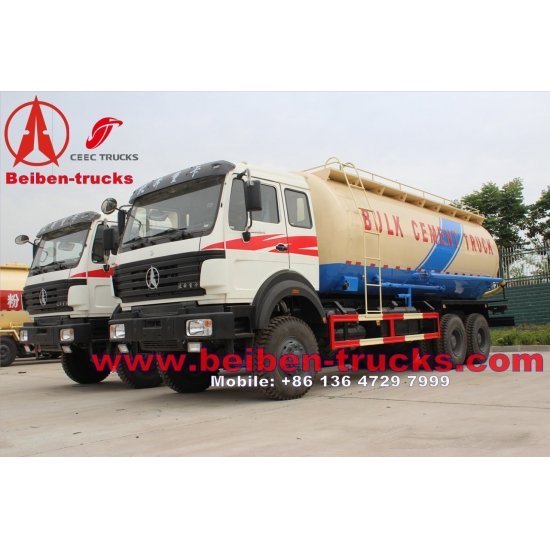

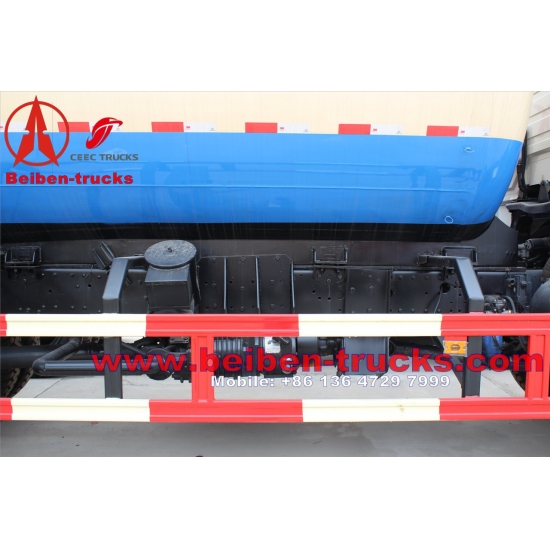

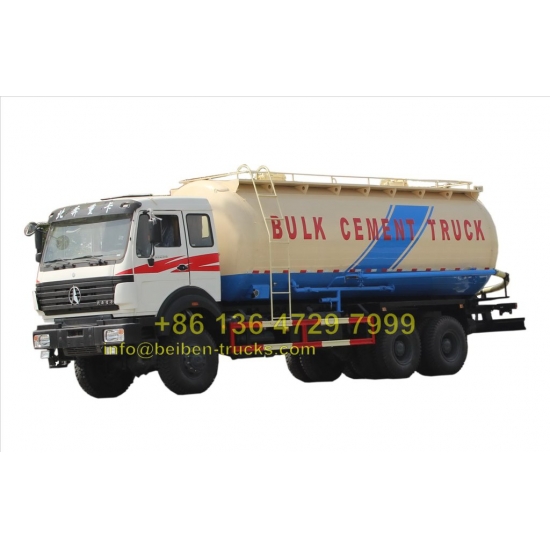

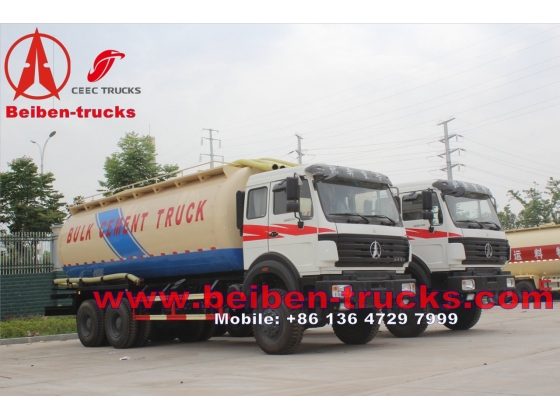

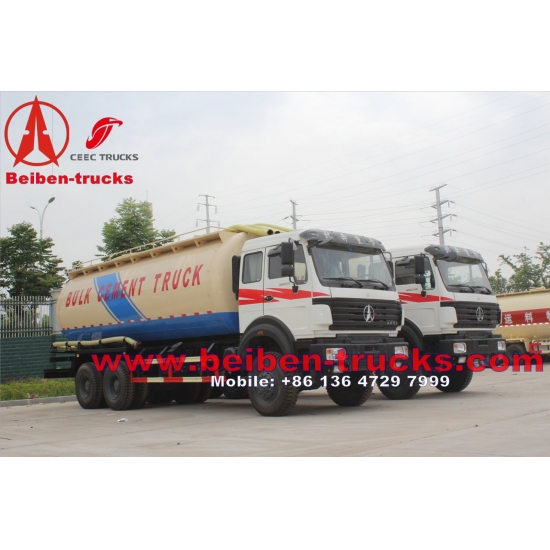

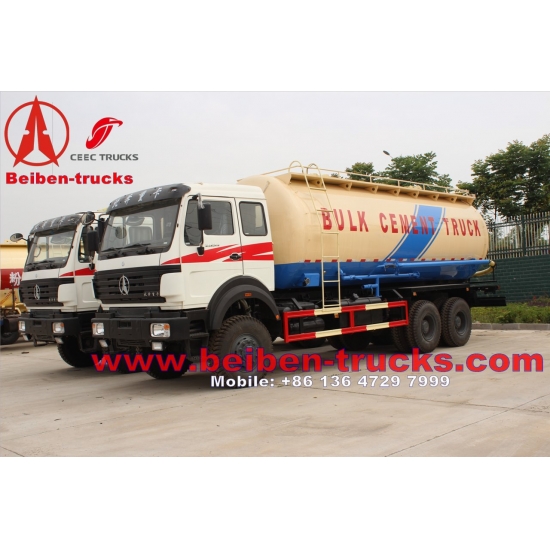

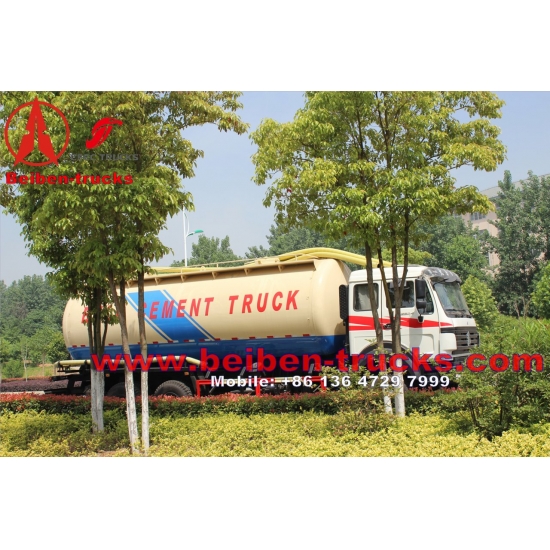

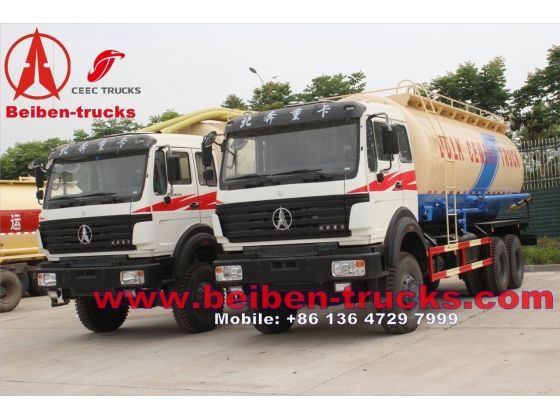

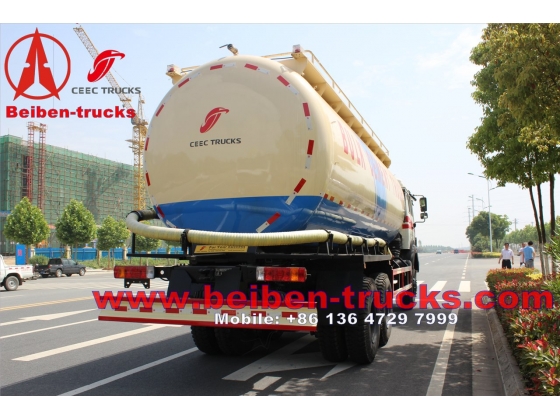

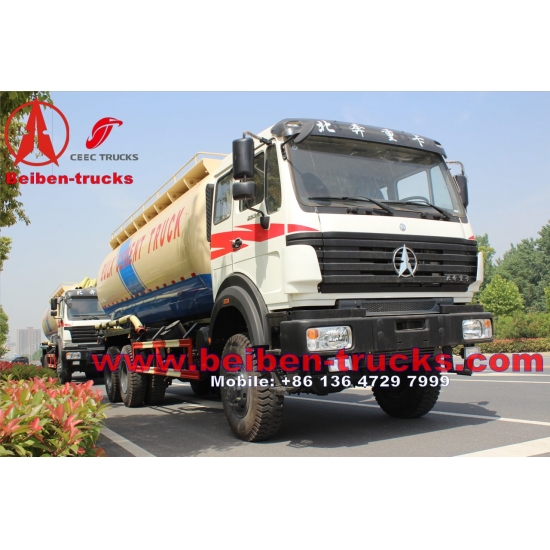

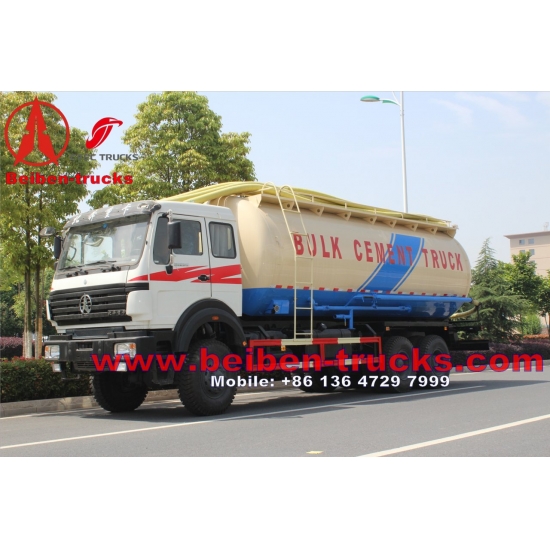

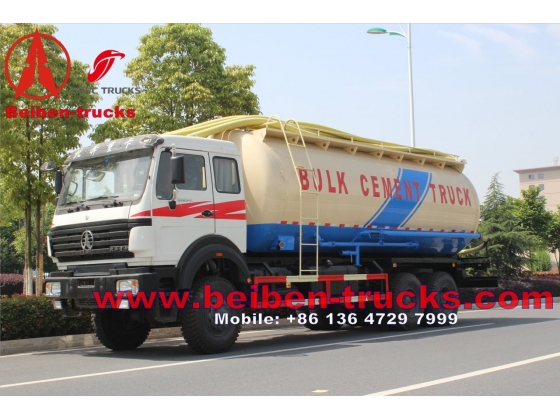

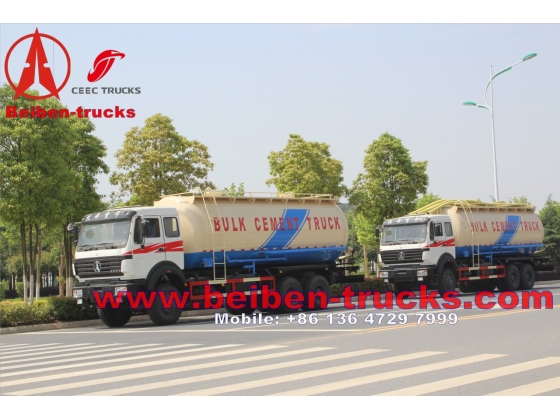

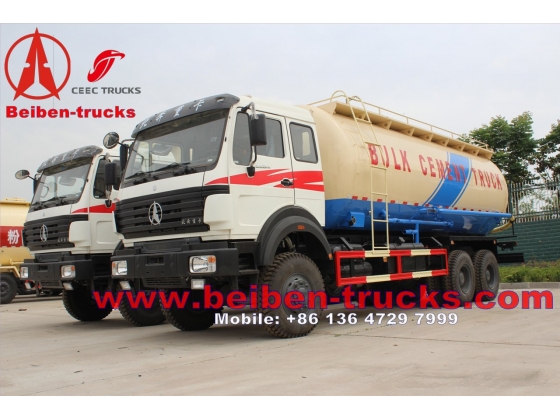

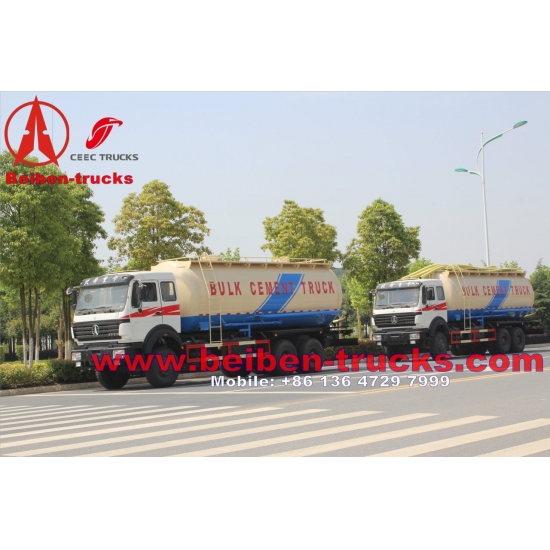

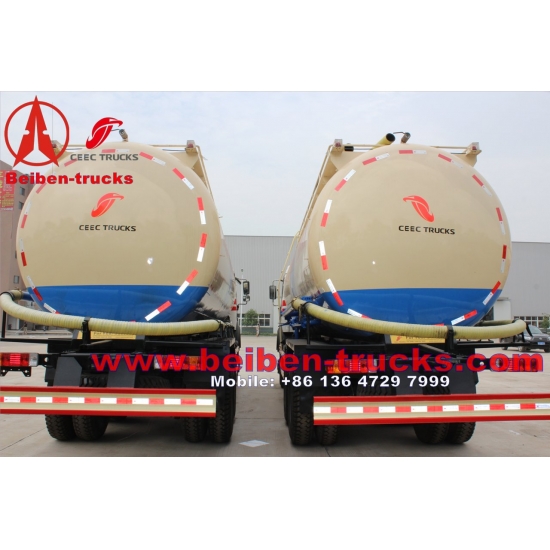

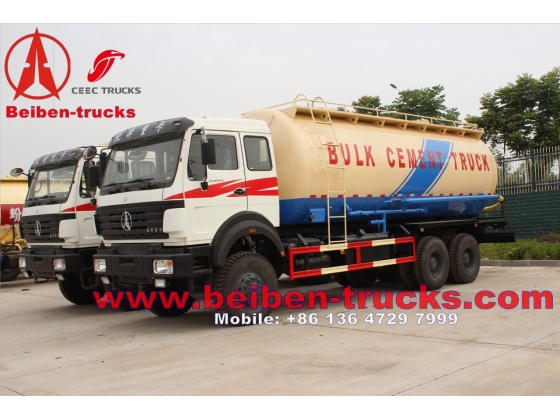

CEEC beiben25 CBM  bulk cement truck are equipped with chinese weichai engine and TAS steering. With outstandingperformance and high quality, they are widely used in industries and sectors,such as national defense, aviation, postal service, railways, highways, harborsand earthmoving projects.

MODEL CEEC1259FJ ( 20-25 T )

Drive System     6X6

SIZE      　

Volume(m3)  20~25

Dimension(mm)    10500×2500×3690mm

Wheelbase(mm)   5050+1450

WEIGHT       　

G.V.W(kg)        25000

Payload(kg) 16000

Kerb (kg)         9980

Max.Traveling speed   78km/h

Min.turning diameter 18.8 m

Grade ability  48%

Approach angle   33°

Departure angle   40°

Fuel consumption       33L/100km

Ground clearance       285 mm

ENGINE 　

Engine Model      WEICHAI336 HP

Engine Type weichai

Max Power(hp)    336

Emission(ml) 9726

TRANSSITION    　

Gearbox fuller FAST 9  shift , forward 9, reverse 1

Axle Number 3

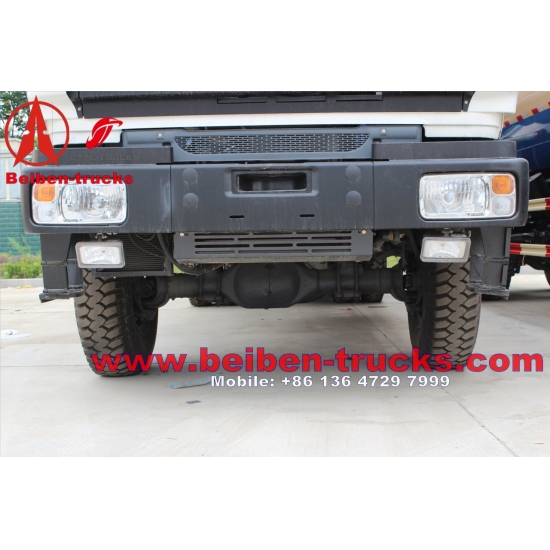

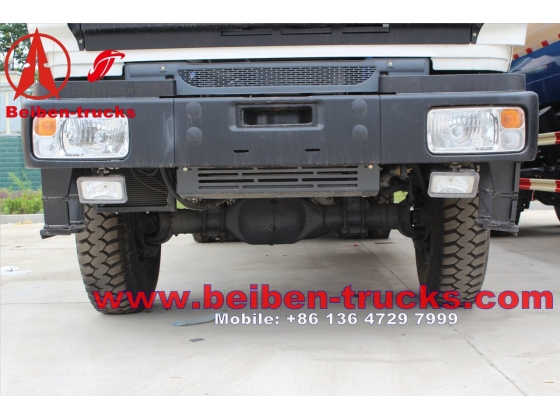

Front Axle(kg)      8000  Stub axle with double T-cross section

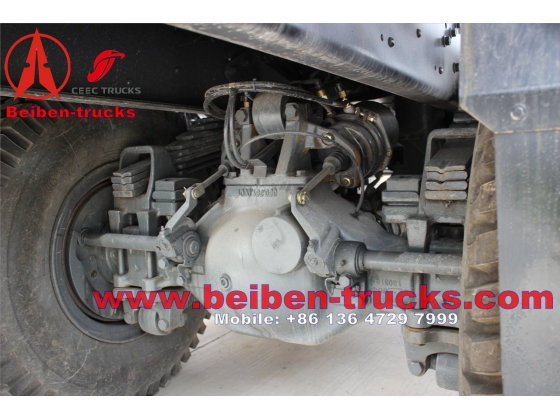

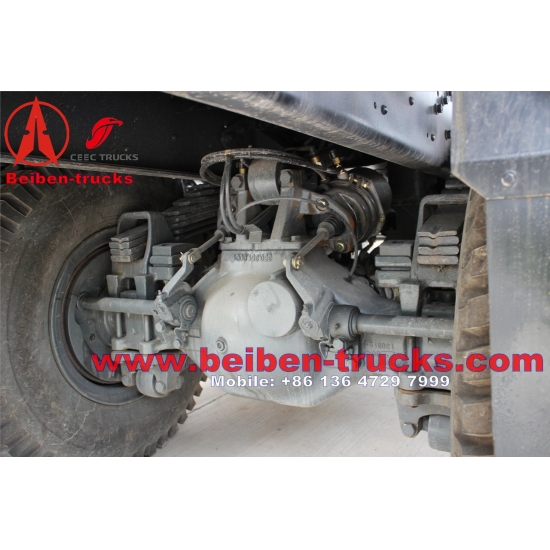

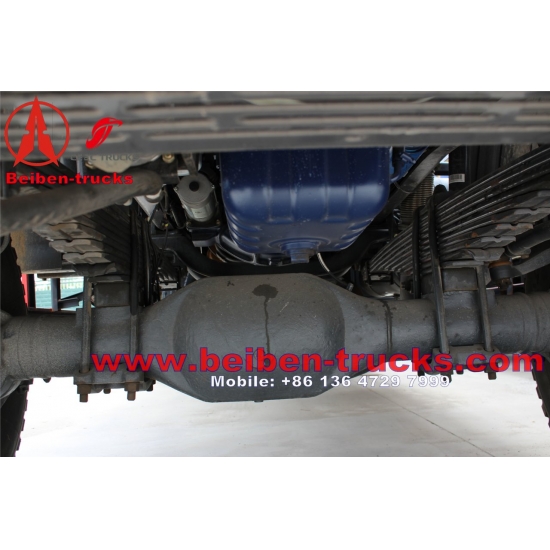

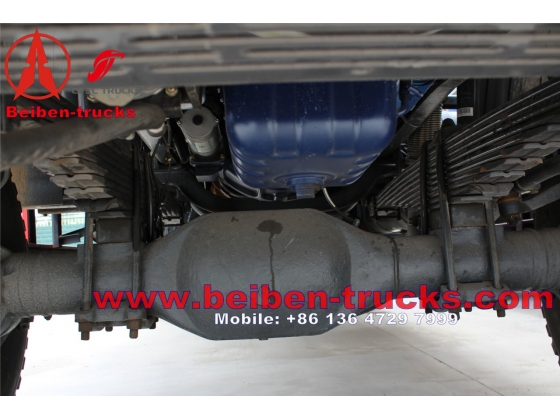

Rear Axle(kg)       18000*2  Hub reductor

Main Ratio(rear axle)   5.73

Leaf Spring   L14R13/L14R13/12

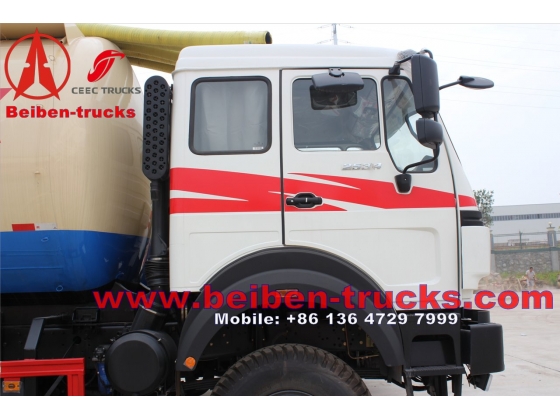

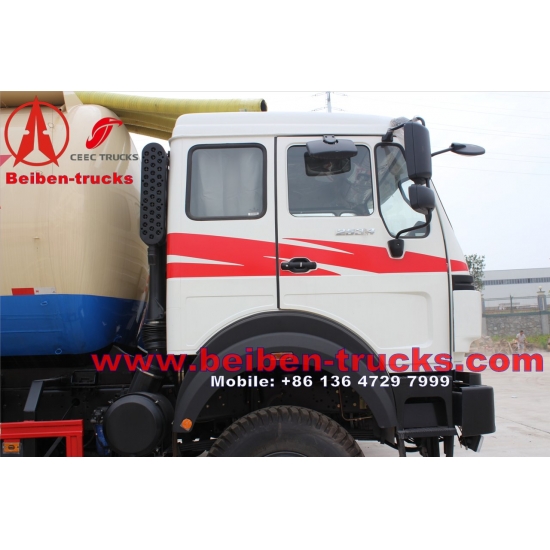

Cabin     Withair conditioner and MP3

Clutch andBrake

Single—plate dry coil-spring clutch,hydraulically operated with air assistance

Service brake   Dual circuit compressed air brake

Parking brake   Spring energy operating on rear wheels

Auxiliary brake   Engine exhaust brake

SteeringSystem

hydraulic steering with power assistance,AmecicaFOWO .

Ratio 22.2-26.2

Electric System

Negative grounded

System voltage    24V

Batteries             24V/165Ah

Pneumaticdriving SYSTEM

AirCompressor 　

Model    WBK-7.5/2A  left set left rotary

Nominal working pressure  0.2 Mpa

Power take off model  QH70A ShanxiFasite

Speed Ratio   0.818

pneumo itself loadings > 0.4T/minute

pneumo itself unloadings  >1.2T/minute

vertical height >15 m

Range of supply cement  >25 M
