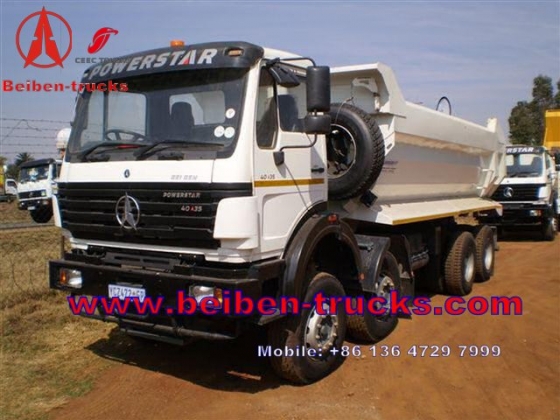

Beiben 6x4 WEICHAI Engine High Quality Dump Truck

Product Details

Specifications

2014 Beiben 6x4 290hp Dump Truck In Low Price Sale
1Competive price
2Best after sale service
3Good quality

Product Description

2014 Beiben 6x4 290hp Dump Truck In Low Price Sale
1Competive price
2Best after sale service
3Good quality



Truck wheel base  (mm)  3450+1450
Curb weight kg 9700
Engine Model WP10/WP12.290HP (Based on Styre technology, made in China)
Power, max   kw/rpm 2200
Max torque(Nm/rpm) 1160/1100-1600
Emission standard EUROIII(II)
Fuel tanker capacity   L 300
Clutch Model GF420/430diaphragm, Single dry frictional disc,Hydraulic boosting
Gearbox Model RT11509C/9JS119/9JS180T/12JS160T ZFS6-90/ ZF5S-111GP/ 6T-90/ 6T-120 ZF 9S-109/ ZF 16S-1650/16S-221
Transfer-case VG1400(Benz technical,made by BEIBEN AXLE)
Brake system Service brake Brake gap can be adjusted automatically, double circulation air brake system
Assistant brake Engine exhaust brake
Park brake Potential springs pressing on middle and rear wheels
Steering system Model ZF8098/ TAS85
Frame of vehicle Fish belly shape, variable width, variable section side beam structure
Front axle (Mercedes Benz  Technology) Double-shoe pneumatic brake, non-driving steering axle
Middle and Rear axle (Mercedes Benz Technology) Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle
Tyre  12.00R20/12.00-20/315/80R22.5
cabin sleeper and A/C, Sun protection on cabin, Radio player(with MP3), Electric glass lifter
Electrical system Battery 2X12V/135Ah
Generator 28V-35A
Starter 5.4Kw/24V
