Beiben Euro 2 engine dump truck 340 Hp

Product Details

Beiben 10 wheeler dump trucks Products

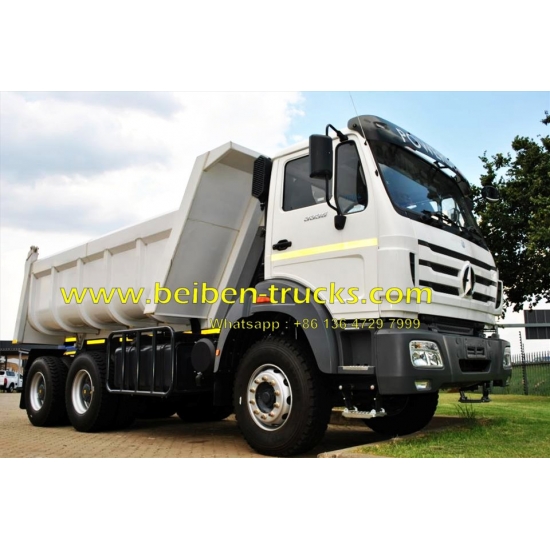

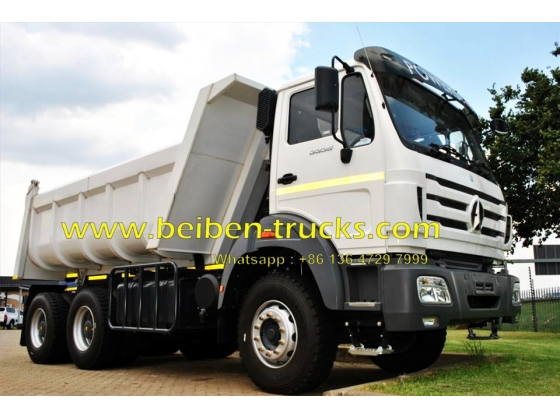

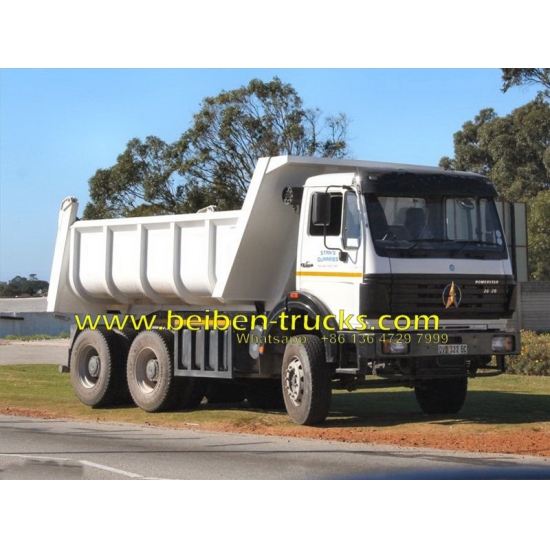

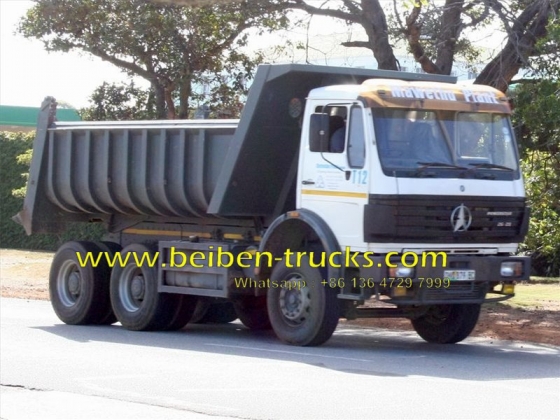

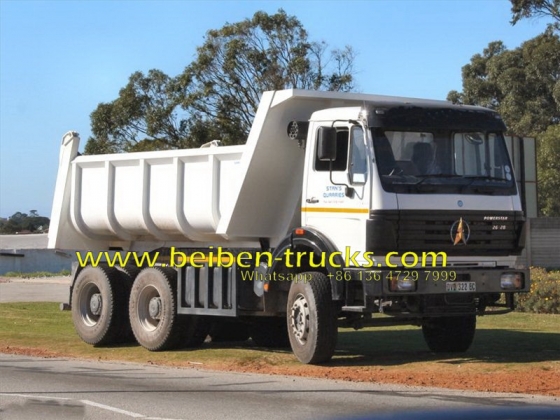

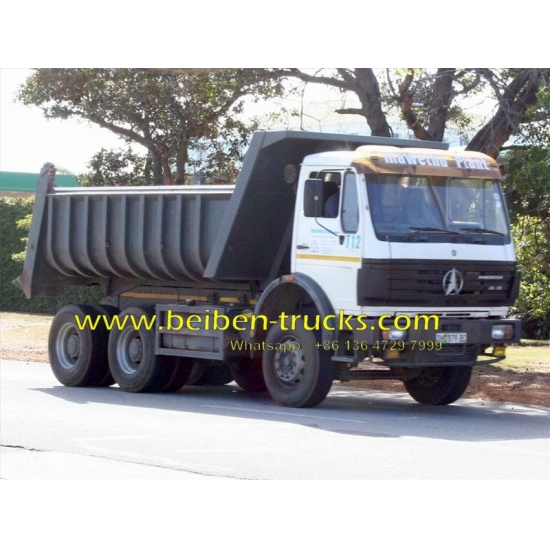

                    Beiben Euro 2 engine dump truck 340 Hp



More than 15 years on Beiben 2529 tippers,Beiben2534dumper, Beiben 2538dump trucks , beiben 6*4 dump truck,beiben 10 wheeler tipper trucks, ,beiben 10 wheeler tipper,dumpers.We are the best beiben 10 wheeler dump trucks manufacturer in china.

Best beiben 10 wheeler Tipper Technical Details:

CEEC beiben dumpers .has the capability to manufacture both sand and stone type, carrying bulk material, often on building sites.  Beiben 10 wheeler Tipper bodies can be made out of normal steel or hardox ,welldox  material.

Advanced TIPPER BODY
Beiben 10 wheeler dump trucks Body is made of excellent Steel Material or Hardox, all body and Gates are being supported with vertical steel "u" type profiles considering
the capacity.Side doors can be produced either fixed or movable

Carbox dioxide protected welding ensure tipper trucks good performance and reliable quality.

Excellent TIPPER LIFTING MECHANISM

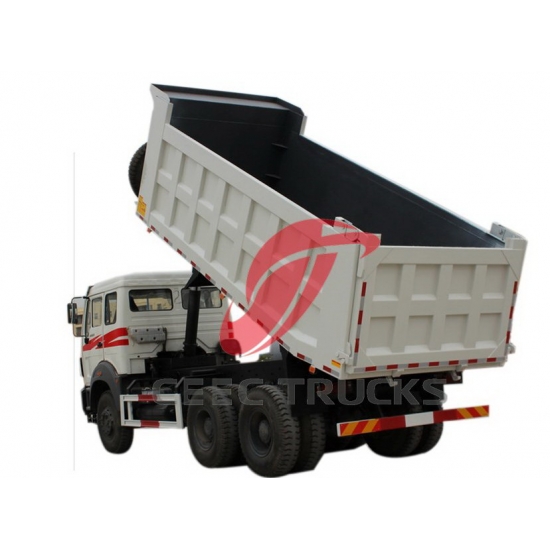

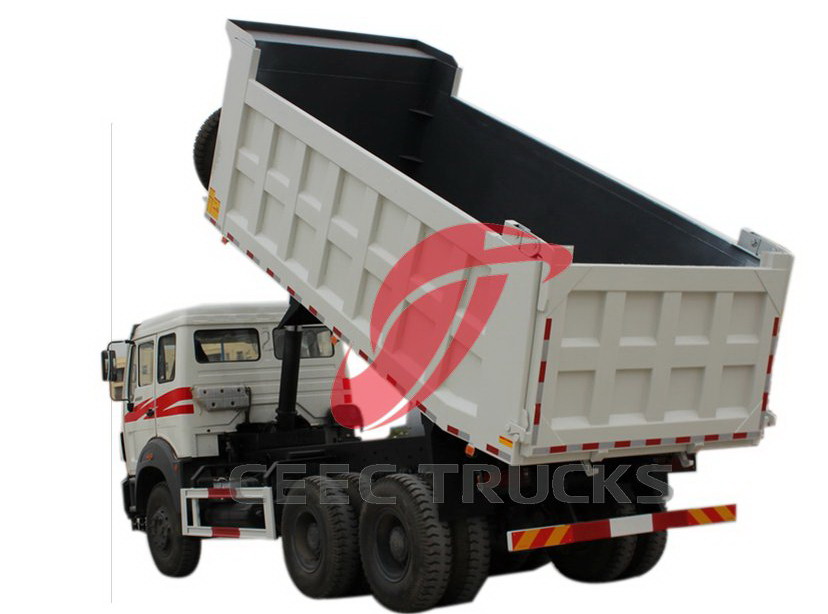

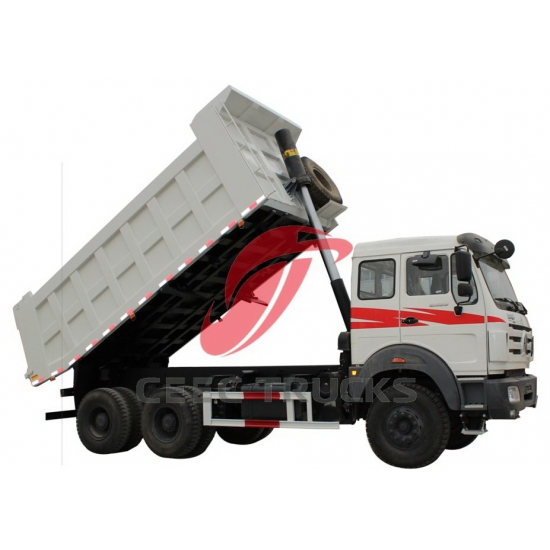

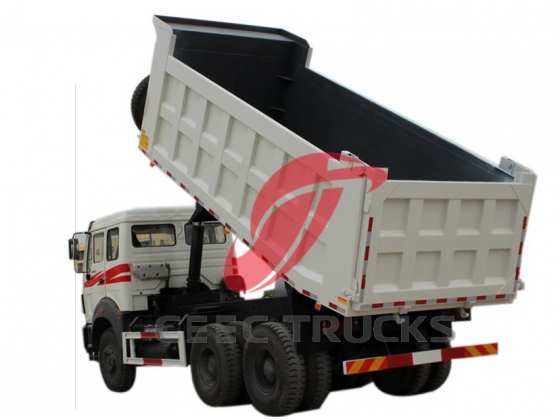

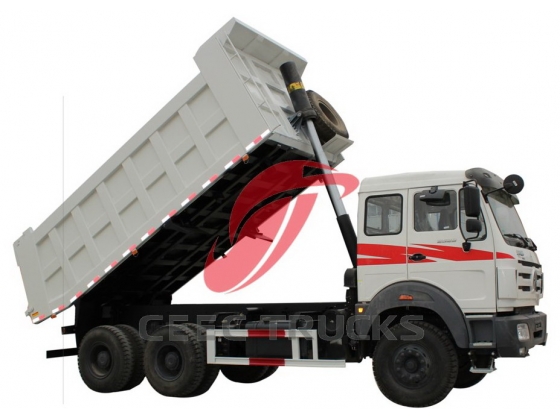

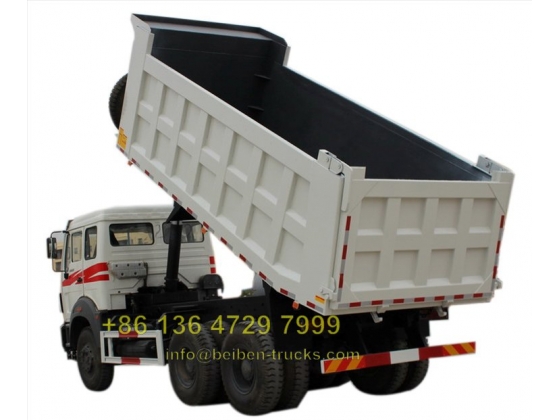

Beiben 6*4 dump truck’s Body is being lifted from the front by telescopic type cylinder or middle lifting cylinder .

Hyva Hydraulivally system is recommended .HYVA 145, 169,191 series. Hyva oil tank,.

Perfect TIPPER HYDRAULIC INSTALLATION

Hydraulic Power is supplied by the transfer of energy from PTO to the pump.PTO is controlled from the dumpers cab.The oil tankhas normally 70

Beiben Euro 2 engine dump truck 340 Hp

 Best design on beiben 10 wheeler dump truck, with great experience on beiben dumpers.


More than 500 units kinds of beiben camions benne from CEEC TRUCKS plant are now worked at congo brazavalle, pointe noire Kingshasa, algeia, nigeria, angola, south afrca.



Beiben 30 T euro 2 engine dump truck specification.

Overall dimension (mm) 8150x2500x3417
Driving Model 6x4
Wheel base (mm) 3800+1450
Curb weight (kg) 11900
Engine Model WD615.50, WEICHAI brand, Power: 280hp
Gearbox Model 5S-112GP, mechanical type,Based on ZF technology , 9 Forward speed gear
Frame Based on Germany Benz Technology
Axle(Front, Middle and Rear) Based on Mercedes Benz Technology
Brake system Safe(consist of Service brake, Assistant brake and Park brake)
Steering system Model ZF8098
Fuel tanker capacity (L) 400
Clutch Model 430,Hydraulic boosting
Tire 12.00R20 radial tire
Electrical system 2 Batteries (12V/135Ah each )
Safe Cab(driver die Zero record) full steel skeleton structure, covered with double layer steel plate;
Dimension for Upper body 5300×2300×1300mm, Front Lifting



Beiben 40 T euro 2 engine dump truck specification

Overall dimension (mm) 8150x2500x3417
Driving Model 6x4
Wheel base (mm) 3800+1450
Curb weight (kg) 12400
Engine Model WD615.50,WEICHAI brand, Power: 280hp
Gearbox Model 9JS150A, mechanical type,Based on Fuller Eaton technology,9 Forward speed gear
Frame Based on Germany Benz Technology
Axle(Front, Middle and Rear) Based on Mercedes Benz Technology
Brake system Safe(consist of Service brake, Assistant brake and Park brake)
Steering system Model ZF8098
Fuel tanker capacity (L) 400
Clutch Model 430,Hydraulic boosting
Tire 12.00R20 radial tire
Electrical system 2 Batteries (12V/135Ah each )
Safe Cab(driver die Zero record) full steel skeleton structure, covered with double layer steel plate;
Dimension for Upper body 5600×2300×1200mm, Front Lifting



Beiben 420 Hp engine dump truck

Dimen sion (mm) 8630 × 2500 × 3390
Wheel base (mm) 3800 + 1450
Curb weight (kg) 12200
Dimension for Upper body: 5600 * 2300 * 1250mm (16CBM) Sand body
HYVA Lifting system, Bottom 8 mm , side 6 mm, Front Lifting
Engine Model SD12.420, water-cooled, four strokes, 6 cylinders straight in line, turbocharged
Fuel tanker capacity (L) 400
Clutch Model 430, Single dry frictional disc, Hydraulic boosting
Gearbox Model 12JS200T, mechanical type, 12 Forward speed gear. Based on Fuller Eaton technology
Steerning system Model ZF8098, whole circulation in ball type, hydraulic boosting



Sales No. 3132GK
Dimension(mm) Long 7690

Wide 2495

High 2975
Wheel base(mm) 1500+3550+1450
Drive 8×4
Engine Model WP10.310E32
Cabin NG80B/Long cab
Clutch(mm) Φ430
Front Axle 7.5T
Rear/Mid Axle Model/speed radio Double Reduction Driving Axle /5.263
Steering System ZF8098
Braking System Dual Circulation Air Brake System
Fuel Tank(L) 400L
Frame/mm 317×70×8.5+7+8mm
Tire 315/80R22.5
Front/Rear Overhang 1410/875
Transmission Fuller 12JS160T
Curb Weight(kg) 14900
Up Body Volume(m³) 6.8mx2.3mx1.5m
Max Speed(km/h) 90



Overall dimension (mm) 8150x2500x3417 Driving Model 6x4 Wheel base (mm) 3800+1450 Curb weight (kg) 11900 Engine Model WD615.50, WEICHAI brand, Power: 280hp Gearbox Model 5S-112GP, mechanical type,Based on ZF technology , 9 Forward speed gear Frame

Model Engine Model Rated Power Payload Driving Mode
Beiben 2538 WP10.380N 380 Hp 60 Ton 6*4
Beiben 2534 WP10.340 340 Hp 30 Ton 6x4
Beiben 2534k WP10.340 340 Hp 36 Ton 6*4
Beiben 2538k WP10.380 380 Hp 40 Ton 6*4
Beiben 2529 WP10.290 290 Hp 45 Ton 6*4
Beiben 2538k WP10.380 380 Hp 40 Ton 6*4
Beiben 2538 WP10.380N 380 Hp 45 Ton 6*4
Beiben 2529 WP10.290N 290 hp 30 Ton 6*4
Power star 2628 WP 10.280N 280 Hp 40 Ton 6*4
Beiben 2629 WP 10.290N 290 Hp 40 Ton 6*4
Beiben 2634 WP 10.340N 340 Hp 35 Ton 6*4
Beiben 2629 dumper WP 10.290N 290 Hp 35 Ton 6*4
Beiben 2629 A WP10.340 340 Hp 40 T 6x4
Beiben 2629 A WP10.290 290 Hp 25-30 T 6x4
