Model

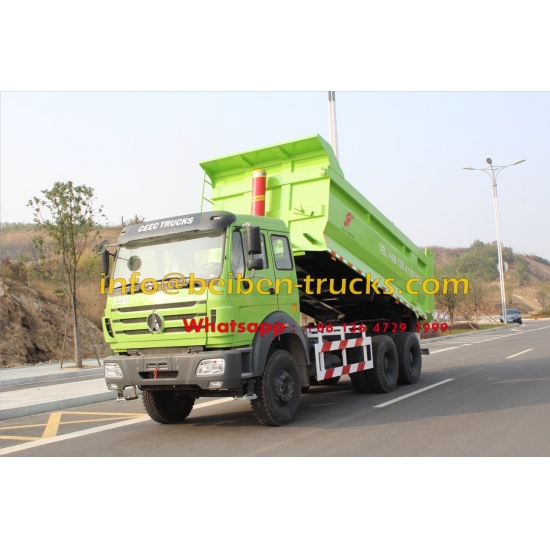

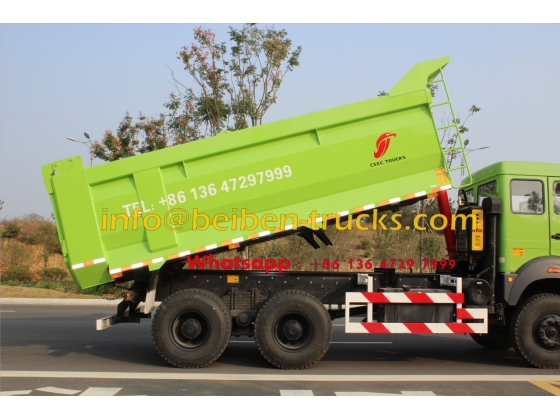

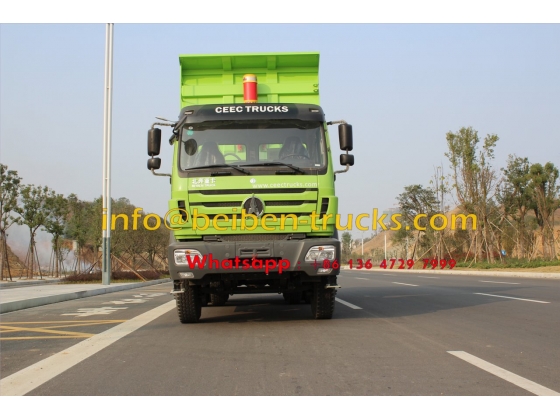

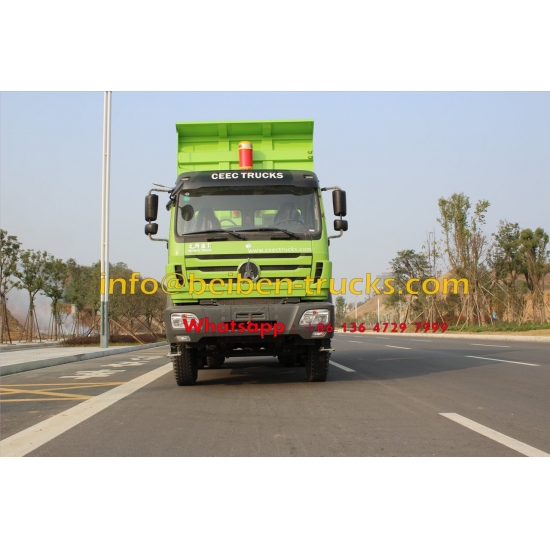

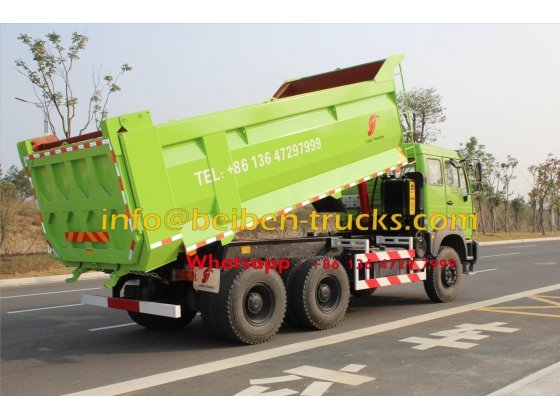

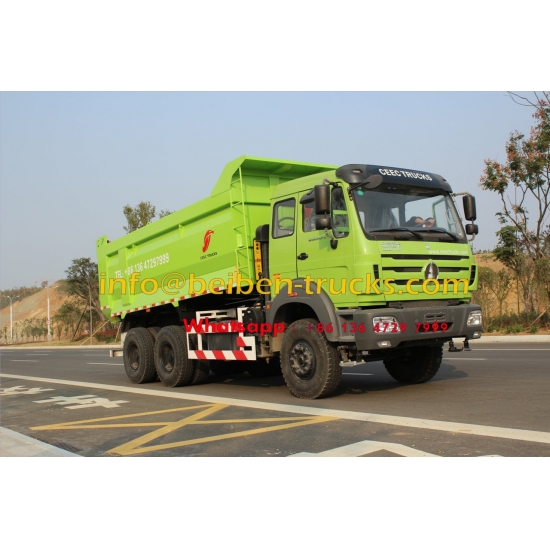

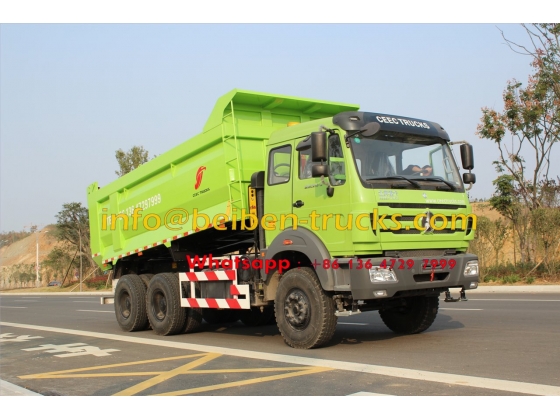

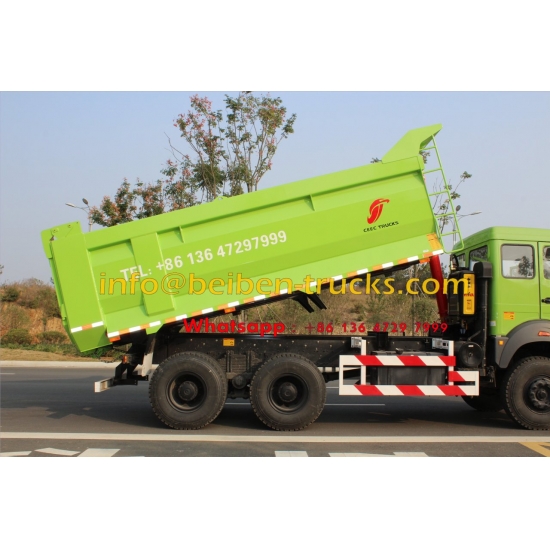

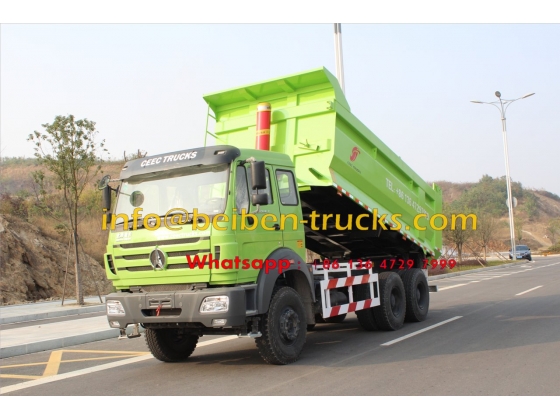

6x4 dump truck

Cabin

Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly; With inner A/C

Engine

Type: Diesel 4-stoke Direct injection,6-cylinder in line, Turbo-charging, Inner cooling.

Model:

WP10. 380E32

WEICHAI Diesel engine

MAX Horse power:

380HP/280KW

Displacement(L):

9.726liter (Euro 2 standard)

Max torque:

1500NM@1200-1600rpm

Bore/stoke:

126mm/130mm

Gear box

Max torque:2000NM

Model:

12JS200T, mechanism,12gears,2reverse gear, manual, synchronization

Speed:

12speed,2reverse

Axle(front/rear)

Front axle

Double-shoe pneumatic brake, non-driving steering axle

Tandem

Double-shoe pneumatic brake, casting, double reduction driving axle

Clutch

Single dry frictional disc,Hydraulic boosting

Brake

Service brake: Brake gap can be adjusted automatically, double circulation air brake system

Parking brake: Potential springs pressing on middle and rear wheels

Engine brake: Engine exhaust brake(EVB)

Steering

TAS85, driver sit at the left hand side

Electric Equipment

Operating voltage:

24Vnegative grounded

Starter:

24V,5.4KW

Alternator

28V,758W

Battery voltage

12V/135Ah,cigar lighter

Frame

Fish belly, shape, variable width, variable sections, side beam structure.

Tyre

12+1 spare tyre with rim

12.00-R20

Suspension system: strongthen heavy duty Leaf spring type

Front/Rear

12/12/13

Dump body:

Inside size of Body(mm): 8900x2300x1000,6x8mm, made of high intensity steel

Lifting type: Front lifter “T” type hydraulic system.

Overall dimension(mm): 11730x2500x3484(Length x width x height)

Wheelbase

1950+4600+1450mm

Track:

Front/Rear

2045/1872

Approach/Departure angle

26/27

Front /Rear overhang

1410/2320

Max speed

90km/h

Kerb weight:

15500kg

Oil tank capacity

300L fuel tank
