Product Details

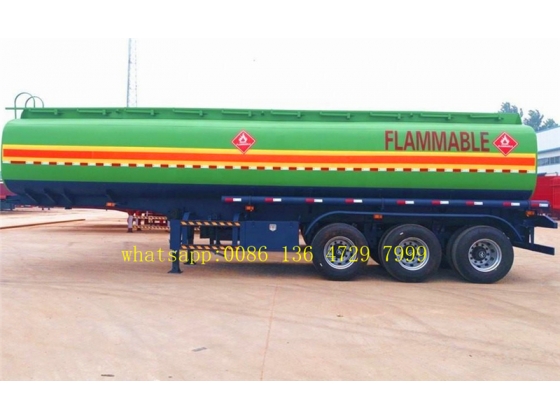

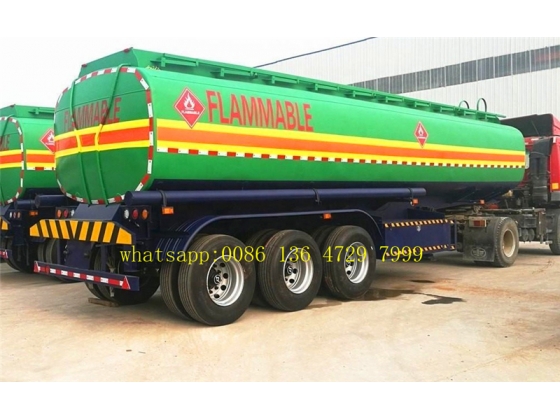

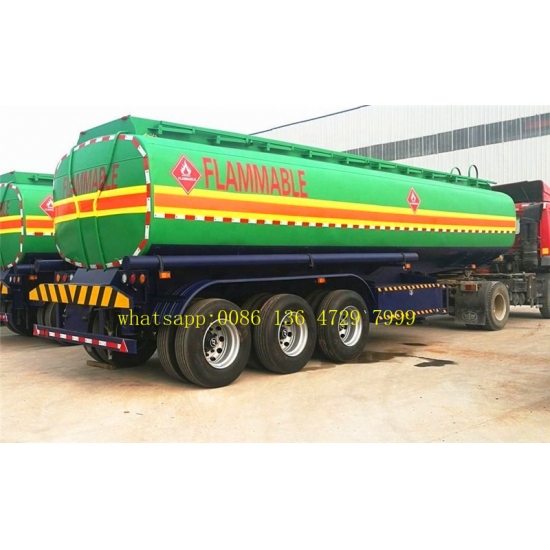

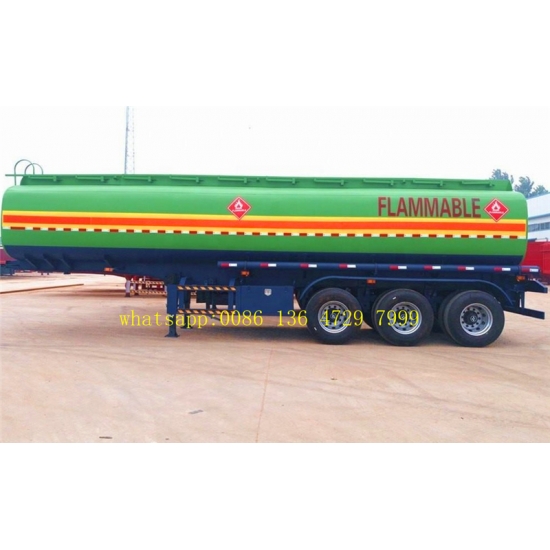

                                                 12 Wheeler 50000 Liters Oil/Fuel Tank Trailer

   12 wheeler oil tanker semitrailer

 Applications:

12 wheeler fuel tanker semitrailer, also called as12 wheeler oil tanker semitrailer, 12 wheeler fuel wagon semitrailer africa, 10 wheeler fuel tanker body semitrailer afria . As premium africa fuel tanker semitrailer manufacturer,  we aim at supply reliable oil tanker semitrailer for all africa customers.

** fuel tanker trailer Tank material could be carbon steel, stainless steel, alluminum……
** It can be divided into many compartments to load different types of fuels.
** BPW axles, JOST kingpin, JOST landing gears, Air suspension, ABS.
** Heat preservation of rock cotton or polyurethane foaming, Heating system.
** OPW (Civacon) bottom loading system can be equipped: API connections, over-fill detection system , vapor recovery vent, vapor recovery adaptors & dust cap, pneumatic control, bottom emergent valve……
** Tube or tubeless tyres, off-road single tyre for bad roads.



 Key Features:



---- 30 years on semitrailer manufacturing, germany benz technology assurance.

---- All genuine spare parts , 20,000 km maintenance

---- 12 months after sale service guarantee

---- Service for more than 200 horned customer , export more than 100 countries.

---- Patented design on semitrailer, reliable and



 Specifications:





Dimension and Weight

Overall Dimension(mm)

12500x2500x4000mm

Wheelbase

8,500mm+1,310mm+1,310mm

Payload

50,000kg

Tare weight

9,000kg

G.V.W.R.

59,000kg

Function

transport Fuel, Oil, Diesel

Tank

Volume

50000L

Thickness(mm)

Material Q235 carbon steel

Tank body and separate compartment plate:  5mm

Dish end plate:  6mm

Welding standard

All welding are to be done by qualified welder per applicable national standard

Compartment

3 compartments ( 3*14000L )

Manhole cover

3 units Safety manhole with breath valve, Aluminum, diameter 500mm.

Discharge valve

3units  3

Bottom valve

3 units 4 inch Pneumatic aluminum valve, 1pcs, Henghe Brand

Discharge pipe

3 seamless steel tube, 6m

Tanker body test

Hydrostatic test to 5 psi (35 Kpa) on each compartment

Running System

Axle

14Ton, L1 brand optional FUWA brand, 3Axles, one hundred fifty thousand Kilometers no need maintenance

Axle Number

Three

Tire

12R22.5, 12 pcs. Taitong brand

Rim

9.0*22.5 steel disc wheel, 10 holes ISO, 12 pcs

Suspension system

Mechanical Suspension

Steel Spring

10/10/10 leaf spring with 90mm(W) *13mm(thickness)

Electrical System

Chinese standard 24V lighting system

Brake system:

Dual line pneumatic brake, SAE hose and connector,no ABS

Brake air chamber

6 units T30/30 spring brake chambers

Emergency relay valve

Wabco relay valve

Tire Type and quantity

1200R22.5   12units

Traction/King Pin

2 and 3.5 removable Kingpin, bolted in type 500mm from the front face of the front bolster

Landing Gear

Zhenhua brand

We are premium12 wheeler oil tanker semitrailer exporter, can export 30 cbm ADR fuel tanker semitrailer , 40 cbm ADR fuel tanker semitrailer , 50 cbm ADR oil tanker semitrailer , 60 cbm ADR oil tanker semitrailer

           12 wheeler oil tanker semitrailer

Premium oil tanker semitrailer manufacturer in china, can customized 2 axle oil tanker semitrailer, 3 axle oil tanker semitrailer, 4 axle fuel tanker semitrailer.

 12 wheeler oil tanker semitrailer
