2015 new model Beiben concrete mixer truck price

Product Details

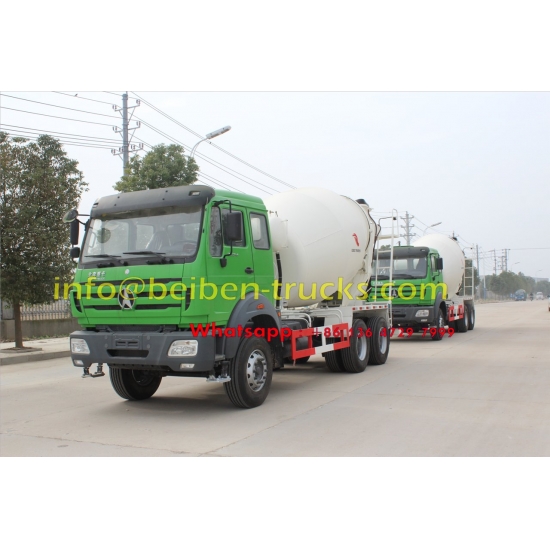

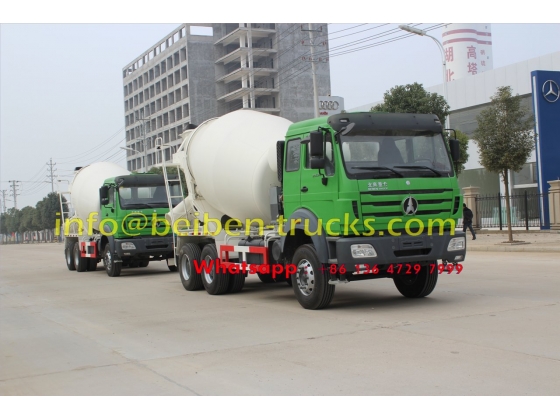

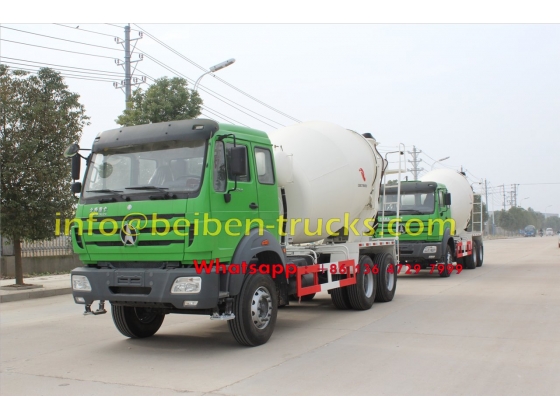

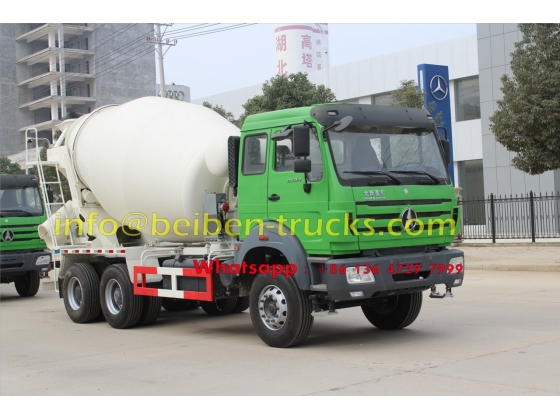

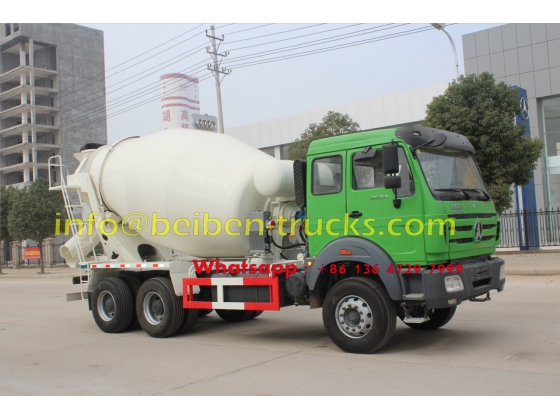

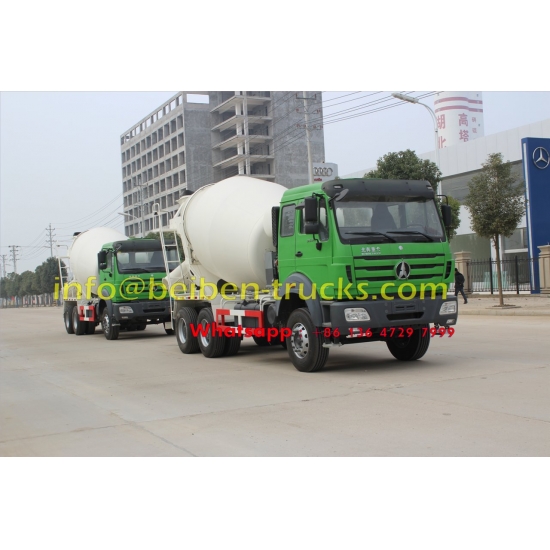

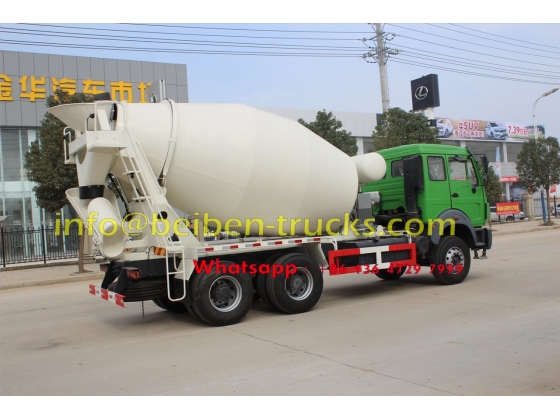

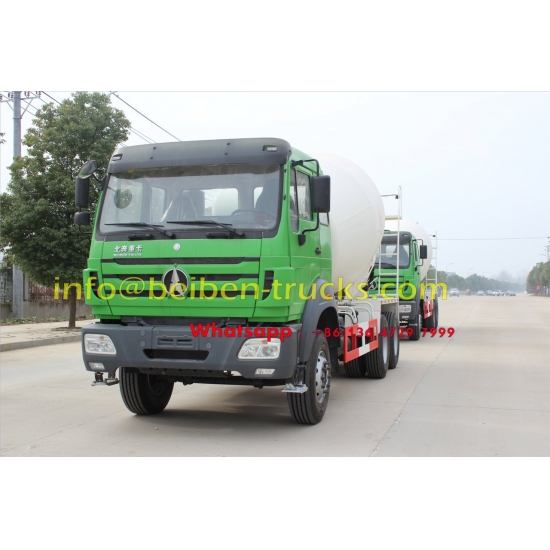

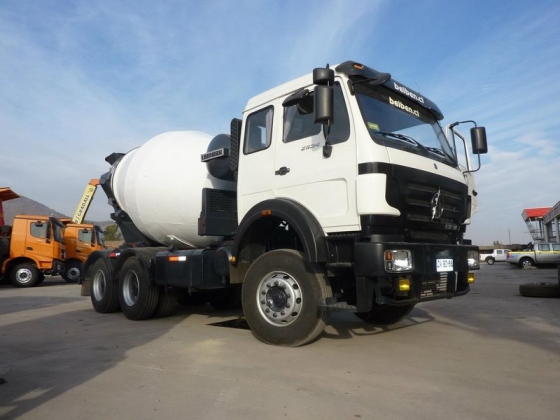

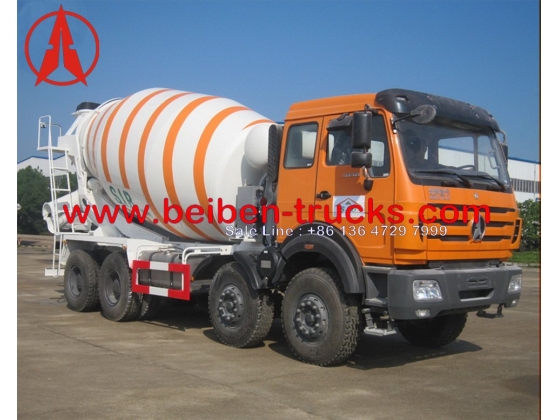

2015 new model Beiben concrete mixer truck price

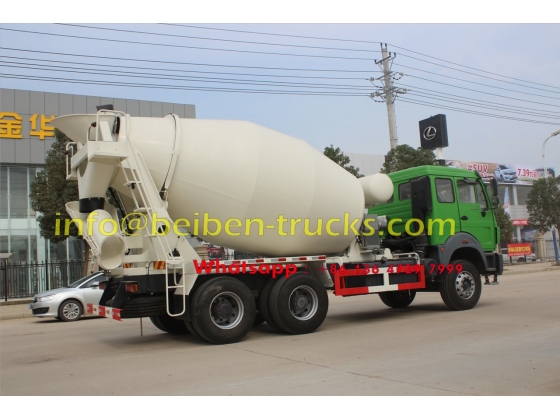

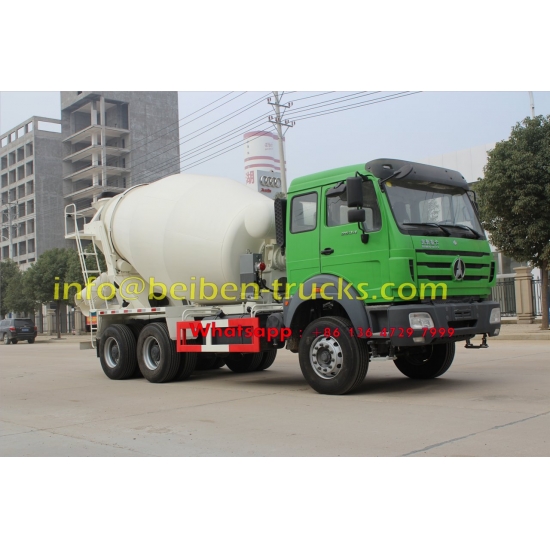

2015 new model Beiben concrete mixer truck price

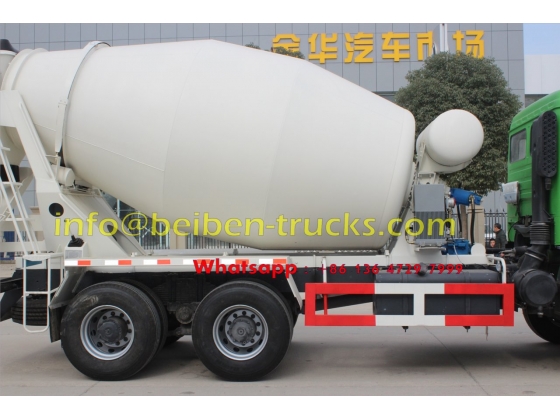

1.High-performance mixing drum
Beiben transit mixer,
The combination of the large capacity mixing drum and the uniquely-designed double logarithmic variable pitch helical blade enables the beiben mixer truck get perfect balance between the concrete mixing quality and discharging speed, it not only meets the requirements of pumping while discharging at idle speed but also ensures our beiben cement mixer trucks the uniformity of concrete mixing.

2.World famous hydraulic transmission parts:

Qualified hydraulic transmission part is the important guarantee of the reliability of beibentruck-mounted concrete mixer, thus our products adopts the world famous components.
Hydraulic oil pump: Rexroth, EATON, , ARK
Hydraulic motor: Rexroth, EATON, , ARK
Reducer: AF, SAUER, PMP, TOPUNION
Radiator: AKG, ASA and domestic famous brands


3.Convenient and flexible operation system in different styles:
Connecting rod operation mode is applied in driver’ cab and both side at the rear part of the beiben concrete mixer truck , it can realize three axle linkage which features convenient and simple in operation.
The operation mode of controller with soft shaft features more safe and reliable for north benz mixer truck.
Operation of electric control mode features energy-saving, comfortable and full of humanness.


4.Water-supply system:
Electric water pump and pneumatic types are optional.

mixer drum capacity: 6 M3 ,8 m3, 10 m3, 14 M3 .

mixer engine : Cummins, Hino, Weichai

mixer horse power  :  260- 375 HP

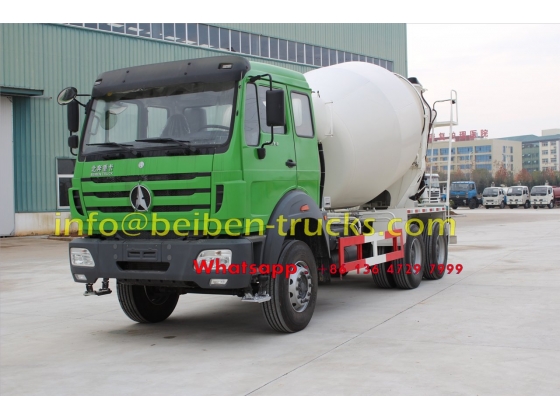

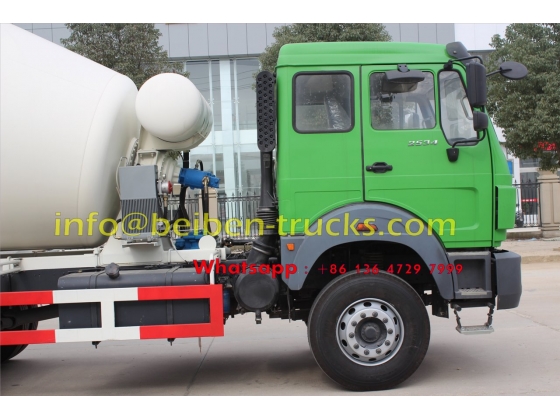

2015 new model Beiben concrete mixer truck price

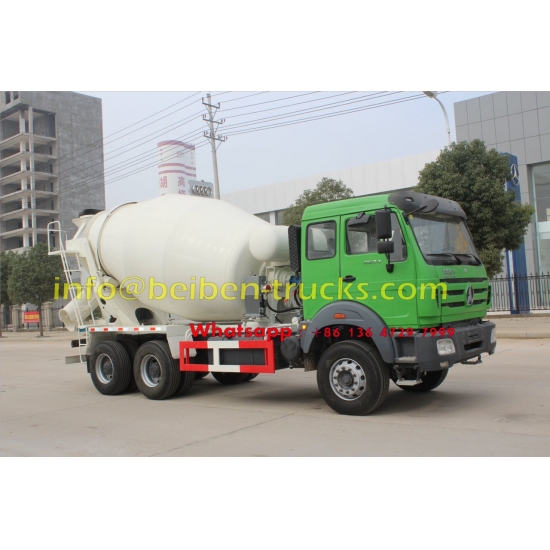

2015 new model Beiben concrete mixer truck price

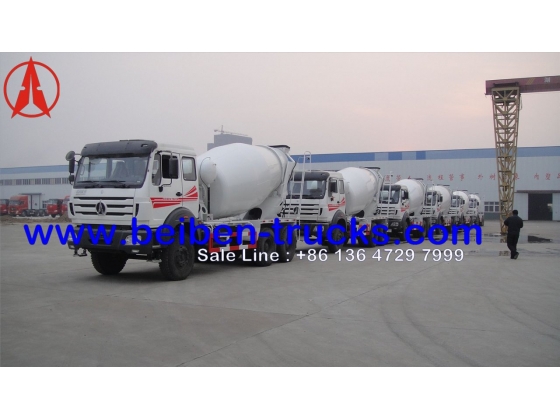

Most professional beiben concrete mixer truck workshop .

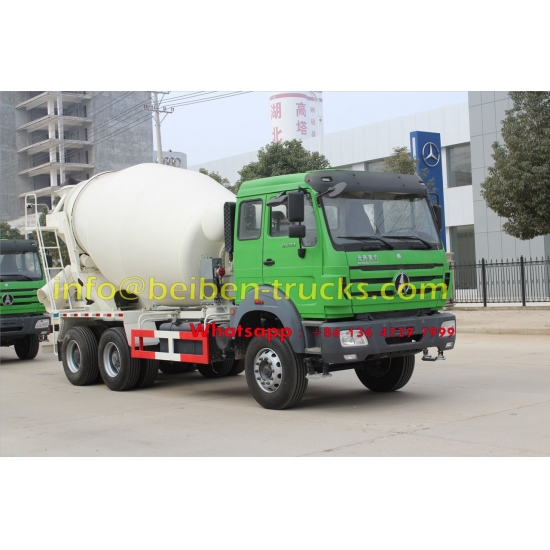

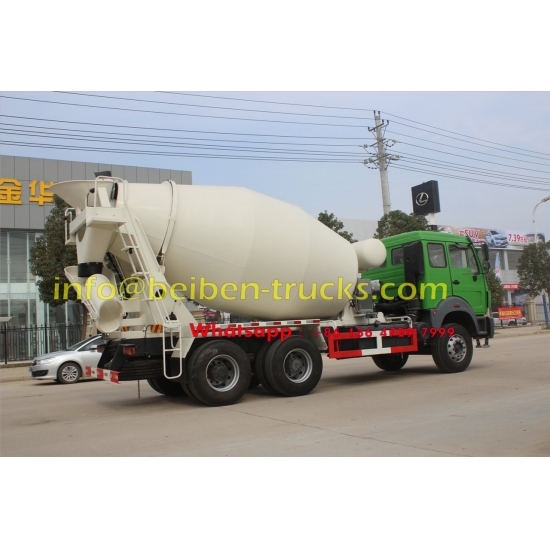

2015 new model Beiben concrete mixer truck price

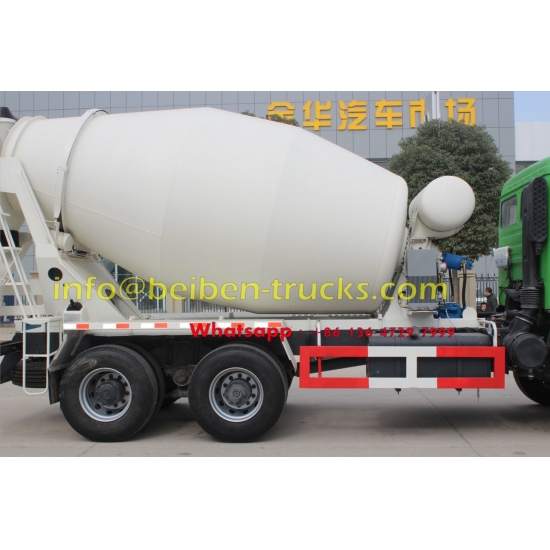

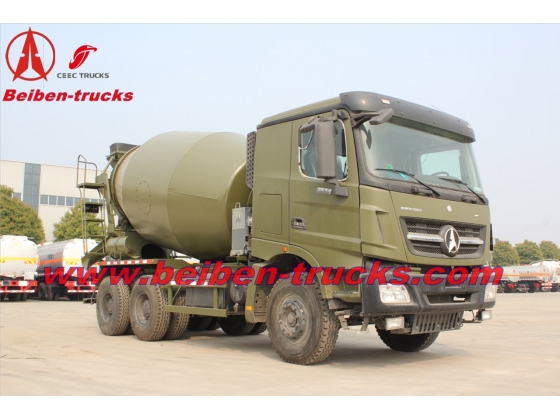

2015 new model Beiben concrete mixer truck price

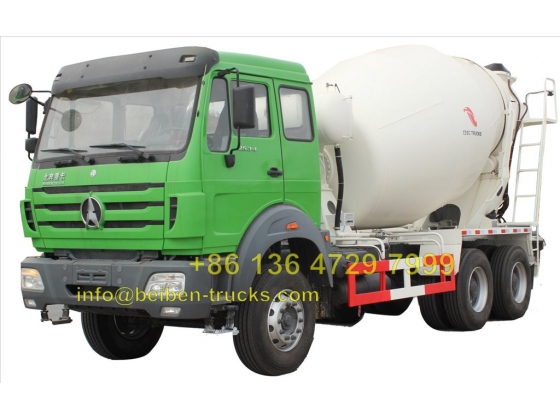

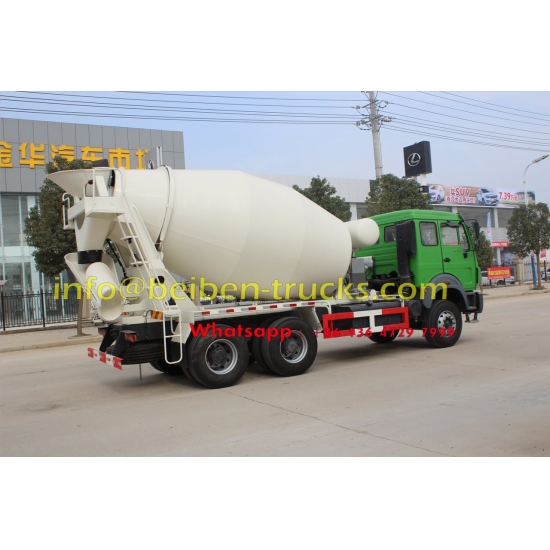

2015 new model Beiben concrete mixer truck price

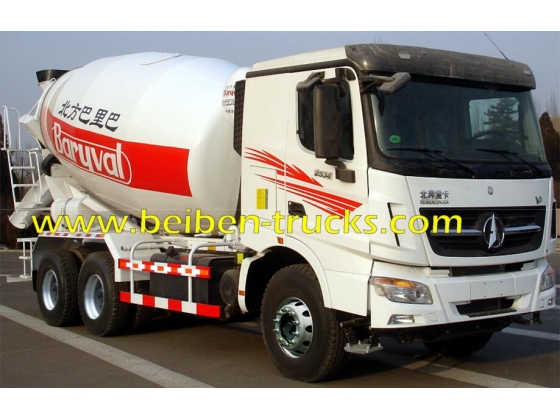

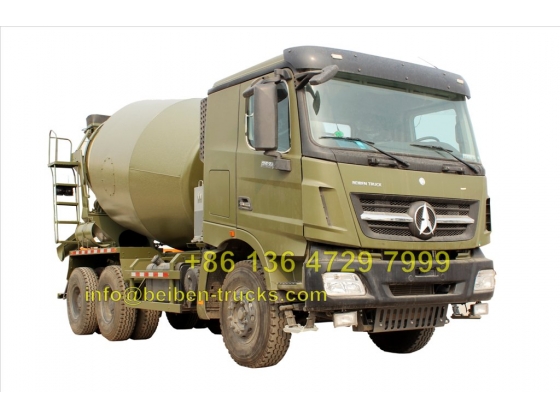

NORTH BENZ 6X4 CONCRETE MIXER Truck

Model

ND5257GJBZ

Driving type

LHD (Right Hand Drive is optional)

Driver's cab

Long cabin, single sleeper

Engine

Maker: WEICHAI

Diesel 4 stroke direct injection diesel engine, 6 cylinder in-line with water cooling, turbo-charging & inter-cooling

Engine model: WP10.340E32

EUROIII emission standard

Maximum output: 340HP@2200 rpm

Number of cylinder:6

Displacement: 9.726L

Clutch

430mm, hydraulically operating with air assistance

Transmission

FULLER Brand transmission.

Front Axle

 Using Mercedes Benz technology front axle 7.5 tons

Rear Axle

 Using Mercedes Benz technology  13T double reduction drive axle

Steering

TAS85

Option: ZF8098, hydraulic steering with power assistance

Wheel & Types

Tyres: 12.00R20

Optional: 12R22.5,12R20

Radial tire and tubeless tire is optional

Electrics

Operating voltage: 24V, negative grounded

Dimensions in mm

Wheel base:                            3800+1450

Overall size:                       8715×2495×4000

Weight in kg

Kerb weight                             8700

Permissible trailing capacity               25000

Performance

Maximum driving speed(km/h)             85

Body mm

9CBM Mixer body

The manufacture reserves the right of technical alteration/change for better improvement prior notice
