north benz 2538 v3 cement mixer truck

Product Details

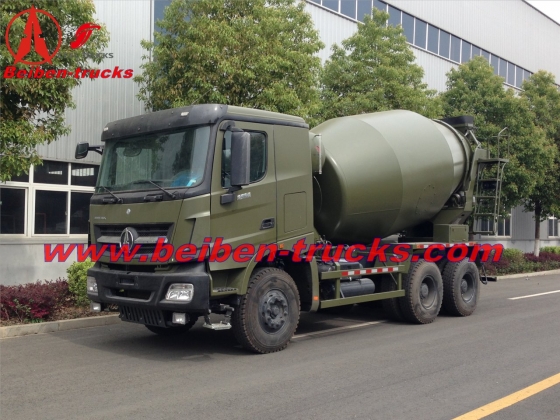

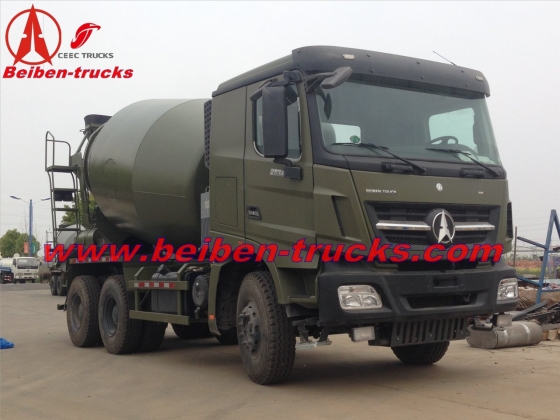

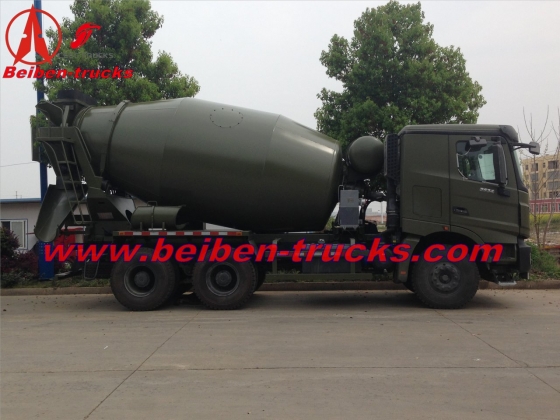

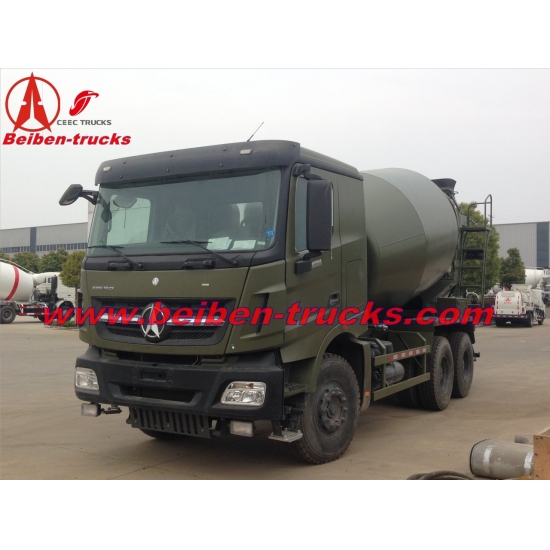

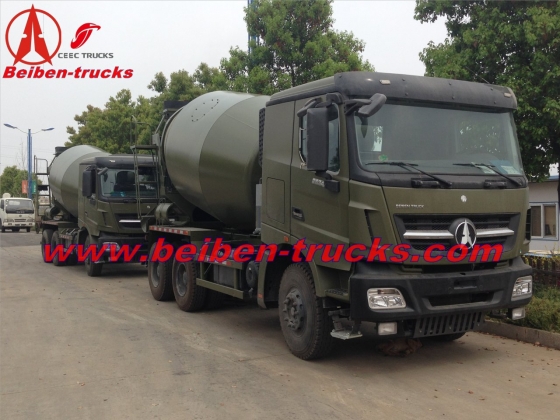

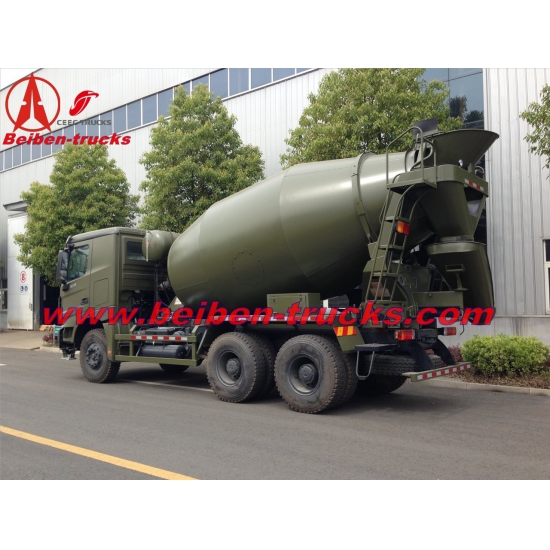

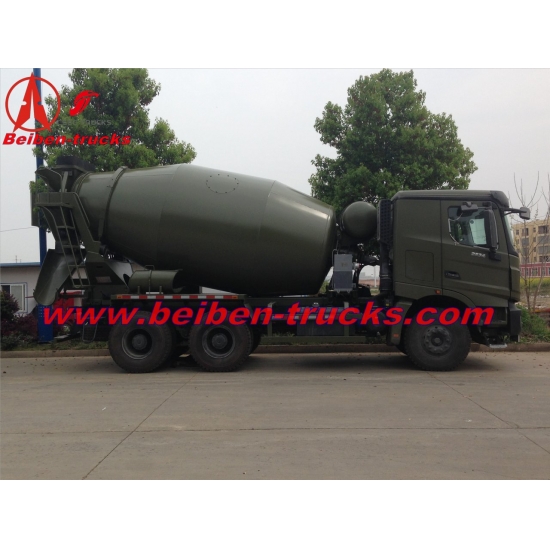

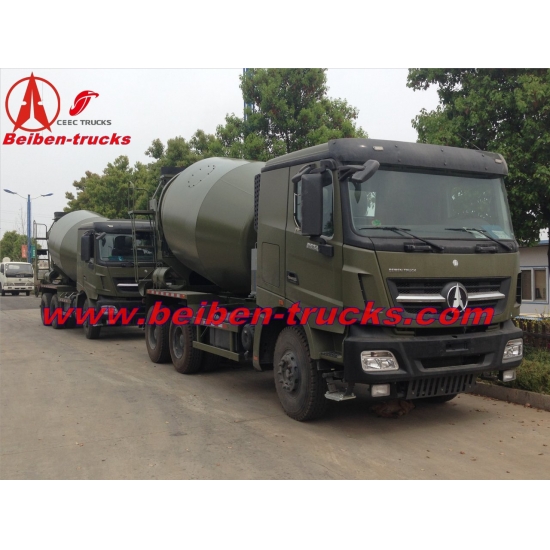

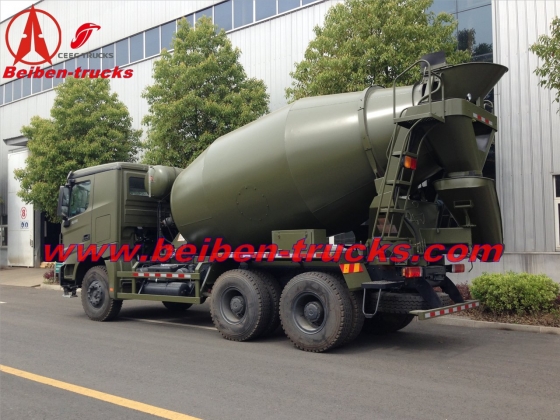

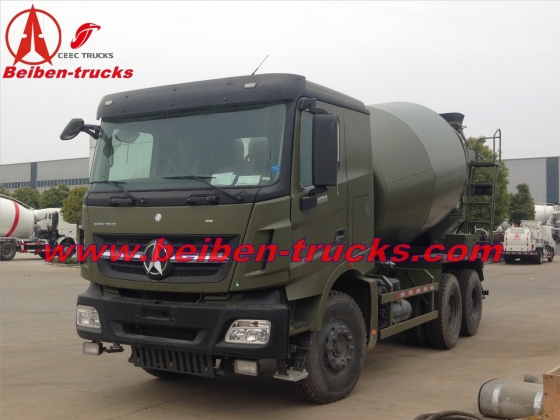

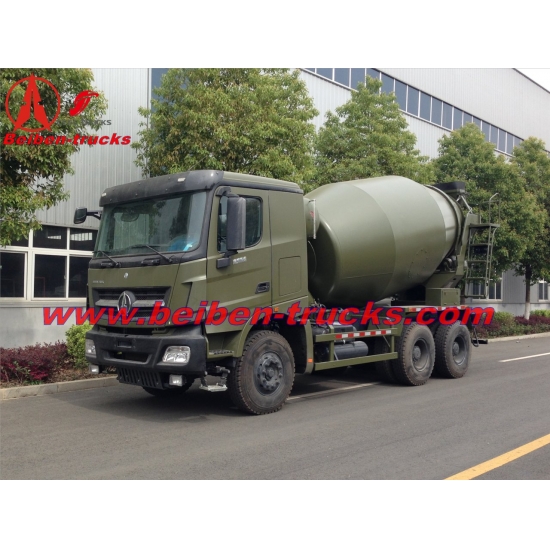

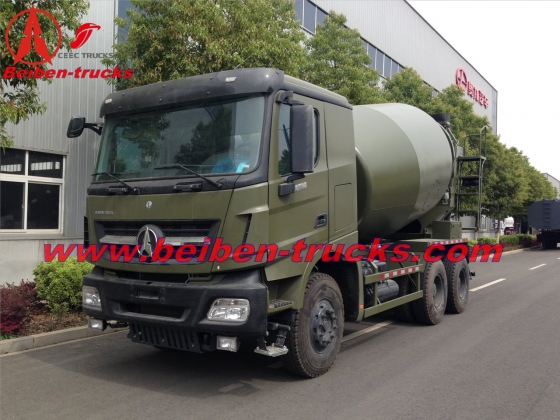

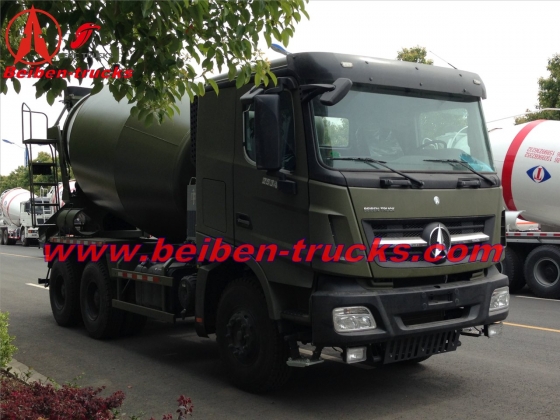

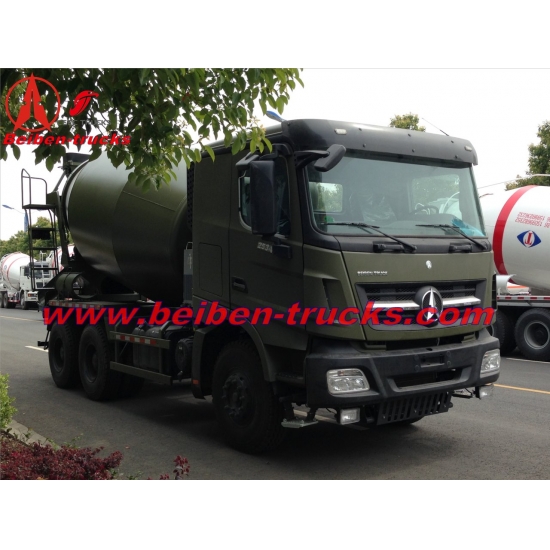

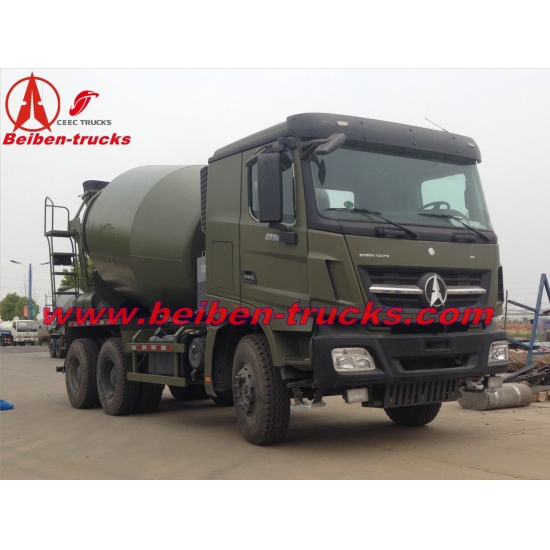

north benz 2538 v3 cement mixer truck

 beiben v3 mixer trucks

1.High-performancemixing drum
CEEC TRUCKS  transit mixer,
The combination of the large capacity mixingdrum and the uniquely-designed double logarithmic variable pitch helical bladeenables the beiben mixer truck getperfect balance between the concrete mixing quality and discharging speed, itnot only meets the requirements of pumping while discharging at idle speed butalso ensures our beiben cement mixer trucks the uniformity of concrete mixing.

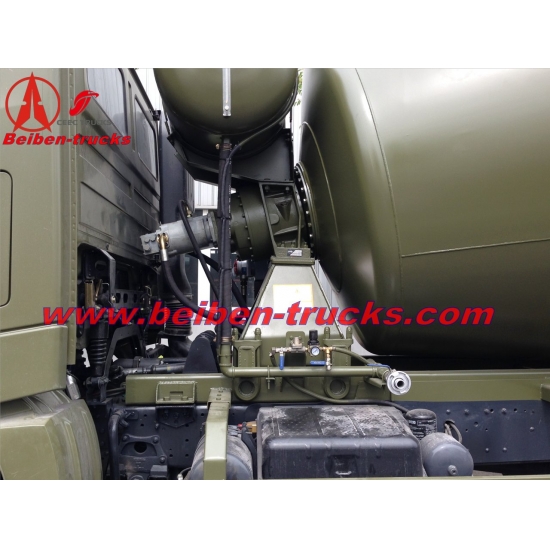

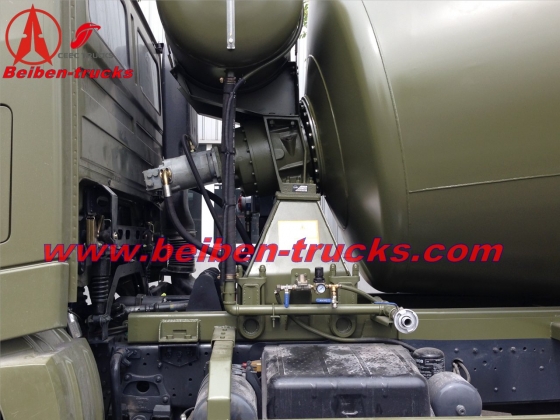

2.Worldfamous hydraulic transmission parts:

Qualifiedhydraulic transmission part is the important guarantee of the reliability of beibentruck-mounted concrete mixer, thusour products adopts the world famous components.
Hydraulic oil pump: Rexroth, EATON, , ARK
Hydraulic motor: Rexroth, EATON, , ARK
Reducer: AF, SAUER, PMP, TOPUNION
Radiator: AKG, ASA and domestic famous brands

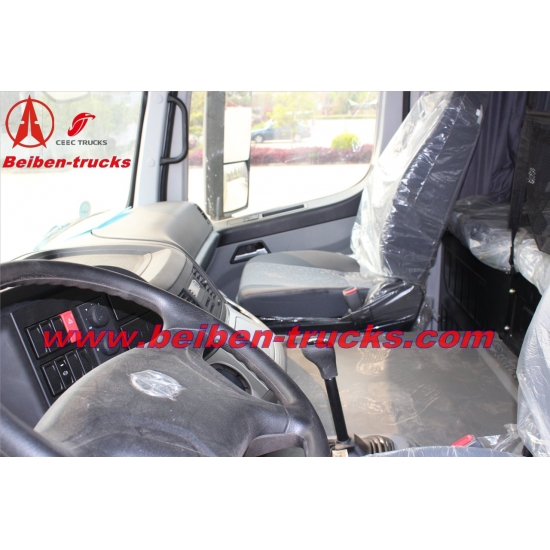

3.Convenientand flexible operation system in different styles:
Connectingrod operation mode is applied in driver’ cab and both side at the rear part ofthe beiben concrete mixer truck , itcan realize three axle linkage which features convenient and simple inoperation.
The operation mode of controller with soft shaft features more safe andreliable for north benz mixer truck.
Operation of electric control mode features energy-saving, comfortable and fullof humanness.


4.Water-supplysystem:
Electricwater pump and pneumatic types are optional.



mixer drumcapacity: 6 M3 ,8 m3, 10 m3, 14 M3 .

mixer engine :Cummins, Hino, Weichai

mixerhorse power  :  260- 375 HP

Sales No.

beiben 2634GB mixer trucks

Dimensionmm)

Long

9300


Wide

2500


High

3900

Wheel basemm

3800+1450

Drive

6×4

Engine

Model

WP10.340E32/WP10.336

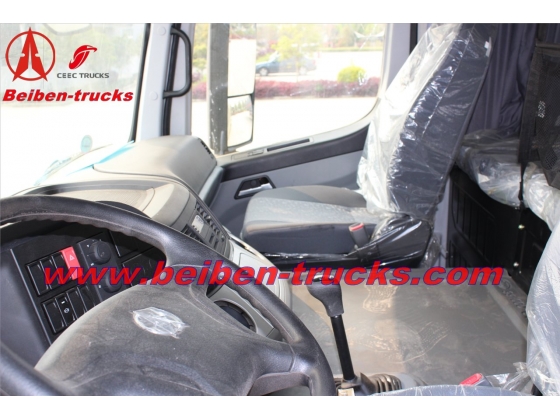

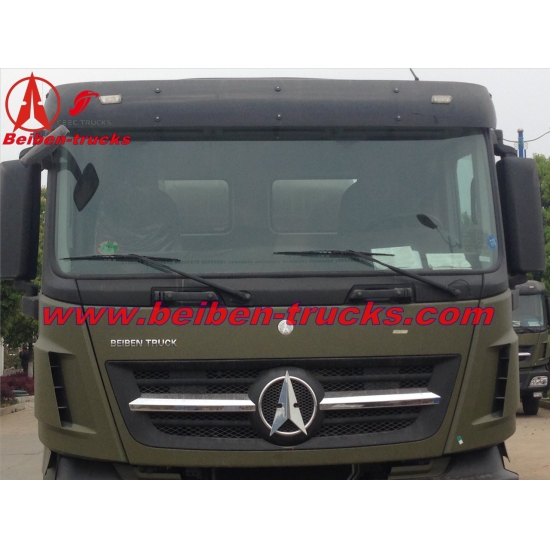

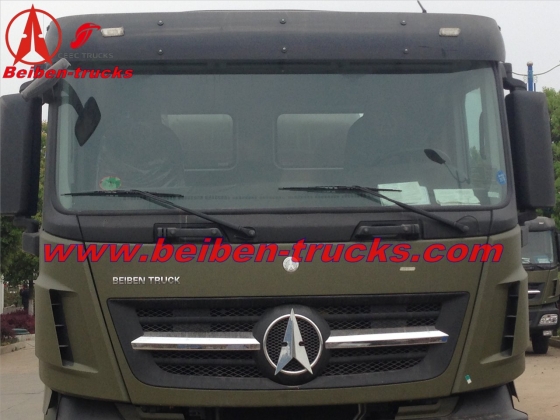

Cabin

NG80B / Long cab

Clutchmm

Φ430

Front Axle

7.5T

Rear/Mid Axle

Model/speed radio

Double Reduction Driving Axle /5.263

Steering System

ZF8098

Braking System

Dual Circulation Air Brake System

Fuel TankL

400L

Frame/mm

317×70×8.5+7

Tire

12.00R20

Front/Rear Overhang

1410/2640

Transmission

9T-160

Curb Weightkg)

13650

Up Body Volume(m³)

9

Max Speedkm/h)

90
