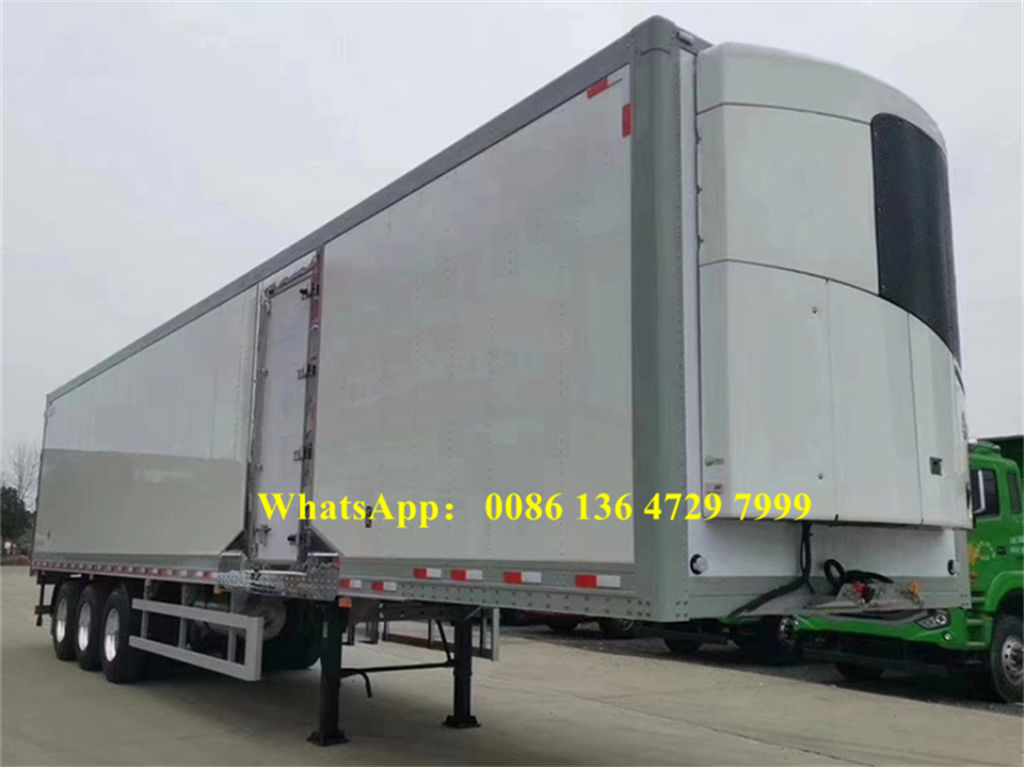

The refrigerated van semi-trailer uses heavy-duty I-beams and BPW brand 13-ton axles, equipped with spring suspension and JOST brand outriggers to ensure stable load-bearing. The interior dimensions of the compartment are 13750×2410×2650mm, and it is insulated with high-density polyurethane. It is equipped with a Termo King independent cooling system that supports temperature control from -20℃ to +27℃.
Order(MOQ):
1Payment:
T/TProduct Origin:
ChinaColor:
As requiredShipping Port:
Shanghai, Lianyungang, Qingdao, etcLead Time:
25 daysProduct Description

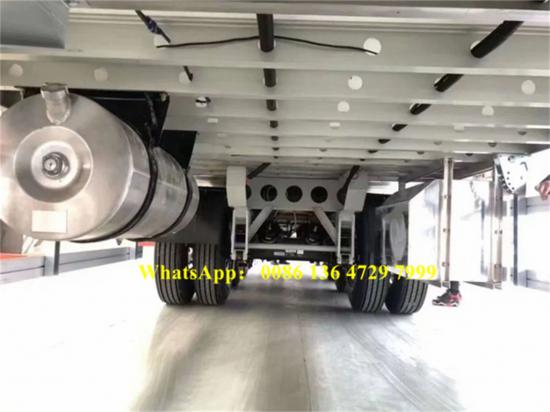

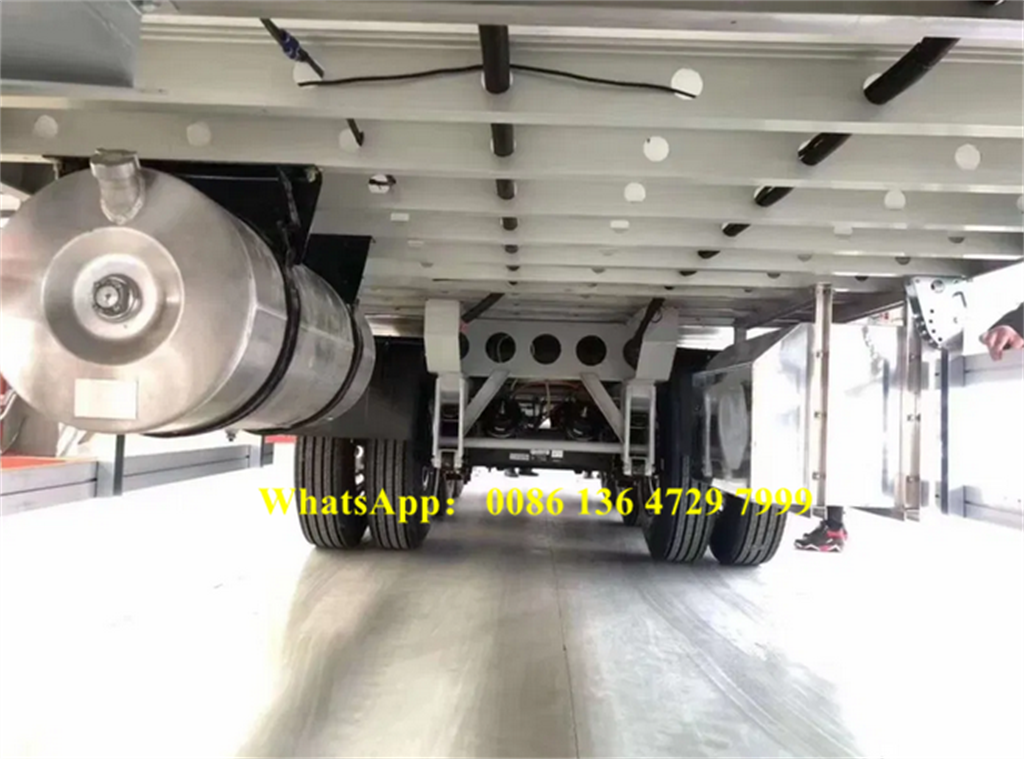

This refrigerated van semi-trailer adopts heavy-duty and specially durable I-beams, which are welded by automatic submerged arc welding process to ensure the stability and reliability of the body structure. In terms of chassis, the vehicle adopts a 3-axle design and is equipped with BPW brand axles. The load-bearing capacity of each axle is up to 13 tons, which provides the vehicle with strong load-bearing capacity and stability. The suspension system is a spring suspension, which can effectively absorb the impact of road bumps on the vehicle and cargo, ensuring the safety and stability of the cargo during transportation. In addition, the vehicle is equipped with a JOST brand 2-inch bolt-type kingpin and a JOST brand two-speed manual heavy-duty outrigger, which provides convenient control and stability for the vehicle.

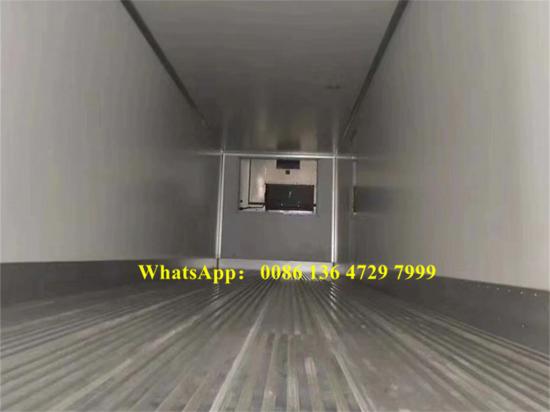

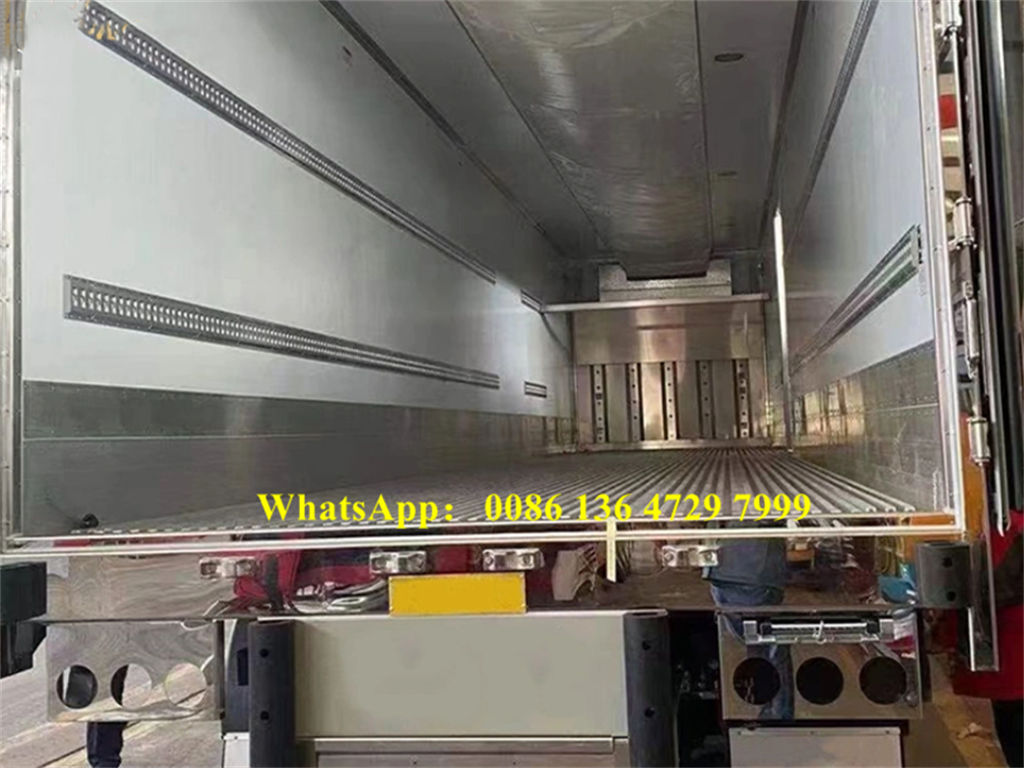

The internal dimensions of the refrigerated box are 13750×2410×2650mm, and high-density polyurethane material is used as the insulation layer to ensure the constant and stable temperature inside the box. This material not only has good thermal insulation performance, but also has good corrosion resistance and anti-aging performance, which prolongs the service life of the box.
The freezer van trailer is equipped with an independent refrigeration unit of the American Termo King brand, which has efficient refrigeration effect and stable operation performance. The independent generator TK486V provides powerful power support for the system, and the compressor model X430 C5 ensures fast and uniform refrigeration. In addition, the system is equipped with an emergency power supply system, which can provide power support for the refrigerated box in the event of a power outage to ensure the safety of the goods.
Product Specifications
|
I Beam & chassis |
Heavy duty and extra durability designed I beam; welded by automatic Submerged-Arc processes. |
|
Axle |
3 axles. BPW brand, 13 ton loading capacity. |
|
Suspension |
Spring suspension |
|
King Pin |
JOST brand 2" Bolt-in King Pin |
|
Landing Gear |
JOST brand Two-speed, manual operating, heavy duty landing gear |
|
Wheel Rim |
13.0-22.5 wheel rim, aluminum alloy material |
|
Tire |
425/80R22.5 super single tubeless tire, Double Coin brand. One spare tire. |
|
Box |
Inner Size(length*width*height): 13750*2410*2650mm, high density polyurethane for insulation. |
|
Accessories |
One standard tool box |
|
Cooling system |
America brand Termo King SLXe-400 independent cooling system with backup electric power system. |
|
Working temperature: - 20ºC ~ +27 ºC |
|
|
Independent generator: TK486V, 23.5 KW. |
|
|
Compressor: model X430 C5, displacement: 492cm³ |
|
|
Emergency power supply: 380V/3Ph/50Hz, 9.3kw |
|
|
Cryogen: 7.5kg. |
|
|
Overall Size(mm) |
14600*2600*4150 |
Product Pictures
North benz 8cbm 6x4 concrete mixer truck sale in Africa PRODUCTS ADVANTAGE * Original Price: FOB, CNF/CFR, CIF * Certificates: CCC, ISO, BV, GJB, CQC * Promptly Delivery: 15-30 days * Excellent After-sale Service and Customization Service. Product Description 2529BY /6×4/3450+1450/Short Cab/LHD Dimension 尺寸 9300*2500*3900mm Approaching angle/Departure angle 26/20° Overhang(front/rear) 1410/2640mm Wheel base 3800+1450mm Max speed 80km/h Curb weight 13650kg Loading capacity 11220kg Slope climbing capability Max.40% Engine Model WP10.340E32，water-cooled，four strokes，6 cylinders in line，turbocharged, directly injection Displacement 9.726L/Diesel Stroke 126/130mm Max. power 250/2200 (kw/rpm) Max.torque 1350/1200-1600（Nm/rpm） Emission stantard EuroⅢ Fuel tanker capacity 300L Clutch ∮430, Single dry frictional disc，Hydraulic boosting Gearbox 9T-160, mechanism,9 forward gears,1 reverse gear, manual operated, with synchronizer Gear ratio of gear box 12.60/8.39/6.31/4.64/3.43/2.45/1.84/1.35/1.00 R: 11.02 Suspension system Front Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 10pcs Rear Non-free standing stablization spring, balance suspension system, 13pcs Brake system Service brake Brake gap can be adjusted automatically, double circulation air brake system Assistant brake Engine exhaust brake Park brake Potential springs pressing on middle and rear wheels Steering system TAS85,whole circulation in ball, hydraulic booster Frame Fish belly shape, variable width, variable sections Front axle (Mercedes Technology) Double-shoe pneumatic brake, non-driving steering axle Middle and Rear axle (Mercedes Technology) Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle Tyre 12.00R20 Radial Electrical system Battery 2X12V/135Ah Generator 28V-35A Starter 5.4Kw/24V Cabin NG80B Long cabin with single sleeper; Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly; High back with arm seat for driver, high back seat for co-driver; With inner A/C Main technical parameters of concrete mixer Drum performance parameter Geometric Volume m3 15.5 m3 Effective Volume m3 10 m3 Filling Ratio % 64.5% Gradient of the Drum ° 15° Filling speed m3/min ≥3 Discharging Speed m3/min ≥2 Surplus Ration % <1% Range of Slump mm 20～300 Hydraulic System Pump Eaton 54 (ACA542337R) Motor Eaton 54 (HHD542337R) Gear Box PMB6sp Water supply system Volume of water tank 400L Water supply type Air pressure Type
Beiben 2538 V3 cargo truck, this chassis may be designed based on the heavy-duty tractor or dump truck of V3 series, with high strength and stability. Beiben 2538 2638 2642 heavy Benz 6x4 truck with V3 cabin, which have excellent capability, ideal for driving on rough road. Powerful and passble Benz 6x4 6x6 truck chassis, high load capacity can be up to 50tons, very popular in the Africa countries DRC, Tanzania, Zimbabwe, Uganda, etc. Beiben V3 new type cargo truck chassis adopt the Benz truck technology, the chassis is stable and durable, with a WEICHAI WP10.380E32 diesel engine and maximum torque of 1250N.m, emission can be 9726cc. suitable for africa market. it is more impressive in terms of manoeuvrability.
The series products of Beiben trucks are ideal transport with outstanding performance and high quality, Beiben 2638 2642 cargo trucks are widely used in industries and sectors, such as national defense, aviation, postal service, railways, highways, harbors, petroleum, chemicals, water and electricity, forests, fire fighting, banks and peace keeping forces. Now Beiben 6x4 6x6 cargo trucks are sold to the worldwide countries and areas, such as Kenya, Ethiopia, Libya, Turkmenistan, Kazakhstan, South Africa, Syria, and so forth. Beiben heavy-truck originate from Mercedes-Benz,Gremany,The Chinese local manufacturers, technical performance properties index and conform to the state and military standard.
Beiben 6x6 offroad 6WD cargo truck, which equipped with NG80 classical cabin, WEICHAI WP12.420E32 diesel engine with 420HP and emission 11596cc, mounted with 14.00R20 tires, which have a larger diameter and higher height, and the Beiben 6x6 LHD 2642 cargo truck chassis with long cabin, which has a strong passing ability when facing uneven road surfaces with ditches, potholes and rocks. Stronger frame can be suitable to build all kinds of special purpose trucks. Beiben 6x6 cargo truck can have cabin different painting as required.
The Beiben 6×4 cargo truck chassis is an outstanding chassis specifically designed for heavy-duty cargo transportation. It features a 6x4 drive configuration and is available in both left-hand drive and right-hand drive options. The cab is the NG80B model, offering a choice between a short or long cabin, and is equipped with air conditioning. The chassis has a kerb mass of 10,800kg and a gross vehicle weight (GVW) of 25,000kg. It is powered by a WEICHAI brand WP10.340E32 engine, delivering 340 horsepower (HP) and meeting Euro III emission standards. The chassis is equipped with a FAST 9JS180 manual transmission, featuring 9 forward speeds and 1 reverse speed. With its exceptional performance and advanced configuration, the Beiben 6×4 cargo truck chassis is an ideal choice for the logistics and transportation industry.
The Beiben 6×6 all-wheel drive water truck, with a gross vehicle weight of 25,000kg, is equipped with a Weichai 380HP engine, a 20,000-liter large-capacity water tank, and an efficient water pump. It features front, rear, side spraying capabilities, as well as a high-pressure water gun. Its sturdy design, powerful engine, efficient operational capabilities, and convenient operation make it an ideal choice for urban road cleaning, fire-fighting assistance, and green space irrigation.
north benz NG80 truck chassis, 6*4 driving system, weichai 300 hp engine, 7 T benz front axle, 13 T double axle with reducer. 11.00R20 tyre. carbon steel fuel tanker capacity , 15,000 liters.
Beiben 6x4 LHD RHD 290hp Cargo Truck Lorry Truck, classical NG80B truck cabin, long cab with one sleeper, WEICHAI Brand new Model WP10.290E32 model 280hp diesel engine with 9726cc emission. Gear box is FAST brand with 9 speeds (9JS180). Clutch is single dry plate with 430 Diaphragm type. Powerful Steering device ZF8098. Front axle is Benz front axle(7.5t), Rear axle is Benz strengthened axle (punching-welding axle housing, double Reduction driving axle, inter-wheel differential and differential lock). Tyres model is 12.00R20 with 10+1 pcs. Springs 13/13 pcs for heavy duty support. Wheel base is 4450+1450 mm, Front/rear overhang(mm)1410/3076, Front/rear track(mm)1995; 1800/1800, Approach/departure angle(º )26/30, Overall dimension(mm)8900x2500x3500.

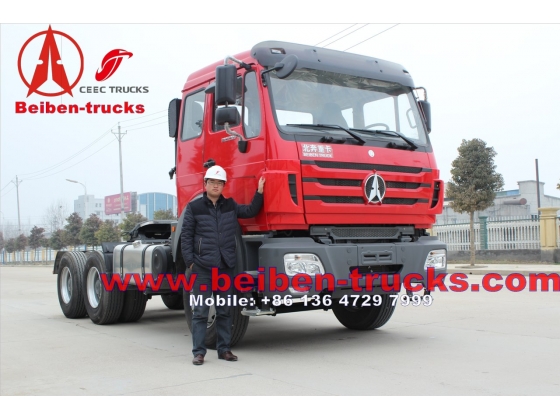

420hp Tractor Truck for Congo Weichai Engine Latest design. Mercedes Benz Steering:ZF8098 Fuller gear box 420hp Tractor Truck for Congo
