4x4 drive beiben vacuum suction truck

Beiben 4x4 off road vacuum truck, also known as beiben 4x4 off road sewage truck, beiben 4x4 drive sewer tanker, it is a professional beiben special purpose vacuum tanker trucks for municipal sanitation and industrial cleaning. Based on the Beiben 1929 heavy-duty truck chassis, it is equipped with a Weichai WP10.290E32 engine, delivering 290 horsepower and a displacement of 9726ml, ensuring robust power during operations. The vehicle measures 8230×2550×3150mm with a wheelbase of 4800mm and 12.00R20 tires, balancing urban road accessibility and operational stability. As a high-capacity professional vehicle, its 8000-liter carbon steel tank meets the demands of prolonged continuous operations, making it ideal for municipal pipeline maintenance and industrial waste liquid treatment.

The upper structure of this Beiben Vacuum Pump Truck is key to its high efficiency. The vacuum tank adopts a cylindrical design, constructed from 6mm-thick carbon steel. This material is not only durable and resistant to corrosion and impact from waste but also ensures excellent sealing, preventing leaks during transportation. The tank is connected to a powerful vacuum pump system, featuring the domestically renowned Wloong brand pump (model 68/7000). This vacuum pump boasts a maximum pressure of 7000 Pa, a suction speed of 68 liters per second, a maximum vacuum degree of 93%, and a rotational speed of 800 rpm. Such strong performance enables the sewer truck to quickly generate powerful negative pressure, achieving rapid self-suction and discharge.

● Mercedes Benz 4x4 drive

● Moro PM 70A vacuum pump

● 8,000 liter tanker body

● 290 Hp diesel engine, strong horse power

During operation, the Beiben Sewer Vacuum Truck works with remarkable efficiency. When collecting waste, operators simply connect the 10-meter-long, DN100-spec suction hose to the target area and activate the vacuum pump. A negative pressure quickly forms inside the tank, rapidly drawing sludge, wastewater, and other materials into the tank through the suction hose. After collection, the truck transports the waste to a designated location for discharge via a DN100 discharge valve. Additionally, the tank features a 45° lifting angle, facilitating complete waste discharge and ensuring no residue remains inside.

The Beiben 8000L Vacuum Septic Truck has a wide range of applications. It is particularly suitable for suction, transport, and discharge of sediment in sewers, including sludge, silt, and even larger objects like stones and bricks. It can also collect and transport liquid substances such as feces, slurry, and crude oil, playing a vital role in municipal sanitation, industrial cleaning, oilfield operations, and other fields.

Product Specifications

Product Drawing

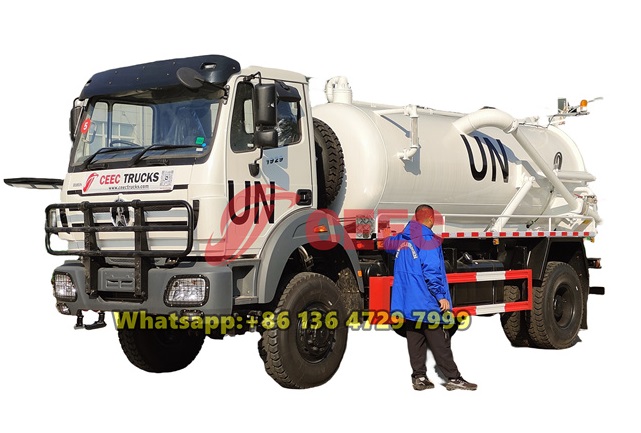

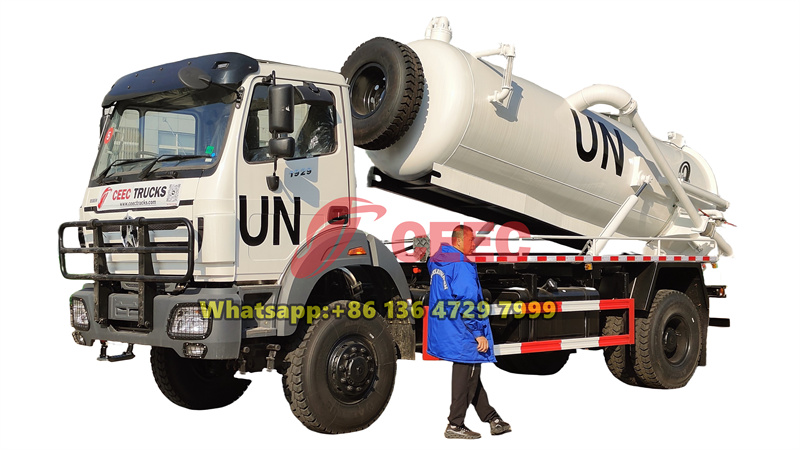

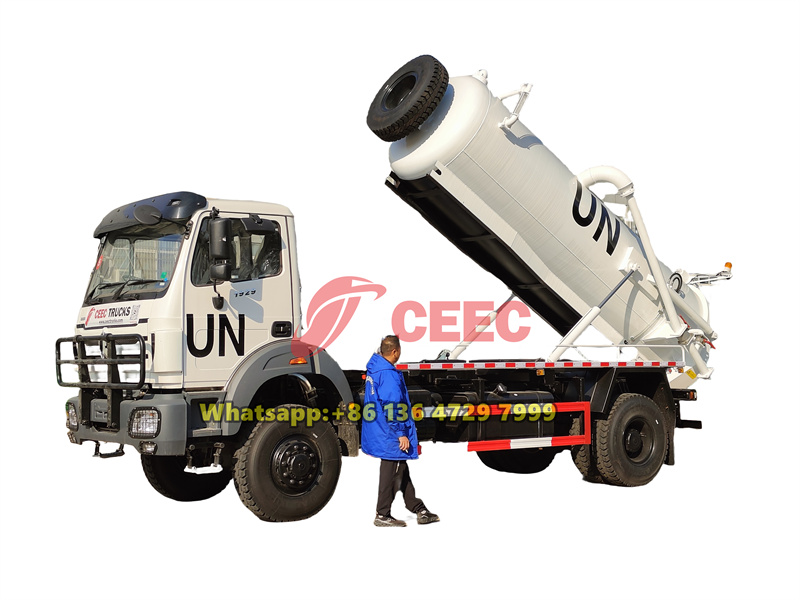

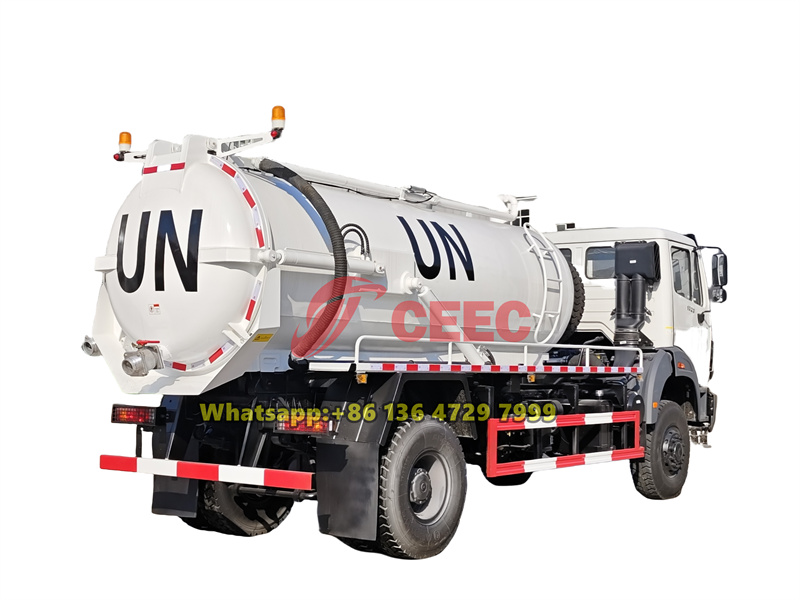

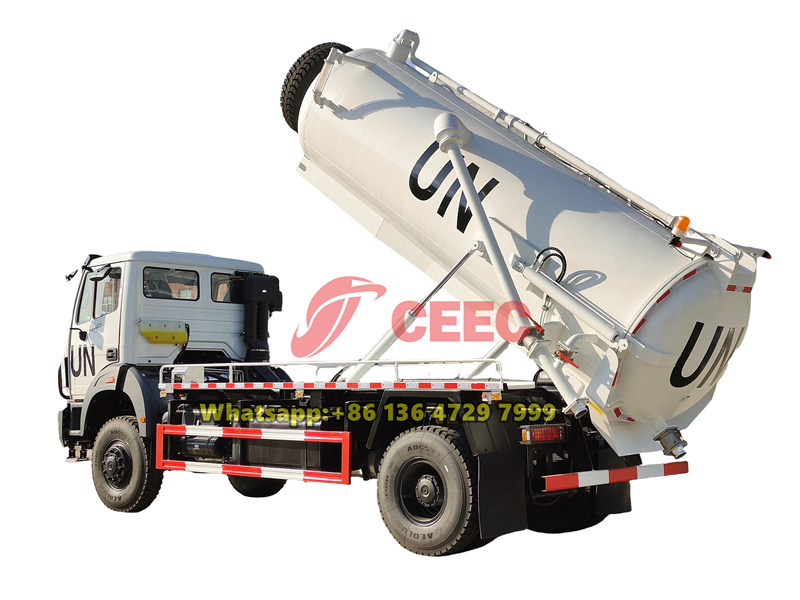

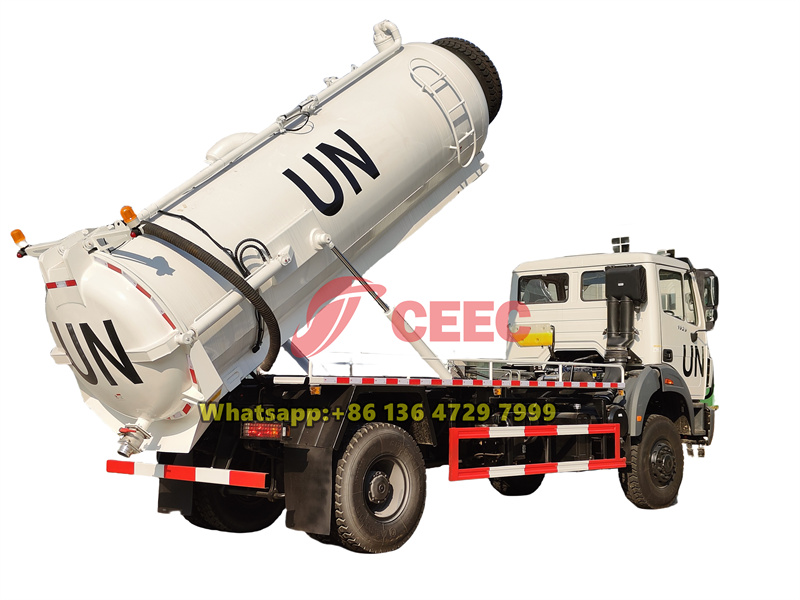

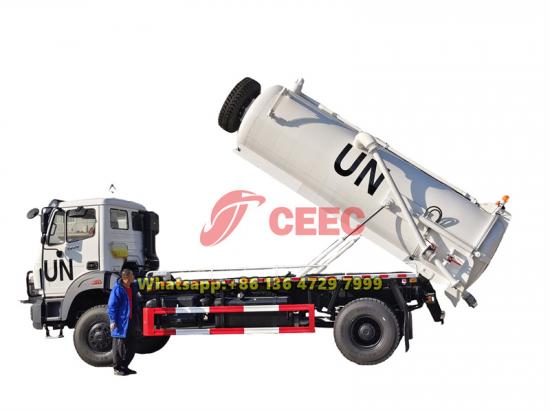

Product Pictures
