Products

Beiben 2527 fuel tanker truck

  • FOB Price

    $45000-$52000

  • Production time

    30 days

  • Payment terms

    T/T, West union

enquiry
Product Details

Beiben 2527 fuel tanker truck

beiben 20 CBM fuel tanker truck

we  the most professional beiben fuel trucks manufacturer, more than 15 years great experience on manufacturing beiben 2527 fuel truck, beiben 2529 fuel truck,beiben 2534 fuel truck ,beiben  2538 fuel tanker truck,beiben 3132 fuel tankers.

   The beiben fuel tanker from us can be beiben 4*2 fuel tanker, beiben 6*4 fuel tanker and beiben 8*4 fuel tankers. All the beiben fuel tanker trucks from ceec trucks plant can have long guarantee more than 12 months.

 beiben 2534 concrete mixer truck shippment.

Beiben fuel truck 6*4 drive type chassis specification .

Truck Chassis Model

Beiben  ND1251B44(NORTHBENZ)

Engine

WP10.270

Type

Vertical ,in line, Water-cooled,four-stroke cycle diesel engine

Max Output Power, kw/rpm

199 / 2200

Max Torque,N.m/rpm

1100/1200-1600

Displacement,ml

9726

Emission Standard

Euro 3

Transmission

9JS135(FAST)

Speed No.s

9 Forward and 1 Reverse Speed

Max Output Torque,N.m

1350

Max Output Speed,rpm

2600

Input Power,hp

243

Oilling ,liters

12.5

Gearshift

Manual (Mechanical)

Clutch

GFX430

Type

Single-plate dry coil-spring dry frictional clutch, diameter 430mm, hydraulically operating with air assistance

Axle

BENZ

Front Axle

Mercedes Benz Technology

Front Axle Capacity,kg

7000

Front Axle Type

Double-shoe pneumatic brake ,driving steering axle

Middle&Rear Axle

Mercedes Benz Technology

Middle&Rear Axle Capacity,kg

7000/18000

Middle&Rear Axle Type

Double-shoe pneumatic brake ductile casting casing, with hub redactor, double reduction driving axle

Rear Axle Ratio

5.921

Brakes



Service brake

Brake gap can be adjusted automatically, double circulation air brake system

Assistant brake

Engine exhaust brake

Park brake

Potential springs pressing on middle and rear wheels

Sterring

TAS85(ZF)

Drive Side

Left hand drive

Steering Type

Hydraulic steering with power assistance,ZF8098

Output Torque,Nm

5890

Rocker shaft swing angle,degree

90

Drive Ratio

1:160

Cabin

NG80

Type

Forward control, all steel welded construction, long cab, inner A/C, one bed

Seat Nos

3

Bunk No.s

1

Wiper No.s

2

Tires

12.00-20

Tire No.s

10+1 spare tire

Type

Nylon tires

Rims

8.25-20

Rim No.s

12+1 spare tire

Type

All steel dicasting

Electrical

24V

Battery Voltage,V

2X12

Battery Ampere,Ah

135

Generator,V,A

28,35

Starter, Kw/24V

5.4

  All the fuel tanker components that we applied on beiben fuel trucks is china famous brand and reliable quality.

Beiben fuel tanker upper structure technical specification.


Beiben Oil Tank Truck Model

Beiben 2527 truck chassis .

General Information



Drive Mode

6x 4

Wheel base,mm

4450+1450

Overall Length,mm

9455

Overall Width,mm

2500

Overall Height,mm

3375

N.V.W,kg

25000

Tare Weight,kg

11470

Max.Traveling Speed,km/h

85

Front Overhang,mm

1410

Rear Overhang,mm

2145

Front Track,mm

1995

Rear Track,mm

1800

Min. Ground Clearance,mm

327

Fule Tank Capacity,liters

400

Tank Body

Tank Shape Ellipse Style

Capacity ,liters

22,000

Compartments,pcs

3

Pressure,Mpa

0.084

Outlet Pipe Diameter,mm

80

Baffles,pcs

6

Manhole No.s

3

Hose,pcs x m

2 x 6

Filling Time,min

<10

Drainage Time,min

<22

Length,mm

7400

Width,mm

2380

Height,mm

1550

Material Thickness,mm

5

Cover Thickness,mm

5

Tank Material

Carbon steel, Q235A 16Mn

Pump

80YHCB-60

Self-Suction Depth,m

6.5

Capacity ,liters/h

60

Flow Length,m

20

Flow Speed, l/min

960

Shaft Power,kw

22.5

Inlet Diameter,mm

80

Outlet Diameter,mm

60

Pressure,Mpa

0.6

Suction Time,min

<4

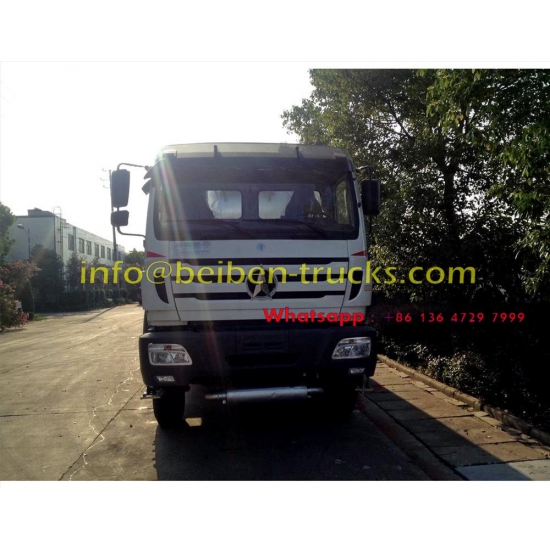

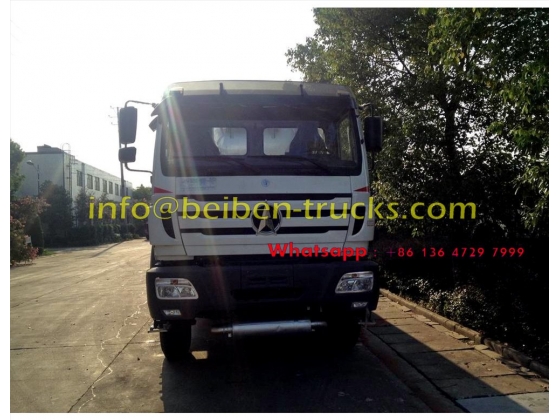

Benz ECR29 standard cabin, beiben NG80B truck cabin, good performance,and high safety.

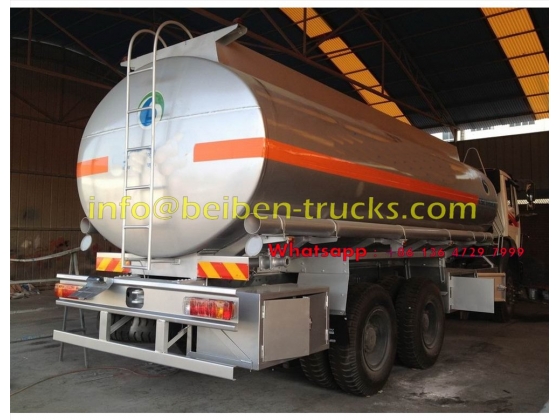

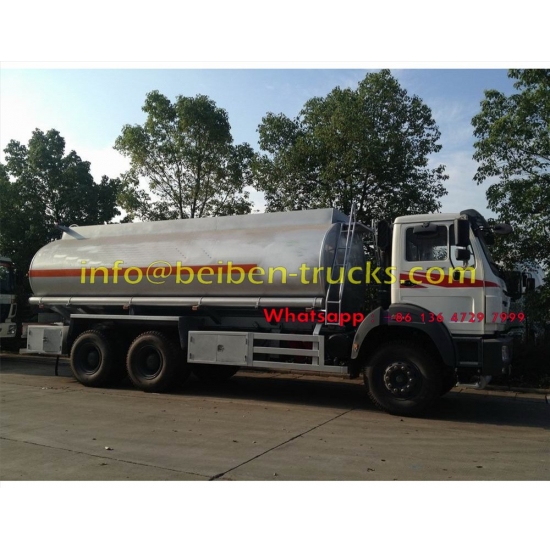

beiben 20 CBM fuel tanker truck


15 years experience on beiben tanker trucks manufacturer, our experienced engineer and worker are familiar with each detail for the beiben 20 CBM fuel tanker truck design and producing.

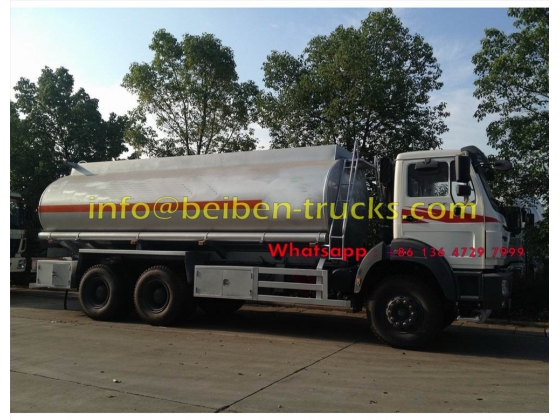

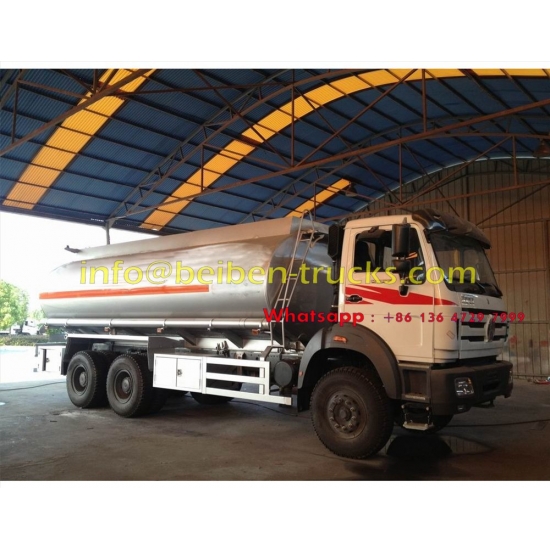

beiben 20 CBM fuel tanker truck

The extremely combination of beiben 2527 truck chassis and CEEC fuel tanker upper structure. Thanks for the great work of our workers.

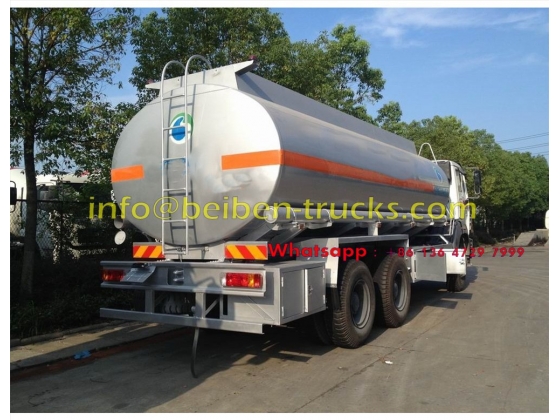

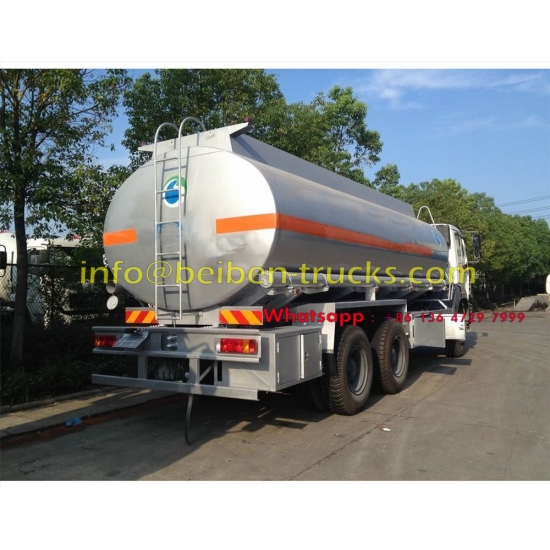

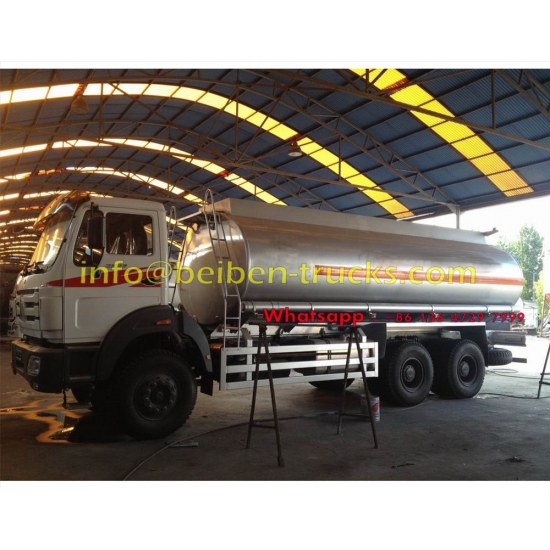

beiben 20 CBM fuel tanker truck

Durable painting for the whole beiben fuel tanker trucks, shiny performance.

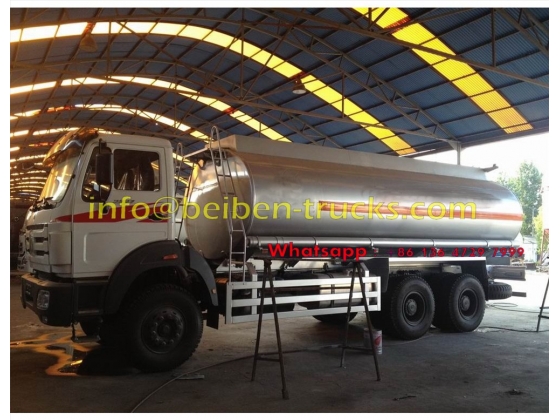

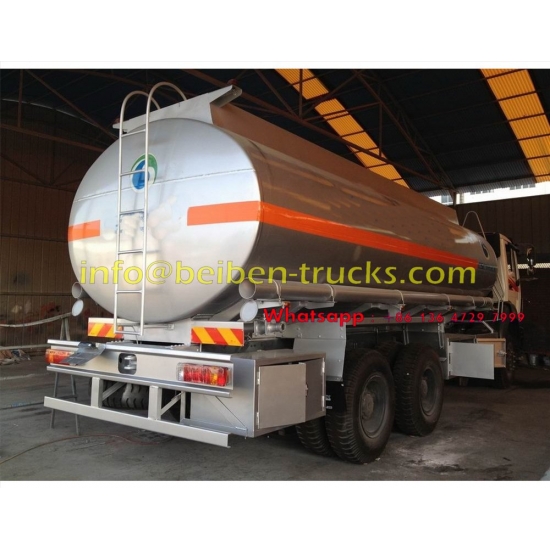

beiben 20 CBM fuel tanker truck

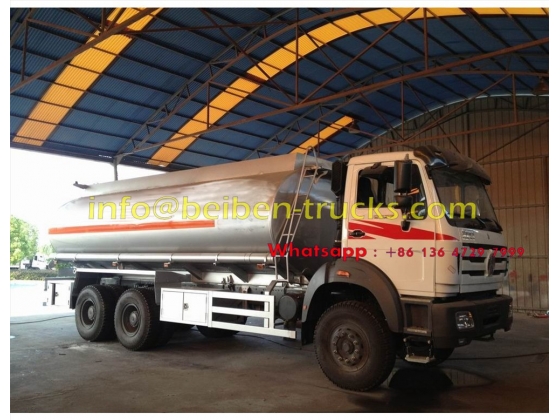

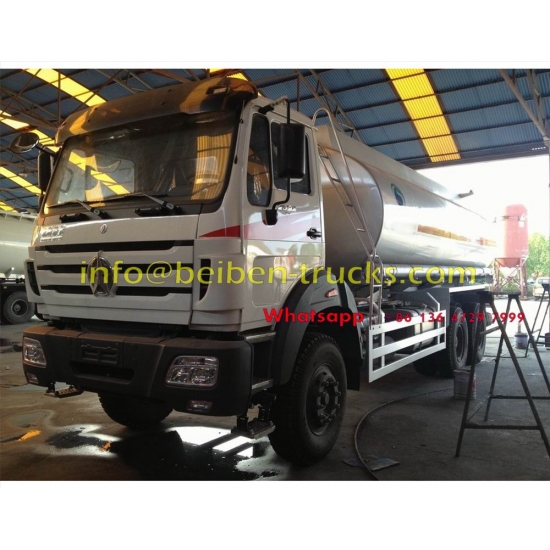

beiben 20 CBM fuel tanker truck

beiben 20 CBM fuel tanker truck

Beiben fuel tanker truck workshop.


beiben fuel tanker truck workshop

beiben fuel tanker truck workshop

beiben fuel tanker truck workshop

beiben fuel tanker truck workshop

beiben fuel tanker truck workshop
