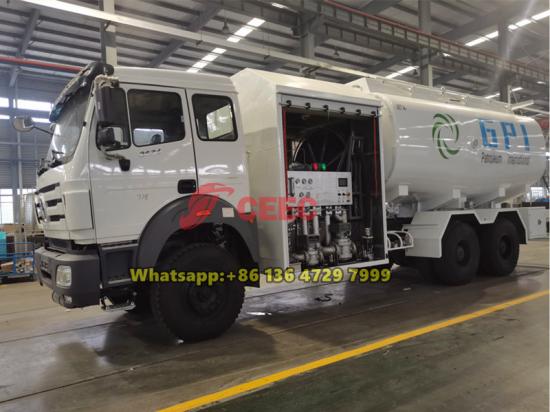

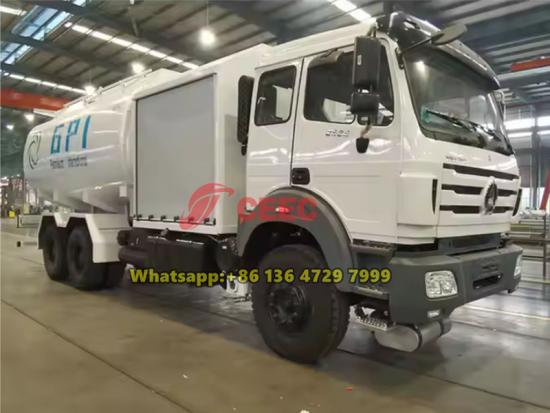

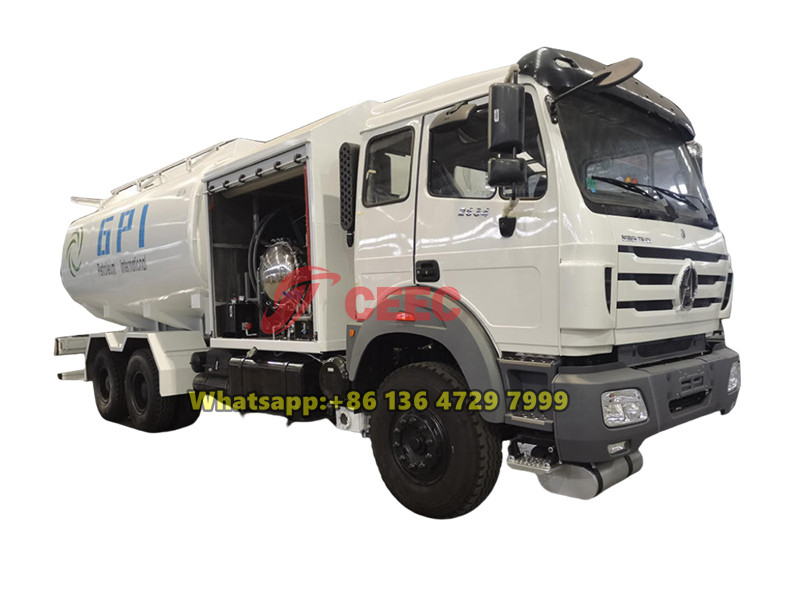

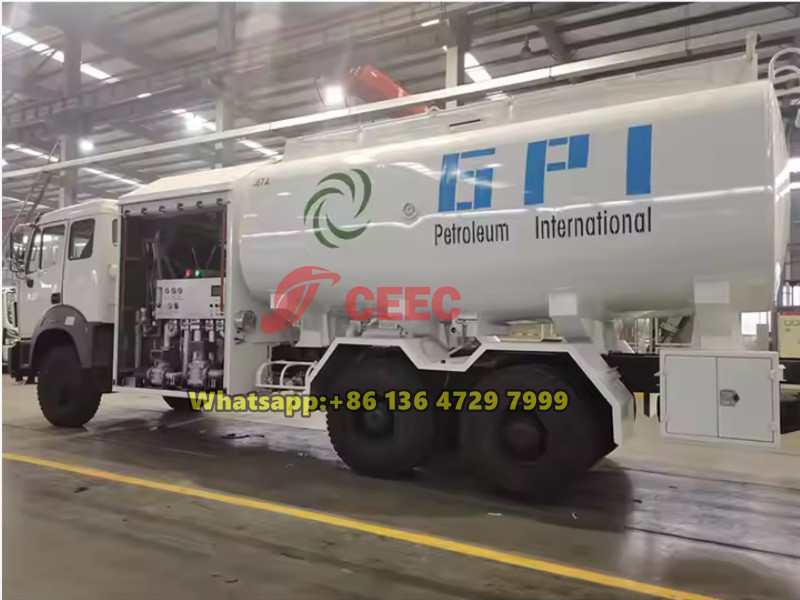

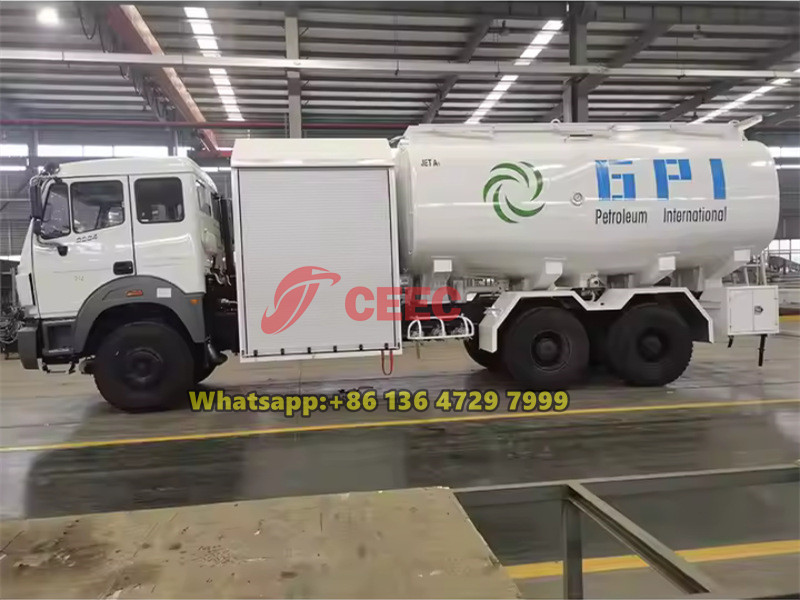

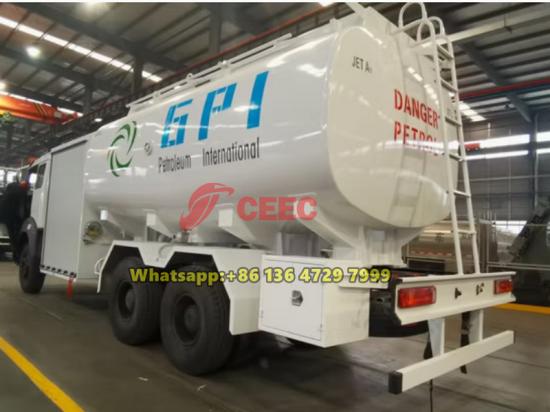

Beiben Aircraft Refueling Truck is a high-performance airport-specific equipment, built on a Beiben 6×4 chassis and equipped with a large 20,000-liter aluminum alloy fuel tank and an efficient centrifugal pump capable of a flow rate of 2,500 liters per minute. The vehicle integrates an intelligent control system, a high-precision flow meter, and HEPCV underwing refueling nozzles, supporting both pressure and gravity refueling modes. It is specially outfitted with a vapor recovery system, explosion-proof devices, and a DeadMan safety control system to ensure safe and reliable refueling operations. With a robust structure and user-friendly operation, it meets the rapid refueling demands of various civil aviation aircraft and cargo planes, making it an indispensable piece of ground support equipment for modern airports.
Working capcity:
20000LCabin type:
Beiben NG80 cabin, with sleeper bedDimension ( mm ) :
9350×2500×3950Drive system:
6×4Wheelbase (mm):
4450+1450Engine power / Model:
340HP/WP10.340E32Gear Box:
9JS150ARemark:
8×4, RHD is optionalProduct Description
An aircraft refueling truck is a specialized vehicle used at airports to provide fuel filling and extraction services for aircraft. Typically equipped with a fuel tank, pump, filter separator, pressure control device (for pressure refueling), flow meter, refueling hose, and connectors (nozzle), it can independently perform aircraft refueling (or defueling) while incorporating functions such as fuel pumping, pressure adjustment, and purification.
The Beiben 20,000L Aircraft Refueling Truck is a high-performance specialized vehicle designed for airport ground services. Built on a Beiben 6×4 heavy-duty chassis, it is powered by a 340-horsepower Weichai WP10.340E32 engine. The vehicle features a 20,000-liter aluminum alloy fuel tank, a high-precision flow meter, and a 2,500 L/min stainless steel centrifugal pump, supporting both efficient pressure refueling and gravity refueling modes. It also integrates a vapor recovery system and explosion-proof devices to ensure safe and reliable aviation fuel dispensing.
Product Specifications
|
Beiben 20000L aircraft refueling truck specifications |
||
|
Vehicle specification |
Chassis brand |
Beiben |
|
Overall dimensions (mm) |
9350×2500×3950 |
|
|
Wheelbase (mm) |
4450+1450 |
|
|
Wheel track (front/rear) (mm) |
1995/1800/1800 |
|
|
Max speed(km/h) |
88 |
|
|
G.V.W (kg) |
25000 |
|
|
Curb weight (kg) |
10800 |
|
|
Engine |
WP10.340E32 |
|
|
Engine type |
6 cylinders in line, 4 strokes, turbocharged, inter cooling, water cooled |
|
|
Engine power (kw/hp) |
250KW/340HP |
|
|
Rated speed (rpm) |
2200 |
|
|
Max torque (N.m) |
1250 |
|
|
Displacement (L) |
9.726L |
|
|
Emission standard |
Euro 3 |
|
|
Clutch |
Single dry frictional disc, Hydraulic control and compressed air assisted |
|
|
Gearbox |
mechanism, 9 forward gears, 1reverse gear, manual |
|
|
Front axle |
Double-shoe pneumatic brake, Non-drive steering axle |
|
|
Rear axle |
Double-shoe pneumatic brake, casting, double reduction driving axle, differential lock between wheels |
|
|
Steering |
Circulating ball power steering, hydraulic assisted |
|
|
Frame |
Fish belly shape, variable width, variable section, side beam structure, bilateral bend, cross section channel reinforced steel beam |
|
|
Front over suspension rack |
longitudinal laminated leaf-spring, hydraulic telescopic shock absorber, transverse stabilizer |
|
|
Rear over suspension rack |
longitudinal laminated leaf-spring, hydraulic telescopic shock absorber, transverse stabilizer |
|
|
Tire |
12.00R20, 10+1 pcs |
|
|
Superstructure specification |
||
|
Fuel Tank |
Capacity |
20000 liters |
|
Tank Material |
Aluminum alloy |
|
|
|

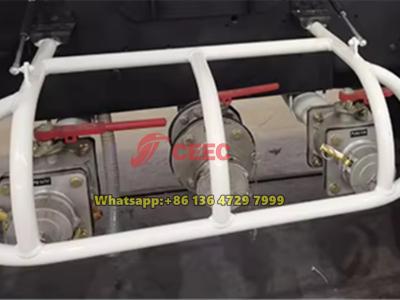

Manhole cover |
European standard aluminum alloy explosion-proof manhole, 2 pieces |
|
Special function |
Flowmeter |
Grade 0.2 accuracy, diameter 50 |
|

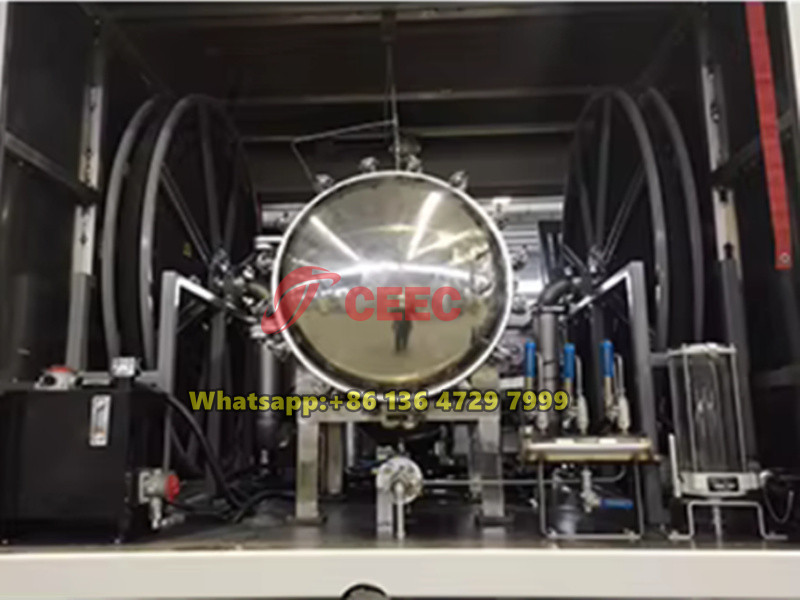

Filter separator |
Rated flow 2500L/min |
|
|

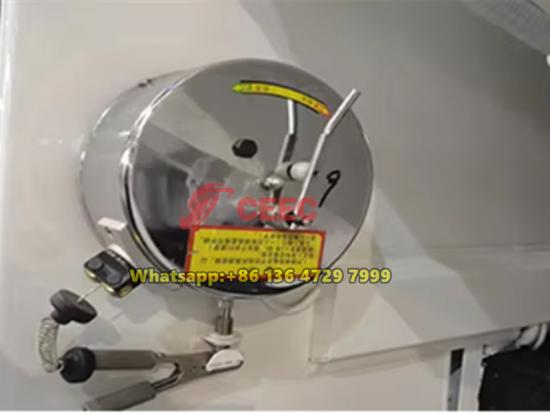

Gravity refueling reel |
Automatic reset reel, DN38, |
|
|
Fuel pump |
Stainless steel self-priming centrifugal pump, flow rate 2500L/min |
|
|
Liquid level meter |
Stainless steel floating ball in the tank and the 10 inch aluminum alloy dial on the left side of the tank |
|
|

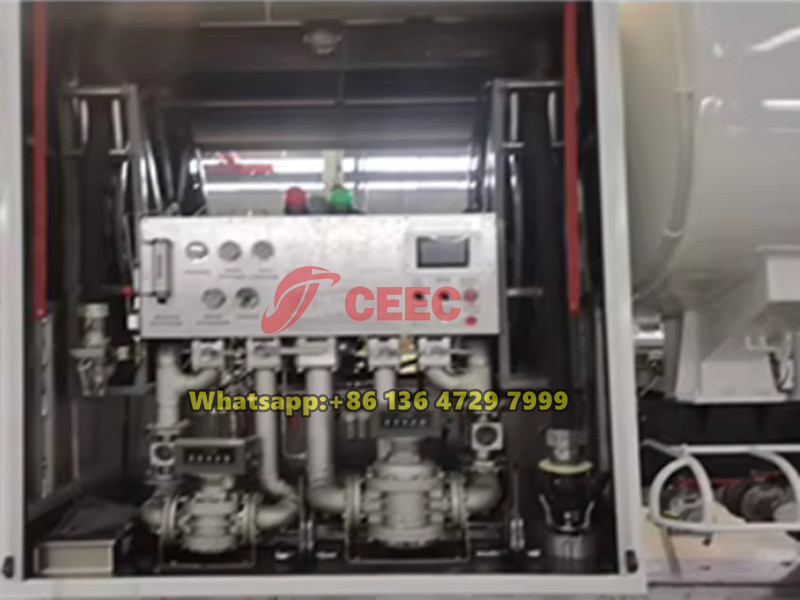

Control system |
DeadMan |
|
|
Differential pressure gauge |
Equipped |
|
|
Underwing refueling nozzle |
Equipped HEPCV nozzles |
|
|
Breathing valve |
Aluminum alloy, 4 sets |
|
|
Refueling hose |
DN63 |
|
|
Oil and gas recovery system |
Equipped |
|
|
Other fittings |

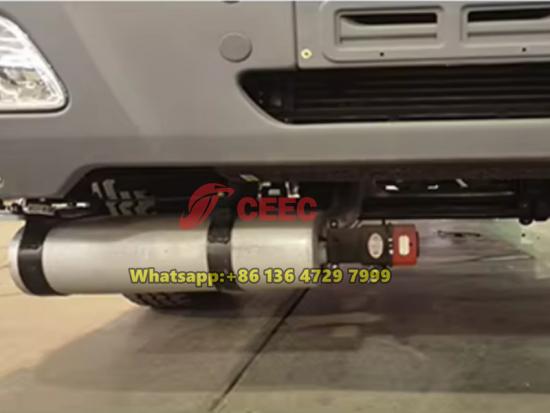

Guardrail, ladder, anti-static device, fire extinguishers, LED lights, etc |
|
Product Features
The Beiben aircraft refueling truck is generally similar to conventional refueling trucks but has additional special requirements in terms of performance and structure.
1. High demand for refueling pressure stability. To achieve this, pressure regulators, stabilizers, and pressure refueling gauges are installed in the fuel lines.
2. Exceptional fuel cleanliness. High-performance filter separators are used in the fuel system, and the tank and pipelines must be made of aluminum alloy.
3. Absolute refueling safety assurance. The Beiben aviation refueler is equipped with an anti-static device, an interlock control system, explosion-proof electrical components, and fire extinguishers.
4. High-precision, high-flow metering system.
5. Large fuel tank capacity to enable single-session refueling for aircraft.
