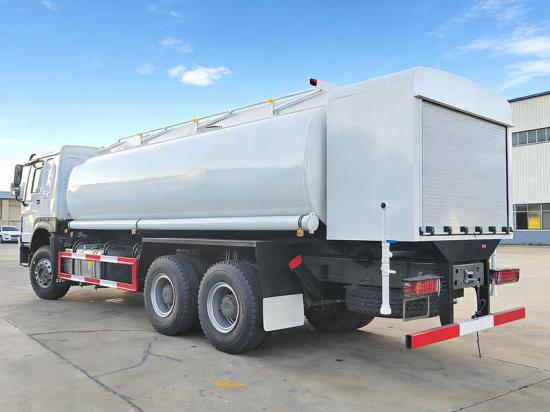

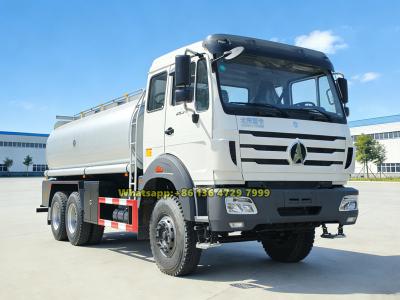

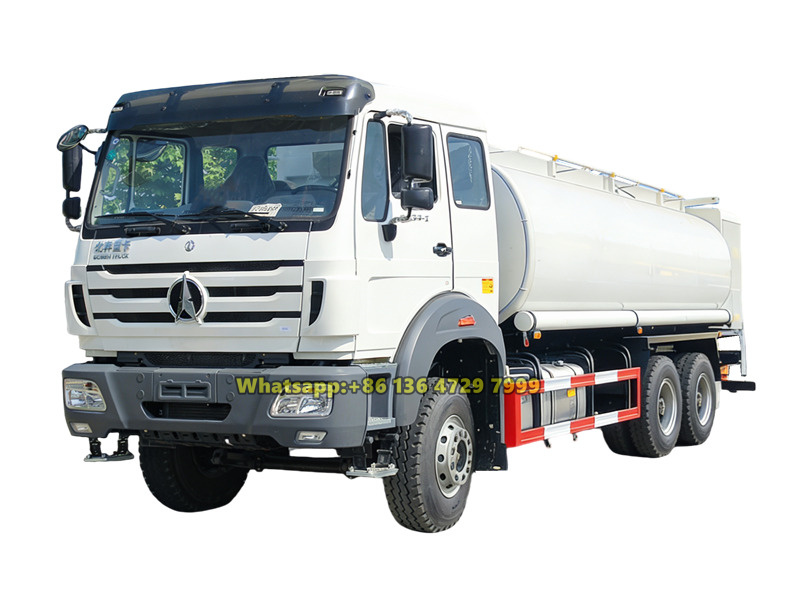

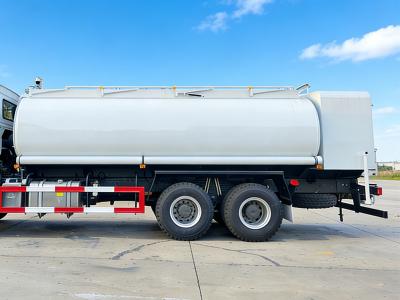

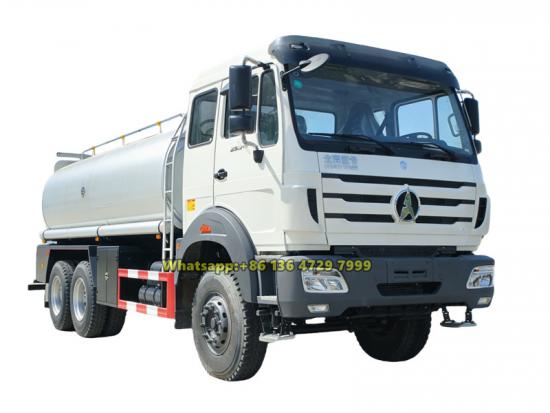

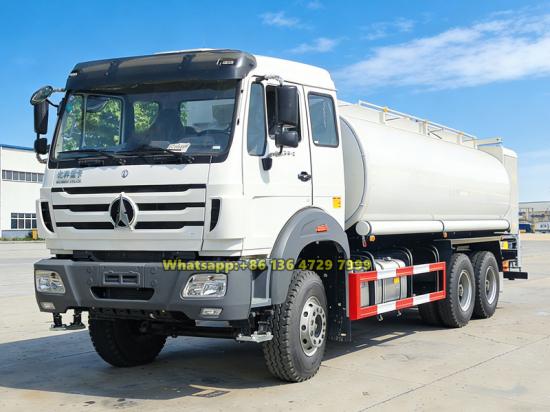

The Beiben 20000L refueling truck is a multifunctional tanker vehicle developed on a Beiben 6×4 chassis. Equipped with a 20000 liters dual-compartment carbon steel tank, it can safely transport and distribute diesel and other oil products. The vehicle also features a portable refueling system with a 15-meter retractable hose reel, integrating both transportation and on-site refueling capabilities to meet various mobile refueling and distribution needs.
Working Capcity:
20000 litersCabin Type:
NG80B long cabin, with sleeperDimension ( mm ) :
9800×2500×3100Drive System:
6×4Wheelbase (mm):
4500+1350Engine Power:
420 HP/WP12.420E32Gear Box:
12JS200TRemark:
2 compartments, stainless steel, aluminum alloy tanker is optionalThe Beiben 20000L refueling truck is a professional tanker vehicle that combines oil transportation and mobile refueling functions. Built on a robust Beiben 6×4 heavy-duty chassis, it is powered by a high-performance WP12.420E32 diesel engine paired with a 12-speed gearbox, delivering ample and reliable power to ensure efficient operation under heavy-load conditions. The 20000 liters carbon steel tank adopts a dual-compartment design, allowing simultaneous transportation of different types of oil while balancing safety and operational flexibility.
As a professional mobile supply unit, this Beiben fuel bowser truck is equipped with a European-standard manhole cover, an overflow prevention sensor, and a vapor recovery interface. It also features a bottom API discharge valve and an emergency shut-off device, meeting comprehensive safety standards. The onboard refueling gun with a 15-meter retractable hose reel enables both oil transfer and on-site refueling services for vehicles. By integrating transportation and refueling functions, this vehicle fulfills the demands of various oil distribution and supply scenarios.
CEEC factory is authorized supplier on beiben tanker trucks,
guarantee all beiben fuel tanker trucks Brand-New and High-Quality.
» Ⅰ.Product Introduction:
Manufacturer: CEEC TRUCKS
▶ Chassis: Based on Beiben 10-wheeler heavy chassis, with Weichai 380HP diesel engine, Fast 12-speed gearbox
▶ Tanker Volume: Tank capacity up to 20000 liters, divided into 2 compartments
▶ Tanker construction: Made of high-strength carbon steel, anti-rust treatment inside
▶ Pumping system: China top brand fuel pump, with flow rate 60 m3/h
▶ Dispensing system: Refueling gun with 15-meter electric rewind hose reel
» Ⅱ. Product Specifications:
|
Chassis Specification |
||
|
Cab |
Beiben NG80B long cabin, 2 seats and one sleeper bed, with power steering |
|
|
Driving Type |
6*4 Left hand driving |
|
|
Max Speed (km/h) |
90 |
|
|
Overall dimension (mm) |
9800×2500×3100 |
|
|
GVW (kg) |
26000 |
|
|
Curb weight (kg) |
11800 |
|
|
Wheelbase (mm) |
4500+1350 |
|
|
F/R track base (mm) |
1860/1860 |
|
|
F/R overhang (mm) |
1410/2190 |
|
|
Approach/Departure Angel |
24/15 |
|
|
Tire |
12.00R20 |
|
|
Clutch |
Single-plate dry diaphragm spring clutch |
|
|
Steering |
Hydraulic steering with power assistance |
|
|
Gear box |
FAST 12JS200T, 12-speed forward, 2-speed reverse |
|
|
Axle load |
Front axle |
7.5 T |
|
Rear axle |
13T*2 |
|
|
Engine |
Model |
WP12.420E32 |
|
Fuel Type |
Diesel fuel |
|
|
Type |
6-cylinder, water-cooled four-stroke, direct injection, turbocharged |
|
|
Power |
420HP/309KW |
|
|
Emission standard |
Euro 3 |
|
|
Displacement |
11596 ml |
|
|
Rated speed |
2100 rpm |
|
|
Max. torque |
1750 N.m |
|
|
Braking system |
Service Brake |
Air brake |
|
Park Brake |
Spring energy |
|
|
Electric system |
24v |
|
|
Superstructure Specification |
||
|
Fuel tank |
||
|
Volume of tank |
20000L |
|
|
Tank shape |
Quadrate |
|
|
Material of tanker |
High Quality Carbon Steel |
|
|
Thickness of tank |
5mm |
|
|
Compartment |
2 |
|
|
Transport medium |
Diesel oil, gasoil or others |
|
|
Fuel pump |
||
|
Model |
80YHCB60 |
|
|
Flow rate |
60 m3/h |
|
|
Working pressure |
0.6 Mpa |
|
|
Rated speed |
970 rpm |
|
|
Safety accessories |
||
|
Manhole cover |
European standard cover |
|
|
Anti-overflow probe |
||
|
Gas recovery joint |
||
|

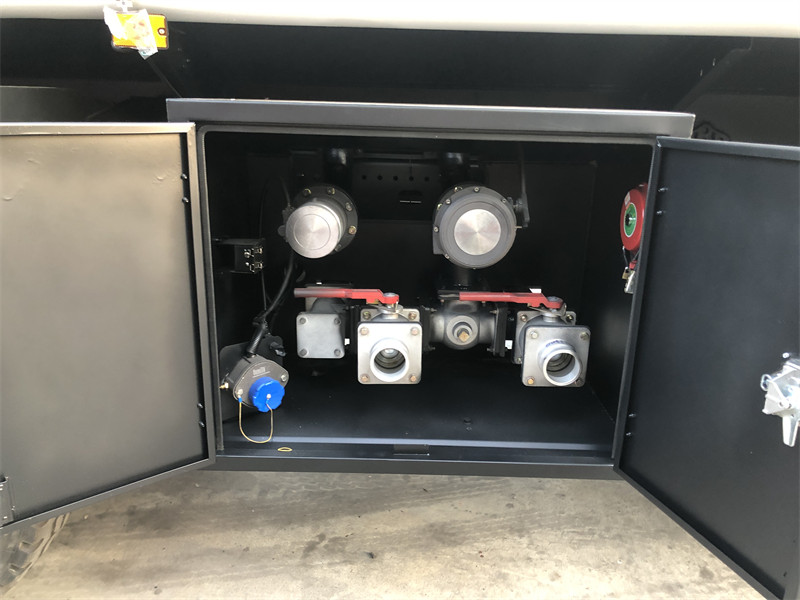

Bottom Filling Device |
API discharge valve |
|
|
Pumping outlet & inlet |
||
|
Oil and gas recovery valve |
||
|
Anti-overflow anti-static socket |
||
|
Percolator |
||
|
Bottom of tank valve |
Emergency valve |
|
|

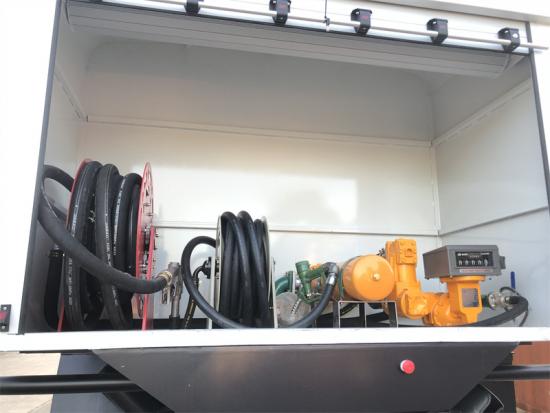

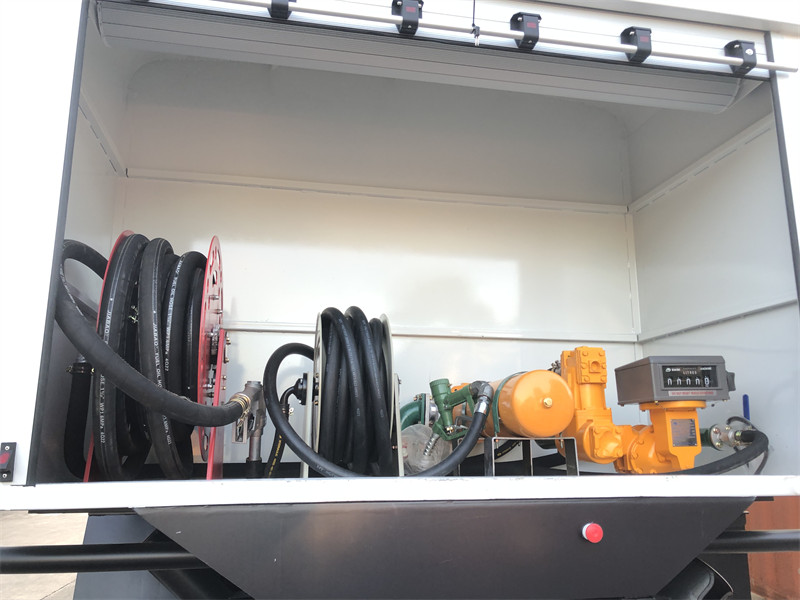

Refueling machine |
Portable machine with refueling reel & gun |
|
|
Length of refueling reel |
15m |
|
|
Fittings |
Refueling gun |
|
|
Discharging Pipe |
||
|
Discharging Pipe box fitted on both side of tank |
||
|
Fire extinguisher |
||
|
One spare tire |
||
|
Ladder: For access to top of tank complete with cat walk on top of tank |
||
|
Heavy-duty rear bumper |
||
» Ⅲ. Chassis Advantages:
Beiben Axles
Front axle: Beiben 7.5 T driving axle
Rear axle: Beiben 2×13T dual reduction driving axle
Rear axle ratio: 5.263
Weichai Engine
Model: WP12.420E32
Number of cylinders: 6
Power: 420HP/309KW
Displacement: 11596ml
Rated speed: 2100 rpm
Max. torque: 1750 N.m
FAST Gearbox
Model: 12JS200T
Gear: 12-speed forwards and 2 reverse
Rated input power: 355 kw
Rated input torque: 2000 N.m
Suspension system
Equipped with integrated balance suspension system developed based on Benz technology.
Front leaf spring: 12 pcs
Rear leaft spring: 13 pcs
U-shape bolts: 4 pcs
» Ⅳ. Feul Tanker Features:
Fuel pump
Model: 80YHCB60
Flow Rate : 60 m³/h
Working Pressure: 0.6 MPa
Rated Power: 11 kW
Rotational Speed: 970 r/min
Inlet/Outlet Diameter: 80 mm
Allowable Suction Lift: 7 m
Efficiency: Approx. 72%
Manhole cover
Emergency Opening Pressure: 21 kPa ~ 32 kPa
Maximum Emergency Venting Flow Rate: 7000 m³/h (at 34 kPa)
Material: Aluminum Alloy
Installation Method: Clamp-type
Temperature Range: -20℃ ~ +70℃
API adaptor valve
Nominal Pressure: 0.6 MPa
Maximum Flow Rate: 2500 L/min
Main Body Material: Aluminum Alloy
Operation Mode: Manual
Design Temperature: -20℃ ~ +70℃
Emergency shutt-off valve
Nominal Pressure: 0.6 MPa
Material: Aluminum Alloy
Operation Mode: Pneumatic
Temperature Range: -20℃ ~ +70℃
Overflow prevention probe
Operating Voltage: 12 VDC
Explosion-Proof Rating: Exia IIB T4
Response Time: < 1 s
Design Temperature: -40 ℃ ~ +60 ℃
Operating Current: < 5 mA
Operating Medium: Light fuel oil
» Ⅴ. Product Details:

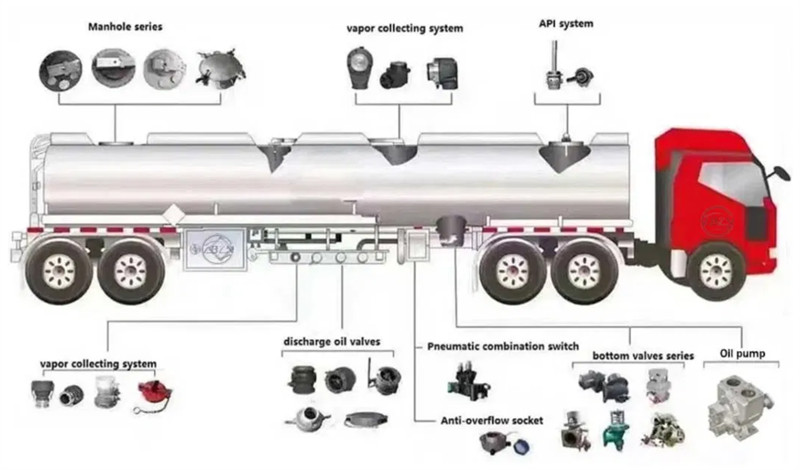

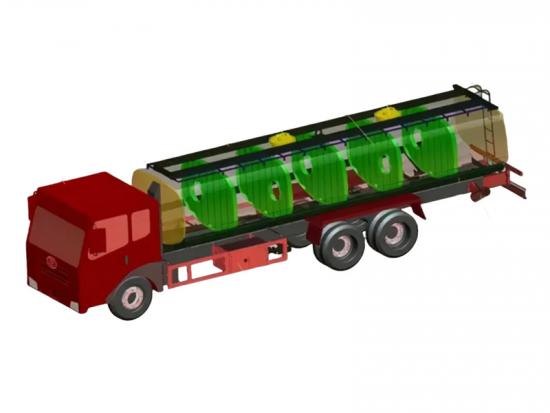

» Ⅵ. Tanker Body Structure:
» Ⅶ. Product Applications:
