                                                              China beiben 2638 cargo truck

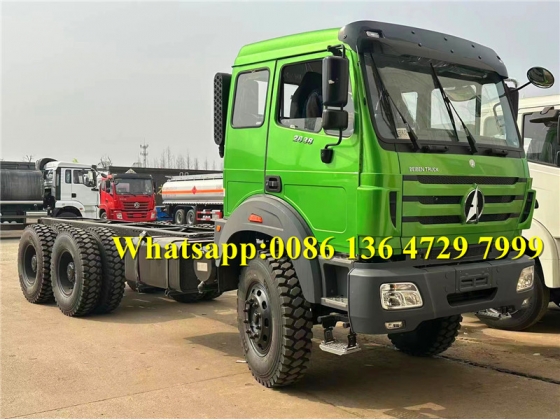

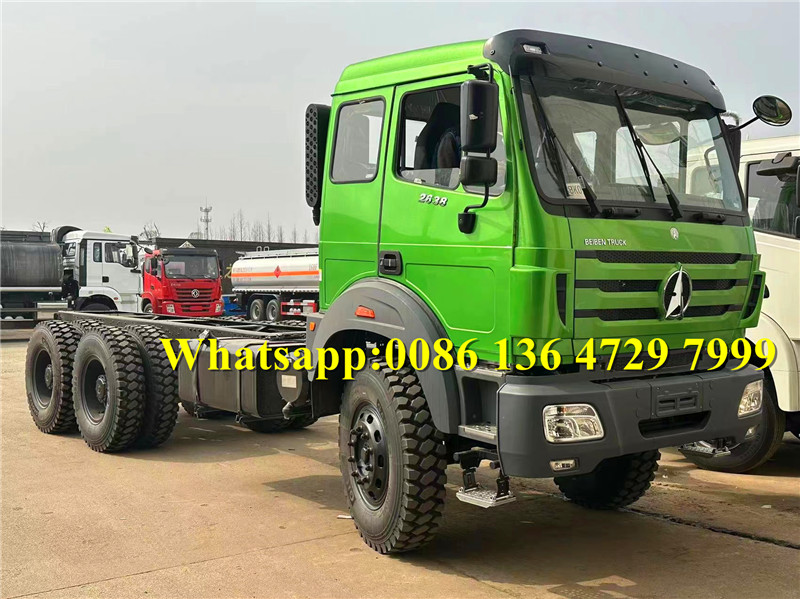

 Beiben 2638 cargo truck chassis




 Applications:

The Beiben 2638 cargo truck, also called as beiben 2638 cargo truck chassis, beiben 2638 truck chassis, beiben 2638 long cargo truck. It is heavy duty truck chassis that is designed for use in demanding applications such as construction, mining, and transportation of heavy goods.


The Beiben 2638 truck features a 6x4 drivetrain with a strong and durable chassis and suspension system that can carry up to 38 tons of cargo. It is powered by a Weichai WP10.380E32 engine that delivers up to 380 horsepower and 1,800 Nm of torque, which is transmitted through a 12-speed manual gearbox.


The cabin of the Beiben 2638 truck is spacious and comfortable, with air conditioning, power windows, and an adjustable driver’s seat. It also has modern safety features like ABS brakes and an electronic stability control system.



 Key Features:



---- BEIBEN NG80B cabin, benz technology

---- ZF8098 fuller steering system, convenient.

---- 9JS150A transmission, super combination.

---- Mercedes benz technology front axle, rear axle.

---- Off road tyres, 12.00R24 big tyre.



 Specifications:



Required Technical Specification 参数

Basic parameter

基础参数

Model 型号

2638PZ/6×4

Length×width×height(mm) ××

9526×2500×3385

Wheel-base(mm) 轴距

4450+1450

Curb weight(kg) 底盘整备质量

11400

Engine parameter

发动机参数

Model (six cylinder in line) 型号(六缸)

WP10.380E32

Max. Power (HP/rpm) 最大马力

380

Max. Torque(Nm/rpm) 最大扭矩

1600/14001600

Displacement(lit) 排量

9.726 L

Fuel tank capacity 油箱容量

400L Iron oil tanker  400L

Transmission system

传动系统

Clutch 离合器

430 Single disc, dry type, friction clutch

430单片,干式摩擦离合器,液压辅助可调式;

Gearbox 变速箱

Mechanical, 9JS150A

Steering system

转向系统

Steering gear 转向机

8098 Circulating ball steering gear, hydraulic booster;循环球式,液压助力;

Brake system

制动系统

Service brake 行车制动器

Double circulation air brake system equipped

双回路气压制动;

Parking brake 驻车制动器

Energy storage spring brake  弹簧储能制动;

Assisted brake 辅助制动

Engine exhaust brake  发动机排气制动;



Chassis parameter

底盘参数

Frame 车架

Variable width and section  317×70×8.5+7+8.5 mm

不等宽,变截面 317×70×8.5+7+8.5 mm

Front axle 前桥

7.5 T, no-driving steering axle, drum brake

7.5吨驱动转向桥,鼓式制动;

Middle & Rear axle 中后桥

13T, Double-shoe pneumatic brake, double reduction driving axle, differential lock, speed ratio is 5.263

双蹄片式气压制动,双减速驱动桥,差速锁,速比5.263

Front and rear suspension 前悬挂/后悬挂

Front/rear: Leaf spring, 13/13 pieces

/后板簧:13/13片簧;

Tire 轮胎

12.00R20

Cab

驾驶室

NG80B Long Cabin/ Flat roof/Left drive

Exterior trimming:

Metal bumper, three steps, outer sun visor, sun roof (Manual), front under-ride bumper, rear view mirror (Manual).

NG80B长驾平顶/左驾带双卧

外饰:金属保险杠、三步软车梯、外遮阳板、手动天窗、手动调节后视镜。

Interior trimming:

Air suspension seat, Single bunk with sleeper, cooling and heating air conditioner, Steering wheel can be adjusted, door lock(Manual), radio (with MP3), digital instrument

内饰:气悬浮主座椅、单卧铺、冷暖空调、可调方向盘、手动门锁、收放机(带MP3功能)、数字仪表。

Offer

报价

1.工厂自提含税价格:以具体核算为准。

2.支付方式:30%现金定金,70%现金尾款,款到发车。

3.交货期:收到30%定金后,正常交货期为45天交付货物。交货期需要在签订合同前再次确认。

4.报价有效期:1个月 。有效期过后,需要重新报价。

5.该车辆不含质保,如需质保,需要另行商议。







 beiben 2638 cargo truck

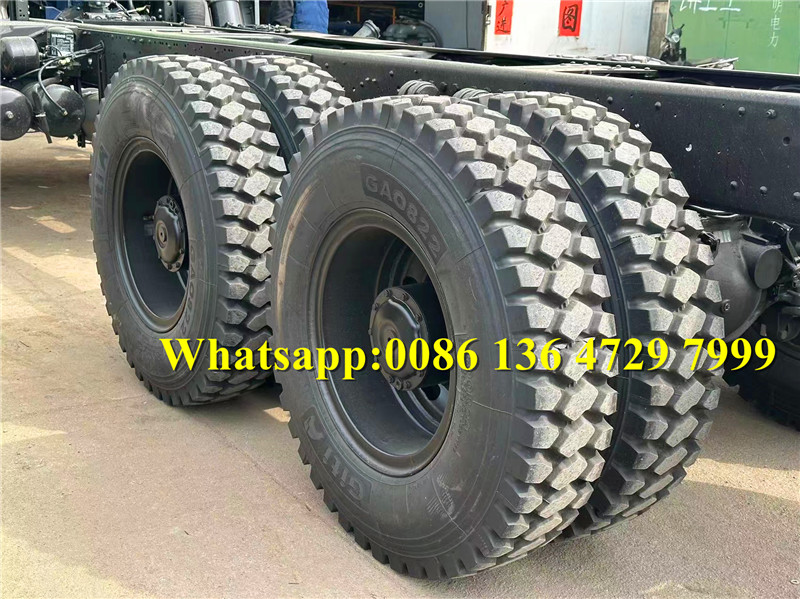

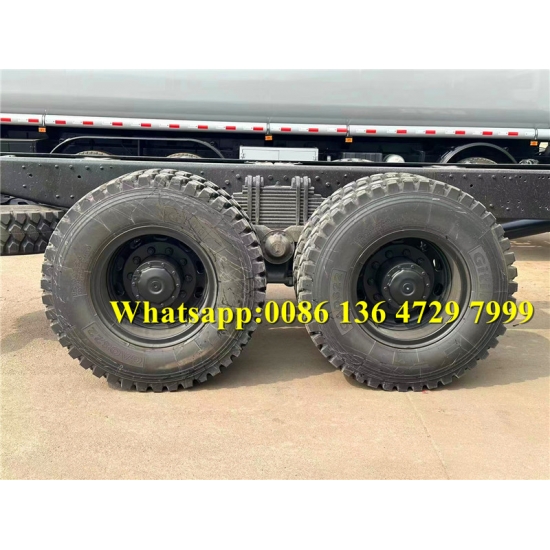

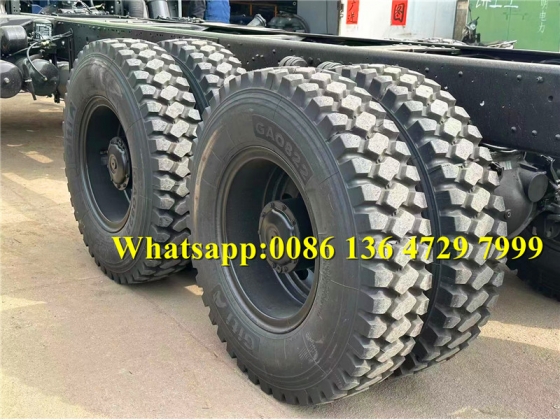

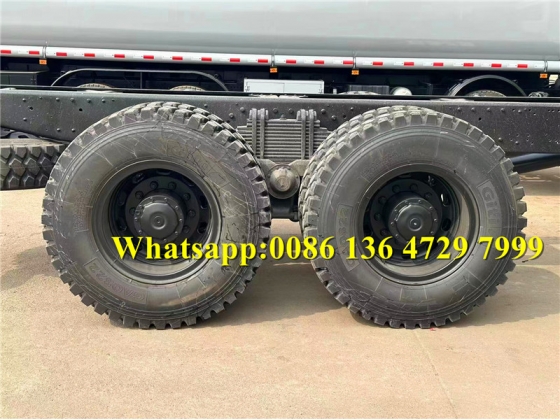

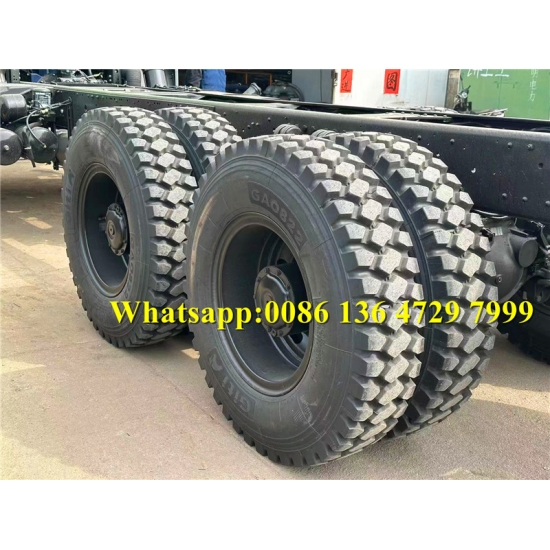

Off road suspension system.

 beiben 2638 cargo truck
