Beiben 8x8 off-road drive tractor truck, renowned for its robust chassis, high ground clearance, and superior traction, is ideally suited for Africa’s challenging terrains. Designed for heavy machinery and oversized cargo, low-bed trailers complement the Beiben 8x8’s 120-ton towing capacity. These trailers feature reinforced frames and hydraulic suspension, enabling safe transport of construction equipment, mining vehicles. Their hydraulic lifting mechanisms facilitate rapid unloading of bulk materials like ores, gravel, or sand, aligning with the truck’s high-torque engine for efficient operation in quarries or remote sites
Working capcity:
120 tonsCabin type:
Beiben NG80 cabin, with one sleeperDimension ( mm ) :
10100×2700×3400Drive system:
8×8Wheelbase (mm):
1500+3850+1450Engine power / Model:
550 HP/WP13.550E6Gear Box:
12JS200TARemark:
RHD drive, 12.00R24 tyresEquipped with a robust 550HP diesel engine, the Beiben 8×8 tractor truck excels in transporting heavy loads across extreme off-road environments. Its high torque output and adaptive power distribution ensure reliable performance in sectors like construction, mining, and disaster relief, where traversing mud, sand, or rocky landscapes is routine. Beiben 8x8 drive tractor truck’s 8×8 all-wheel-drive system, coupled with differential locks and reinforced axles, guarantees optimal traction on unstable surfaces. This configuration allows individual wheels to maintain momentum even when partially lifted or submerged, making it indispensable for military logistics, oilfield exploration, and forestry operations. beiben 8x8 drive tractor head has high ground clearance and approach/departure angles further prevent underbody damage on uneven paths.
● Mercedes benz 8x8 off road drive system
● 550 Hp strong diesel engine
● 12.00R24 off road tyres, suitable for wildland forest
● Mercedes benz technology axle
Product Specifications
|
Beiben 8×8 AWD tractor truck 550 Hp chassis |
||
|
Wheelbase(mm) |
1500+3850+1450 |
|
|
L*W*H |
10500X2700X3400 |
|
|
Curb weight(kg) |
12800 |
|
|
Front overhang/rear overhang (mm) |
1410/1940 |
|
|
Approach angle/Departure angle |
33/20 |
|
|
Max Speed:(Km/h) |
≤85 |
|
|
Engine |
Model |
WP13.550E62 |
|
Type |
water-cooled, four strokes, 6 cylinders straight in line, turbocharged |
|
|
Fuel type |
Diesel |
|
|
Min rate of consuming fuel(g/(kw.h)) |
196g/kw.h |
|
|
Rated Power / rotating(kw/(r/min) |
405 Kw(420HP)/2200rpm |
|
|
Emission |
EURO 6 |
|
|
Maximum Torque / rotating speed (n.m/(r/min) |
2550Nm/1500-1800rpm |
|
|
Displacement(ml) |
12.546 |
|
|
Fuel tanker capacity(L) |
400L Aluminum |
|
|
Transfer case |
LF200 |
|
|
Clutch |
Model |
#430, Single dry frictional disc, Hydraulic boosting |
|
Gearbox |
Model |
12JS200T mechanical type, mechanical type, Based on Fuller Eaton technology, 12 Forward speed gear. |
|
Brake system |
Service brake |
Brake gap can be adjusted automatically, double circulation air brake system |
|
Assistant brake |
Engine exhaust brake |
|
|
Park brake |
Potential springs pressing on middle and rear wheels |
|
|
Steering system |
Model |
8098 whole circulation in ball type, hydraulic boosting |
|
Suspension System |
Front Suspension |
Non-free standing leaf spring, telescopic shock absorber with stabilizer bar suspension,12/12 pcs springs. |
|
Rear Suspension |
Non-free standing stabilization spring, stabilization suspension,13 pcs springs |
|
|
Frame |
Fish belly shape, variable width, variable sections, Based on Germany Benz Technology |
|
|
Cross section dimension of frame(mm) |
317×70×8.5+7+8mm |
|
|
Double Front axle (Mercedes Benz Technology) |
Double-shoe pneumatic brake, 8 ton driving steering axle |
|
|
Middle and Rear axle (Mercedes Benz Technology) |
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, 13tons double reduction driving axle, speed ratio5.263 |
|
|
Tire |
12.00R24 radial tire |
|
|
Electrical system |
Battery |
2X12V/135Ah |
|
Generator |
28V-70A |
|
|
Starter |
5.58Kw/24V |
|
|
Cab |
V3 cabin |
|
|
Interior trimming: |
||
|
Exterior trimming: |
||
|
Other specifications |
Two layer air filter |
|
|
Upper body |
Can be customized according to customer's requirements |
|
Beiben 8x8 off-road drive tractor truck, renowned for its robust 4-axle all-wheel-drive system and exceptional terrain adaptability, is ideally suited for Africa's challenging landscapes. Its high ground clearance, reinforced chassis, and 600+ horsepower engine enable seamless integration with diverse semi-trailers to address regional logistical demands. Below are key compatible trailer types:
Heavy-Duty Lowbed Trailers: Designed for oversized cargo (e.g., mining machinery, wind turbine blades), these trailers feature reinforced steel frames and hydraulic suspension systems. The Beiben 8x8 tractor truck's 40-ton payload capacity ensures stable transport across unpaved roads.
Tipper Trailers: Triple-axle tippers with 30-35m³ capacity align with the truck's torque-rich performance (2,200 Nm), facilitating efficient bulk material transport (coal, aggregates) in mining and construction sectors. Their reinforced tailgates withstand frequent loading cycles.
Fuel Tankers: Insulated 35,000-liter tankers with anti-rollover baffles suit the truck's stability control system. These serve fuel distribution networks across remote areas, featuring corrosion-resistant aluminum bodies for harsh climatic conditions.
Flatbed Trailers with Side Kits: Modular 12.5m flatbeds with removable side posts and tarpaulin systems accommodate mixed cargo (steel coils, timber). The truck's 52° approach angle prevents undercarriage damage during off-road loading.
Refrigerated Trailers: Dual-compartment 28-pallet units with independent cooling systems leverage the tractor's dual alternator setup (24V/220V), crucial for perishable goods transport in equatorial climates.
Container Chassis: Adjustable twist-lock systems enable 20/40ft container transport, supporting port logistics. The beiben 8x8 tractor truck chassis's 1.2m ground clearance prevents obstruction on flooded roads.

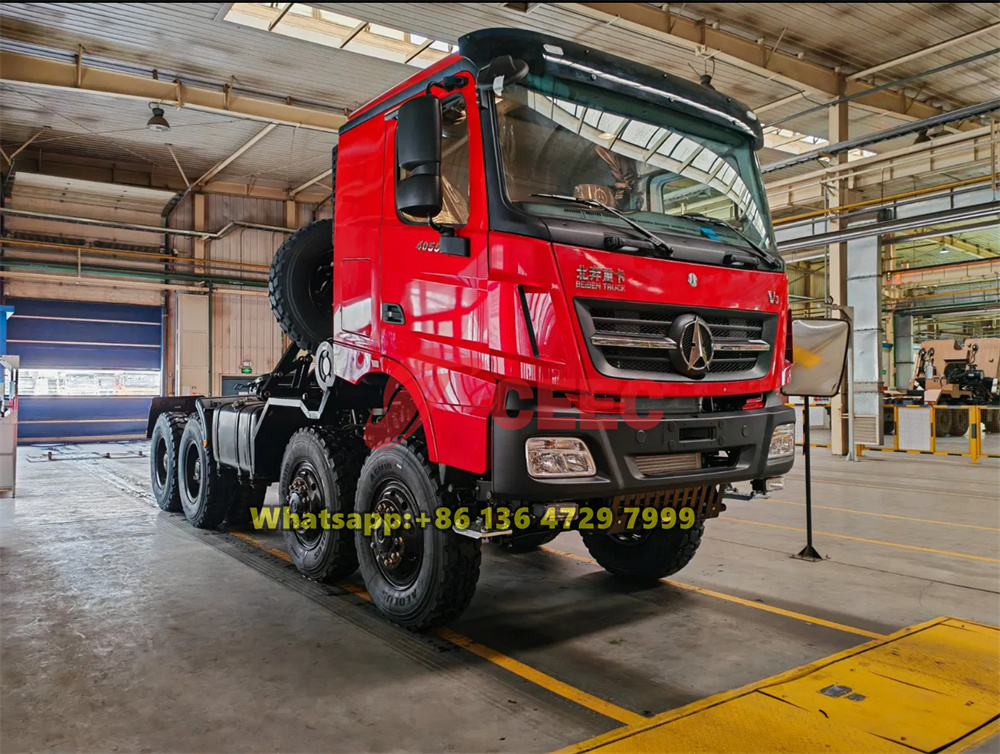

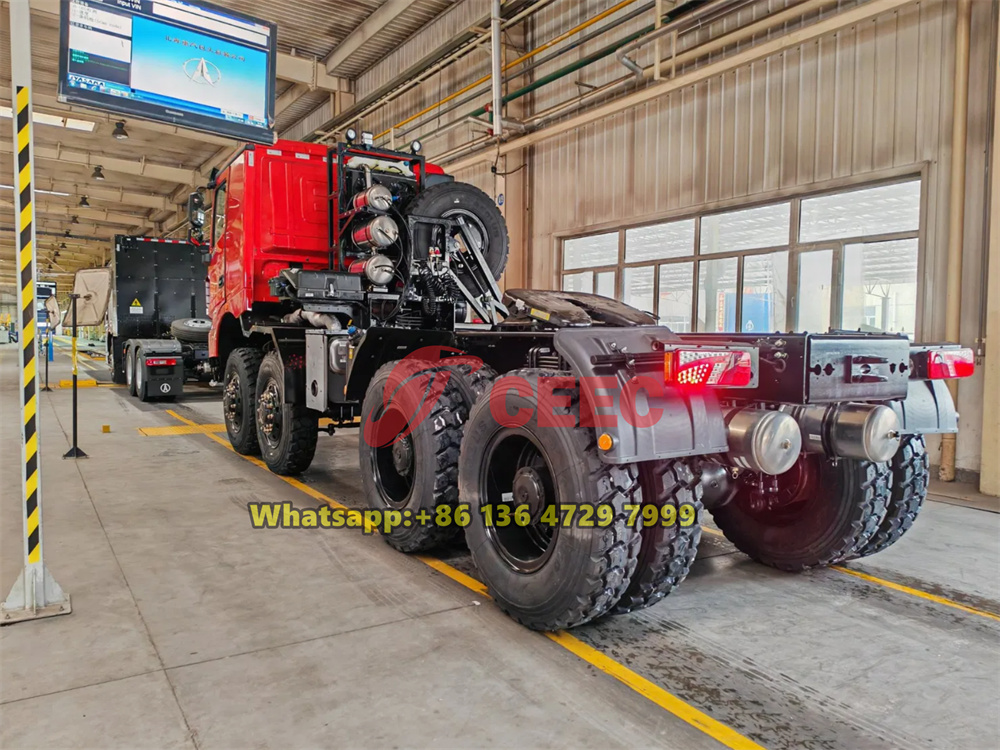

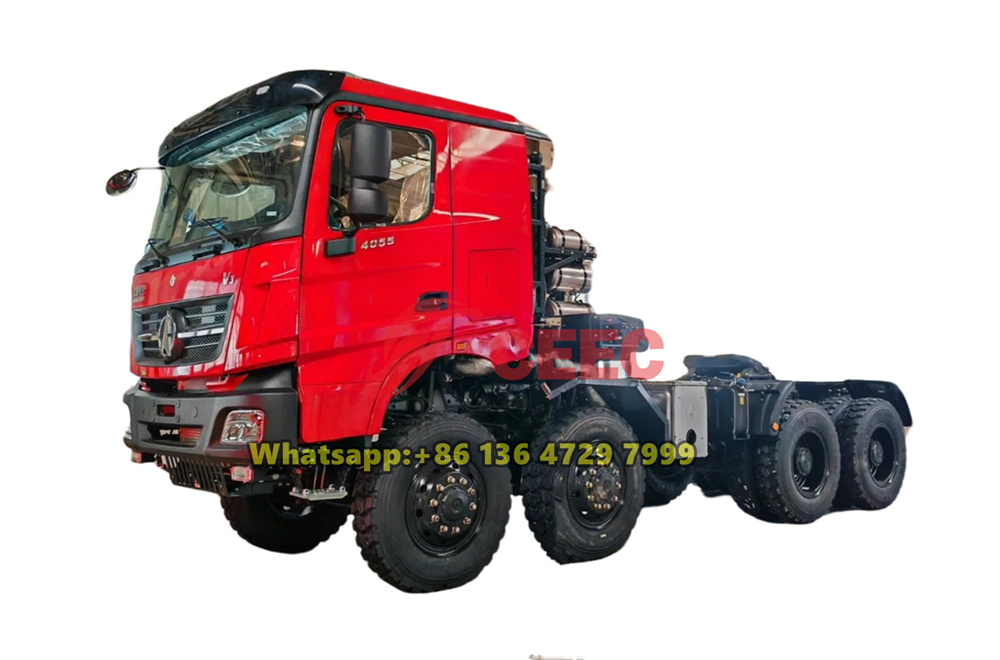

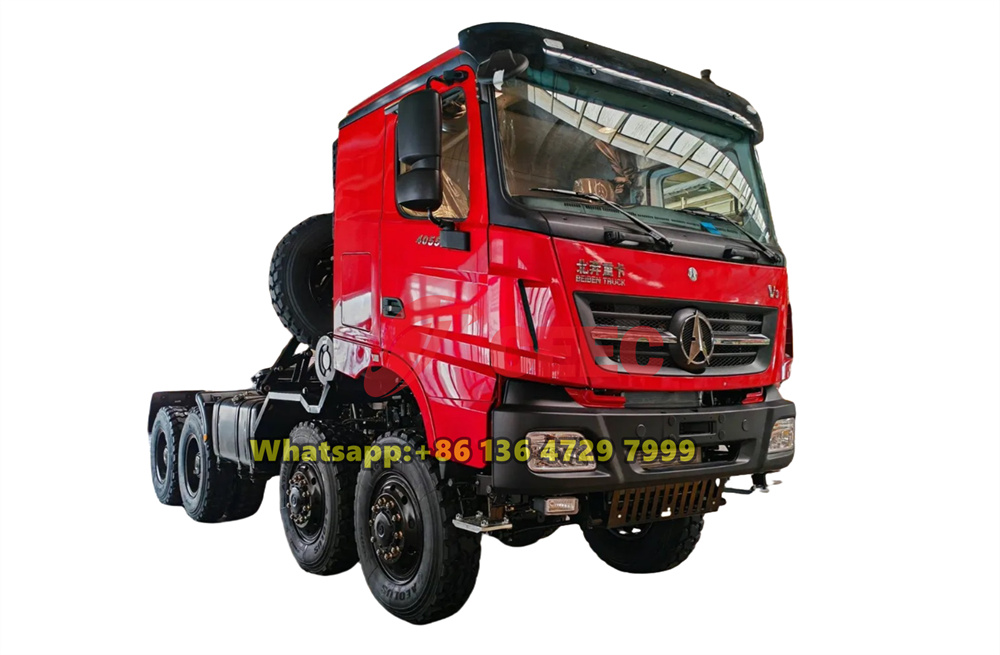

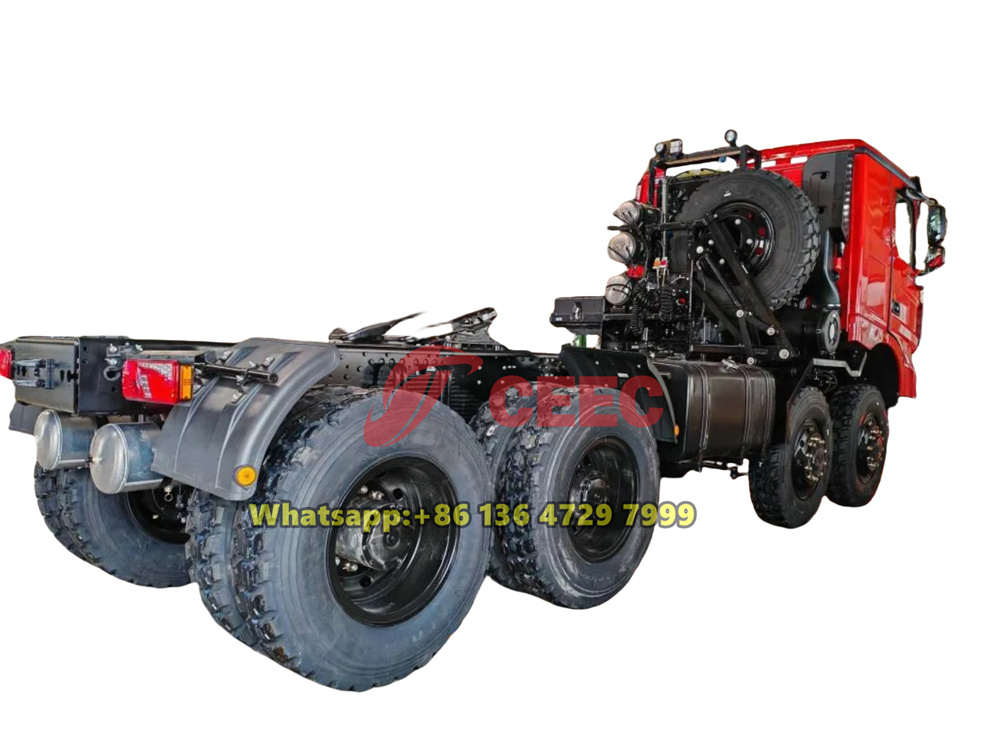

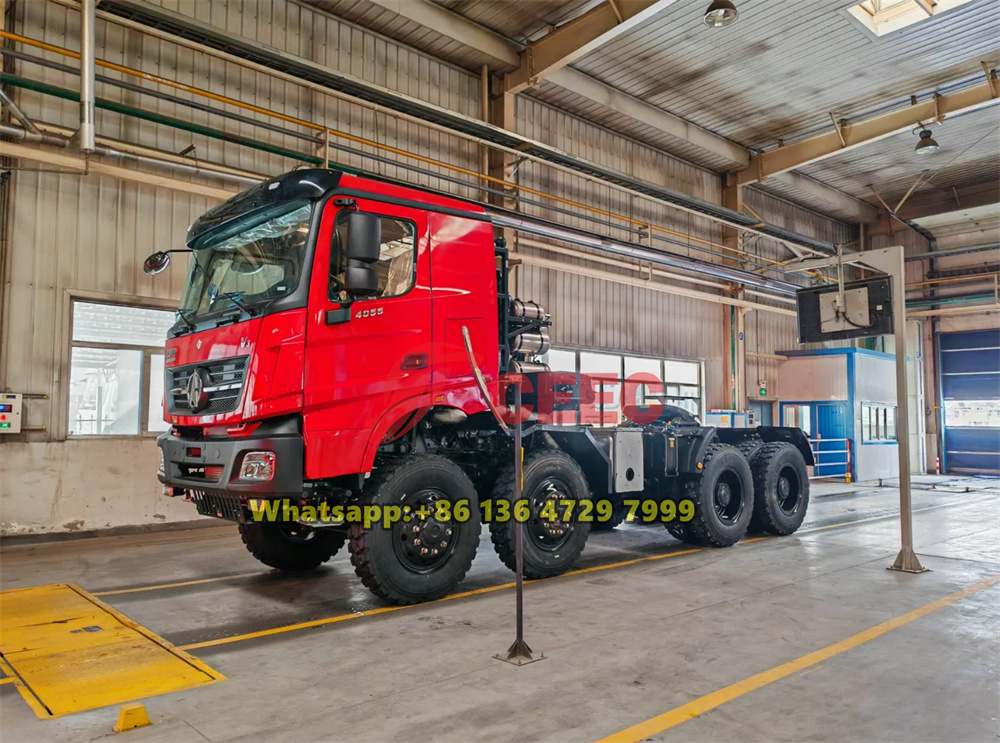

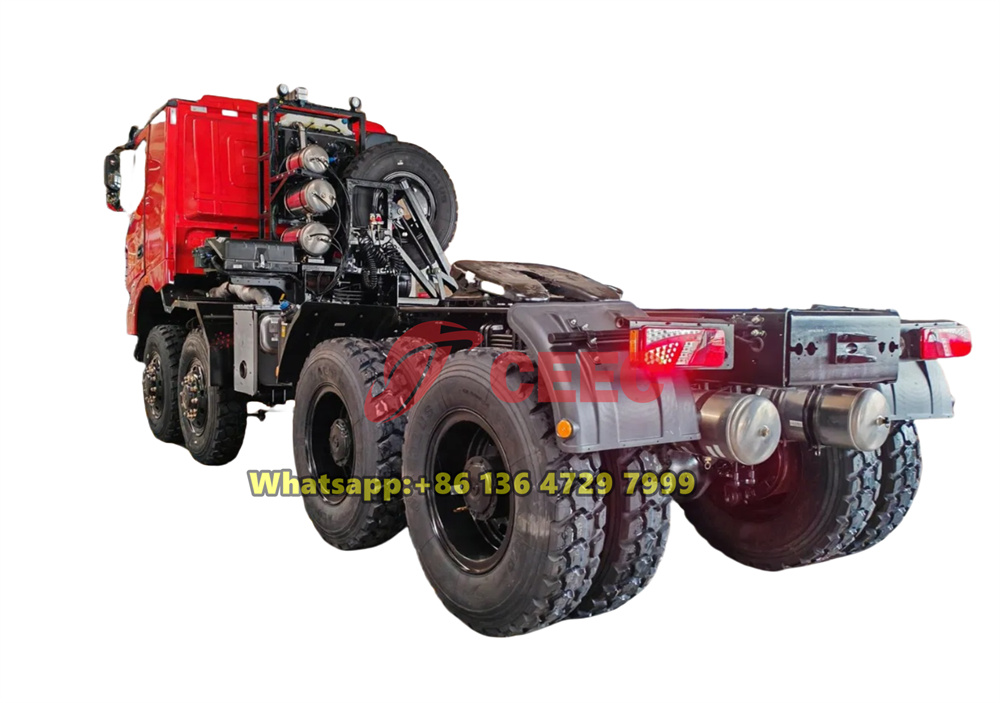

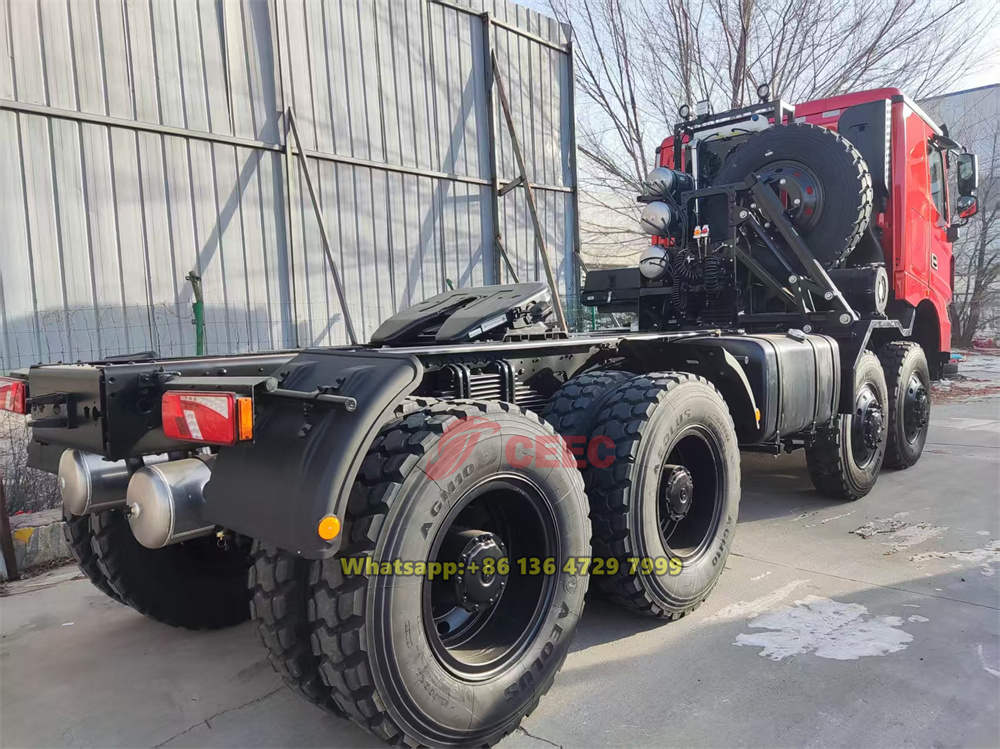

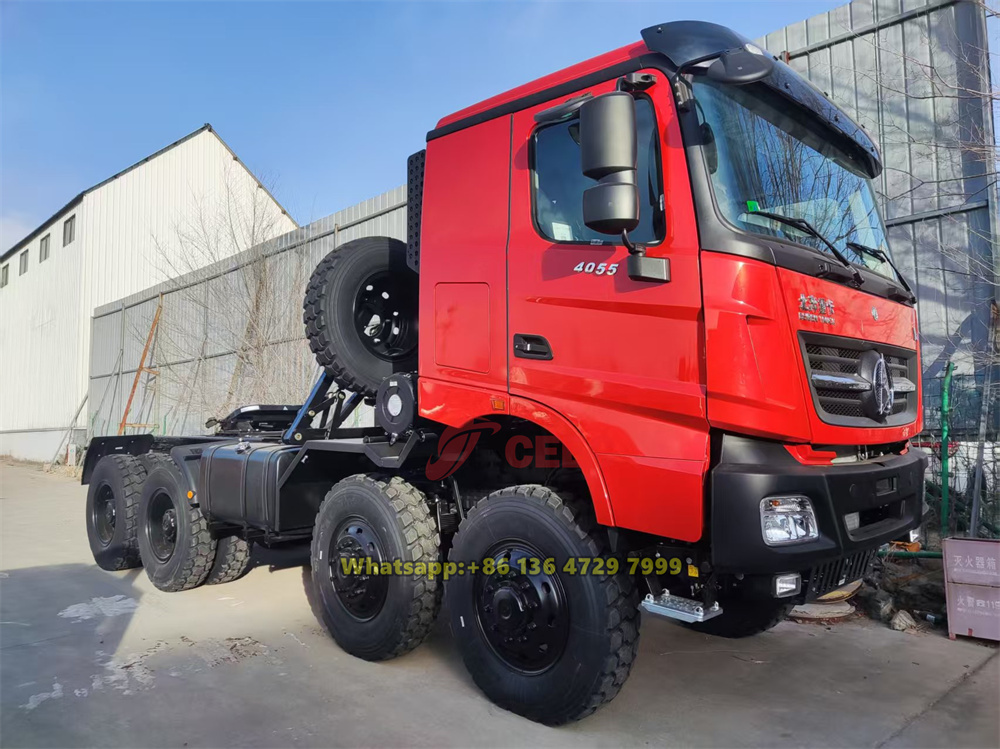

Product Pictures
