Traction type

LHD

Drive System

6×4

Cabin

NG80B   Short Cabin, Air Conditioner ,no sleeper

Engine

Brand

WEICHAI

Model

WP10.340E32 EURIII

Rated power

340hp

Engine displacement

9.726   liters

Gearbox

FAST 9   Speeds (9JS150A)

Clutch

430   Diaphragm type

Steering

ZJ120D

Axle

Front

BEIEBN 7.5   Ton

Rear

BEIBEN 13 Ton double reduction axle, ratio:5.921

Max. running speed (km/h)

80

Tire

12.00R20

Spring

10/13

Fuel tank

300L

Kerb weight (kg)

12400

Total mass (kg)

25000

Wheel base (mm)

3800+1350

Overhang (mm) (front/rear)

1410/ 1870

Track (mm) (front/rear)

1995/1800

Approach / departure angle(°)

26/32

Dimensions(L*W*H)(mm)

Overall

8330x2500x3430

Dump body

5600x2300x1500

Thickness (mm)

Bottom 8   , front 6mm,side   4

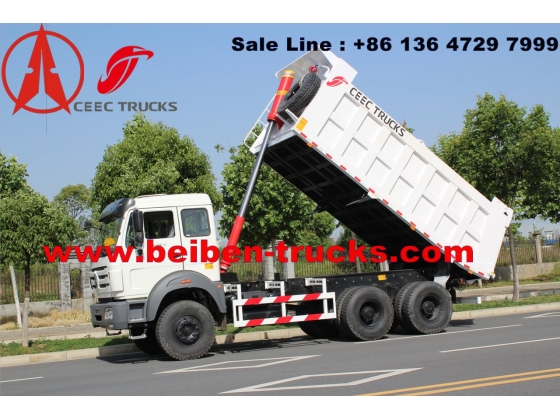

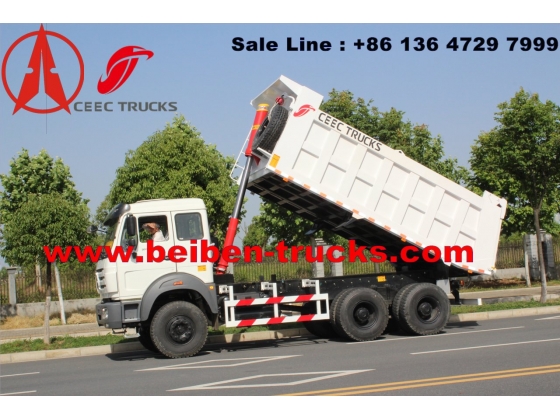

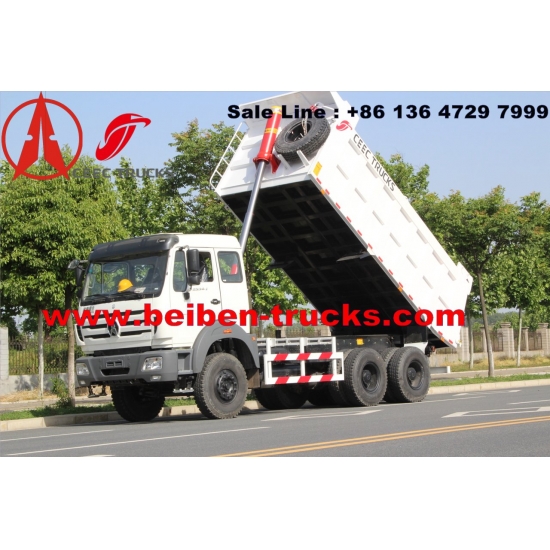

Hydraulic lifting system

Middle   lifting(Made in China)
