The Beiben 20CBM Tipper Truck is specifically designed for the Kenyan and African markets, equipped with a Weichai 380HP engine and a heavy-duty Benz-technology chassis, delivering a 26-ton load capacity and 30% gradeability. Its 20-cubic-meter high-strength steel cargo box (8mm floor + 6mm side plates) is built for heavy-duty transportation of sand, gravel, and ores, while the front-tipping hydraulic dump mechanism enhances operational efficiency. The truck features a 6x4 drivetrain, straight-through ladder frame, and inverted leaf spring suspension for superior off-road performance. The cabin comes with air conditioning and an optional sleeper berth, ensuring driver comfort and long-haul endurance, making it an ideal solution for mining and construction applications.
Working capcity:
30 tonsCabin type:
NG80B long cabin, with sleeperDimension ( mm ) :
9880×2500×3630Drive system:
6×4, RHDWheelbase (mm):
3800+1450Engine power / Model:
380 HP/WP10.380E32Gear Box:
9JS150ARemark:
6×6 is optionalCustomized for the African market, the Beiben 20CBM Construction Tipper Truck stands out with its robust load-bearing capacity, reliable powertrain, and highly adaptable chassis, making it the preferred choice for harsh operating conditions in mines and construction sites. This 6x4 right-hand-drive model adopts the Beiben NG80 long cab design, featuring a sleeper and air conditioning to meet drivers' comfort needs during extended operations. Its key advantages include a 20-cubic-meter cargo box, a 380HP Weichai high-pressure common rail engine, and a Benz-technology heavy-duty axle—a golden combination that effortlessly handles Kenya’s challenging terrain and high-load transport tasks.
The core strength of Beiben RHD construction tipper truck lies in its rugged and durable body design. The cargo box measures 5600×2500×1500mm, with an 8mm reinforced steel floor and 6mm side plates, ensuring resistance to impact and long-term wear. The front-tipping hydraulic system, paired with a reinforced ladder frame, guarantees stable unloading even at full 20-ton capacity. Optimized for Kenya’s hilly roads, the vehicle achieves a 30% max gradeability thanks to balanced axle load distribution and a 5.921 rear axle ratio, while 12.00R20 radial tires enhance traction on rough terrain.
From mining haulage to earthmoving projects, this Beiben heavy construction dumper truck has become a top choice for Kenyan customers due to its cost-efficiency, extended lifespan, and low failure rate. Compared to competitors, its Benz-technology axles and Weichai powertrain reduce maintenance costs by over 30%, while the high-strength steel cargo box lasts 8-10 years, far outperforming standard carbon steel models. For African operators seeking higher payloads and faster operations, the Beiben tipper isn’t just a vehicle—it’s a long-term investment in productivity.
Product Specifications
|
Product Name |
Beiben 20CBM construction tipper truck |
|
Drive Type |
6x4 RHD |
|
Cabin |
|
|
Type |
Beiben NG80 long Cabin, with sleeper |
|
Equipment |
With Air Condition, One or none bed |
|
Weight |
|
|
Kerb mass(kg) |
12800 |
|
GVW(kg) |
26000 |
|
Dimensions |
|
|
Max. length(mm) |
9880 |
|
Max. width(mm) |
2500 |
|
Max. height(mm) |
3630 |
|
Front/Rear overhang(chassis) |
1410/1870 |
|
Wheel base(mm) |
3800+1450 |
|
Track width(mm) |
1995/1808 |
|
Cargo box size |
|
|
Length (mm) |
5600 |
|
Width (mm) |
2500 |
|
Height (mm) |
1500 |
|
Thickness of Steel |
Floor 8mm, side 6mm |
|
Tipping type |
Front tipping |
|
Performance |
|
|
Max. speed (km/h) |
75 |
|
Max. gradeability(%) |
30 |
|
Approach/Departure angel(°) |
26/32 |
|
Engine |
|
|
Brand |
WEICHAI |
|
Model |
WP10.380E32 |
|
Power (kw/hp) |
280kw/380HP |
|
Max torque (N.M)/rpm |
1600N.m/1500-1800 rpm |
|
Displacement (L) |
9.726 |
|
Emission Standards |
Euro III |
|
Transmission |
|
|
Brand |
FAST |
|
Model |
9JS150 |
|
Control type |
Manual |
|
Gear Shift |
9-forward & 1-reverse speed |
|
Clutch |
|
|
Type |
Single plate, diaphragm spring |
|
Diameter (mm) |
Φ430 |
|
Action |
hydraulically operating with air assistance |
|
Brakes |
|
|
Type |
Drum |
|
Service Brake |
With dual-circuit compressed air brake |
|
Park Brake |
Power spring brake acting on rear wheel |
|
Auxiliary Brake |
WEVB |
|
Steering |
Power assisted |
|
Frame |
Ladder structure with parallel straight |
|
Dimensions (mm) |
300x90x8+6+8 |
|
Suspension |
|
|
Front |
Longitudinal leaf spring |
|
Rear |
Inverted leaf spring stabilizator suspension |
|
Axles |
BENZ TECHNOLOGY |
|
Front |
BENZ TYPE: 7.5 tons |
|
Rear |
BENZ TYPE: 13tons |
|
Ratio |
5.921 |
|
Tyre |
12.00R20 radial tire |
|
Fuel tank |
|
|
Tank capacity(L) |
400 |
|
Material |
Aluminum alloy |
|
Electrics |
|
|
Type |
24V |
|
Starter |
5.58kw(24) |
|
Generator |
2.0kw(28V 70A) |
|
Battery |
2x135Ah |

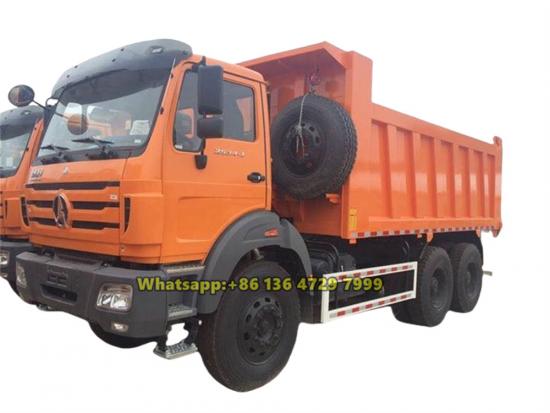

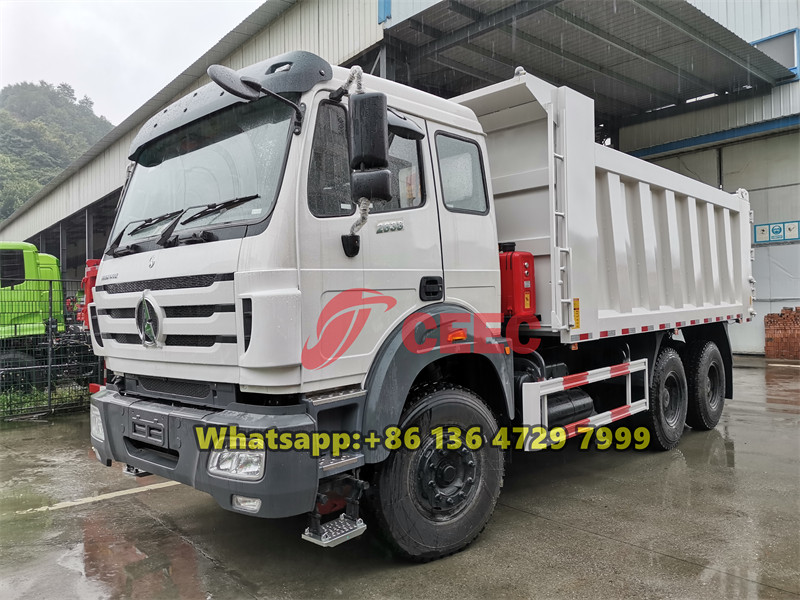

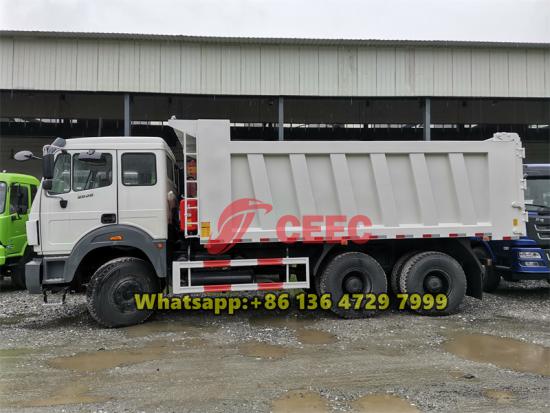

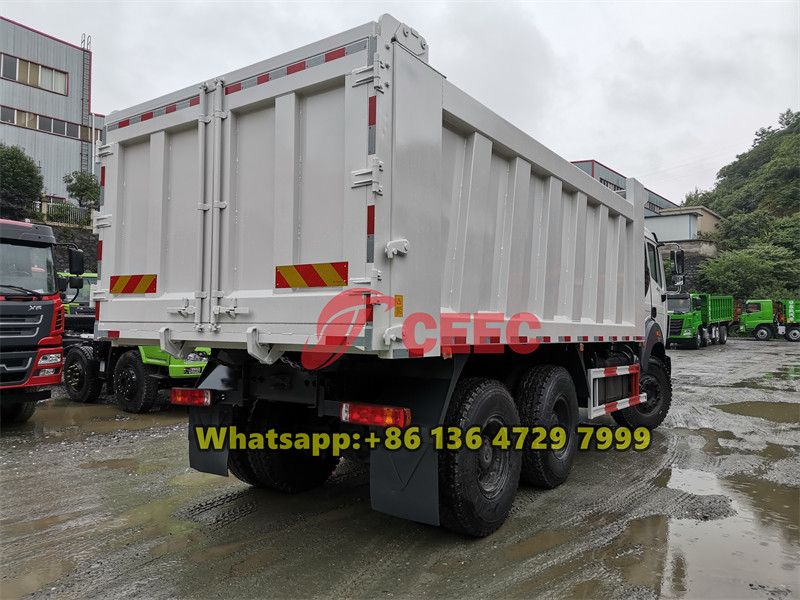

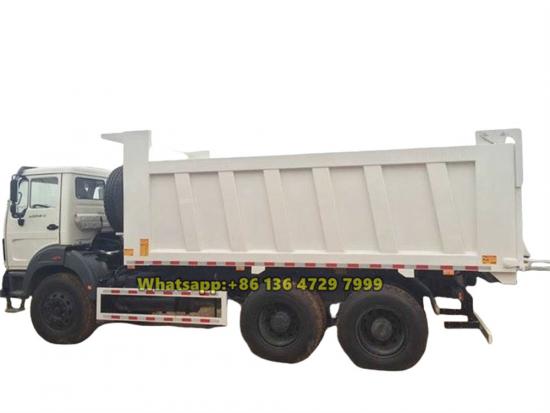

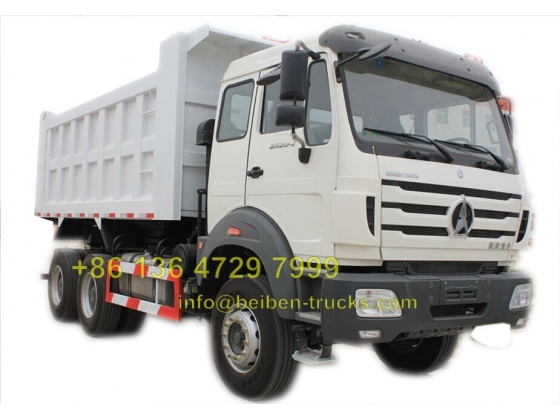

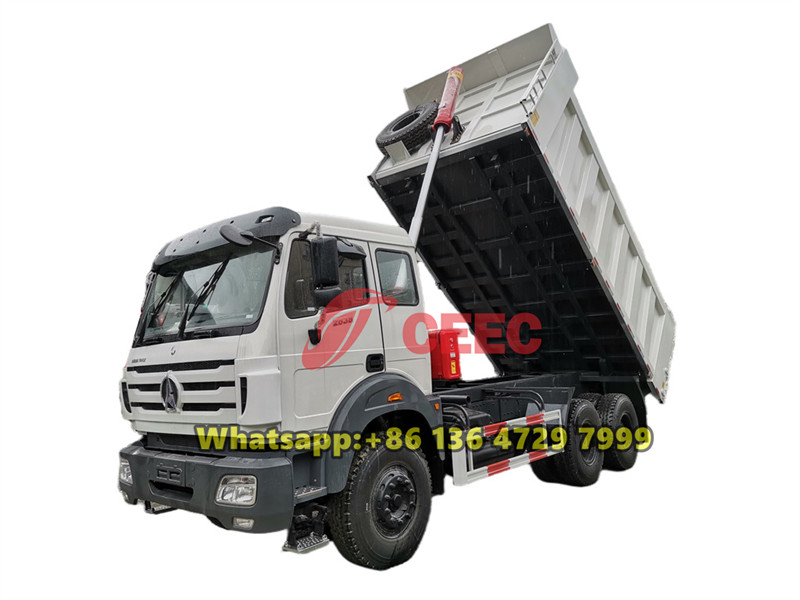

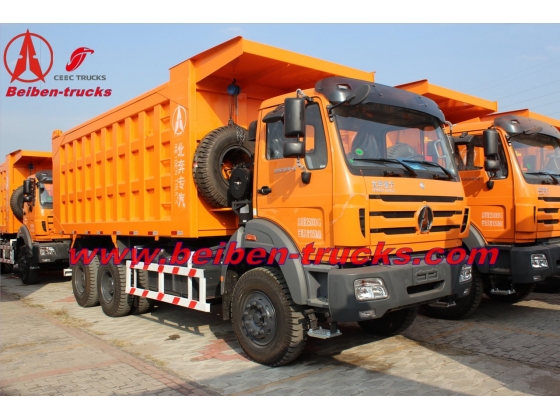

Product Pictures

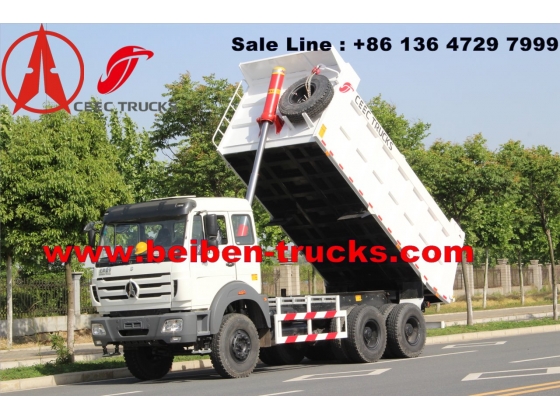

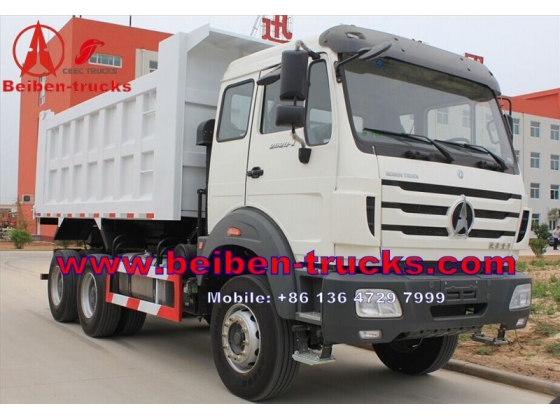

North benz 380 hp dump truck is widely for transporting mine stone and construction material, more than 10 years great experience in north benz 10 wheeler dump truck manufacturing, we aim at supplying the best quality and price for beiben 2538 10 wheeler dump truck.
10 wheeler North benz 380 hp dump truck is widely for transporting mine stone and construction material, more than 10 years great experience in north benz 10 wheeler dump truck manufacturing, we aim at supplying the best quality and price for beiben 2538 10 wheeler dump truck.

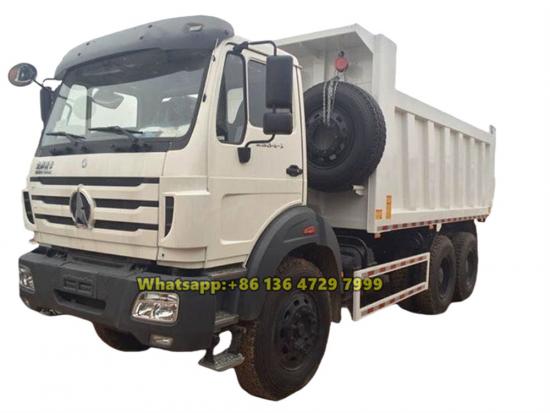

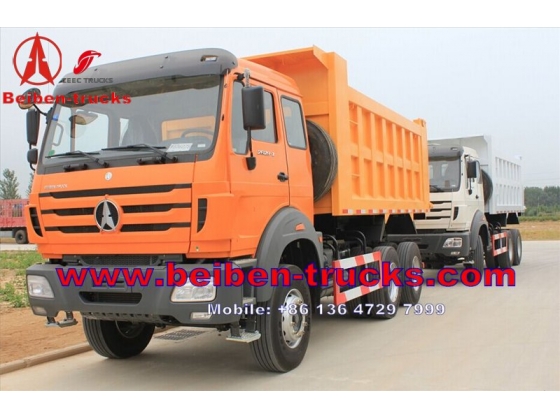

As the biggest manufacturer of NG80B 380 hp dump trucks ,we continue designing the super quality for beiben NG80B 10 wheeler dump truck. Beiben NG80B 380 hp dump trucks are with china famous weichai diesel engine, 6*4 driving sytem and fast 12 shift transmission.

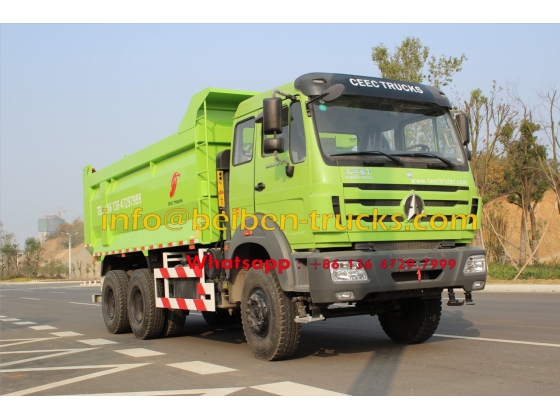

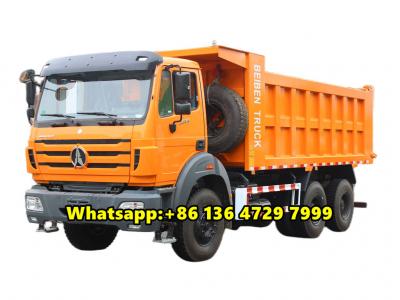

North Benz 2538 K dump truck for sale , weichai 380 Hp diesel engine fast 9 shift transmission ,12,00R20 radial tires , HYVA 157 lifting system

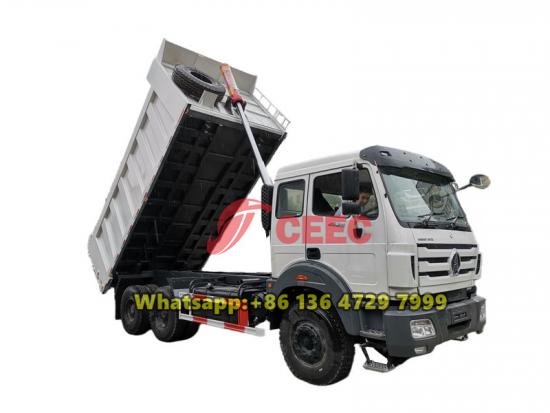

Congo beiben 2534 camions benne , 6*4 driving system, weichai WP10.340E diesel engine , fast 9 shift transmission, 3800+1450 mm wheelbase, 12.00R20 tyre, beiben dump truck cargo box 20 CBM capacity.

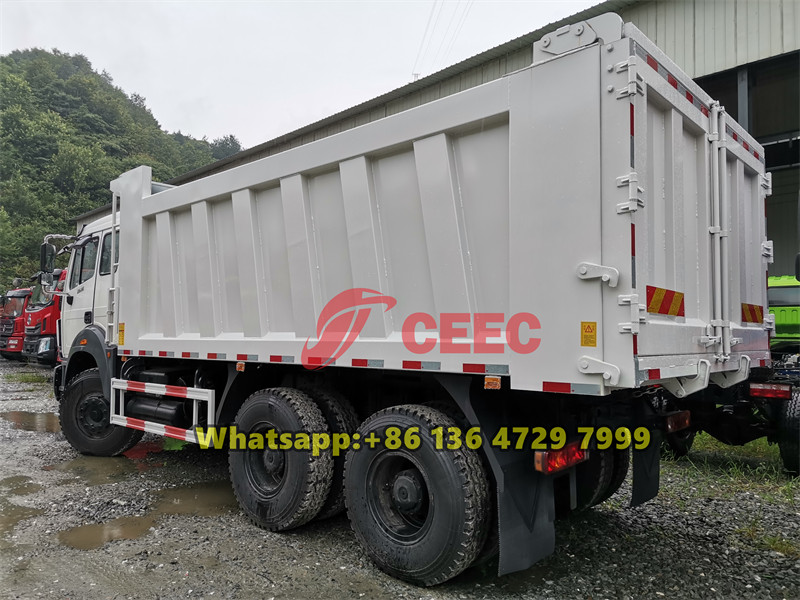

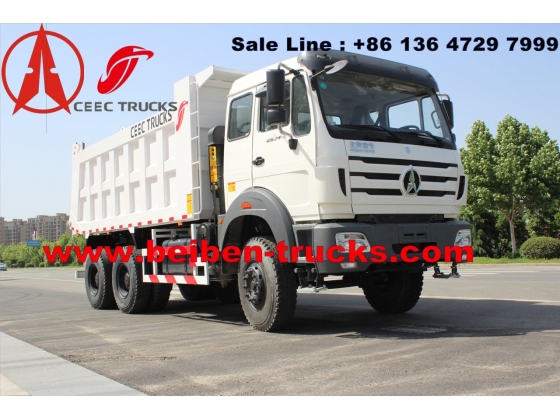

China beiben 380 hp dump truck manufacturer, 6*4 driving system, weichai brand 380 diesel engine, fast 9 shift transmission, 3800+1450 mm wheelbase, 12.00R20 tyre. 20 CBM dump cargo box capacity.

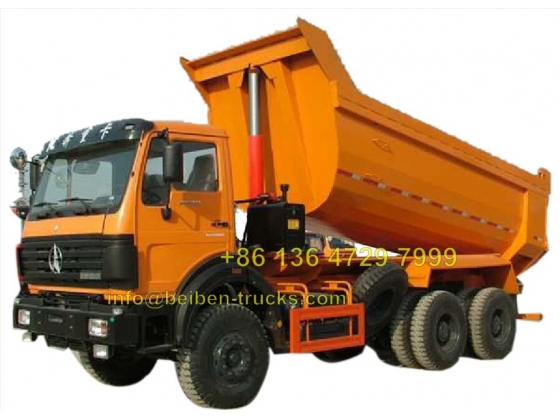

beiben 50 T heavy duty dump truck,The unique structure of the tray is part of the essence of beiben dump truck, the structure to replace the traditional side frame dumper, cancelled the container underframe,U shaped and U shaped container tightly combined tray,enlarge the contact area
Beiben 6*4 drive dump truck chassis, cargo box 19 CBM capacity, payload around 60T rock stone or mine material , With 10 years experience in beiben dump trucks producing experience, Germany benz technology axle, and Q550 steel cargo box.

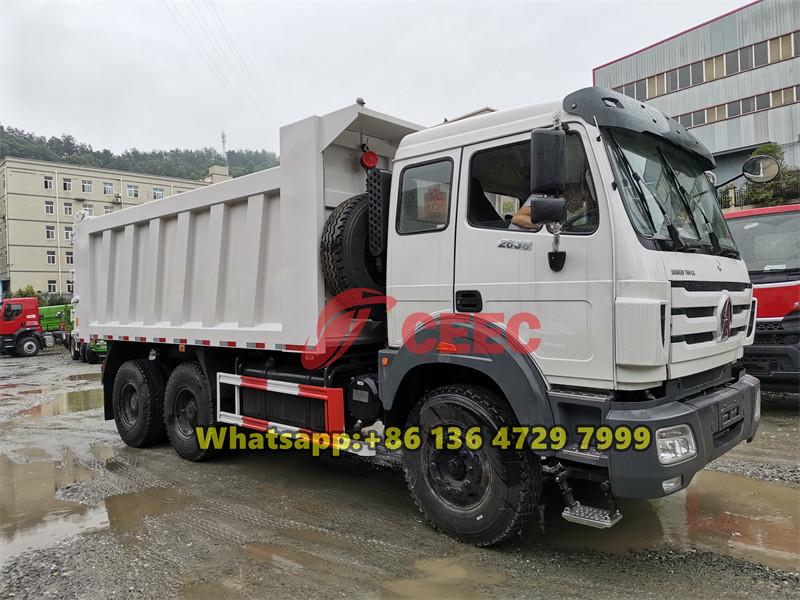

Beiben 2638 6×4 dump truck, equipped with WEICHAI 280kw/380hp engine, FAST 9JS180 gearbox, 9 forward gears and 1 reverse gear, has strong power and flexible speed selection. The vehicle adopts a short cab design, with a maximum length of 9880mm and a cargo box size of 5600mm×2500mm×1500mm, which can meet various engineering transportation needs. It has excellent safety performance and is equipped with a dual-circuit compressed air brake system, making it a powerful assistant in engineering projects.
