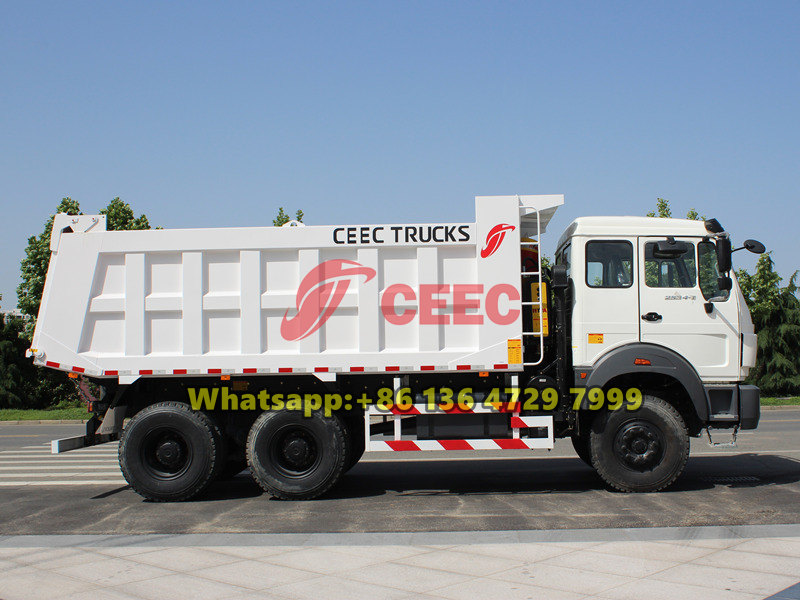

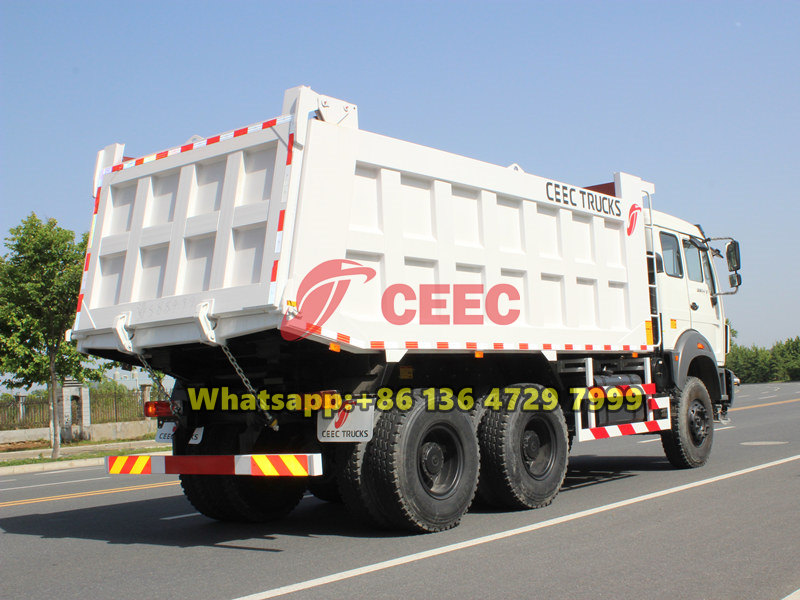

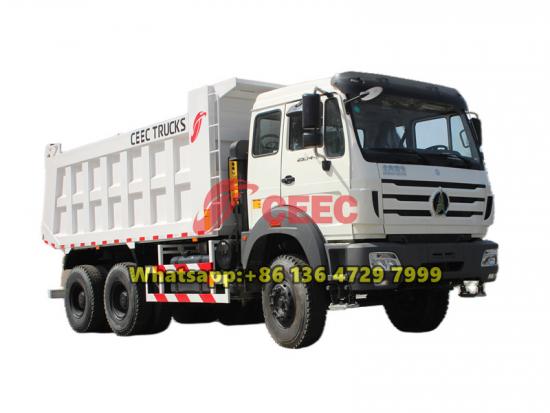

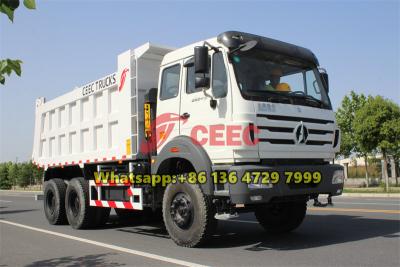

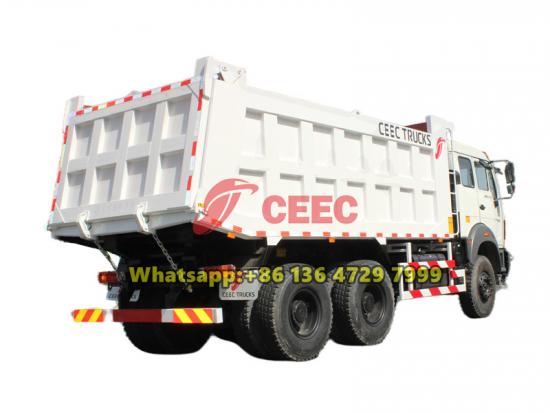

Beiben 26 cubic yard dump truck

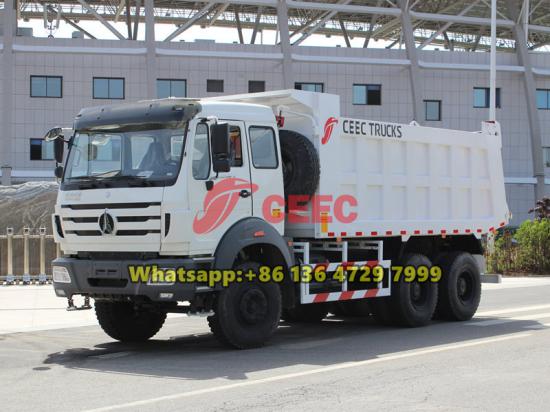

The Beiben Heavy Construction Dump Truck stands as a dependable partner in high-intensity transport operations, thanks to its German-inspired technology and military-grade quality. The 6×4 drive configuration, powered by the Weichai WP10.380E32 engine (380 HP/1600 N·m) and matched with a FAST 9JS150A 9-speed transmission, ensures smooth performance on unpaved roads and slopes. The truck measures 8600×2600×3250mm, with a cargo box volume of 5600×2300×1500mm. The manganese steel body (6mm side walls/8mm floor) and HYVA front-mounted hydraulic lifting system guarantee stable operation in demanding environments like mines and quarries.

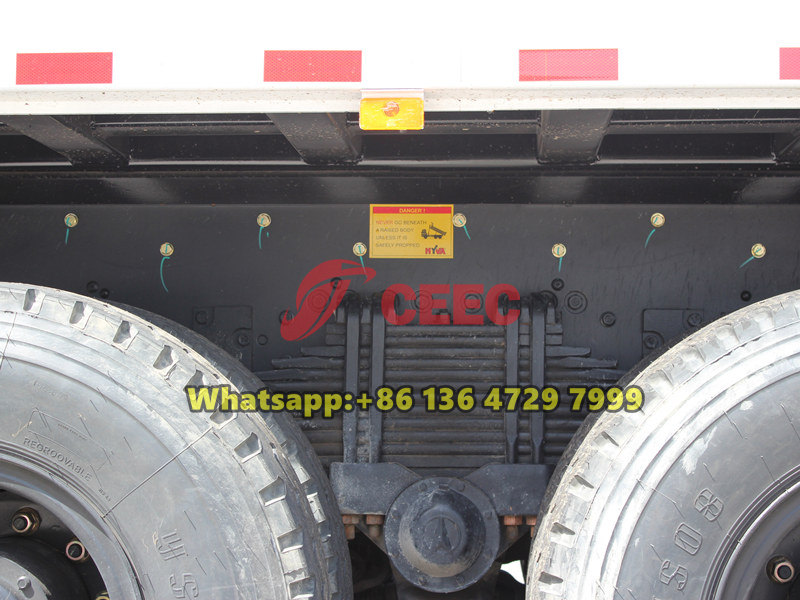

The core competitiveness of the Beiben heavy-duty sand tipper truck lies in its Mercedes-Benz-inspired chassis system. The front axle features a 7.5-ton dual-shoe air-brake steering axle, while the middle and rear axles consist of HD7/016DGS-13 (5.263 ratio) and HL7/015DS-13 (5.263 ratio) combinations. This reinforced design enables a total load capacity exceeding 26 tons. Though the WP10.380E32 engine complies with Euro III emission standards, its 9726ml displacement delivers high torque at low RPM (1600 N·m@1200-1600 rpm), making it ideal for frequent stop-and-go heavy-load scenarios. The FAST transmission’s 1500 N·m input torque margin further ensures reliable power transmission.

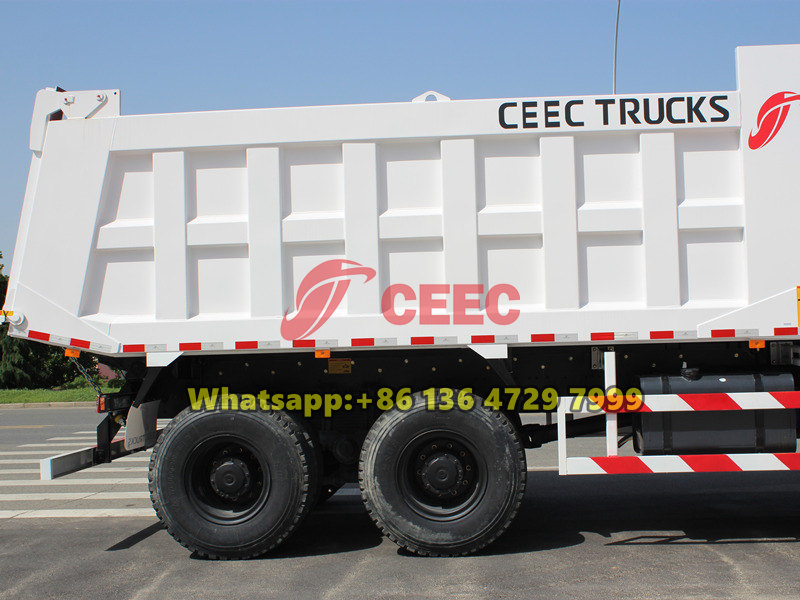

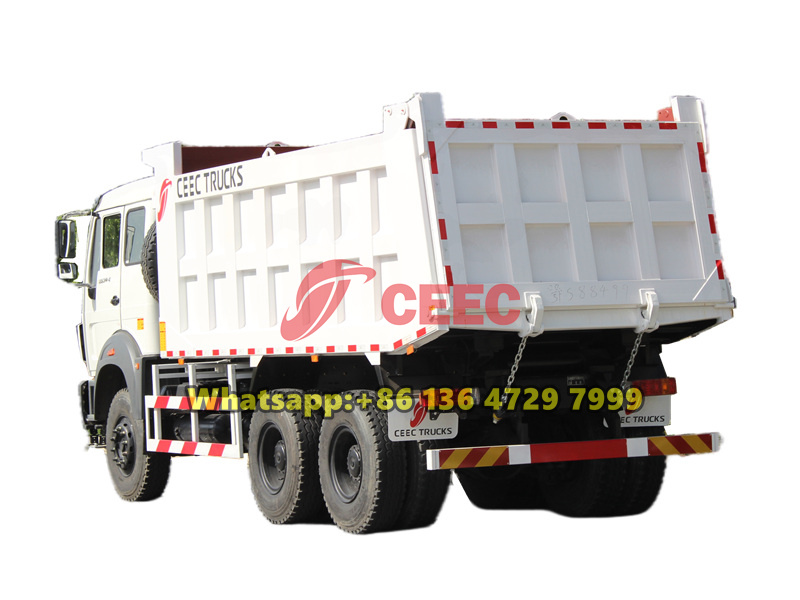

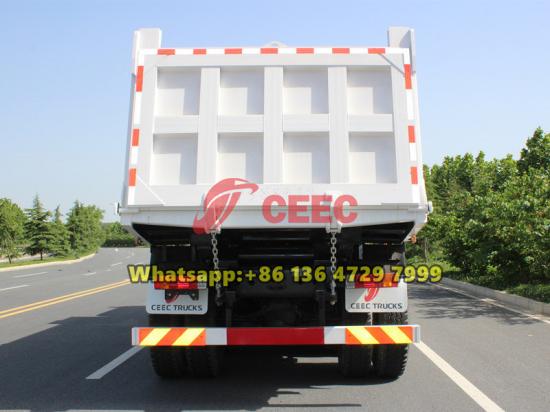

The Beiben heavy tipper truck 5600×2300×1500mm cargo box adopts an integrated manganese steel welded structure, offering outstanding impact and wear resistance. The side walls are 6mm thick, while the floor is reinforced to 8mm, effectively withstanding impacts during loading and unloading of hard materials like ores. The interior is treated with an anti-stick coating to minimize material residue and improve efficiency. The cargo box front is reinforced with an anti-collision beam, and the rear features a drop-style tailgate to ensure complete material discharge.

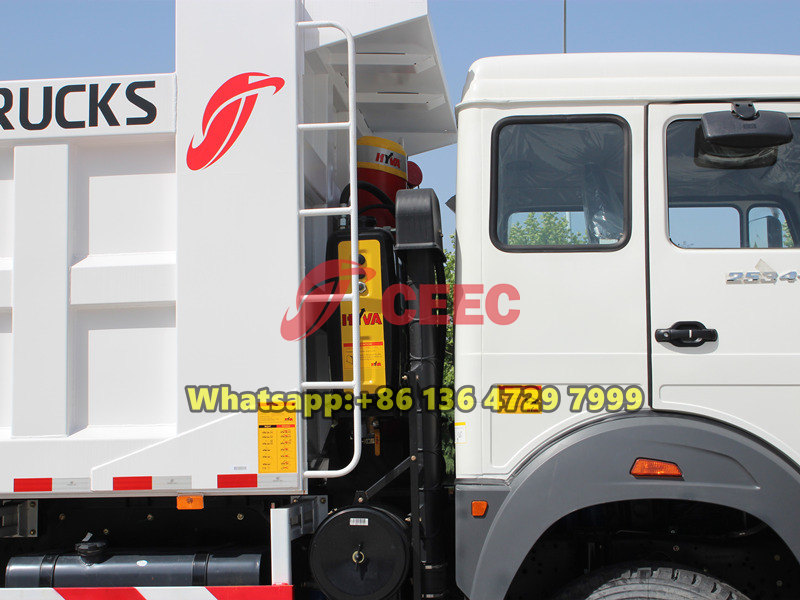

The HYVA front-mounted hydraulic lifting system is one of the Beiben construction dump truck’s key features. Compared to traditional center-mounted cylinders, the front-mounted design offers greater lifting force and stability. The system utilizes a two-stage hydraulic cylinder, achieving a maximum tipping angle of 45° with a lifting time of just 20 seconds. The high-flow hydraulic pump ensures rapid response even in low temperatures. An overload protection mechanism automatically halts operation if lifting resistance is detected, preventing equipment damage.
