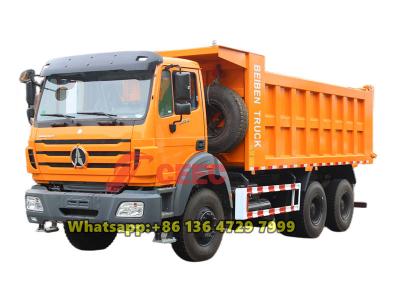

The Beiben 2638 tri-axle dump truck is a high-performance vehicle specifically designed for heavy-duty engineering transportation. Built on a 6×4 drive chassis, it is powered by a 380-horsepower Weichai WP10.380E32 engine paired with a FAST 9-speed transmission, delivering a maximum gradability of 30%. The cargo box is constructed with high-strength steel plates, measuring 5600×2500×1500mm, with an 8mm-thick floor and 6mm-thick sidewalls for superior load-bearing capacity. With a gross vehicle weight (GVW) of 26 tons, the truck features a BENZ-technology 13-ton rear axle, 12.00R20 radial tires, and a dual-circuit pneumatic braking system, making it well-suited for challenging operations in mining and earthmoving applications.
Working capcity:
40 tonsCabin type:
NG80 classic cabinDimension ( mm ) :
8600*2600*3300Drive system:
6×4Wheelbase (mm):
3800+1450Engine power / Model:
380 HPGear Box:
9JS150TRemark:
6×6, long cabin with sleeper is optionalIn the realm of heavy-duty dump trucks, the Beiben 2638 sand tipper truck stands out as a preferred choice in the engineering transport market, thanks to its exceptional load capacity, reliable power performance, and robust superstructure. Built on the Beiben 2638 6×4 chassis, this model is specifically engineered for high-intensity working environments, effortlessly handling tasks ranging from mining and earth transportation to large-scale infrastructure projects.
Product Specifications
|
Product Name |
Beiben 2638 tri-axle dump truck |
|
Drive Type |
6x4 LHD |
|
Cab Type |
Short Cabin |
|
Equipment |
With Air Condition, no bed |
|
Weight |
|
|
Kerb mass(kg) |
12800 |
|
GVW(kg) |
26000 |
|
Dimensions |
|
|
Max. length(mm) |
9880 |
|
Max. width(mm) |
2500 |
|
Max. height(mm) |
3630 |
|
Front/Rear overhang(chassis) |
1410/1870 |
|
Wheel base(mm) |
4350+1450 |
|
Track width(mm) |
1995/1808 |
|
Box size |
|
|
Length (mm) |
5600 |
|
Width (mm) |
2500 |
|
Height (mm) |
1500 |
|
Thickness of Steel |
Floor 8mm, side 6mm |
|
Tipping type |
Front tipping |
|
Performance |
|
|
Max. speed (km/h) |
75 |
|
Max. gradeability (%) |
30 |
|
Approach/Departure angel (°) |
26/32 |
|
Engine |
|
|
Brand |
WEICHAI BRAND |
|
Model |
WP10.380E32 |
|
Power (kw/hp) |
280kw/380hp |
|
Max torque (N.M)/rpm |
1500--1800 |
|
Displacement (L) |
9.726 |
|
Emission Standards |
Euro III (optional) |
|
Transmission |
|
|
Brand |
FAST |
|
Model |
9JS180 |
|
Control type |
Manual |
|
Gear Shift |
9-forward & 1-reverse speeds |
|
Clutch |
|
|
Type |
Single plate,diaphragm spring |
|
Diameter (mm) |
Φ430 |
|
Action |
hydraulically operating with air assistance |
|
Brakes |
|
|
Type |
Drum |
|
Service Brake |
With dual-circuit compressed air brake |
|
Park Brake |
Power spring brake acting on rear wheel |
|
Auxiliary Brake |
WEVB |
|
Steering |
ZJ120D/D50/TAS85 |
|
Chassis |
Ladder structure with parallel straight |
|
Dimensions (mm) |
300x90x8+6+8 |
|
Suspension |
|
|
Front |
Longitudinal leaf spring |
|
Rear |
Inverted leaf spring stabilizator suspension |
|
Axles |
BENZ TECHNOLOGY |
|
Front |
BENZ TYPE: 7.5 tons |
|
Rear |
BENZ TYPE: 13tons |
|
Ratio |
5.921 |
|
Tyre |
12.00R20 radial tire |
|
Fuel tank |
|
|
Tank capacity(L) |
400 |
|
Material |
Aluminum alloy |
|
Electrics |
|
|
Type |
24V |
|
Starter |
5.58kw (24) |
|
Generator |
2.0kw (28V 70A) |
|
Battery |
2x135Ah |
Product Pictures
North benz 380 hp dump truck is widely for transporting mine stone and construction material, more than 10 years great experience in north benz 10 wheeler dump truck manufacturing, we aim at supplying the best quality and price for beiben 2538 10 wheeler dump truck.
10 wheeler North benz 380 hp dump truck is widely for transporting mine stone and construction material, more than 10 years great experience in north benz 10 wheeler dump truck manufacturing, we aim at supplying the best quality and price for beiben 2538 10 wheeler dump truck.
As the biggest manufacturer of NG80B 380 hp dump trucks ,we continue designing the super quality for beiben NG80B 10 wheeler dump truck. Beiben NG80B 380 hp dump trucks are with china famous weichai diesel engine, 6*4 driving sytem and fast 12 shift transmission.
North Benz 2538 K dump truck for sale , weichai 380 Hp diesel engine fast 9 shift transmission ,12,00R20 radial tires , HYVA 157 lifting system
Congo beiben 2534 camions benne , 6*4 driving system, weichai WP10.340E diesel engine , fast 9 shift transmission, 3800+1450 mm wheelbase, 12.00R20 tyre, beiben dump truck cargo box 20 CBM capacity.
China beiben 380 hp dump truck manufacturer, 6*4 driving system, weichai brand 380 diesel engine, fast 9 shift transmission, 3800+1450 mm wheelbase, 12.00R20 tyre. 20 CBM dump cargo box capacity.
beiben 50 T heavy duty dump truck,The unique structure of the tray is part of the essence of beiben dump truck, the structure to replace the traditional side frame dumper, cancelled the container underframe,U shaped and U shaped container tightly combined tray,enlarge the contact area
Beiben 6*4 drive dump truck chassis, cargo box 19 CBM capacity, payload around 60T rock stone or mine material , With 10 years experience in beiben dump trucks producing experience, Germany benz technology axle, and Q550 steel cargo box.
Beiben 2638 6×4 dump truck, equipped with WEICHAI 280kw/380hp engine, FAST 9JS180 gearbox, 9 forward gears and 1 reverse gear, has strong power and flexible speed selection. The vehicle adopts a short cab design, with a maximum length of 9880mm and a cargo box size of 5600mm×2500mm×1500mm, which can meet various engineering transportation needs. It has excellent safety performance and is equipped with a dual-circuit compressed air brake system, making it a powerful assistant in engineering projects.
