Beiben 2638 heavy duty dump truck is specially designed for transport sand, earth, ore, mine material. It is 6x4 drive 380 hp engine heavy duty dump truck with 26 ton GVW capacity. With NG80B full steel cabin, Fast 9 speed gear box, Benz technolgoy 7.5 ton front axle and benz technology 13 T double rear axle, beiben 2638 dump truck show extremely work performance in africa countries.
Goods Stock:
10Working capcity:
40 tonCabin type:
NG80B long cabinn, with sleeper bedDimension ( mm ) :
8650 x 2500 x 3345Drive system:
6×4Wheelbase (mm):
3800+1450Engine power / Model:
420 HP / WP12.420E32Gear Box:
9JS150A, FAST 9-speedRemark:
6x6 drive, RHD avaiableBeiben 2638 dump truck is very popular heavy duty dump truck, which is designed for transporting earth, construction material, rock material. The 2638 model generally indicated the dump truck configuration and engine horse power. Number 26 means the total truck weight is 26 Ton, which the number 38 means 380 Hp engine. So the beiben 2638 dump truck is equipped with WP10.380E32 diesel engine, suitable for Euro 3 emission standard.
Beiben 2638 road construction dump truck is widely used in africa country infrascture, to transport the construction material, earth. It is very popular in TANZANIA,KENYA, CONGO, NIEGEIRA, ZAMBIA, SOUTH AFRICA and other africa countries.
CEEC factory is 100% factory on beiben dumper trucks,
guarantee all beiben 2638,2642 trucks Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: CEEC TRUCKS
Features:
1. Super strong engine : WP10.380E32 engine , excellent working performance in africa.
2. 6x4 drive system: challenge every tough road, with wheel differeical
3. Benz NG80B cabin : Full steel cabin, mercedes benz blood heritage.
4, Benz truck frame: 100,000 km quality guarantee, your reliable parterner
» II . Technical specification :
|
Wheelbase(mm) |
3800+1450 |
|
|
L*W*H |
8600X2500X3300 mm |
|
|
Cargo box |
5600x2300x1500 mm |
|
|
Cargo box material |
Q345B high strength steel, China famous brand |
|
|
Thickness |
side 6 mm, bottom 8 mm |
|
|
Hydraulic cylinder |
China famous 180 front lift system, CEEC brand |
|
|
Gross vehicle weight(kg) |
55000 |
|
|
Approach angle/Departure angle(°) |
26/20 |
|
|
Max Speed (Km/h) |
≤85 |
|
|
Engine |
Model |
WP10.380E32 |
|
Engine type |
Water-cooled, four strokes, 6 cylinders straight in line, turbocharged |
|
|
Power (r/min) |
380 Hp (279 Kw) |
|
|
Rated speed |
2200 rpm |
|
|
Emission standard |
EURO 3 |
|
|
Maximum Torque (r/min) |
1750Nm |
|
|
Speed at max. torque |
1200-1500 rpm |
|
|
Displacement(ml) |
9.726 |
|
|
Fuel tanker capacity(L) |
400L Iron |
|
|
Clutch |
Model |
#430, Single dry frictional disc, Hydraulic boosting |
|
Gearbox |
Model |
9JS160A mechanical type, mechanical type, Based on Fuller Eaton technology, 12 Forward speed gear. |
|
Brake system |
Service brake |
Brake gap can be adjusted automatically, double circulation air brake system |
|
Assistant brake |
Engine exhaust brake |
|
|
Park brake |
Potential springs pressing on middle and rear wheels |
|
|
Steering system |
Model |
ZF8098 whole circulation in ball type, hydraulic boosting |
|
Suspension System |
Front Suspension |
Non-free standing leaf spring, telescopic shock absorber with stabilizer bar suspension,10 pcs springs. |
|
Rear Suspension |
Non-free standing stabilization spring, stabilization suspension,13 pcs springs |
|
|
Frame |
Fish belly shape, variable width, variable sections, Based on Germany Benz Technology |
|
|
Cross section dimension of frame(mm) |
317×70×8.5+7+8mm |
|
|
Front axle (Mercedes Benz Technology) |
Double-shoe pneumatic brake, 8 ton driving steering axle |
|
|

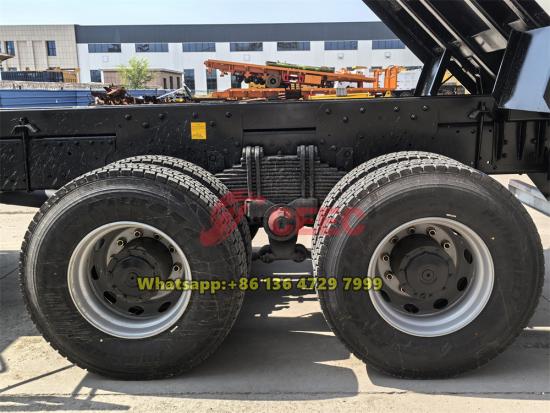

Middle and Rear axle (Mercedes Benz Technology) |
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, 13tons double reduction driving axle, speed ratio5.263 |
|
|
Tire |
12.00R24, radial tire, 10+1 pcs |
|
|
Electrical system |
Battery |
2X12V/135Ah |
|
Generator |
28V-70A |
|
|
Starter |
5.58Kw/24V |
|
|
Cab |
NG80B left hand drive |
|
|
Interior trimming: |
||
|
Exterior trimming: |
||
|
Other specifications |
Two-stage air filter, 76°Tropical thermostat. |
|
|
Upper body |
(reference) |
|
» III.Technical drawing:
Beiben 6x6 drive mining dump truck is off road dump trucks designed for heavy-duty hauling tasks. beiben 6x6 off road dumping truck is best suited for extreme conditions. Main fields that require Beiben 6x6 drive tipper trucks include:
1. Heavy duty Mining Operations
Hauling 50 ton- 100 ton heavy equipment, machinery, ore, and other materials in mines, where access roads are rough, steep, and often muddy or rocky.
2. Military off road usage
Beiben 6x6 drive dump truck is Serving in military UN department, to transport agricuture rice, food, vegetable and construction building material, which is widely used for building military working site.
3. Forestry & Logging
Beiben 6x6 off road dump truck is Hauling felled logs, forestry machinery, and supply trailers into/out of poorly maintained forest roads, often in wet, slippery, or hilly conditions.

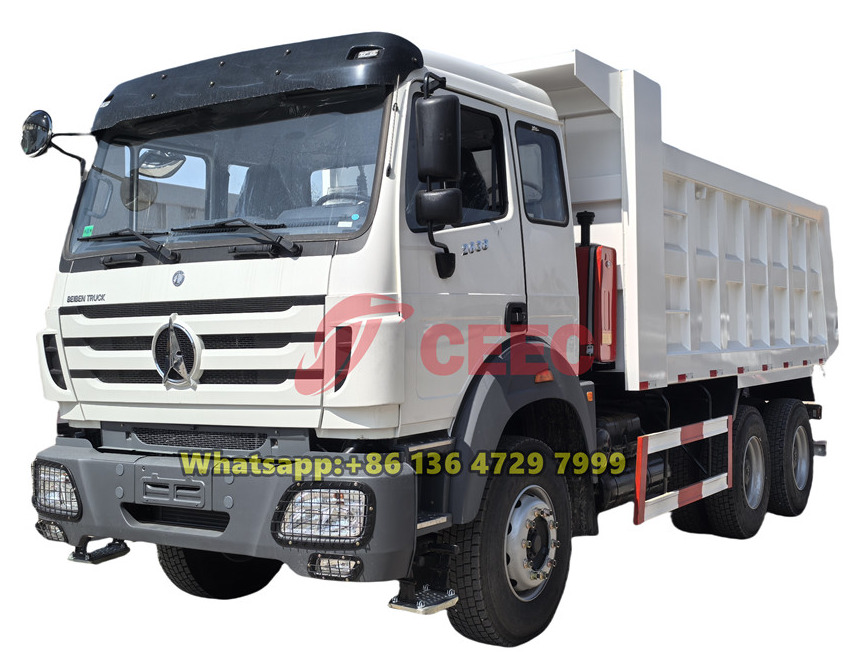

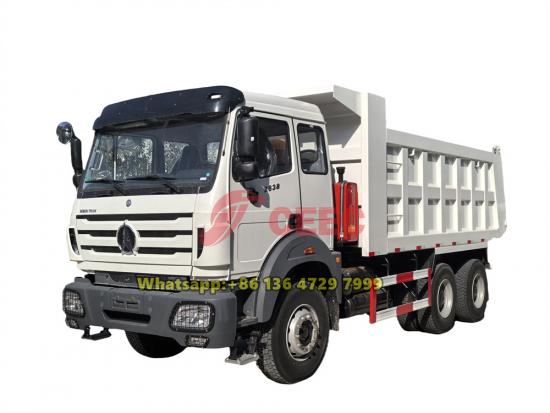

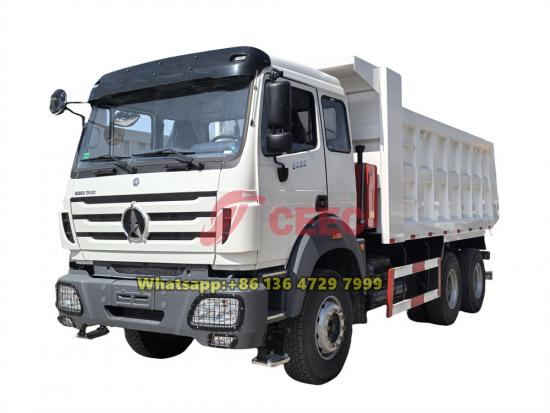

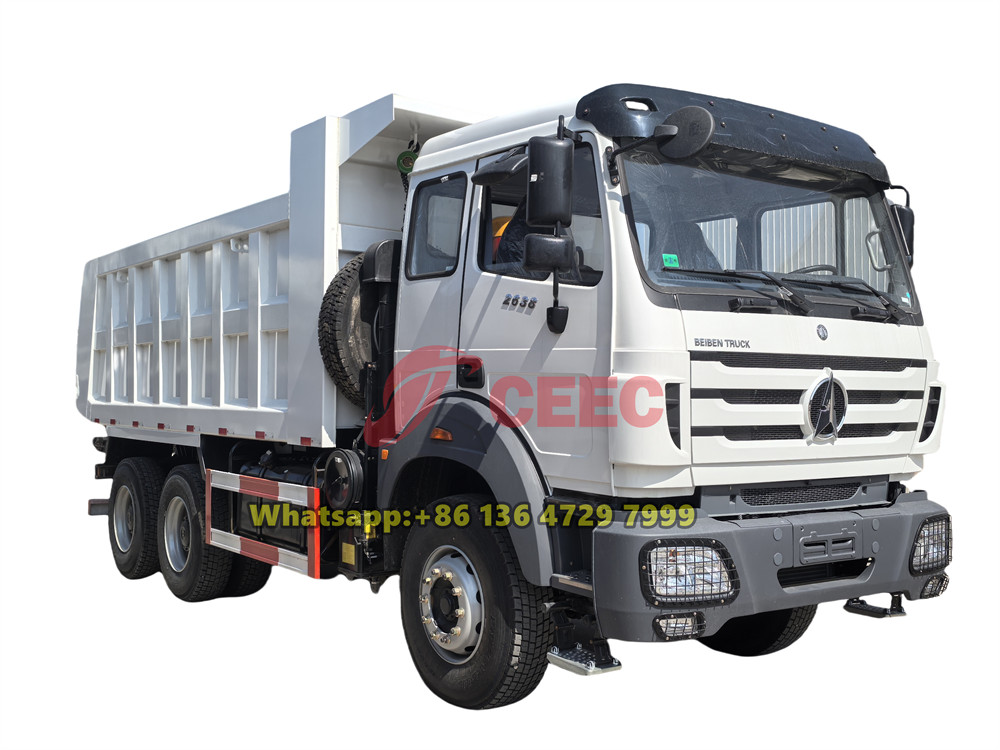

Beiben 2638 heavy duty dump truck with NG80B cabin
Beiben 6x4 drive construction dump truck
» IV.Product details :
Beiben 6x6 drive dump truck is a heavy-duty dump trucks that used in tough road situation , forest road, desert road, :

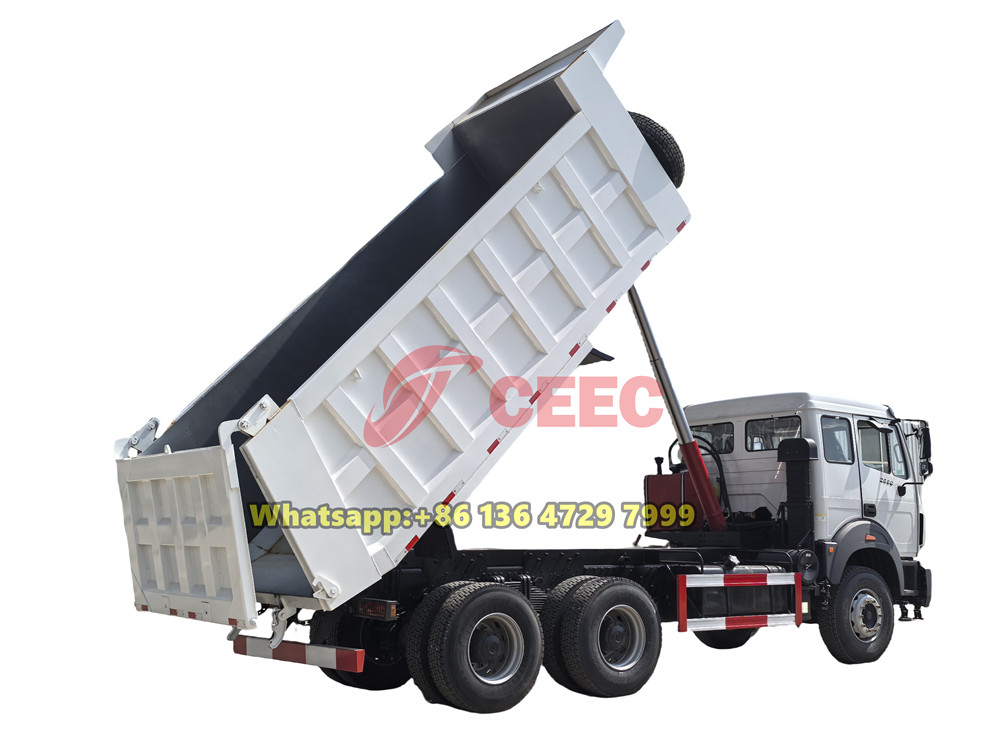

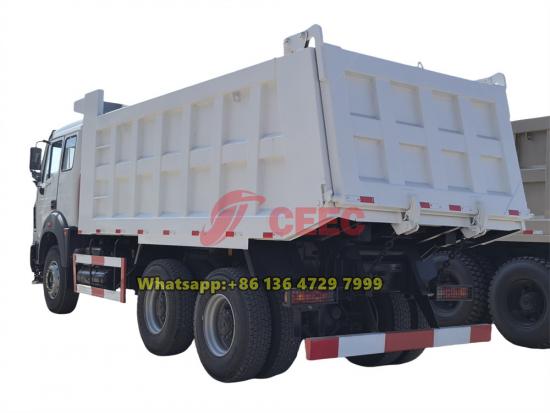

beiben 2638 dump truck with 16 cbm cargo body

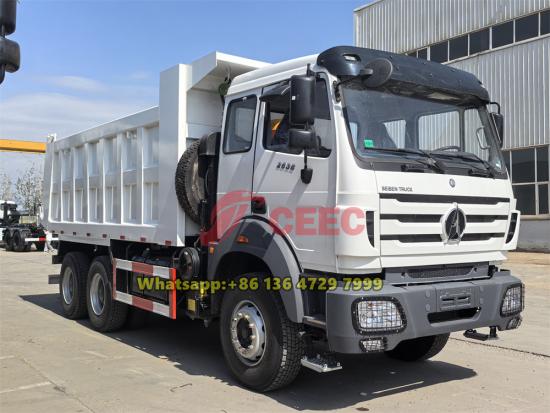

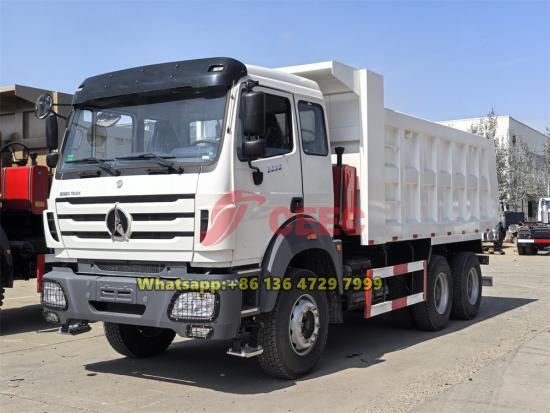

beiben 2638 dump truck, with long cabin, sleeper bed inside.

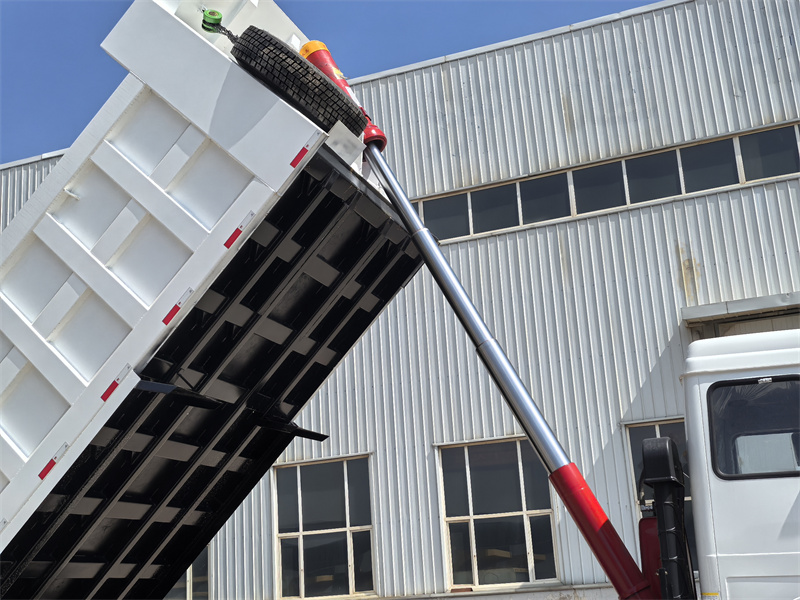

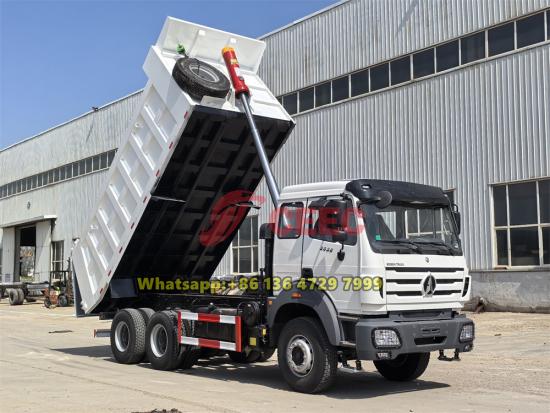

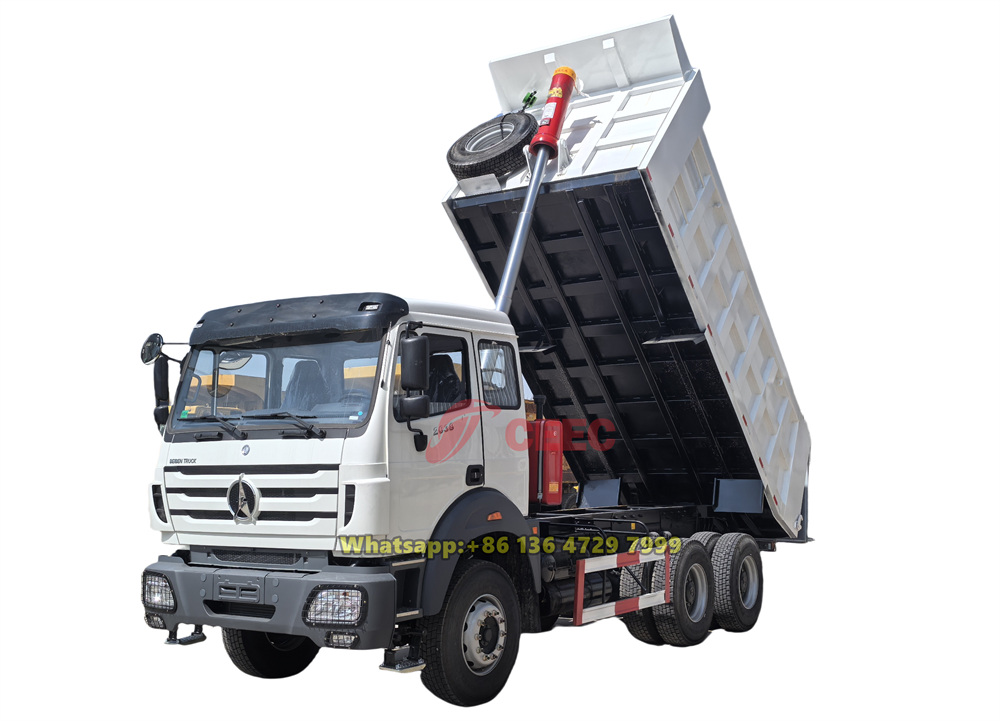

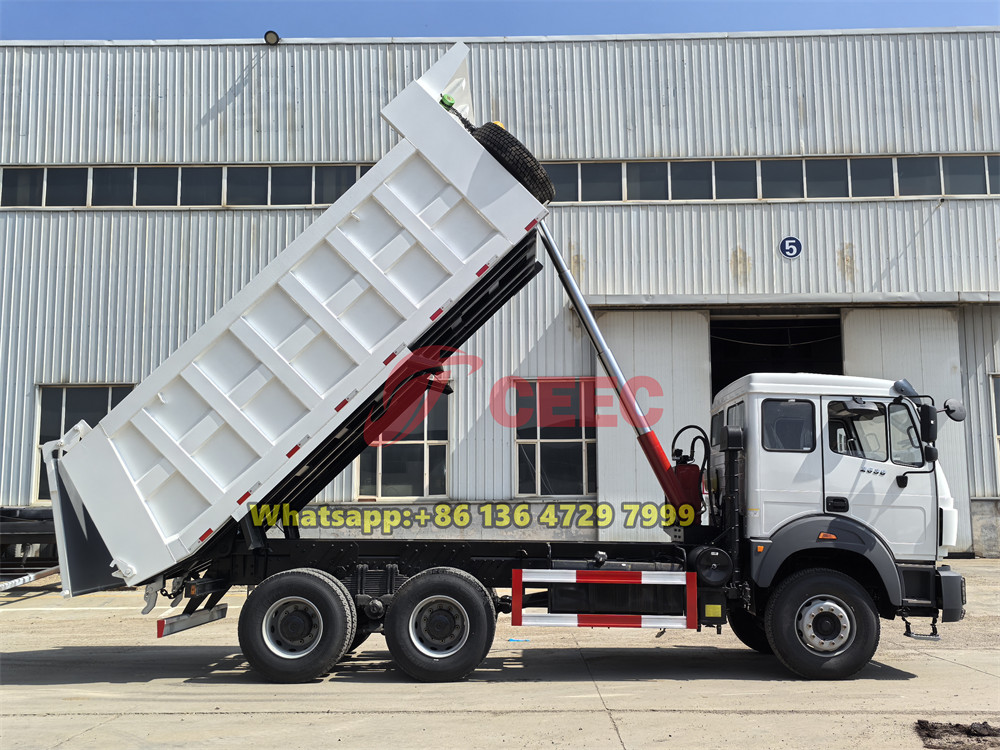

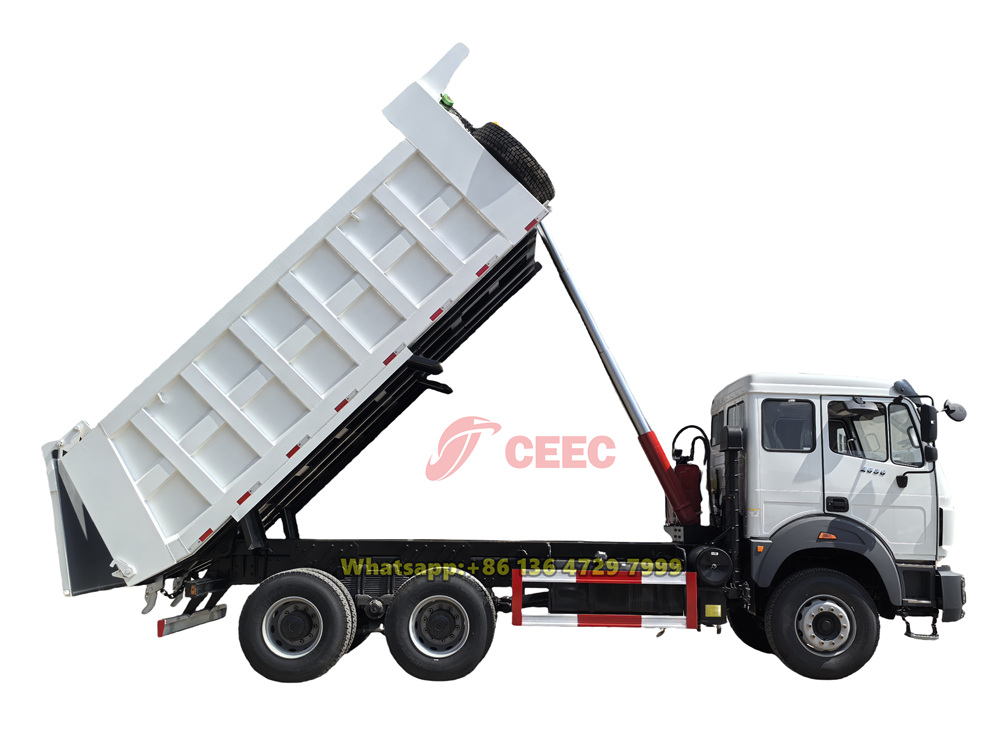

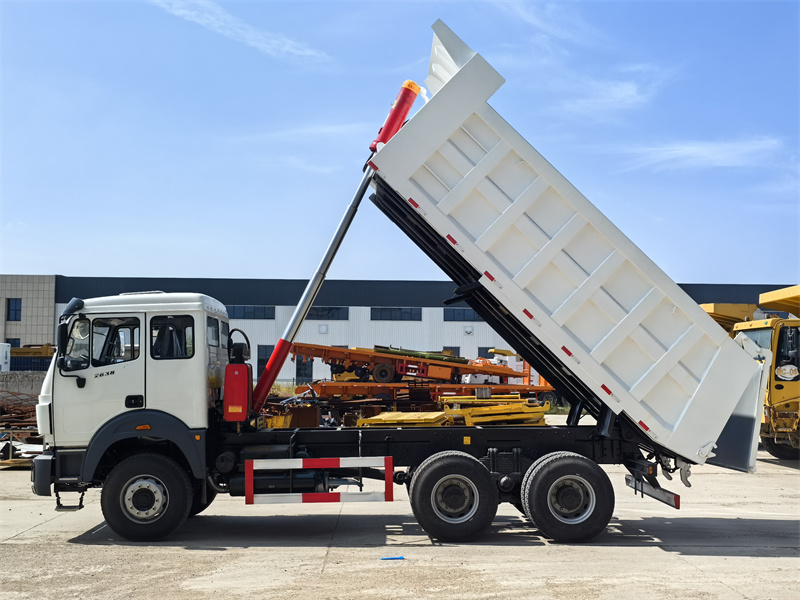

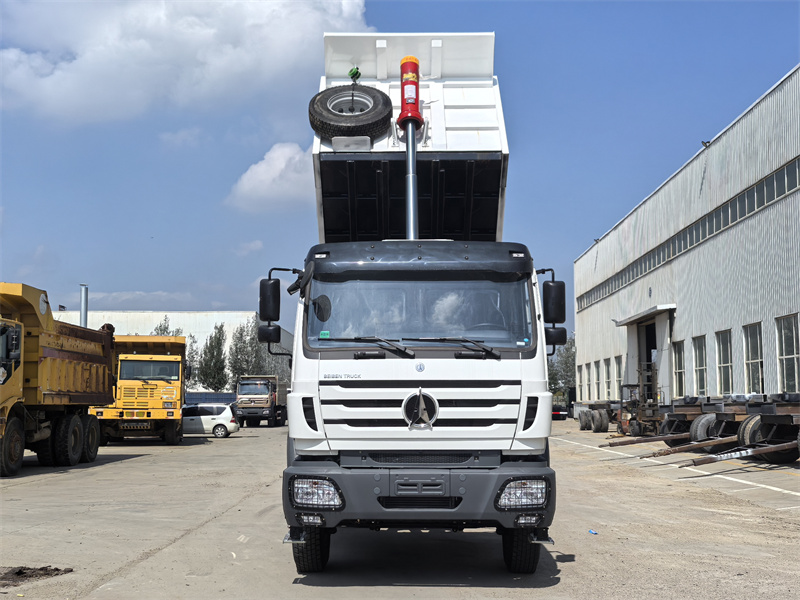

Front lifting system for beiben 2638 dump truck, very reliable.

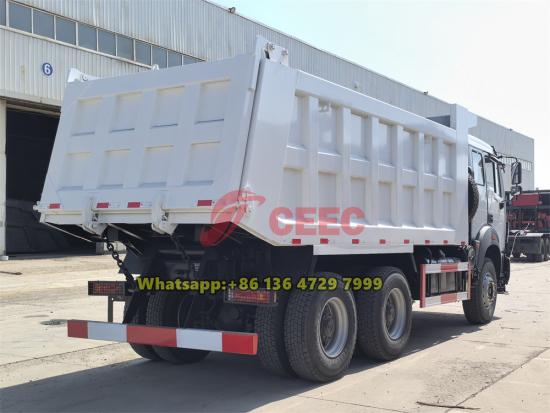

Special customized cargo body for africa customer

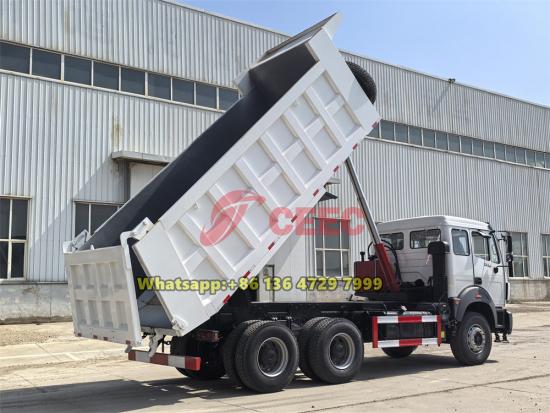

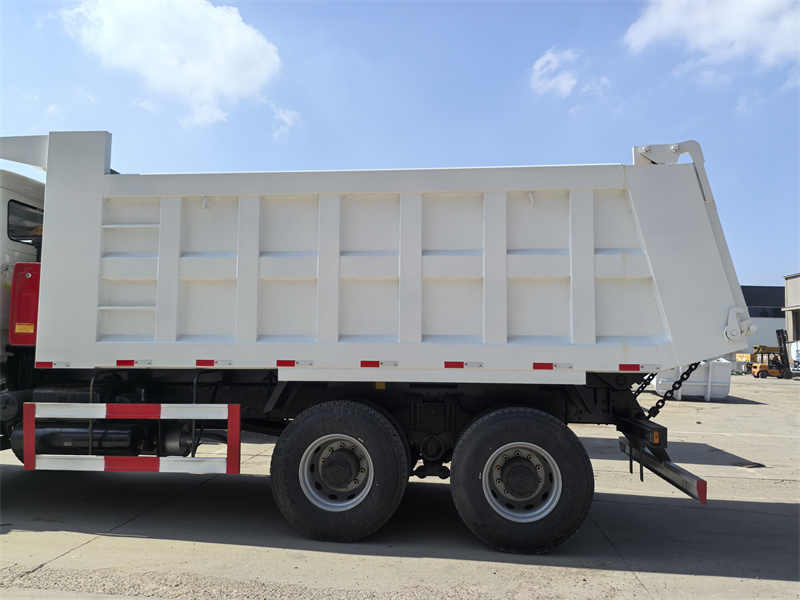

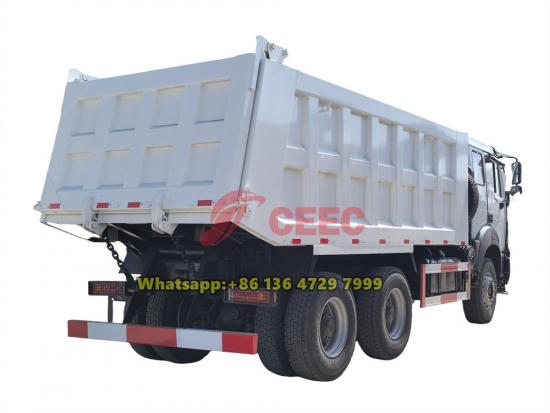

All cargo box side is reinforced on beiben 2638 dump truck
Why choose China beiben 2638 dump truck ?
Super quality cargo body
With Q345B high strength steel material, it can payload at least 40 Ton in any situation. Obviously , the cargo body is reinforced with more frame.
Strong front lifting system
The front lifting system is belong to china famous brand, which show great performance in working. Lower working cycle time, lower maintenance, high quality assurance.It can creat higher value for userd.
Reinforce cargo body bottom
The cargo body bottom is applied with more frame, to ensure high payloading capacity in the working situation.
Good permance NG80B cabin
Beiben NG80B cabin is with mercedes benz heritage, good performance and strong quality assurance. The beiben 2638 dump trucks will be inspected by SGS pre shippment departmen
Products--100% china beiben factory trucks!
Shipping --100% fast, Convenience, Efficient!
1.Beiben 2634,2638,2642 dump truck, all upon on your need !
2. Factory bottom price, save your china vist cost
3.12 months after sale service guarantee, quality assurance.
4. 12.00R24 tyres, 14.00R20 , 315/80R22.5, 13.00R22.5, all are avaiable.
North benz 380 hp dump truck is widely for transporting mine stone and construction material, more than 10 years great experience in north benz 10 wheeler dump truck manufacturing, we aim at supplying the best quality and price for beiben 2538 10 wheeler dump truck.
10 wheeler North benz 380 hp dump truck is widely for transporting mine stone and construction material, more than 10 years great experience in north benz 10 wheeler dump truck manufacturing, we aim at supplying the best quality and price for beiben 2538 10 wheeler dump truck.
As the biggest manufacturer of NG80B 380 hp dump trucks ,we continue designing the super quality for beiben NG80B 10 wheeler dump truck. Beiben NG80B 380 hp dump trucks are with china famous weichai diesel engine, 6*4 driving sytem and fast 12 shift transmission.
North Benz 2538 K dump truck for sale , weichai 380 Hp diesel engine fast 9 shift transmission ,12,00R20 radial tires , HYVA 157 lifting system
Congo beiben 2534 camions benne , 6*4 driving system, weichai WP10.340E diesel engine , fast 9 shift transmission, 3800+1450 mm wheelbase, 12.00R20 tyre, beiben dump truck cargo box 20 CBM capacity.
China beiben 380 hp dump truck manufacturer, 6*4 driving system, weichai brand 380 diesel engine, fast 9 shift transmission, 3800+1450 mm wheelbase, 12.00R20 tyre. 20 CBM dump cargo box capacity.
beiben 50 T heavy duty dump truck,The unique structure of the tray is part of the essence of beiben dump truck, the structure to replace the traditional side frame dumper, cancelled the container underframe,U shaped and U shaped container tightly combined tray,enlarge the contact area
Beiben 6*4 drive dump truck chassis, cargo box 19 CBM capacity, payload around 60T rock stone or mine material , With 10 years experience in beiben dump trucks producing experience, Germany benz technology axle, and Q550 steel cargo box.
Beiben 2638 6×4 dump truck, equipped with WEICHAI 280kw/380hp engine, FAST 9JS180 gearbox, 9 forward gears and 1 reverse gear, has strong power and flexible speed selection. The vehicle adopts a short cab design, with a maximum length of 9880mm and a cargo box size of 5600mm×2500mm×1500mm, which can meet various engineering transportation needs. It has excellent safety performance and is equipped with a dual-circuit compressed air brake system, making it a powerful assistant in engineering projects.
