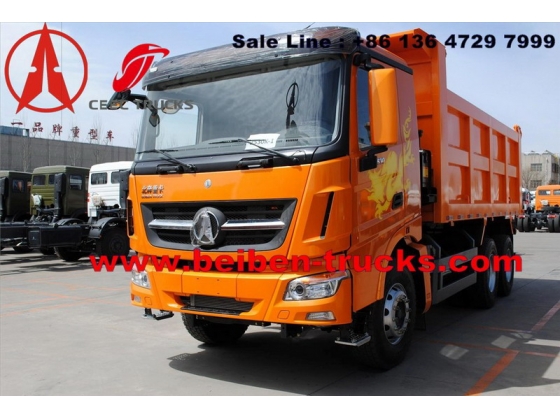

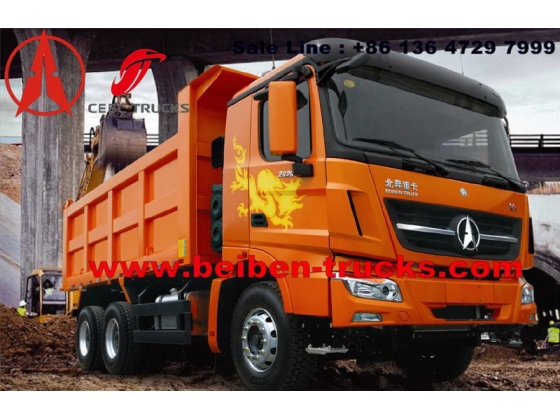

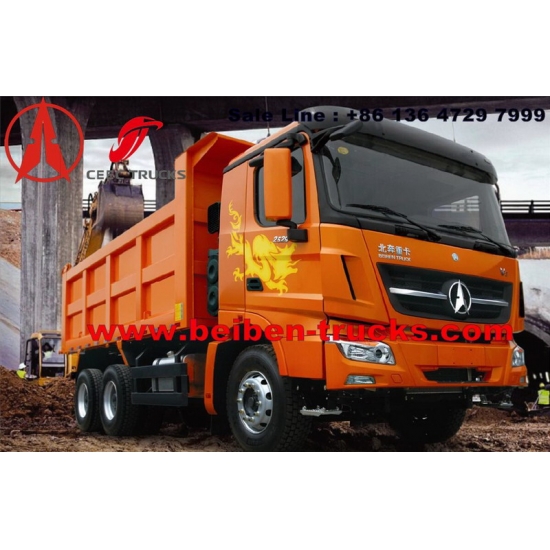

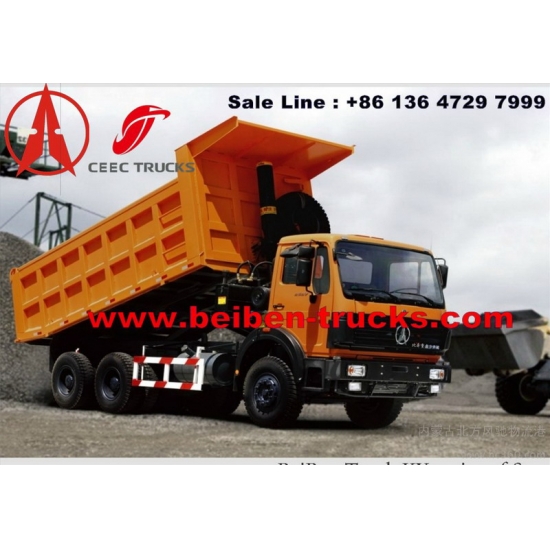

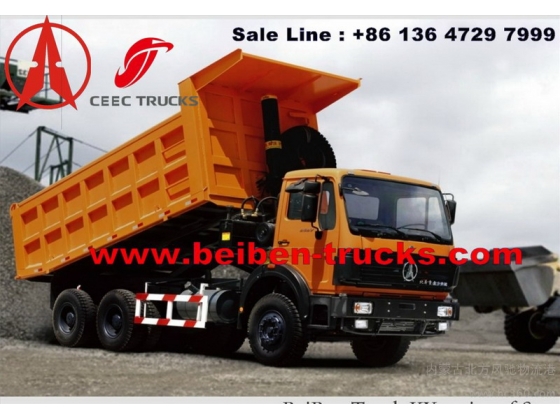

Beiben North benz NG80B 6X4 dump truck 10 wheels 25T 30T 18cbm 20cbm dump tipper trucks
Beiben V3 dump truck drawing
Model |
ND3259B38 |
Traction type |
6X4 |
Driving type |
LHD |
Driver's cab |
Long cabin, single sleepers with A/C |
Dimensions in (mm) |
Wheel base(mm): 3800+1450 |
Overall size(mm): 8350x2500x3430 |
|
Bucket size(mm): 5600x2300x1400 |
|
Thickness of bucket(mm): floor 8mm,side & back 4mm |
|
Dump box tipping |
Middle tipping system |
Engine |
Maker: WEICHAI |
Diesel 4 stroke direct injection diesel engine, 6 cylinder in-line with water cooling, turbo-charging & intercooling |
|
Engine model: WP10.380E32 |
|
Emission Standard: EUROIII EGR |
|
Maximum output: 380HP /2200 rpm |
|
Number of cylinder:6 |
|
Displacement: 9.726L |
|
Clutch |
430mm, hydraulically operating with air assistance |
Transmission |
Fuller 12JS200T(12 speeds) |
Steering |
ZF8098 |
Front Axle |
Benz front axle 7.5 ton |
Rear Axle |
Benz strengthened type 13T, double reduction drive axle Ratio: 5.921 |
Spring |
10/13 |
Types |
12.00R20 Radial tyre |
No. of tyre |
10+1(spare) |
Fuel tank |
300L |
Electrics |
Operating voltage: 24V, negative grounded |
Weight in kg |
Kerb weight 12220kg |
Total mass 25000kg |
|
Performance |
Maximum driving speed(km/h) 80 |
