Products

Beiben off road 8 wheeler drive truck chassis 8x8 drive

  • FOB Price

    $35,000-$49,000

  • Production time

    30 days

  • Payment terms

    T/T

enquiry
Product Details
Product Details

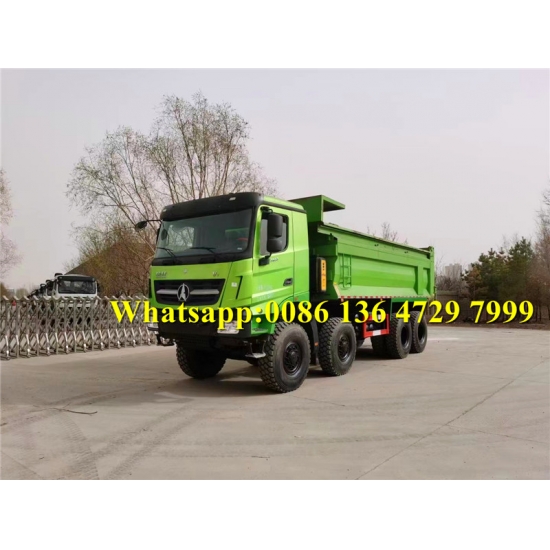

                                                              Beiben 3138 off road truck

 Beiben 8x8 drive off road truck




 Applications:

The Beiben 8*8 drive truck chassis, is named as beiben 8*8 drive cargo truck, china beiben 8*8 drive cargo truck chassis, beiben 8 wheel drive cargo truck chassis. It is heavy duty truck chassis with benz technology axles.


Normally Beiben 3138 model 8*8 drive truck chassis is designed for heavy duty off road situation. the strong 8 wheeler 8*8 drive system on this beiben V3 cabin truck chassis, it is the most advanced 8*8 drive truck in china.  Beiben off road trucks are heavy-duty trucks designed for use in rugged terrain and off-road conditions. They are engineered with high-precision and superior quality components, making them the ultimate choice for many customers who require tough and reliable vehicles for their operations.

Beiben 3138 off road trucks are equipped with powerful engines, advanced transmissions, and dependable axles, allowing them to deliver excellent performance and reliability. These beiben 3138 off road trucks come in a wide range of models, including dump trucks, tractor units, concrete mixer trucks, and more.

They are designed to handle the toughest of conditions, with features such as strong frames, high ground clearance, and tough suspension systems. In addition, Beiben 3138 off road trucks have spacious cabins that provide excellent operator comfort and convenience, ensuring that drivers are always alert and focused when they are on the road.

Overall, Beiben off road trucks are ideal for construction, mining, and other heavy-duty applications that require superior performance and durability in extreme off-road conditions.



 Key Features:



---- BEIBEN V3 cabin, Benz actros technology.

---- ZF8098 fuller steering system, convenient.

----12JS150A transmission, super combination.

---- 8*8 drive off road system.

---- Off road tyres, 12.00R24 big tyre.



 Specifications:



Required Technical Specification 参数

Basic parameter

基础参数

Model 型号

3138PZ/6×6

Length×width×height(mm) ××

11526×2500×3385

Wheel-base(mm) 轴距

1900+3800+1450

Curb weight(kg) 底盘整备质量

12400

Engine parameter

发动机参数

Model (six cylinder in line) 型号(六缸)

WP10.380E32

Max. Power (HP/rpm) 最大马力

380

Max. Torque(Nm/rpm) 最大扭矩

1600/14001600

Displacement(lit) 排量

9.726 L

Fuel tank capacity 油箱容量

400L Iron oil tanker  400L

Transmission system

传动系统

Clutch 离合器

430 Single disc, dry type, friction clutch

430单片,干式摩擦离合器,液压辅助可调式;

Gearbox 变速箱

Mechanical, 9JS150A

Steering system

转向系统

Steering gear 转向机

8098 Circulating ball steering gear, hydraulic booster;循环球式,液压助力;

Brake system

制动系统

Service brake 行车制动器

Double circulation air brake system equipped

双回路气压制动;

Parking brake 驻车制动器

Energy storage spring brake  弹簧储能制动;

Assisted brake 辅助制动

Engine exhaust brake  发动机排气制动;



Chassis parameter

底盘参数

Frame 车架

Variable width and section  317×70×8.5+7+8.5 mm

不等宽,变截面 317×70×8.5+7+8.5 mm

Front axle 前桥

7.5 T, no-driving steering axle, drum brake

7.5吨驱动转向桥,鼓式制动;

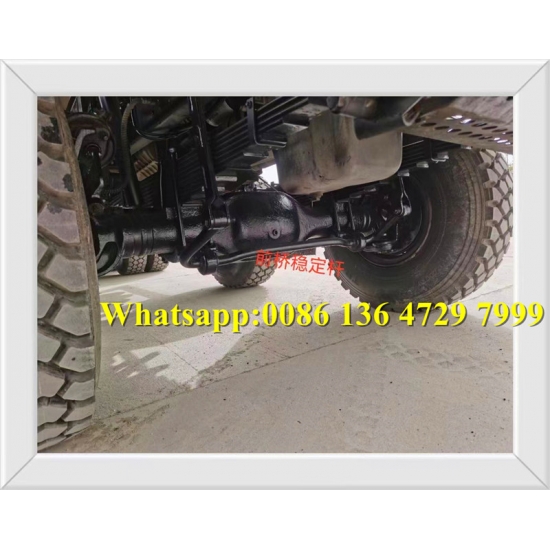

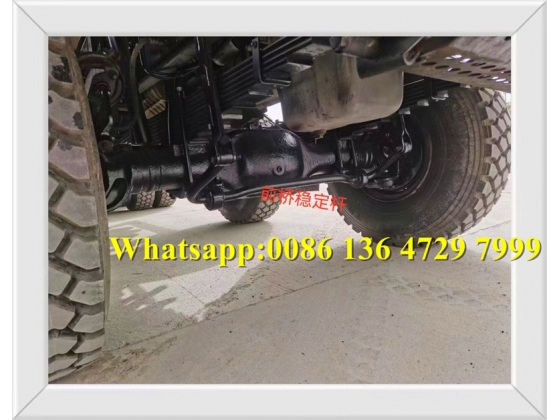

Middle & Rear axle 中后桥

13T, Double-shoe pneumatic brake, double reduction driving axle, differential lock, speed ratio is 5.263

双蹄片式气压制动,双减速驱动桥,差速锁,速比5.263

Front and rear suspension 前悬挂/后悬挂

Front/rear: Leaf spring, 13/13 pieces

/后板簧:13/13片簧;

Tire 轮胎

12.00R24

Cab

驾驶室

V3 Long Cabin/ Flat roof/Left drive

Exterior trimming:

Metal bumper, three steps, outer sun visor, sun roof (Manual), front under-ride bumper, rear view mirror (Manual).

NG80B长驾平顶/左驾带双卧

外饰:金属保险杠、三步软车梯、外遮阳板、手动天窗、手动调节后视镜。

Interior trimming:

Air suspension seat, Single bunk with sleeper, cooling and heating air conditioner, Steering wheel can be adjusted, door lock(Manual), radio (with MP3), digital instrument

内饰:气悬浮主座椅、单卧铺、冷暖空调、可调方向盘、手动门锁、收放机(带MP3功能)、数字仪表。

Offer

报价

1.工厂自提含税价格:以具体核算为准。

2.支付方式:30%现金定金,70%现金尾款,款到发车。

3.交货期:收到30%定金后,正常交货期为45天交付货物。交货期需要在签订合同前再次确认。

4.报价有效期:1个月 。有效期过后,需要重新报价。

5.该车辆不含质保,如需质保,需要另行商议。

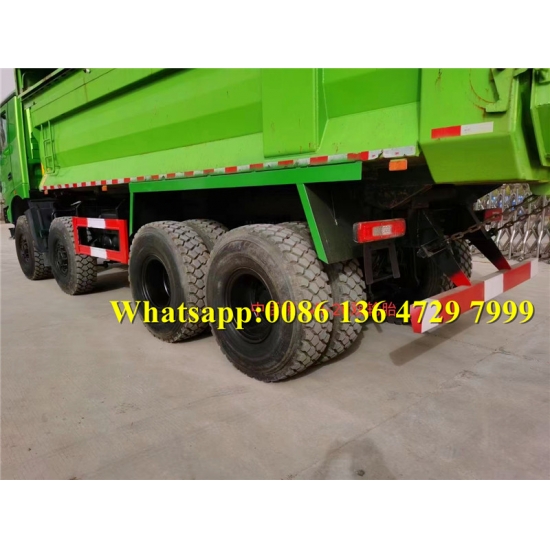

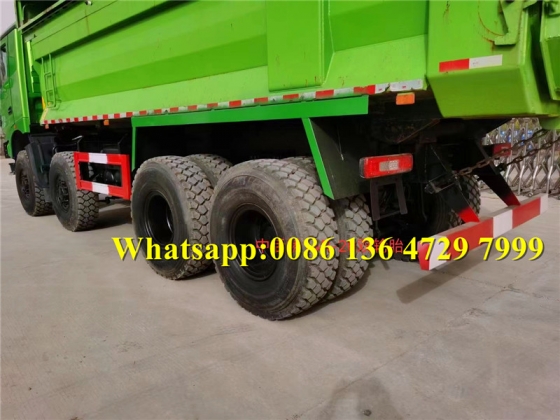

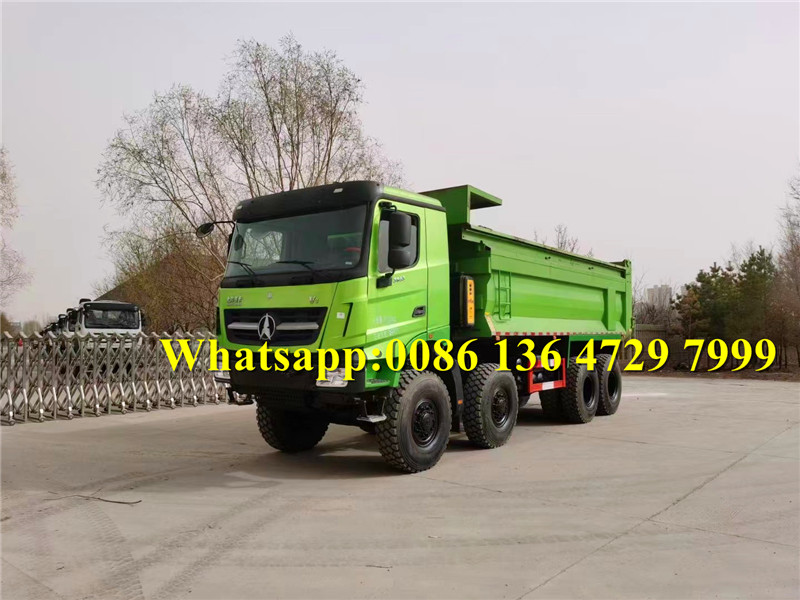

 Beiben 3138 off road truck

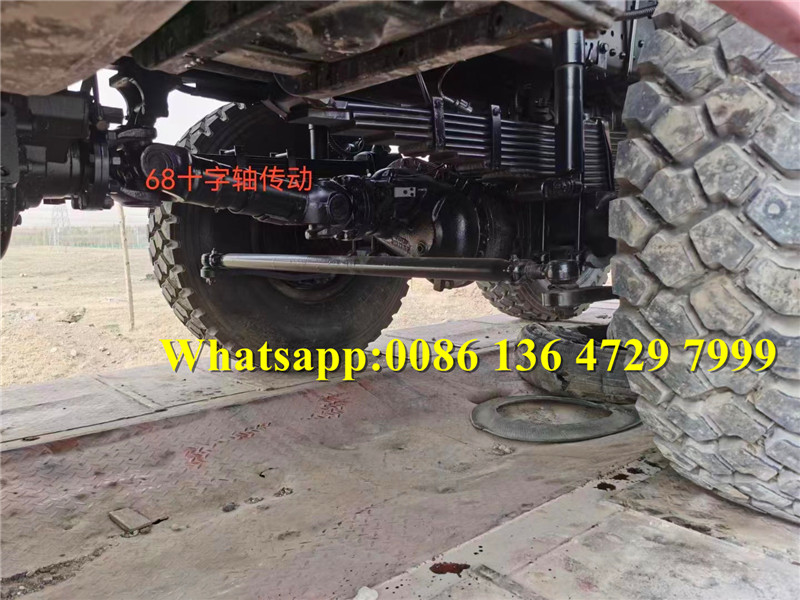

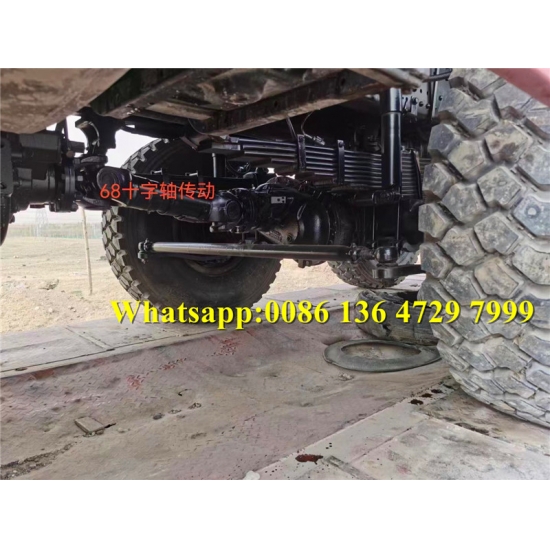

Transfer box for beiben 8*8 drive truck chassis

Beiben 3138 off road truck
