Cabon steel material Fuel Tank Semi Trailer

  • FOB Price

    $17,000-$26,000

  • Production time

    10 days

  • Payment terms

    T/T, L/C

enquiry
Product Details

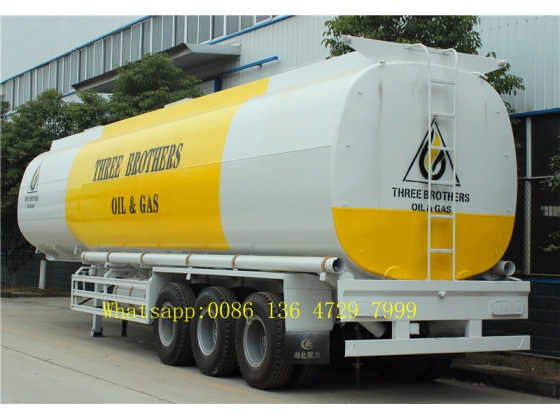

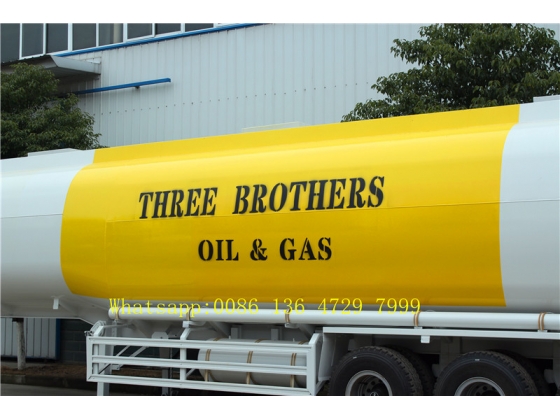

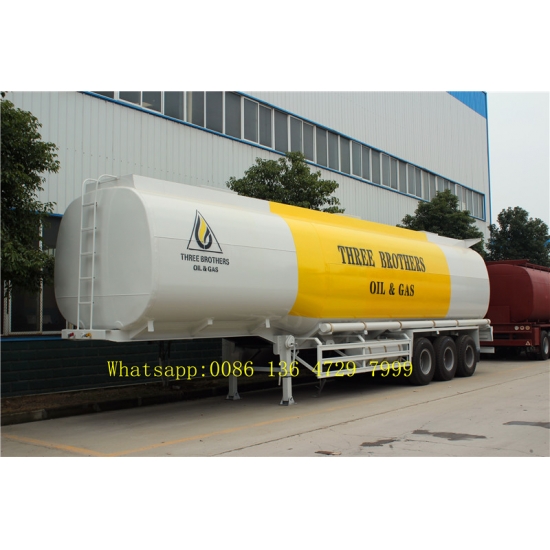

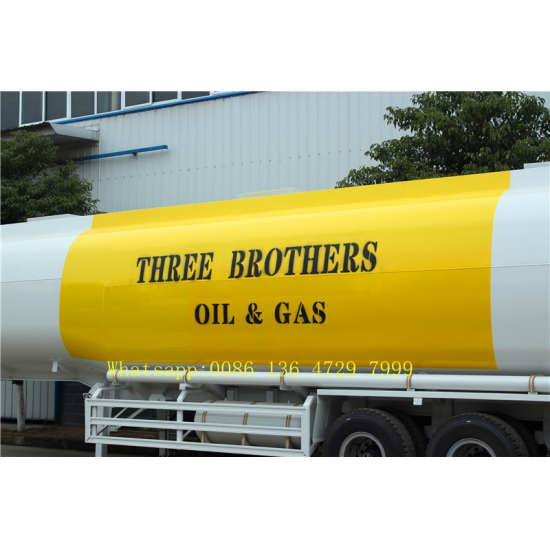

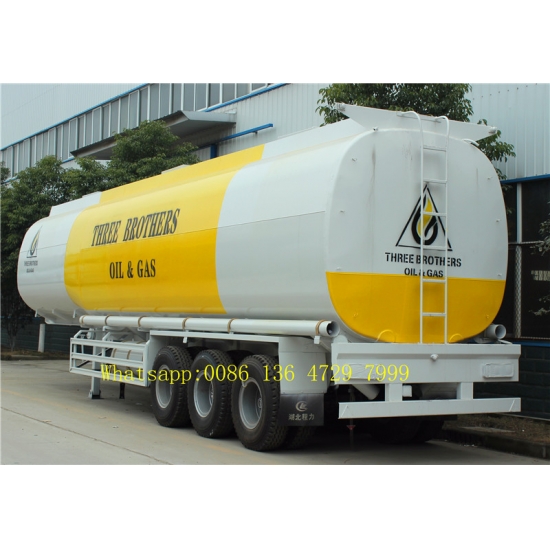

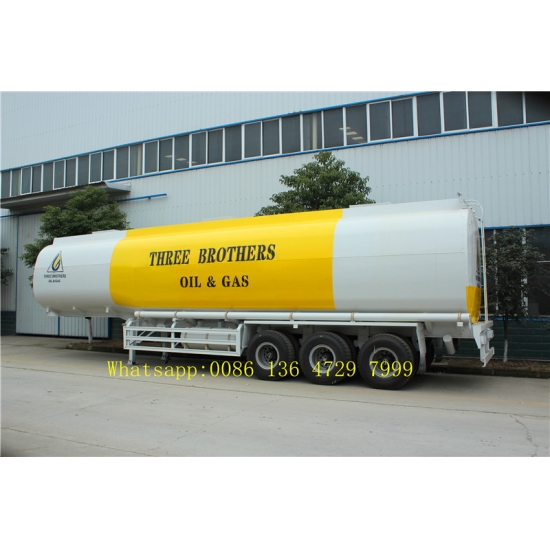

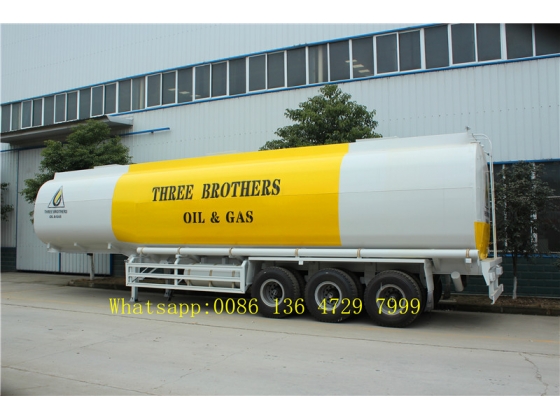

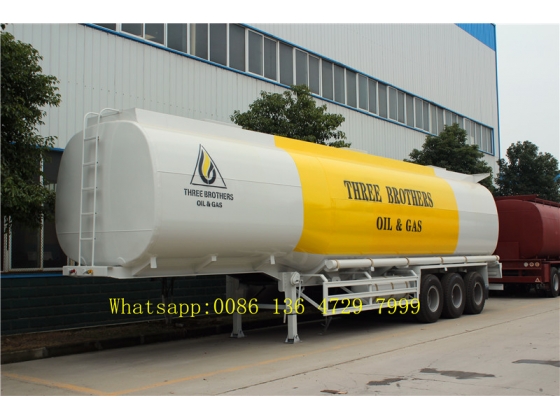

Cabon steel material Fuel Tank Semi Trailer

fuel tanker seimitrailer

 Applications:

Cabon steel material Fuel Tank Semi Trailer , also called carbon steel oil tanker trailer, carbon steel tanker semitrailer for sale, china carbon steel fuel tanker trailer, 3 axle carbon steel oil tanker semitrailer. As premium china fuel tanker semitrailer manufacturer,  we aim at supply kinds of 5000 gallons, 6000 gallons, 7000 gallons, 8000 gallons fuel tanker semitrailer for customer.

** 30 years experiences on manufacturing fuel tanker semitrailer and competitive price.
** Customized fuel tanker semitrailer on customer's requirement.
** Strict quality assurance on oil tanker semitrailer production.
** 12 months guarantee for all fuel tanker semitrailer
** SGS, CONTECNA, BV inspection for all our fuel tanker semitrailer
** 12 months spare parts free of charge , for all the petrol tanker semitrailer.



 Key Features:



---- 30 years on semitrailer manufacturing, germany benz technology assurance.

---- All genuine spare parts , 20,000 km maintenance

---- 12 months after sale service guarantee

---- Service for more than 100 countries.

---- Patented design on semitrailer, reliable and



 Specifications:



     Specifications:


Fuel tank trailer specification
Tank Body
Dimension 12000mm*2490mm*3990mm or customized
Volume(m3) 25m³- 70 m³
Tare weight About 6-12 ton
Tanker Body thickness 5mm /Q345B carbon steel /aluminum
End Plate thickness 6mm /Q345B carbon steel /aluminum/stainless steel
Manhole Cover Carbon steel Aluminum alloy API manhole cover, 500mm
Bottom Valve Aluminum API Pneumatic Bottom Valve
Discharging Valve Diameter is 3 or 4 inch
Discharging Pipe 4” rubber hose, 2 pcs, 6m/each
Compartments Optional
Chassis
Main Beams

Q345B carbon steel or T700 high-intensive steel,

I Beam height 500mm

Upper plate 14mm, lower is 16mm, middle is 8mm

Axle 3 axles, 13T and 16T brake pad American type, FUWA or Chinese brand
Landing Gear Standard 28T double speed, JOST(D200T) or Chinese brand
King Pin 5.0(2 inch)/9.0(3.5 inch) JOST(D200T) or Chinese brand
Suspension Mechanical suspension or Air suspension Thicken
Leaf Spring 90mm(W)*13mm(T)*10 Layer/90mm(W)*16mm(T)*10 Layer/ 100mm(W)*16mm(T)*10 Layer
Pneumatic Braking System 6 air chamber, 3 axles synchronization WABCO brand
Rim 9.00-22.5/8.00-20/8.5-20 China Brand
Tire 12.00R22.5/315 80R22.5/11.00R20/12.00R20 Brand can be Optional
ABS Optional
Accessories One standard tool box
Voltage 24V




We are premium Professional 45000 Liters Fuel Tanker Semi Trailer With 5 Compartments ,we have the large rolling and welding equipments.Paying attention to the details of producing, we undertake a variety of carbon steel tanker trailer, stainless steel tanker trailer, aluminum tanker trailer, mirror aluminum tanker trailer and all kinds of liquid tank trailers based on the custom requirements from Africa, South American and South east country
