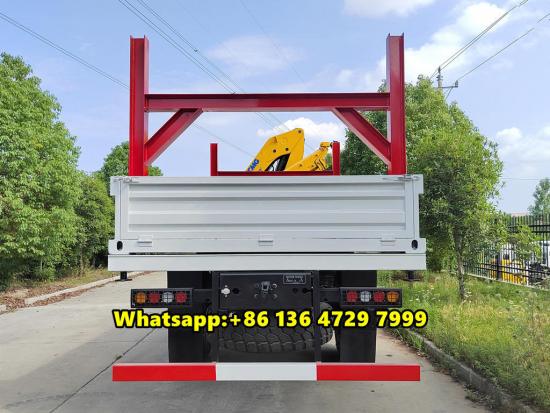

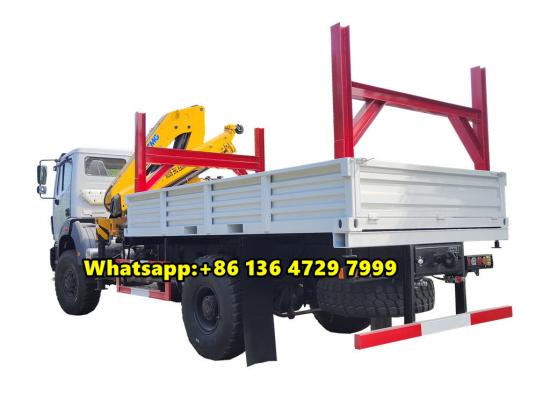

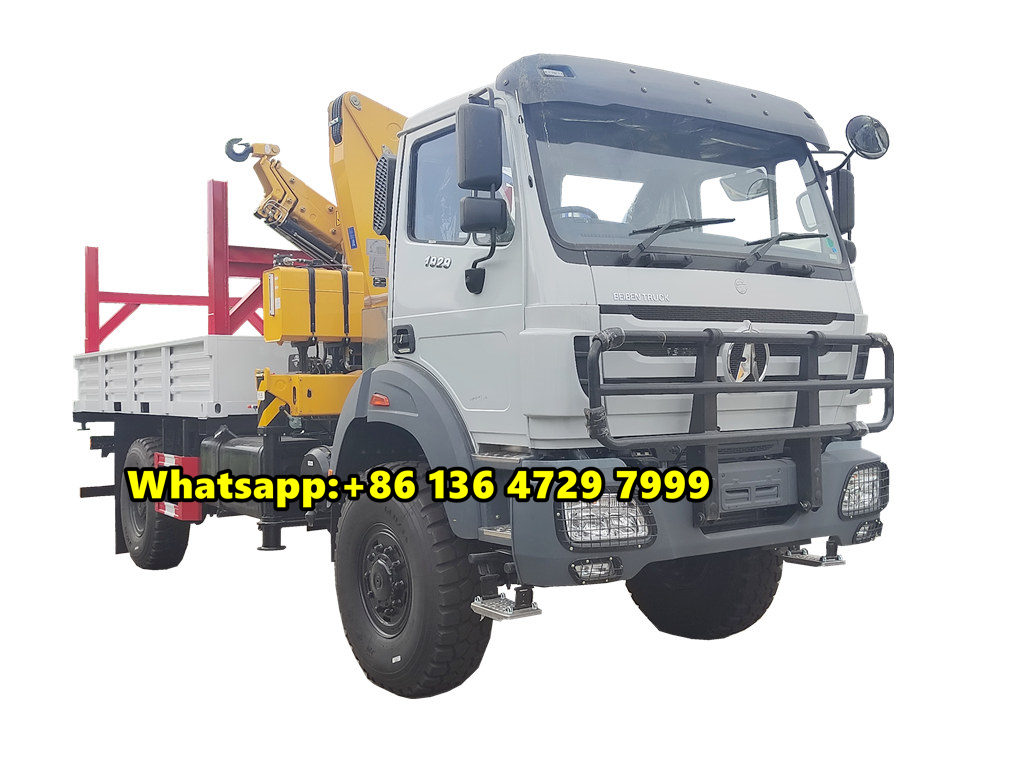

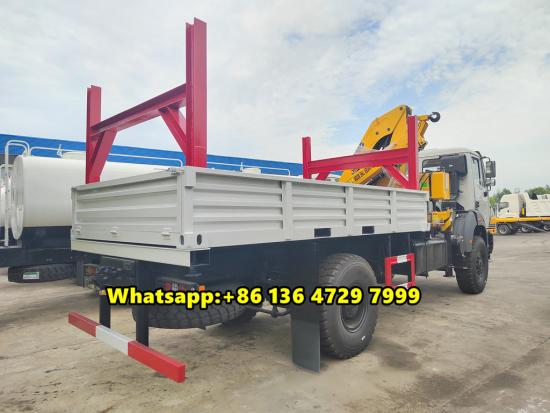

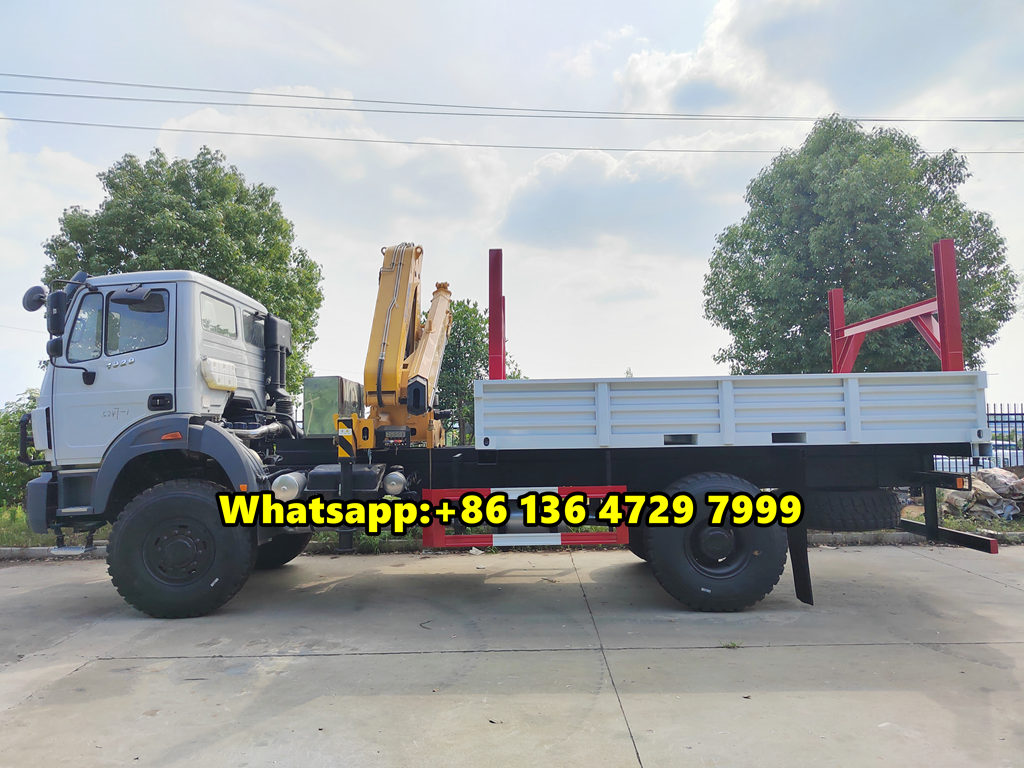

africa beiben 1929 off road truck with XCMG 6.3 ton crane

Beiben 1929 4x4 knuckle boom truck
Beiben 1929 4x4 knuckle boom truck
Beiben 1929 4x4 knuckle boom truck
Beiben 1929 4x4 knuckle boom truck
Beiben 1929 4x4 knuckle boom truck
Beiben 1929 4x4 knuckle boom truck
Beiben 1929 4x4 knuckle boom truck
Beiben 1929 4x4 knuckle boom truck

africa beiben 1929 off road truck with XCMG 6.3 ton crane

The Beiben 1929 truck features a sturdy chassis and a reliable engine that delivers exceptional performance, even in the most extreme conditions. The Beiben 1929 off-road truck equipped with an XCMG 6.3-ton crane is a powerful and versatile vehicle designed for tough terrains and heavy lifting tasks. This robust truck is specially built to handle the most challenging off-road environments with ease, making it perfect for construction sites, mining operations, and other demanding work sites.

  • Order(MOQ):

    1
  • Goods Stock:

    1
  • Payment:

    40% T/T deposit, 60% T/T before shipping
  • Lead Time:

    40 days
  • Working capcity:

    XCMG 6.3 ton crane
  • Cabin type:

    Beiben NG80 short cabin
  • Dimension ( mm ) :

    6850x2500x3385
  • Drive system:

    4x4
  • Wheelbase (mm):

    4500
  • Engine power / Model:

    290 HP/WP10.290
  • Gear Box:

    9JS150A
  • Remark:

    Crane lifting capacity is optional
New Products

Beiben off road truck with crane also called boom truck crane,mobile truck crane , truck with crane, crane lorry,hydraulic arm crane for trucks,hydraulic crane telescopic boom,self loader truck with boom crane, etc.

Beiben off-road trucks equipped with XCMG 6.3-ton cranes have obvious advantages in the field of field construction. First of all, this crane has excellent stability and reliability, and can maintain good working conditions under harsh road conditions. Secondly, the XCMG 6.3-ton crane is easy to operate and can quickly adjust the working height and angle to improve engineering efficiency. It has the characteristics of stability and reliability, easy operation, strong lifting capacity, and can easily handle various engineering materials to meet the needs of different construction sites.

Advantages of Beiben 1929 off road truck with XCMG 6.3 ton crane:

1. Beiben folding boom crane is flexible and changeable.

The arm design of Beiben folding boom crane can be flexibly extended and folded, and can be adjusted according to specific operation needs, which improves the adaptability and flexibility of lifting. Compared with fixed arm crane, folding arm crane has higher operating efficiency in a small space and is more suitable for handling operations in small environments such as urban construction sites.

2. Beiben knuckle boom truck has high safety.

Beiben knuckle boom truck usually considers multiple safety protection devices in the design, such as overload protection, emergency stop device, limit switch, etc., which effectively reduces the safety risks during the operation. In addition, the telescopic arm design of the folding arm crane makes the lifting process more stable, reduces the possibility of cargo swinging during the lifting process, and further improves the safety of the operation.

3. Beiben truck with lifting crane has high operating efficiency.

Because the arm design of the folding arm crane is relatively flexible, it can be extended and adjusted according to needs, thereby improving the efficiency and speed of the operation. In many emergency situations, the folding arm crane can quickly adjust the lifting position and height, quickly complete the operation task, and reduce the operation time and cost. In addition, the folding arm crane can also realize a variety of lifting methods during operation, such as rotation lifting, translation lifting, etc., which improves the diversity and adaptability of the operation.

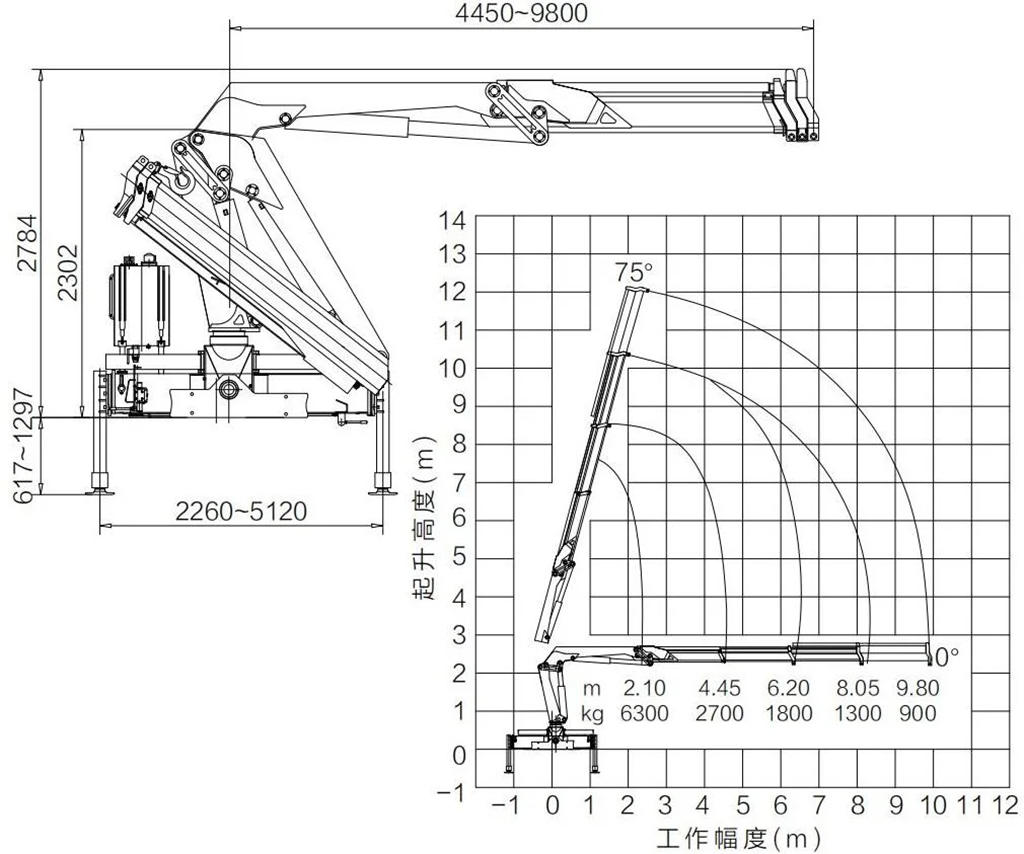

CRANE PARAMETERS

Crane Model

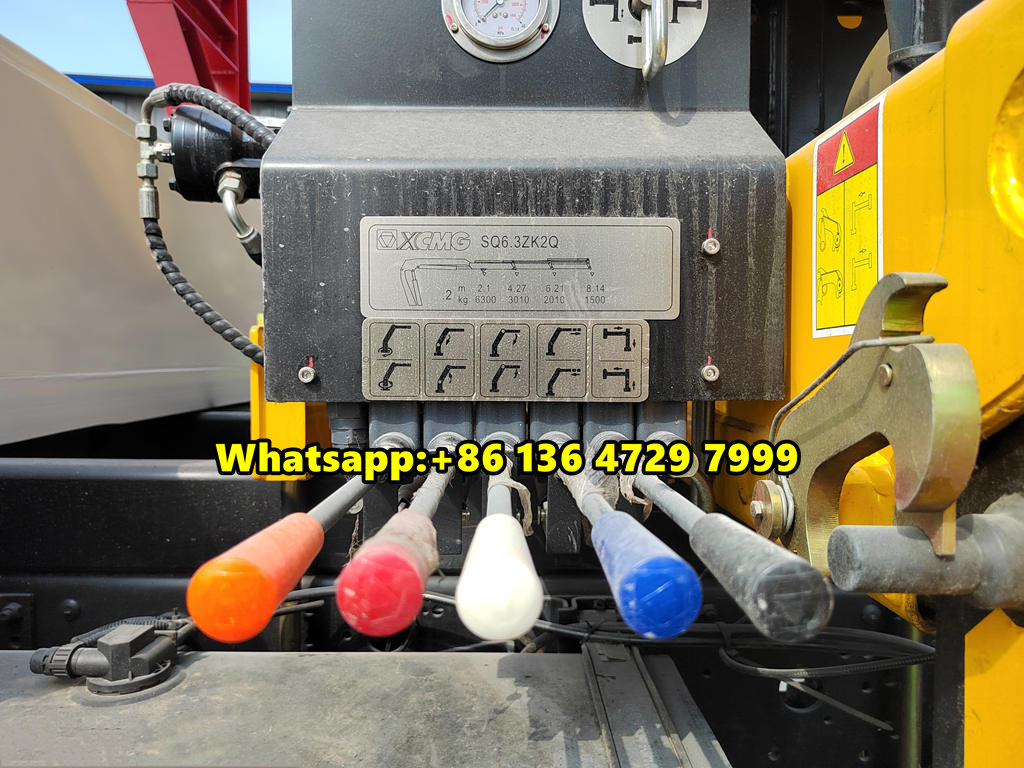

XCMG , SQ6.3ZK2Q

XCMG , SQ6.3ZK3Q

Max Lifting Capacity(kg)

6300

6300

Min Lifting Capacity(kg)

1200

1500

Working Radius(m)

8.5

10.4

Lifting Height(m)

11

13

Crane Weight(kg)

2115

2226

Outriggers Span(mm)

2280-5580

2270-5270

Rotation Angle

360 Degree

360 Degree

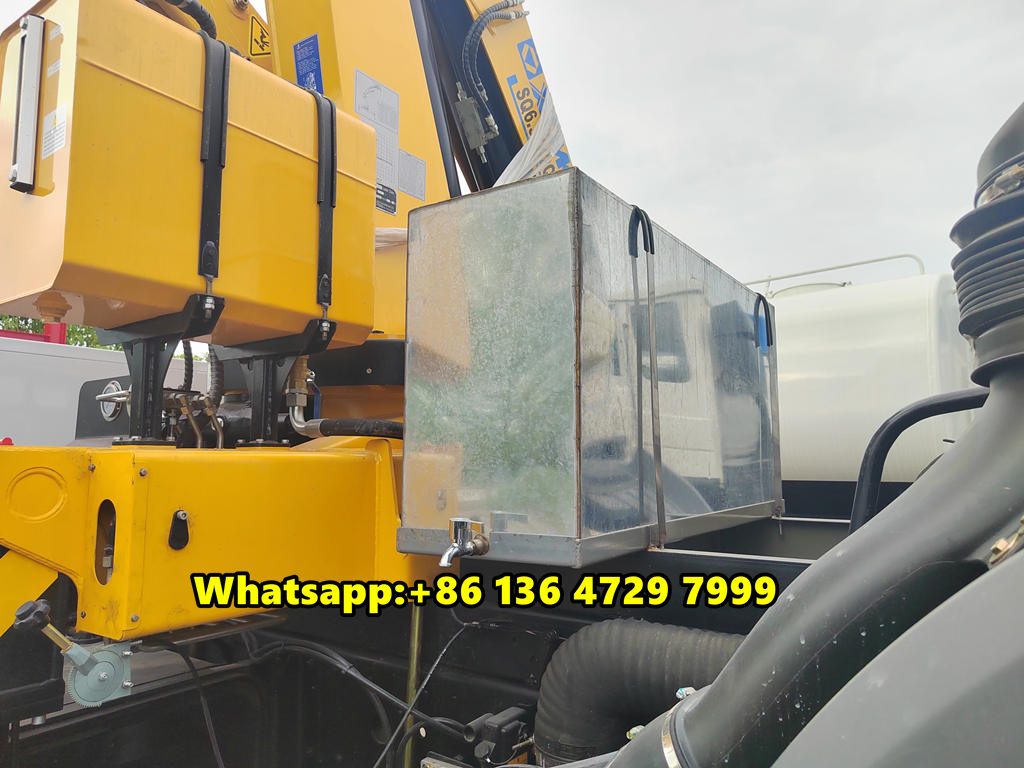

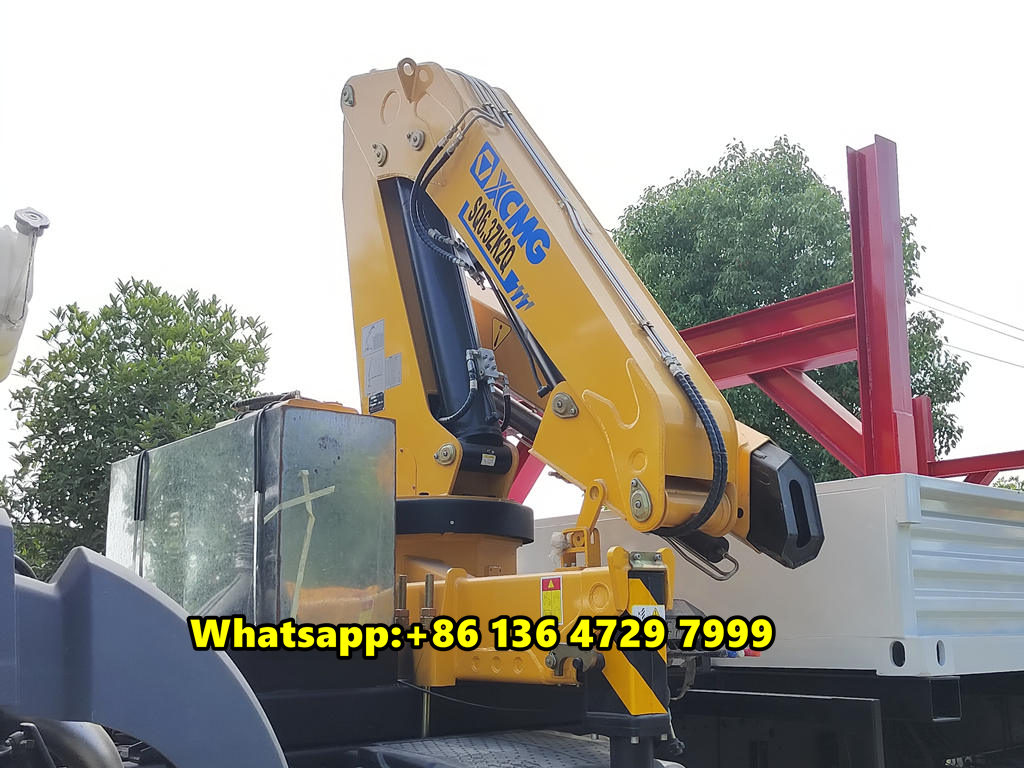

XCMG 6.3 ton crane product description

1.The structure design is more compact,lighter self-weight, greater load ratio , the whole line is reasonable, beautiful.

2.Higher lifting capacity with four connected bar mechanism.

3.Two folding arm can tit upward(negative elevation angle), so that the crane can enter the lower working space for lifting.

4.The second section knuckle boom cylinder with reverse arrangement and adopt the flange connection balance value with higher reliability to reduce the leakage point. There is no oil pipe on the oil cylinder tube to reduce the possibility of damage.

5.Rack cylinder adopted inclined arrangement, boom in folding state to make full use of space , compact overall structure.lower center of gravity and vehicle driving stability.

6.The more symmetrical center design of hexagon boom make it has bigger anti-bending capacity.

7.The float three-point bridge structure design can lower the accessional stress on the chassis frame when traveling.



Beiben 1929 chassis information

Model

Beiben 1929 all wheel drive crane truck

Driver's cab

Full steel skeleton structure, covered with double layer steel plate, Can be tipped forwardly

Engine

Maker: North Benz

Diesel 4 stroke direct injection diesel engine, 6 cylinder in-line with water cooling,turbo-charging & inter cooling

Engine model: WP10.290E32

EURO II/EUROIII emission standard

Number of cylinder:6

Displacement: 10L

Clutch

Single-plate dry coil-spring clutch,diameter 420mm,hydraulically operating with air assistance

Transmission

Fuller 9JS150T transmission.

Front Axle

Mercedes Benz, drum brake

Wheel & Types

Tyre:14.00R20 tube

Optional: 12R22.5//315/80R22.5

Radial tire is optional

Electrics

Operating voltage: 24V,negative grounded

Dimensions in mm

Wheel base : 4500

Overall size: 6850x2500x3385

Weight in kg

Kerb. mass: 8400 kg

Total mass: 25000kg

Performance

Maximum driving speed(km/h) 85

Body in mm

4000x2300x500





Show details

  • #
  • #
  • #
