Beiben 2638 tractor truck

Home Beiben Tractor Truck Beiben 2638 tractor truck

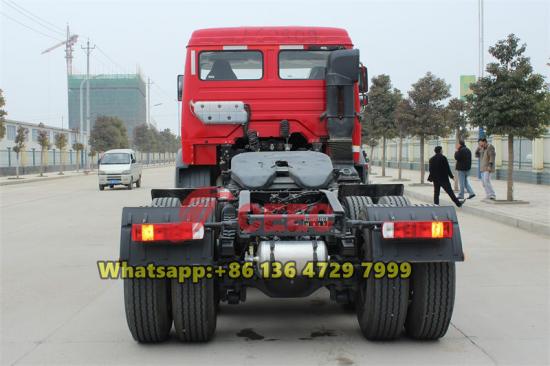

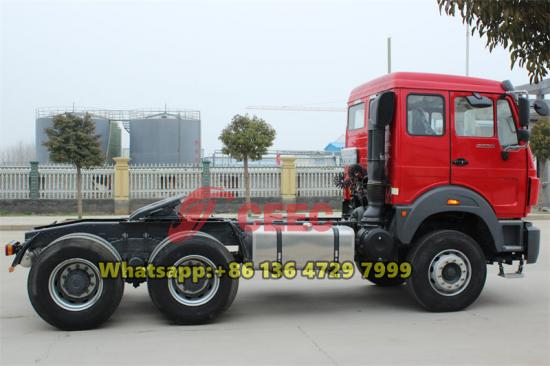

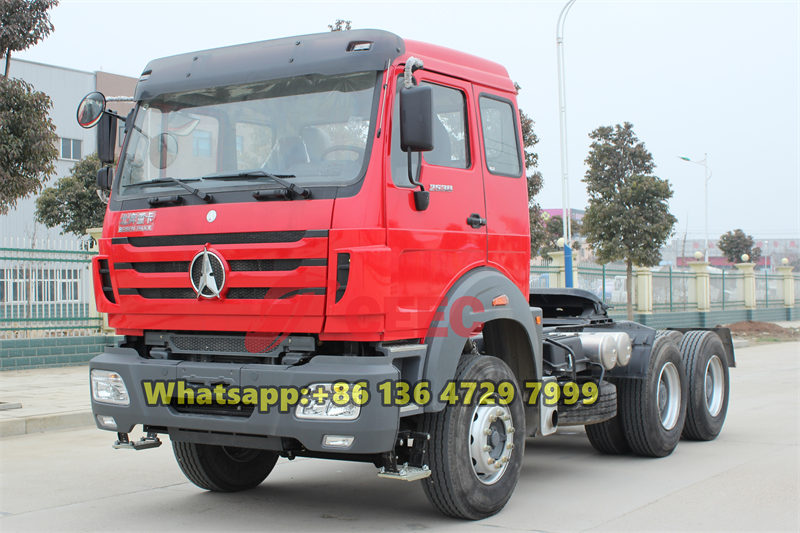

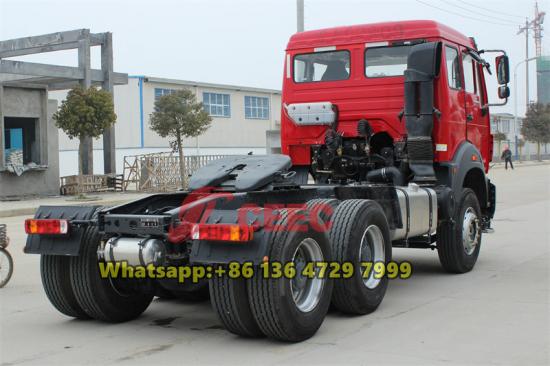

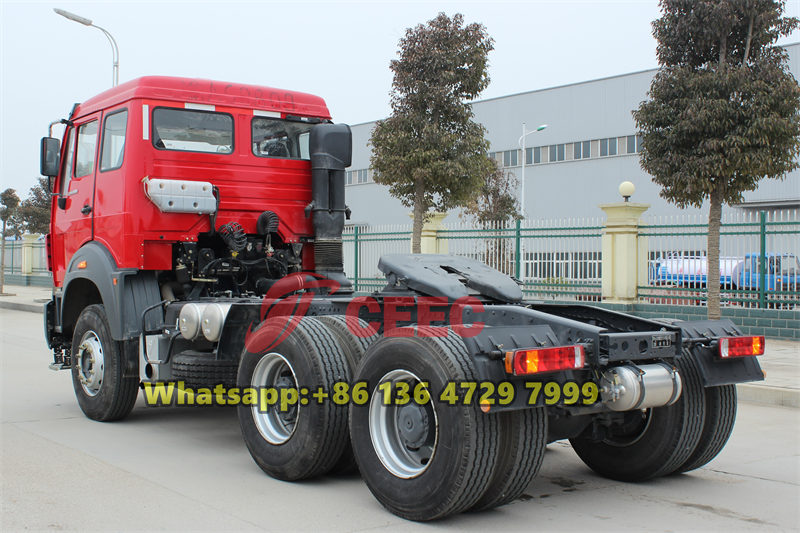

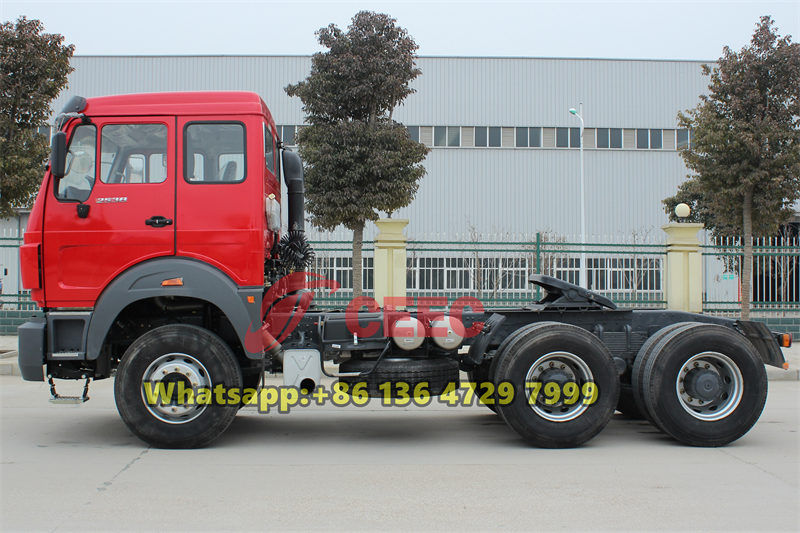

Beiben 2638 heavy trailer tractor

Beiben 2638 3 axles tractor truck
Beiben 2638 3 axles tractor truck
Beiben 2638 3 axles tractor truck
Beiben 2638 3 axles tractor truck
Beiben 2638 3 axles tractor truck
Beiben 2638 3 axles tractor truck
Beiben 2638 3 axles tractor truck
Beiben 2638 3 axles tractor truck
Beiben 2638 3 axles tractor truck
Beiben 2638 3 axles tractor truck
Beiben 2638 3 axles tractor truck
Beiben 2638 3 axles tractor truck
Beiben 2638 3 axles tractor truck

Beiben 2638 heavy trailer tractor

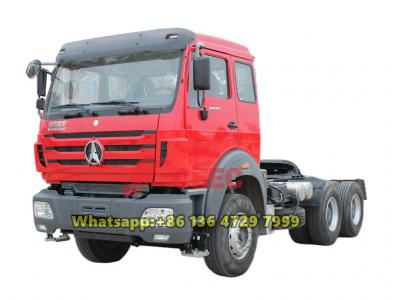

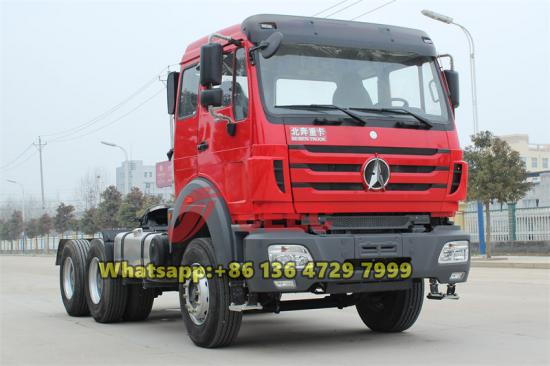

The Beiben 2638 tractor is a heavy-duty 6X4 drive vehicle, powered by a WEICHAI WP10.380E32 diesel engine with a maximum output of 380 horsepower and a displacement of 9.726 liters. The vehicle features a Beiben NG80 long cab, equipped with dual seats, a sleeper, and air conditioning. It boasts overall dimensions of 7140x2500x3200 mm and a wheelbase of 3450+1450 mm. With a kerb weight of 8800 kg and a total mass of 25000 kg, it can tow up to 40000 kg. The tractor is fitted with a FAST 12JS200T transmission and a ZF8098 steering system, and rolls on 12.00R20 radial tires. It is suitable for applications such as long-distance logistics and heavy-duty cargo transportation.

  • Working Capcity:

    40 tons
  • Cabin Type:

    Beiben NG80 cabin, with sleeper bed
  • Dimension ( mm ) :

    7140x2500x3200
  • Drive System:

    6×4
  • Wheelbase (mm):

    3450+1450
  • Engine Power:

    380 HP/WP10.380E32
  • Gear Box:

    9JS150A
  • Remark:

    6×6 drive is optional
New Products

Product Descriptions

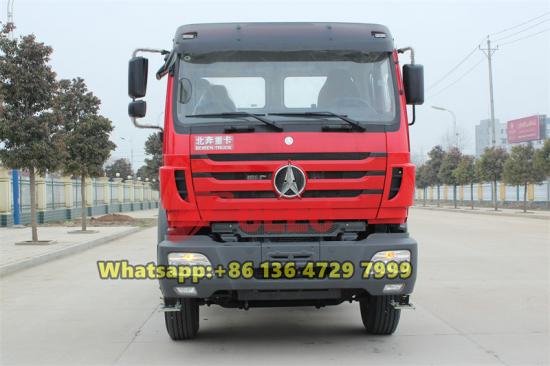

The Beiben 2638 tractor head is a high-performance, multi-functional heavy-duty vehicle designed to tackle a variety of complex transportation tasks. Its exceptional performance and robust structure set it apart from other tractors, making it an ideal choice for long-distance logistics, heavy-duty cargo transportation, and other fields.





The Beiben 2638 trailer tractor features a 6X4 drive configuration, which not only enhances the vehicle's stability and traction but also allows it to excel in various challenging road conditions. The driver's cab is located on the left side, in line with driving habits in most countries, facilitating easy operation for the driver. The vehicle adopts the Beiben NG80 long-cab, providing ample interior space equipped with two seats, a sleeper, and an air conditioning system, offering a comfortable driving and resting environment for the driver.

The Beiben heavy tractor truck is powered by a WEICHAI diesel engine, model WP10.380E32. This engine employs four-stroke direct injection technology, features six cylinders with water cooling, turbocharging, and intercooling, and meets EURO III emission standards. With a maximum output of 380 horsepower at 2200 rpm, it provides robust power support for the vehicle. The engine's displacement is 9.726 liters, ensuring sufficient torque and power reserve.

In terms of the transmission system, the vehicle is equipped with a FAST 12JS200T transmission with 12 forward gears, ensuring smooth shifting and high transmission efficiency. The clutch is a 430mm hydraulically operated type with air assistance, providing lightweight and reliable operation. The steering system adopts the ZF8098 from Germany, ensuring the vehicle's maneuverability and stability.

Thanks to its outstanding performance and wide range of applications, the Beiben2638 tractor is extensively used in the domestic automotive transportation sector. It is particularly suitable for long-distance logistics, where its strong carrying capacity and traction allow it to easily handle the transportation of various large cargoes. In heavy-duty cargo transportation, its sturdy structure and stable performance ensure the safety of cargo during transit. Additionally, in the field of engineering construction, the Beiben 2638 tractor is often used for transporting large machinery and building materials.





Product Specifications



Traction type

6X4

Driving type

Left hand drive

Cab

Beiben NG80 long cabin, 2 seats, one sleeper, A/C

Dimensions in (mm)

Wheelbase(mm): 3450+1450

Overall size(mm): 7140x2500x3200

Weight in kg

Kerb weight 8800kg

Total mass   25000kg

Towing weight 40000kg

Engine

Make: WEICHAI

Diesel 4 stroke direct injection diesel engine, 6 cylinder in-line with water cooling, turbocharging & intercooling

Engine model: WP10.380E32

Emission Standard: EURO 3

Maximum output: 380HP /2200 rpm

Number of cylinders: 6

Displacement: 9.726L

Clutch

430mm, hydraulically operating with air assistance

Transmission

Brand: FAST

Model: 12JS200T (12 speeds)

Steering

ZF8098 (from Germany)

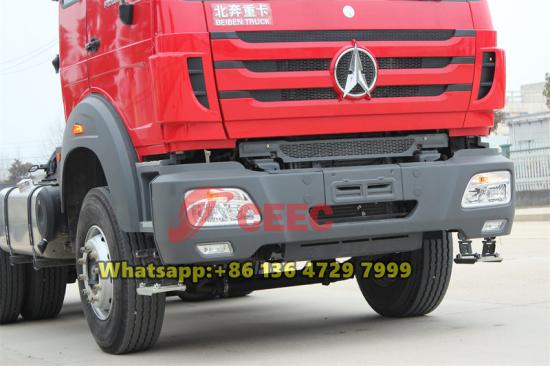

Front Axle

Benz technology 7.5ton

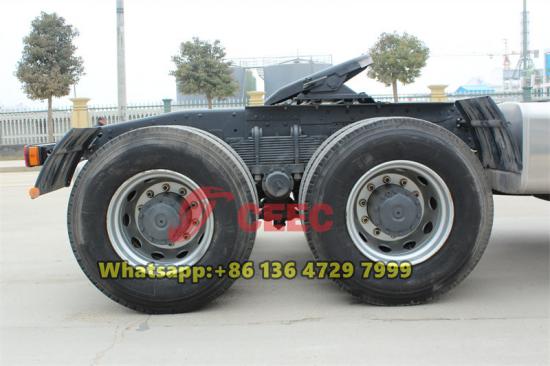

Rear Axle

Benz 13ton double reduction driving axle, Ratio:1:5.263

Types

12.00R20 Radial tire

No. of tire

10+1(spare)

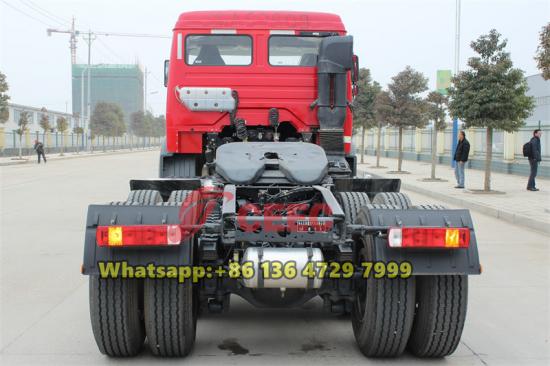

Fifth wheel

3.5'(90#)

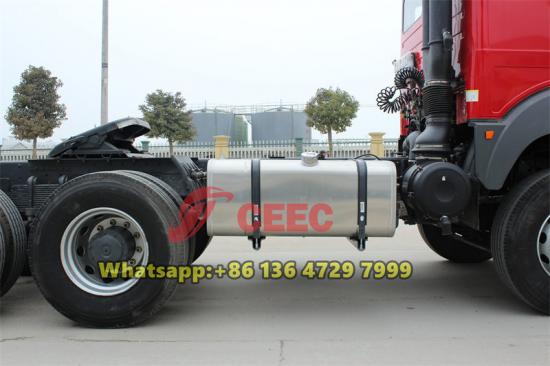

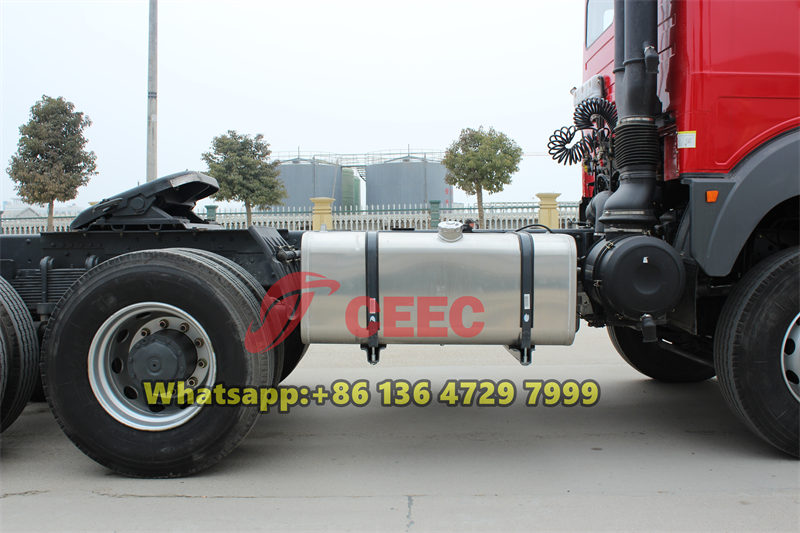

Fuel tank(L)

400

Electrics

Operating voltage: 24V, negative grounded

Weight in kg

Kerb weight 8800kg

Total mass   25000kg

Performance

Maximum driving speed(km/h) 100

Strengthened equipment

Strengthened crossbeam(317*70*8.5+7+8mm),

strengthened frame, strengthened rear spring(22mm),4 pieces U-type bolts, axle differential lock, wheel differential lock, strengthened transmission shaft and rim
