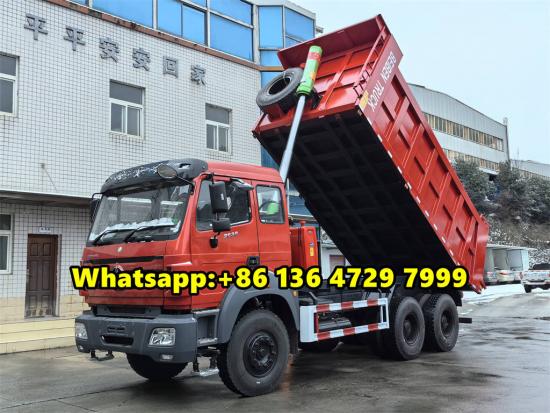

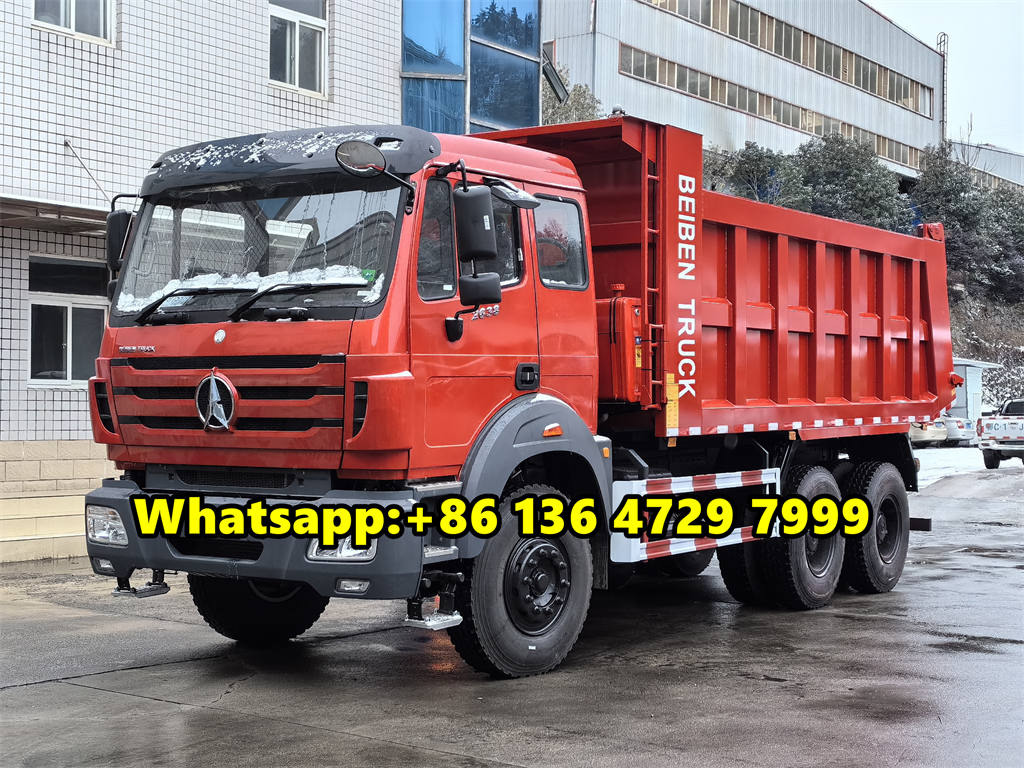

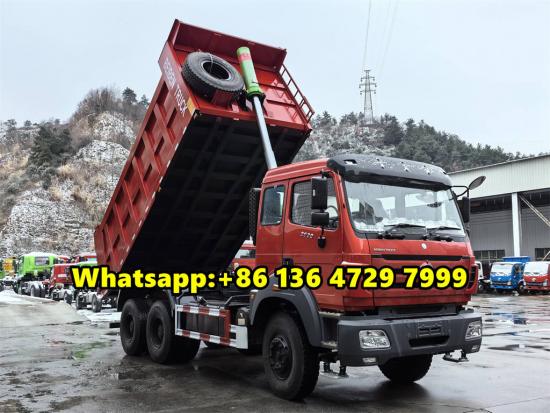

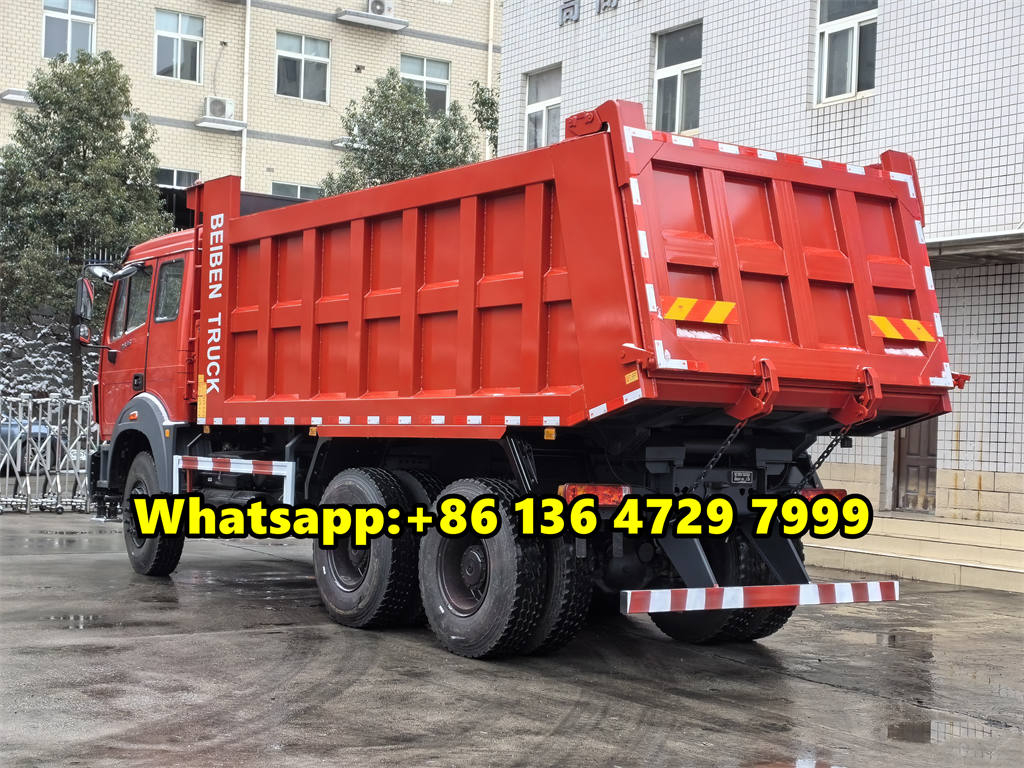

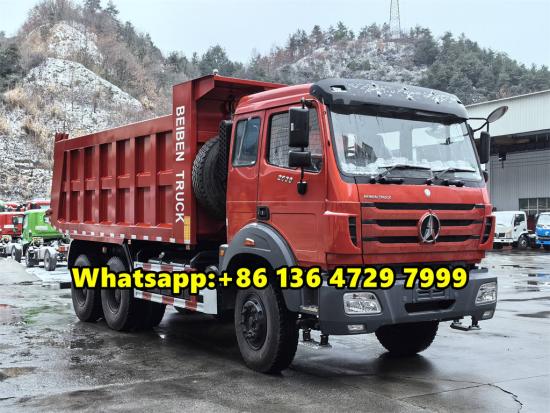

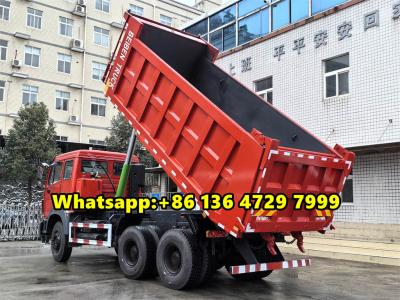

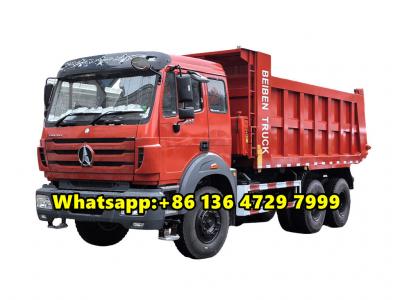

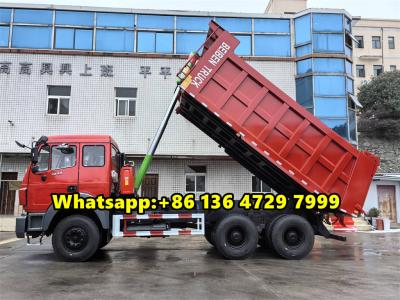

Beiben 2638 RHD dump truck, specially designed for Tanzania, has a length of 8290mm, a width of 2500mm and a height of 3310mm. It is equipped with a WP10.380E32 engine with a maximum power of 380HP and a maximum torque of 1600N.m. The vehicle is equipped with a 9JS150A gearbox, 9 forward gears and 1 reverse gear, a maximum speed of 85km/h, and a load capacity of 12670kg. Its sturdy cargo box, advanced suspension and braking systems, and a comfortable cab make it an ideal choice for Tanzanian customers.
Production time:
30 daysPayment terms:
30% TT deposit and balance before deliveryWorking Capcity:
40 tonsEngine power:
380HPDrive system:
6×4, RHDProduct Descriptions

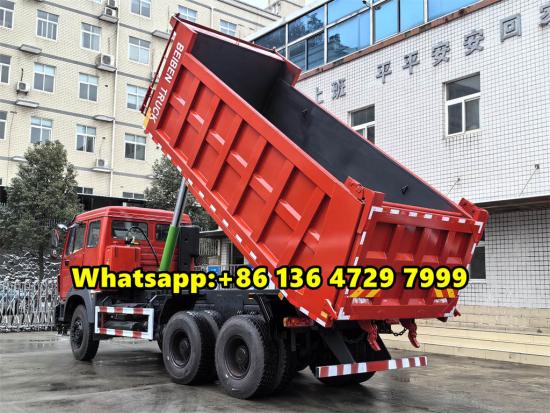

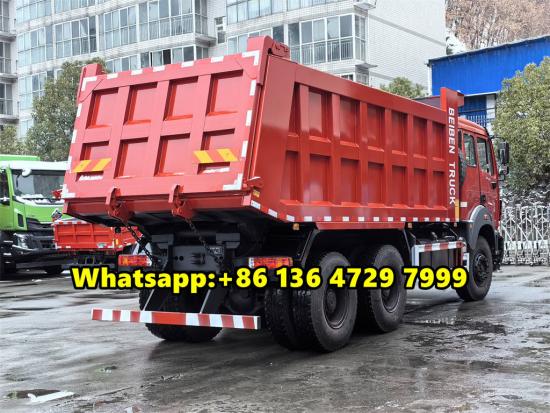

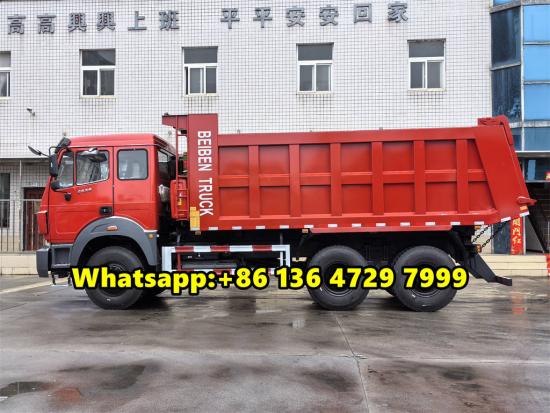

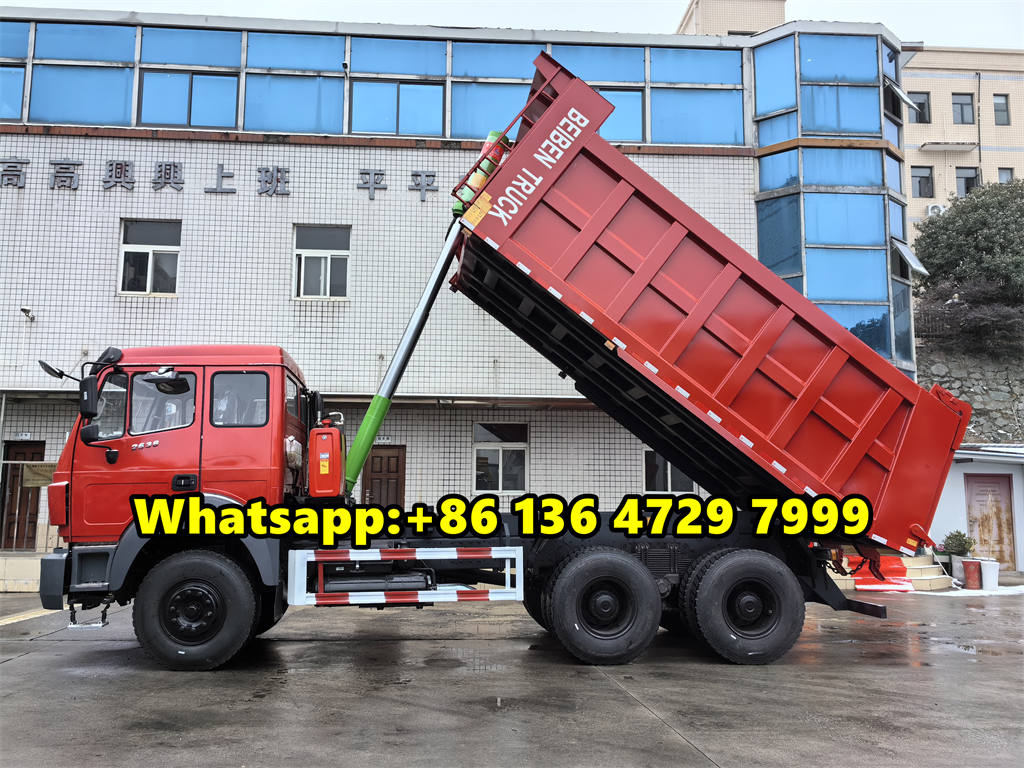

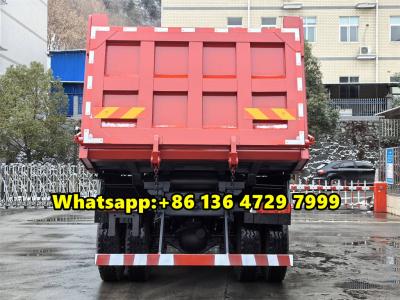

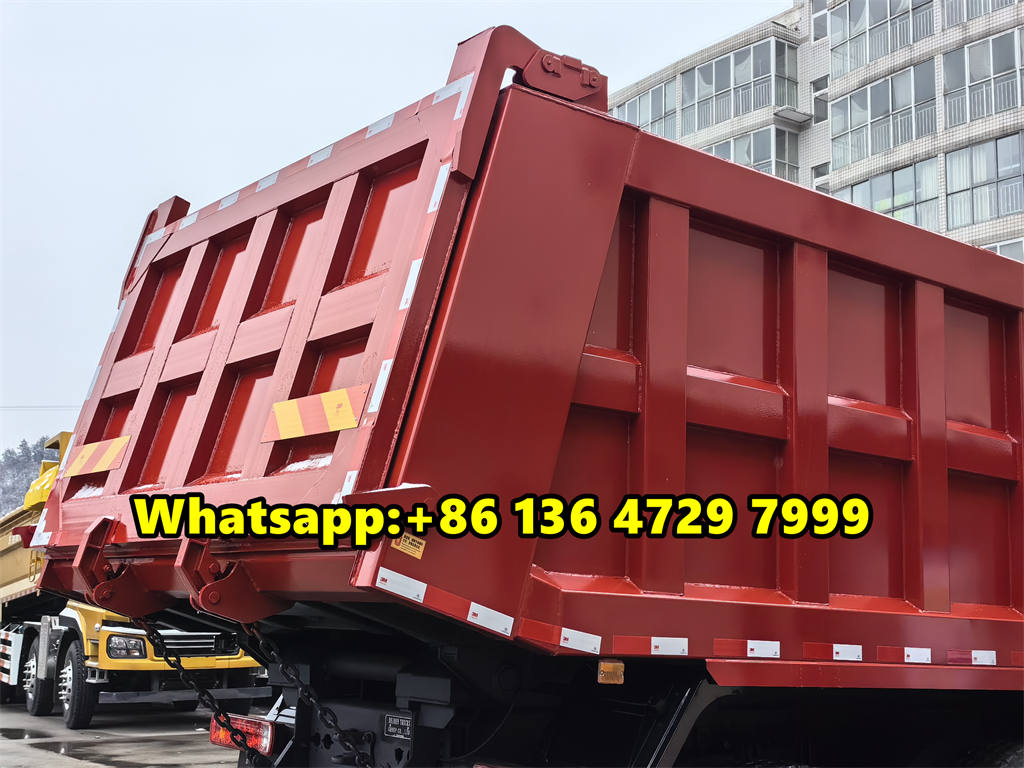

Beiben 2638 RHD dump truck is an engineering vehicle designed for Tanzanian road conditions and working environment, combining excellent performance and outstanding durability. Beiben 2638 RHD dump truck demonstrates its strong carrying capacity with its huge size of 8290×2500×3310mm and solid structure. The vehicle adopts a unique right-hand drive design, which conforms to the local driving habits in Tanzania. The internal dimensions of its cargo box are 5600X2300X1500mm, and the bottom and sides are made of steel plates of different thicknesses to ensure the stability and safety of the cargo box when carrying heavy objects.
This dump truck is equipped with a WP10.380E32 water-cooled four-stroke inline six-cylinder turbocharged engine with a maximum output power of 280KW (380HP) and a maximum torque of up to 1600N.m, providing strong power support for the vehicle. The vehicle's control system adopts the ZF8098 full hydraulic power steering system, providing a more relaxed and precise control experience. In terms of transmission system, the 9JS150A gearbox provides 9 forward gears and 1 reverse gear, meeting the driving needs under different working conditions.

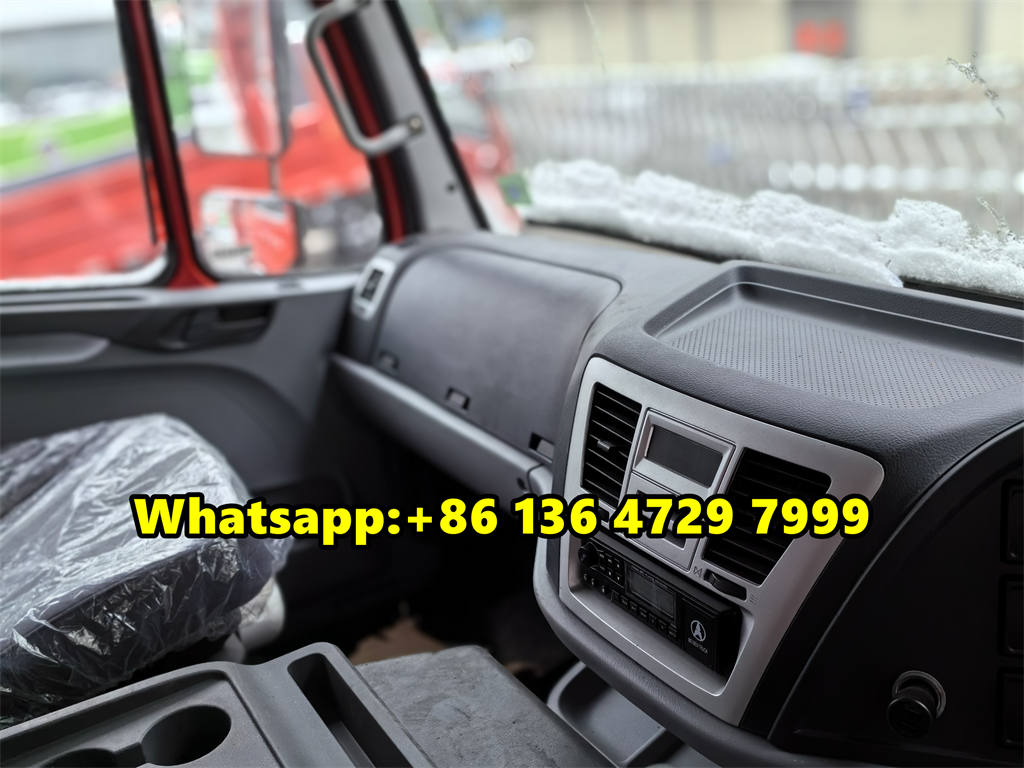

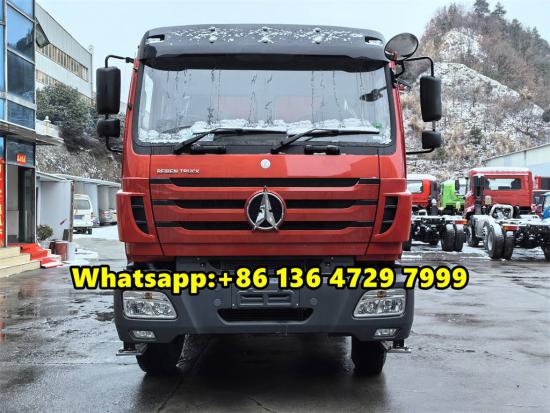

The Beiben 2638 RHD dump truck features NG80B long cabin with a sleeper, full steel frame structure with double-layer steel plate covering, ensuring the durability and comfort of the cab. In terms of electrical system, the vehicle is equipped with 2X12V/135Ah batteries, 28V-35A generator and 5.4Kw/24V starter, providing stable power support for the normal operation of the vehicle.
Product Specifications
|
Beiben 2638 RHD tipper truck |
||
|
SPECIFICATIONS |
||
|
Dimension |
8290*2500*3310mm |
|
|
Cargo box inner dimension |
5600X2300X1500mm bottom 8mm side 6mm middle lifting |
|
|
Approaching angle/Departure angle |
26/32° |
|
|
Overhang(front/rear) |
1410/1630mm |
|
|
Wheel base |
3800+1450mm |
|
|
Max speed |
85km/h |
|
|
Curb weight |
12200kg |
|
|
Loading capacity |
12670kg |
|
|
Slope climbing capability |
Max.30% |
|
|
Engine |
Model |
WP10.380E32, water-cooled, four strokes,6 cylinders in line, turbocharged, direct injection |
|
Displacement |
9.726L/Diesel |
|
|
Stroke |
126/130mm |
|
|
Max. power |
280KW (380HP) |
|
|
Max.torque |
1600 N.m |
|
|
Emission standard |
Euro III |
|
|
Fuel tanker capacity |
400L Steel |
|
|
Clutch |
∮430, Single dry frictional disc, Hydraulic boosting |
|
|
Gearbox |
9JS150A, mechanism,9 forward gears,1 reverse gear, manual operated |
|
|
Gear ratio of gear box |
13.04/8.48/6.04/4.39/13.43/2.471.76/1.28/1.00 R: 11.77 |
|
|
Suspension system (Mercedes Technology) |
Front |
Non-free standing leaf spring, telescopic shock absorber with stablizer bar suspension, 10pcs |
|
Rear |
Non-free standing stablization spring, balance suspension system, 13pcs |
|
|
Brake system |
Service brake |
Brake gap can be adjusted automatically, double circulation air brake system |
|
Assistant brake |
Engine exhaust brake |
|
|
Park brake |
Potential springs pressing on middle and rear wheels |
|
|
Steering system |
ZF8098, whole circulation in ball, hydraulic booster |
|
|
Frame (Mercedes Technology) |
Fish belly shape, variable width, variable sections,317X70X8.5+7+8mm |
|
|
Front axle (Mercedes Technology) |
Double-shoe pneumatic brake,7.5 Ton non-driving steering axle,7.5 |
|
|
Middle and Rear axle (Mercedes Technology) |
13 ton double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle 13 |
|
|
Tyre |
12.00R20 |
|
|
Electrical system |
Battery |
2X12V/135Ah |
|
Generator |
28V-35A |
|
|
Starter |
5.4Kw/24V |
|
|
Cabin |
NG80B long cabin with one sleeping bed; Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly; High back with arm seat for driver, high back seat for co-driver; With inner A/C |
|
