beiben 3138 mining heavy dump truck

Beiben 3138 mining heavy duty dump truck is engineered to address Africa’s demanding mining and infrastructure challenges. With a payload capacity of 60 tons and a robust 380-horsepower engine, Beiben 3138 mining heavy duty dump truck excels in transporting bulk materials across diverse terrains. Beiben 3138 mining heavy dump truck is an industrial-grade vehicle engineered for high-intensity material transport in large-scale mining and construction operations.

Designed to endure extreme workloads, it specializes in hauling bulk commodities such as ores, rocks, and overburden across challenging terrains, including open-pit mines, quarries, and infrastructure development sites. Its primary function centers on optimizing logistics in environments where conventional trucks lack the structural integrity or power to operate efficiently.Below are its key applications in Africa, structured for clarity:

1. Mineral Extraction and Hauling
Africa’s resource-rich nations, such as South Africa (gold), Zambia (copper), and Guinea (bauxite), rely on the Beiben 3138 for efficient ore transport. Its reinforced chassis and dual-side hydraulic tipping mechanism enable seamless loading and unloading in open-pit mines. Beiben 3138 mining heavy duty dumper’s high ground clearance minimizes downtime in rocky or uneven excavation sites.

2. Large-Scale Infrastructure Development
The vehicle supports continent-wide projects, including road construction (e.g., Trans-African Highway networks), dam building (e.g., Grand Ethiopian Renaissance Dam), and urban expansion. Its 6×4 drivetrain ensures traction on unpaved roads, while the 15.5-cubic-meter cargo bed accommodates aggregates, sand, and construction debris.

3. Adaptation to Harsh Environments
Designed for Africa’s extreme conditions, the Beiben 3138 features a dustproof cooling system to prevent engine overheating in Saharan temperatures exceeding 45°C. Its heavy-duty suspension and all-terrain tires withstand monsoon-season mudflats and desert dunes. The sealed cabin, equipped with air filtration, protects operators from airborne particulates common in quarries.

Beiben 3138 Mining Heavy Dump Truck: Technical Specifications

1. Engine Parameters

• Model: WP10.380E32
• Type: Turbocharged, intercooled diesel engine
• Displacement: 9.726 liters
• Power Output: 380 hp (280 kW) @ 1,900 rpm
• Peak Torque: 1,500 Nm @ 1,200–1,600 rpm
• Emission Standard: Euro III (compatible with stringent mining environmental requirements)
• Fuel System: High-pressure common rail technology for optimized combustion efficiency.

2. Transmission System

• Model: 12JS200T
• Type: Manual synchronized transmission
• Gears: 12 forward gears, 2 reverse gears
• Maximum Input Torque: 2,000 Nm
• Operation: Single H-gate shifter with integrated hydraulic assist for smooth gear transitions under heavy loads.

3. Axle Configuration

• Front Axle: Benz-designed rigid axle
  • Capacity: 16 tons
  • Suspension: Heavy-duty parabolic leaf springs with shock absorbers.
  • Steering: Hydraulic power steering for precise maneuverability.
• Rear Axle: Benz-engineered tandem axle
  • Capacity: 32 tons (dual-wheel configuration)
  • Differential: Full-floating design with reinforced gearset for durability.
  • Final Drive Ratio: Adjustable based on load and terrain requirements.

4. Chassis and Dimensions

• Frame: High-strength alloy steel ladder frame with cross-member reinforcement.
• Wheelbase: 4,350 mm (optimized for stability in uneven mining terrain).
• Curb Weight: 22,000 kg; GVWR: 60,000 kg.
• Dump Body: Steel-alloy tipper with 24 m³ capacity, reinforced sidewalls for abrasive materials.

5. Performance Features

• Gradeability: 35% on loose surfaces.
• Braking System: Dual-circuit air brakes with ABS and exhaust retarder for enhanced safety.
• Tires: 16.00R25 radial tires with deep-tread patterns for superior traction.

Product Specifications

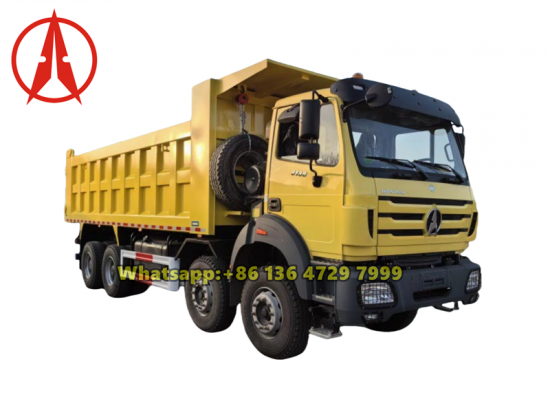

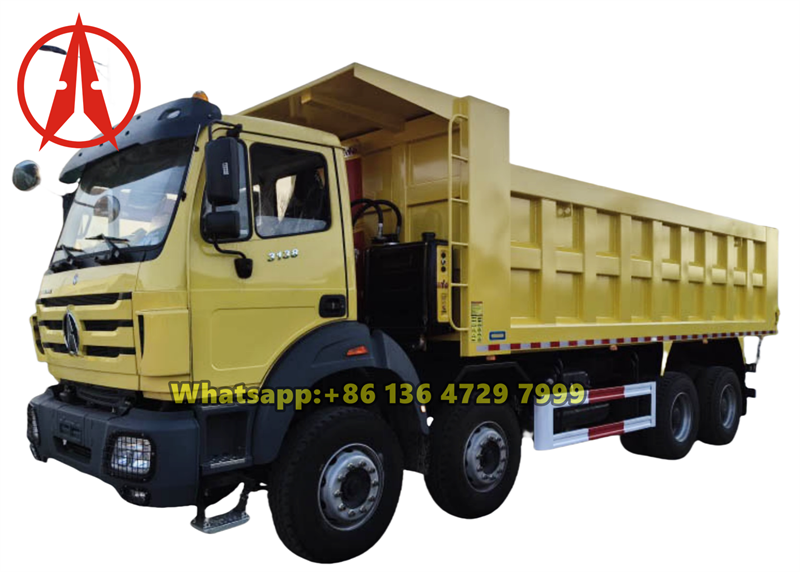

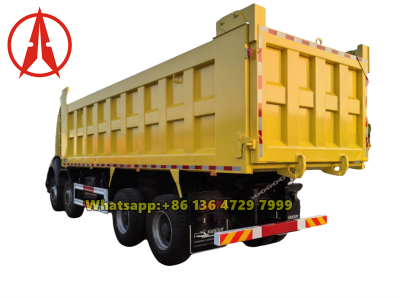

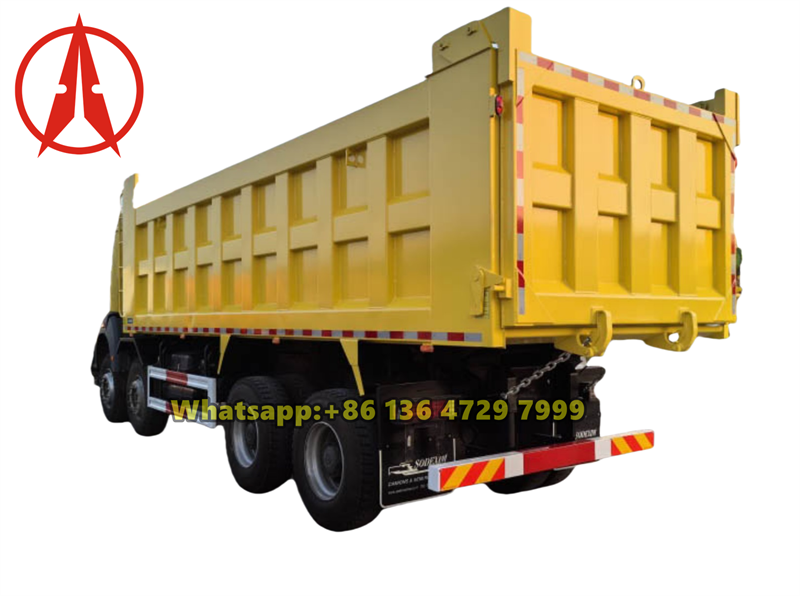

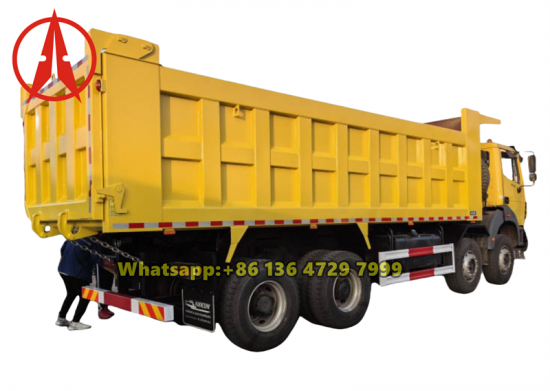

Product Pictures
