beiben 6*4 dump truck with 360 hp engine

Product Details

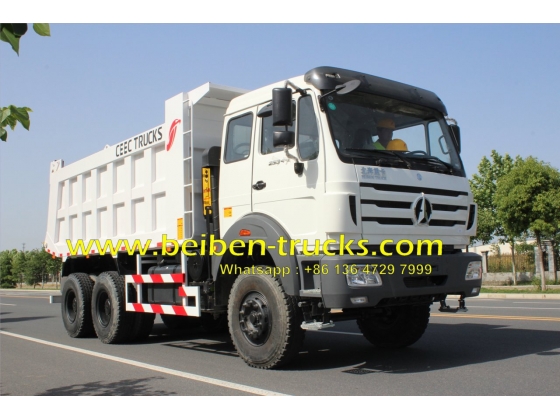

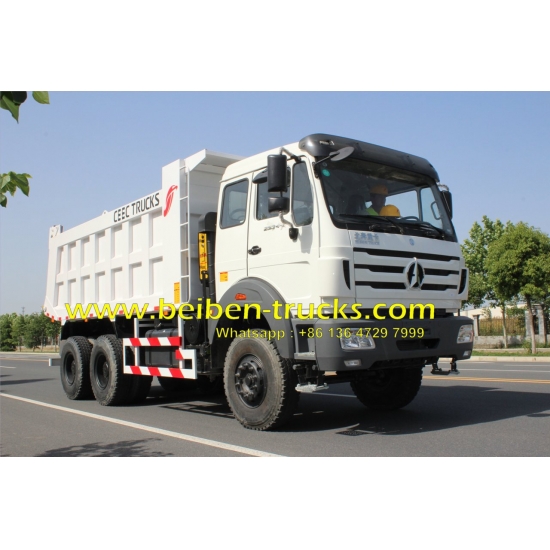

beiben 6*4  dump truck with 360 hp engine

beiben 6*4 dump truck with 360 hp engine

China classic cabin of beiben NG80 2638 tipping truck, These beiben NG80 2638 dump trucks are produced on beiben 2638 dump truck chassis, benz classis NG80B 380 hp engine. Now, we can produce beiben 2638 left hand drive and right hand drive dump trucks. We are the best beiben 2638 tipping trucks manufacturer in china.

We produce beiben 2638K 40T, 50 T, 60 T, 70 T dump trucks for africa, congo , kenya, tanzania, ghana, algeria, nigeria, south africa countries.



1.shortest delivery time
2.more competitive price,
3.reliable and high efficient performance
4.good after-sales service

Product Description

beiben 6*4 dump truck with 360 hp engine

Key Features:

Germany BENZ technology chassis with high durability and reliability

Germany BENZ technology engine combined with original rear axle reducer gear and differential gear

Continuous welding throughout body for additional strength, Full depth rear corner post with full depth rear crossmember.

Enhanced body, and the motherboard adopts variable cross-section beams.

Special Dump Body Design are optional

Other customer requirements are welcome

beiben 2638 K dump truck

Technical Parameters:



2538K /6×4/4100+1450/Short Cab/LHD or RHD

Dimension

8880*2500*3430mm

Cargo box

5600x2300x1350mm, HYVA hydraulic lifting system; thickness: bottom 8mm, side 6mm

Approaching angle/Departure angle

26/28°

Overhang(front/rear)

1410/1720mm

Wheel base

3800+1450mm

Max speed

85km/h

Curb weight

12650kg

Engine

Model

WP10.380E32, water-cooled, four strokes, 6 cylinders in line, turbocharged, directly injection


Displacement

9.726L/Diesel


Stroke

126/130mm


Max. power

280/2200 (kw/rpm)


Max.torque

1600/1800(N.m/rpm)


Emission

Euro III

Fuel tanker capacity

300L

Clutch

∮430, Single dry frictional disc,Hydraulic boosting

Gearbox

9JS180, mechanism, 9 forward gears, 1 reverse gear, manual operated

Gear ratio of gear box

12.65/8.38/6.22/4.57/3.4/2.46/1.83/1.34/1.00 R:13.22

Suspension system

Front

Non-free standing leaf spring,telescopic shock absorber with stabilizer bar suspension , 10pcs


Rear

Non-free standing stabilization spring, balance suspension system, 13pcs

Brake system

Service brake

Brake gap can be adjusted automatically, double circulation air brake system


Assistant brake

Engine exhaust brake


Park brake

Potential springs pressing on middle and rear wheels

Steering system

ZF8098 hydraulic steering with power assistance

Frame

Strengthened Straight beam

Front axle (Mercedes Technology)

Double-shoe pneumatic brake, non-driving steering axle

Middle and Rear axle (Mercedes Technology)

Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle

Tyre

315/80R22.5 tubeless tyres

Electrical system

Battery

2X12V/135Ah


Generator

28V-35A


Starter

5.4Kw/24V

Cabin

NG80B Long cabin one sleeper and inner A/C ;
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
High back with arm seat for driver, high back seat for co-driver; With inner A/C





beiben 70 T dump truck manufacturer
africa best beiben 50 Ton dump truck supplier

Model Engine Model Rated Power Payload Driving Mode
Beiben 2538 WP10.380N 380 Hp 60 Ton 6*4
Beiben 2534 WP10.340 340 Hp 30 Ton 6x4
Beiben 2534k WP10.340 340 Hp 36 Ton 6*4
Beiben 2538k WP10.380 380 Hp 40 Ton 6*4
Beiben 2529 WP10.290 290 Hp 45 Ton 6*4
Beiben 2538k WP10.380 380 Hp 40 Ton 6*4
Beiben 2538 WP10.380N 380 Hp 45 Ton 6*4
Beiben 2529 WP10.290N 290 hp 30 Ton 6*4
Power star 2628 WP 10.280N 280 Hp 40 Ton 6*4
Beiben 2629 WP 10.290N 290 Hp 40 Ton 6*4
Beiben 2634 WP 10.340N 340 Hp 35 Ton 6*4
Beiben 2629 dumper WP 10.290N 290 Hp 35 Ton 6*4
Beiben 2629 A WP10.340 340 Hp 40 T 6x4
Beiben 2629 A WP10.290 290 Hp 25-30 T 6x4

[1] 2 >>

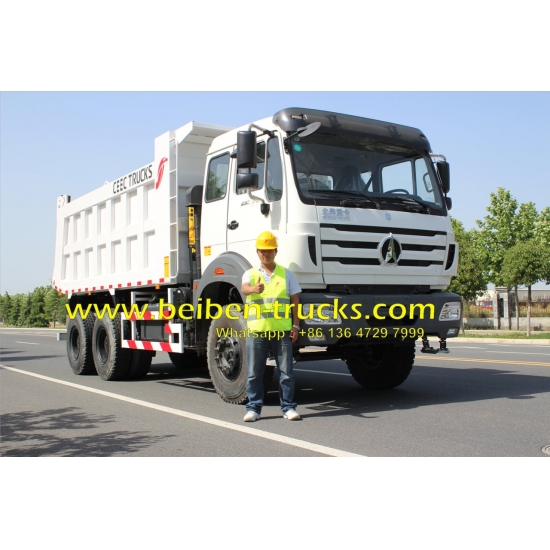

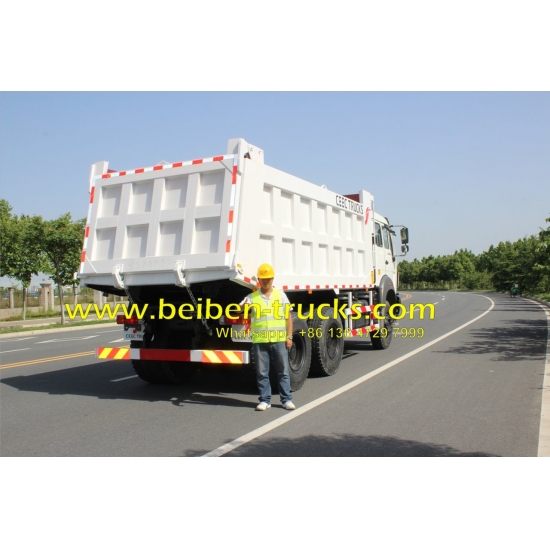

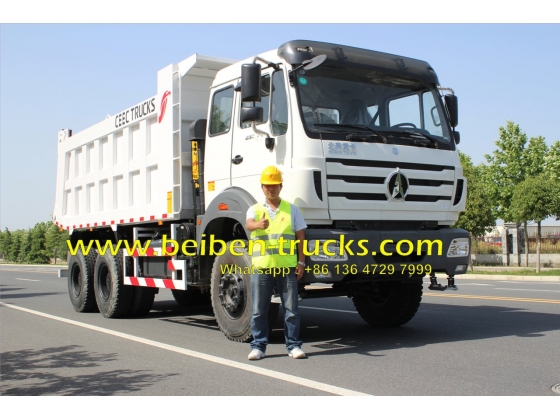

beiben 2638 K dump truck
