Beiben 6×6 all-wheel drive chassis stands out for its strong passability and carrying capacity. The chassis model is Beiben 2629, which is designed for complex road conditions. Its front axle load is 7 tons, equipped with double-shoe disc air brakes; each rear axle can carry 13 tons, equipped with a dual-circuit air brake system. Equipped with WEICHAI engine, the maximum output is 213kw, the maximum torque is 1160N.m. Equipped with 8 forward gears and 1 reverse gear, it provides a comfortable driving environment and demonstrates strong comprehensive strength.
Production time:
30 daysPayment terms:
TTWorking Capcity:
30 tonsEngine power:
290 HPDrive system:
6×6Product Description
Beiben 6×6 all-wheel drive chassis stands out among many heavy vehicles for its strong passability and load-bearing capacity. This chassis is designed to cope with complex and changeable road conditions. The wheelbase is 4450+1450mm and the overall size is 10500×2500×3840mm, providing a stable driving foundation for the vehicle. Its total mass reaches 25000kg, and the curb weight is 9400kg, showing its strong load-bearing potential.
The front and rear axle designs of Beiben 6×6 truck chassis have been carefully considered. The front axle has a load capacity of 7 tons and is equipped with a double-shoe disc air brake to ensure the sensitivity and stability of the brake. The rear axle is even more powerful, with each axle carrying 13 tons. It adopts a dual-circuit air brake system, and is equipped with a drive shaft and alloy steel axle housing, as well as a reducer on the wheel side, which further improves the vehicle's driving performance and load capacity.
Beiben 6×6 off-road chassis is equipped with WP10.290 WEICHAI engine, which is a 6-cylinder, 4-stroke, water-cooled turbocharged engine with a displacement of 9.726L and a maximum output power of 213kw (290hp). At a rated speed of 2200rpm, it can generate a maximum torque of 1160N.m, providing the vehicle with surging power.
This Beiben 6×6 AWD chassis is equipped with a ∮430 single-plate dry friction clutch and a synchronous mechanical manual transmission with 8 forward gears and 1 reverse gear, making driving more flexible and changeable. The braking system is also not to be underestimated. The service brake can automatically adjust the brake clearance, and the dual-circuit air brake system provides a reliable braking effect. The auxiliary brake uses WEVB (engine exhaust brake), and the parking brake acts on the middle and rear tires through spring braking, ensuring the safety and stability of the vehicle in various situations.
Product Parameters
|
BEIBEN 6x6 off-road truck chassis |
|
|
Emission Standard |
EURO 3 |
|
Chassis model |
Beiben 2629 |
|
Driving Type |
6×6 |
|
Dimensions |
|
|
Wheelbase(mm) |
4450+1450 |
|
Overall Dimension(mm) |
10500×2500×3840 |
|
Weight parameters |
|
|
GVW(kg) |
25,000kgs |
|
Curb weight(kg) |
9,400kgs |
|
Chassis parameter |
|
|
Front axle |
7 Ton front axle load capacity, double shoe disc air brake |
|
Rear axle |
13 Ton/axles, Dual-circuit air braking system, driving axle, ductalloy axle cover with wheel side reducer |
|
Front wheel track(mm) |
1940 |
|
Rear wheel track (mm) |
1847/1847 |
|
Front/rear overhang(mm) |
1410/2530 |
|
Approach angle(°) |
34 |
|
Departure angle(°) |
24 |
|
Max speed(km/h) |
80 |
|
Suspension |
Leaf spring suspension |
|
Engine performance |
|
|
Engine model |
WP10.290 (WEICHAI engine) |
|
Engine type |
Straight in-line, 6 cylinders,4 strokes, water-cooling |
|
No. of cylinders |
6 cylinders |
|
Displacement(L) |
9.726L |
|
Max. Output (KW) |
213kw (290hp) |
|
Fuel type |
Diesel |
|
Rated speed |
2200 rpm |
|
Max torque (N.m) |
1160 N.m |
|
Tire specification |
12.00R24,total 10 units off-road tire+1 spare tire |
|
Drive Line |
|
|
Clutch description |
∮430, Single dry frictional disc，Hydraulic boosting |
|
Transmission |
8 forwarder,1 reverse gear, synchronous mechanical, manual |
|
Braking system |
Service brake: Brake gap can be adjusted automatically |
|
Suspension system |
|
|

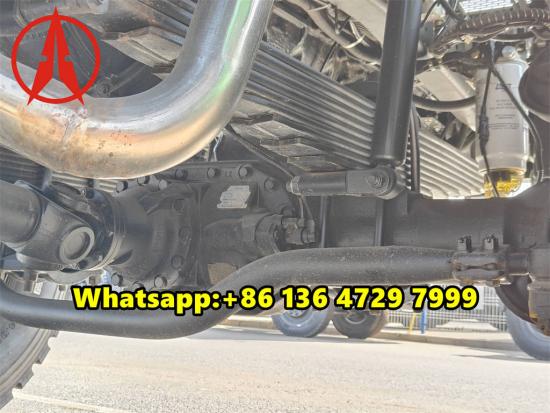

Front axle |
Semi-elliptic leaf springs shock absorbers |
|
Rear axle |
Torsion bar semi-elliptic leaf springs |
|
Electrical Equipment |
|
|
Voltage |
24V |
|
Batteries |
2X12V/135Ah |
|
Starter |
6.2Kw/24V |
|
Cab description |
|
|
NG80 long cab, one sleeper, cooling and heating air-conditioner, all steel bumper |
|

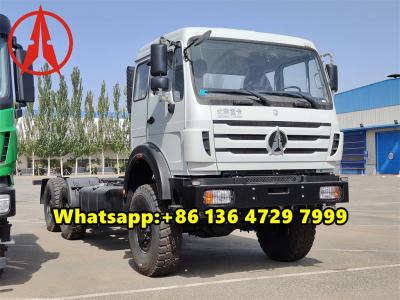

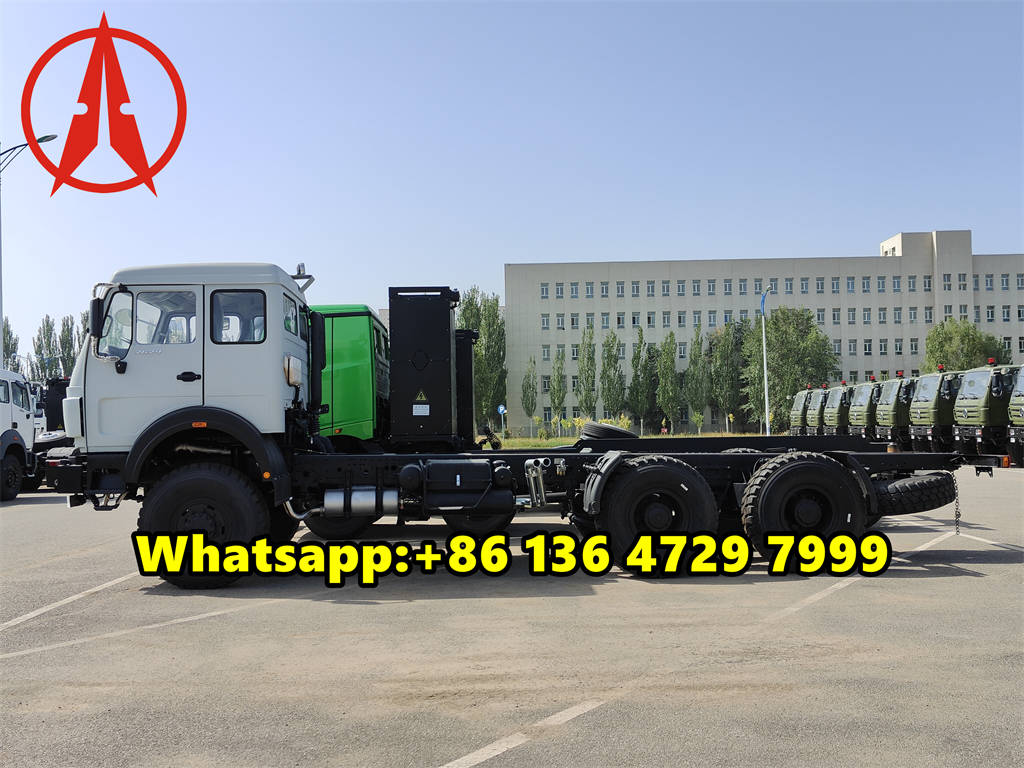

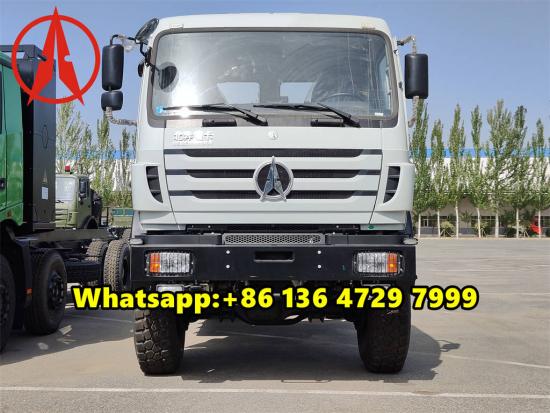

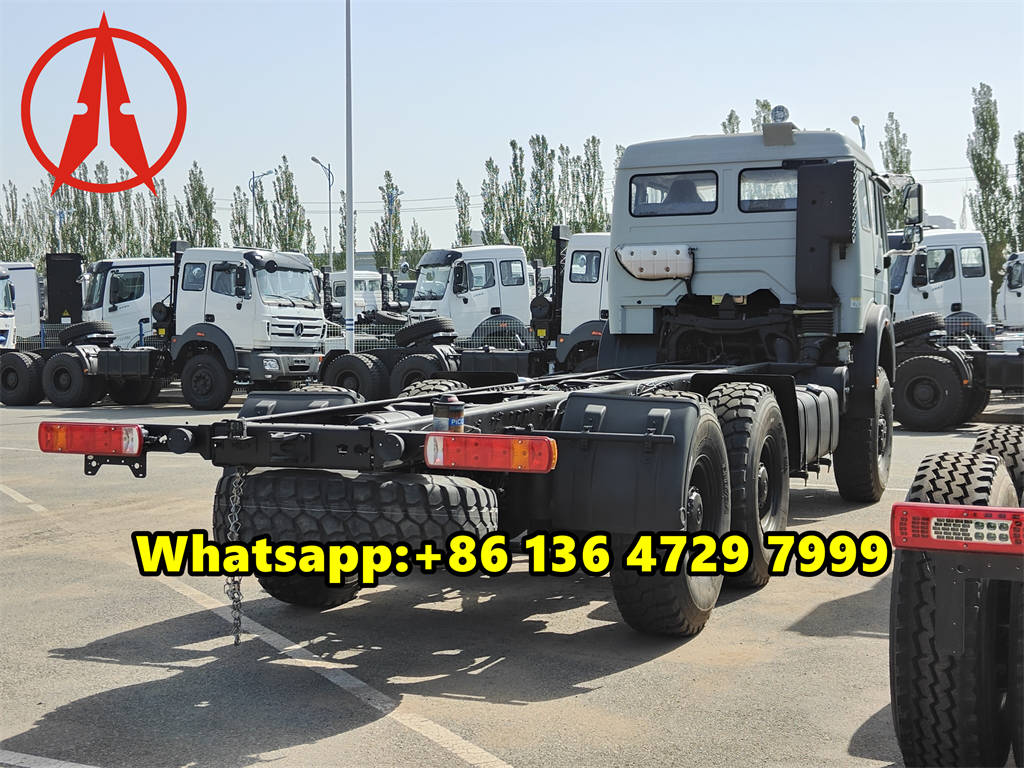

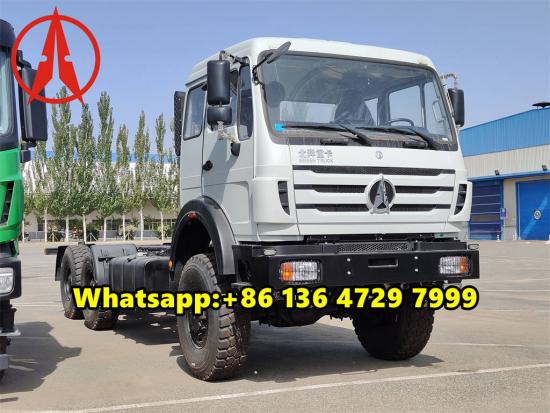

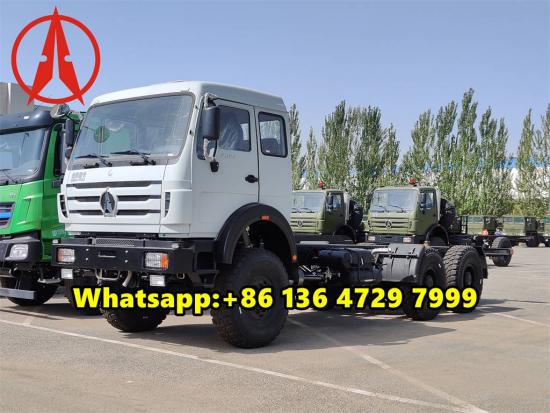

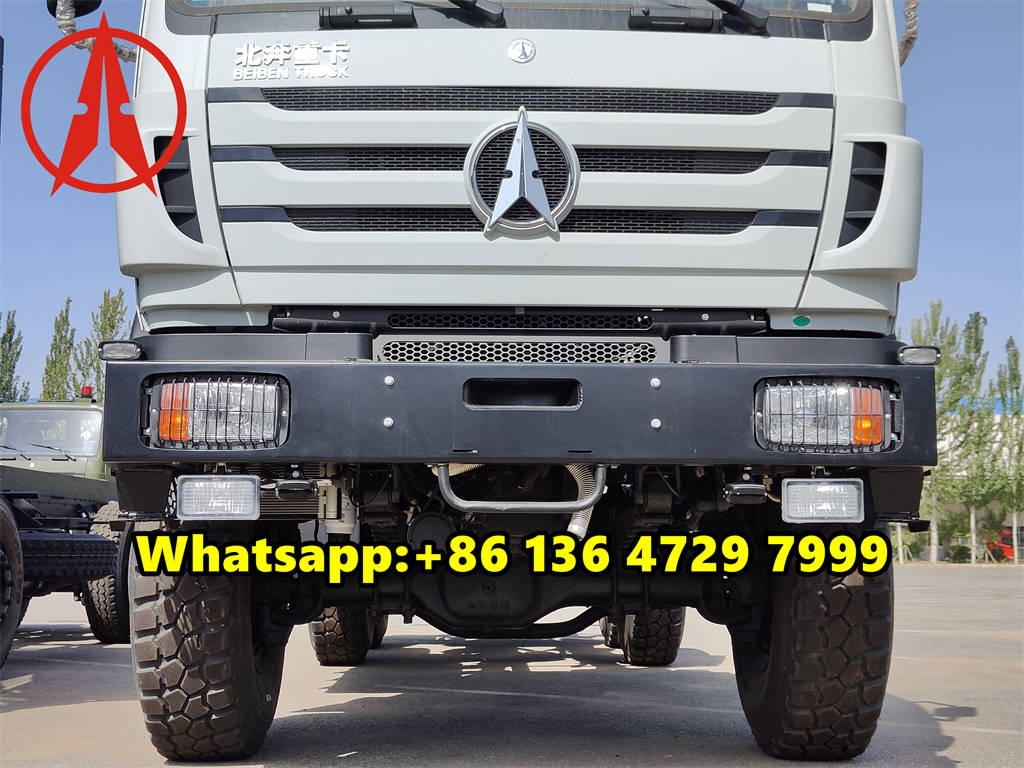

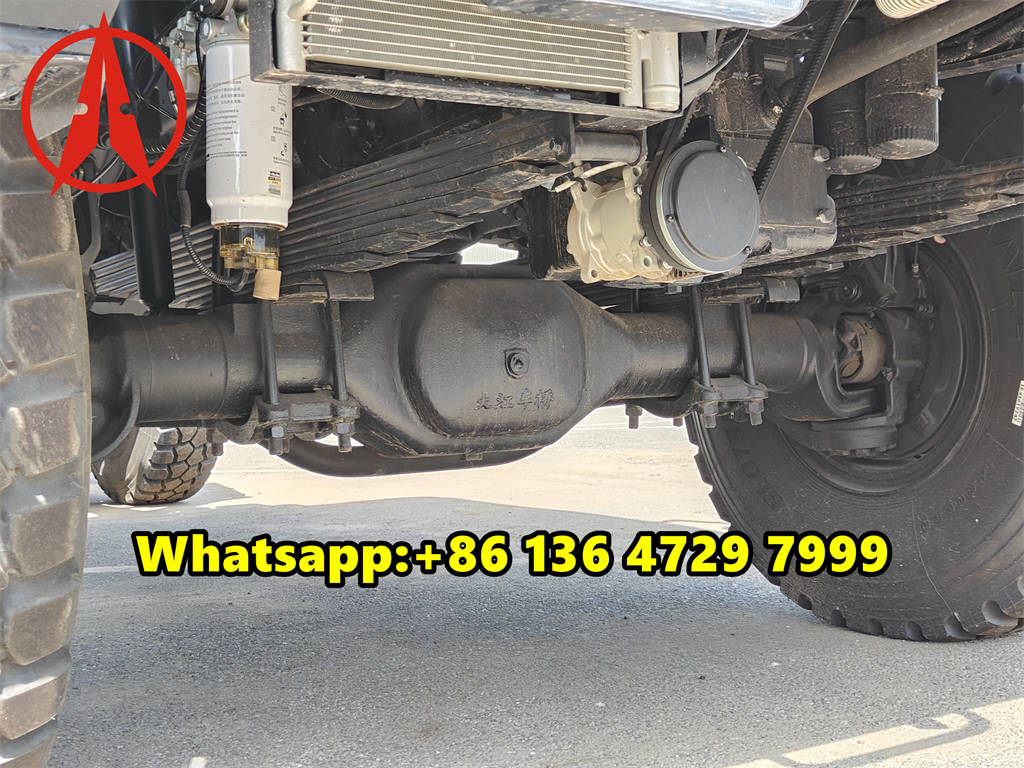

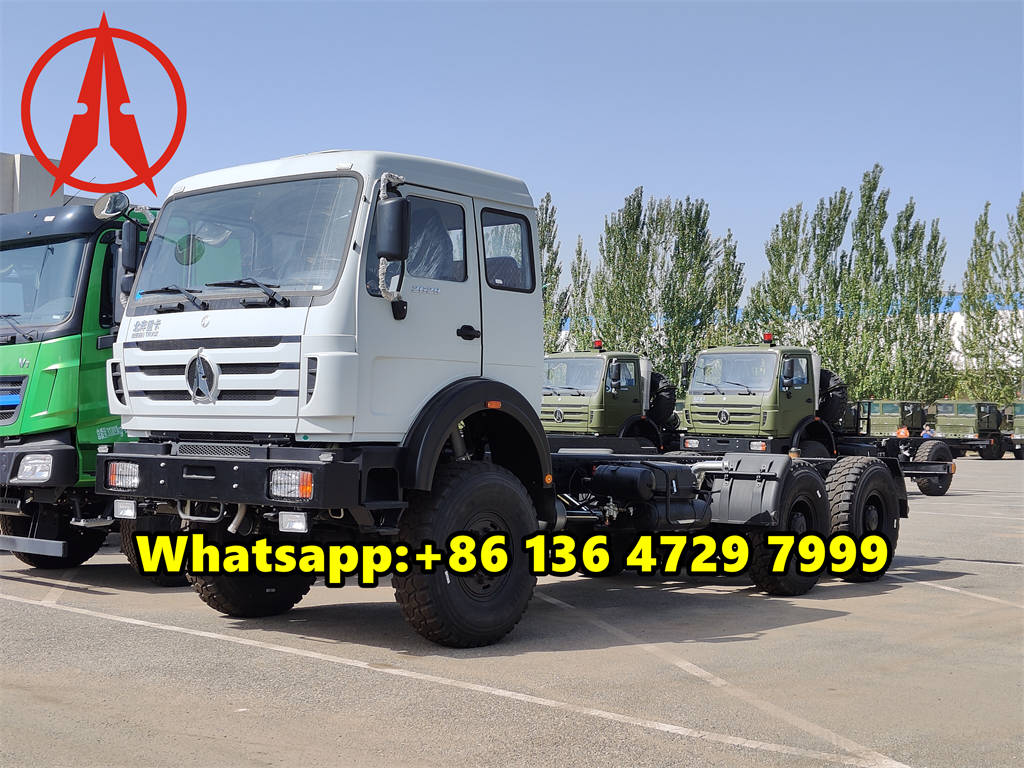

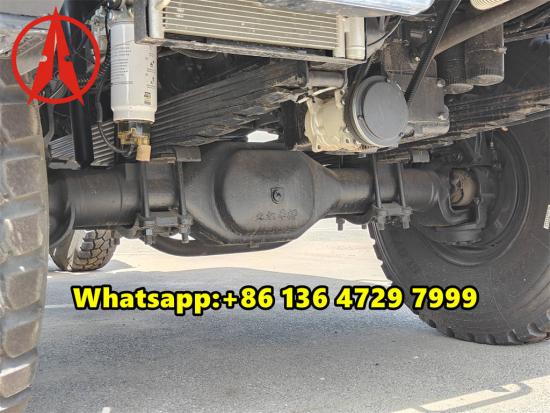

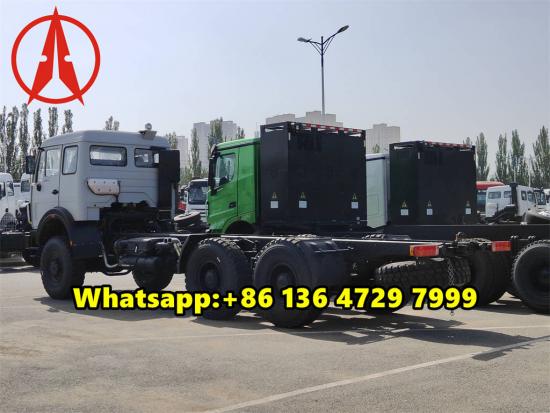

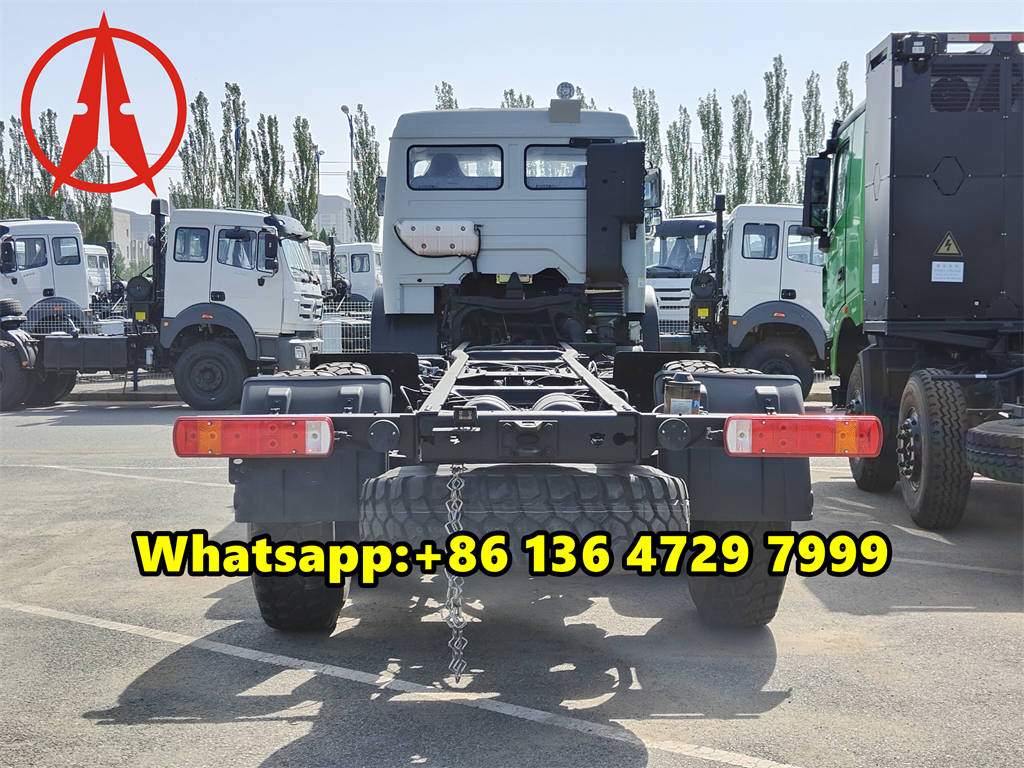

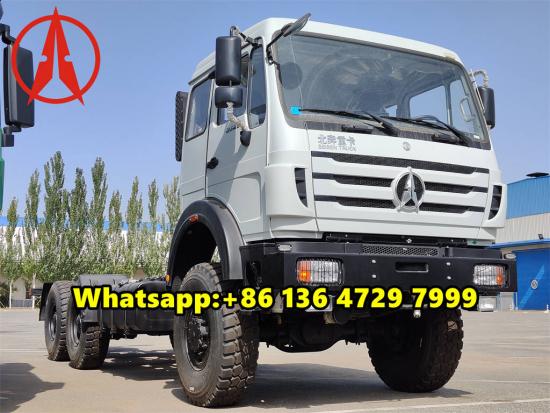

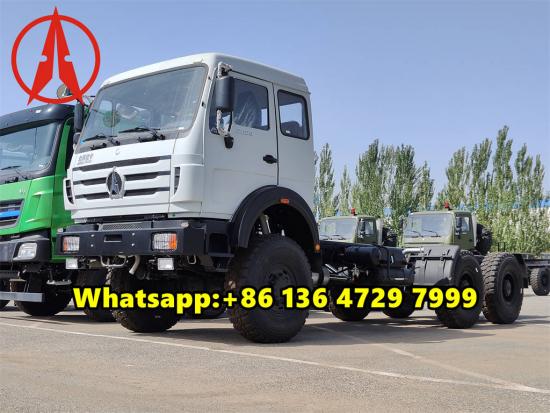

Product Pictures

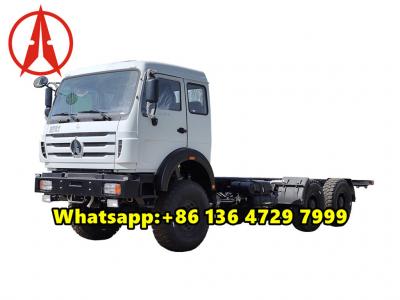

we are china best beiben 6*6 wheel drive trucks supplier, can provide customer with the best quality beiben 6*6 drive truck chassis, beiben 336 hP 6*6 drive truck, beiben 380 hp 6*6 truck chassis, and other beiben truck chassis
