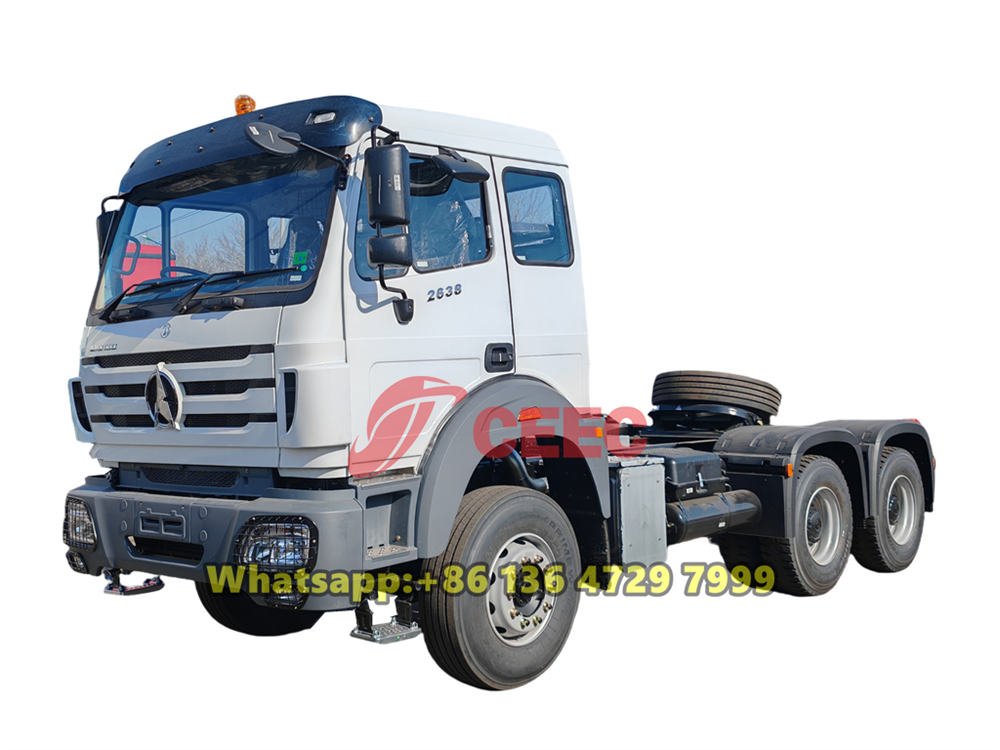

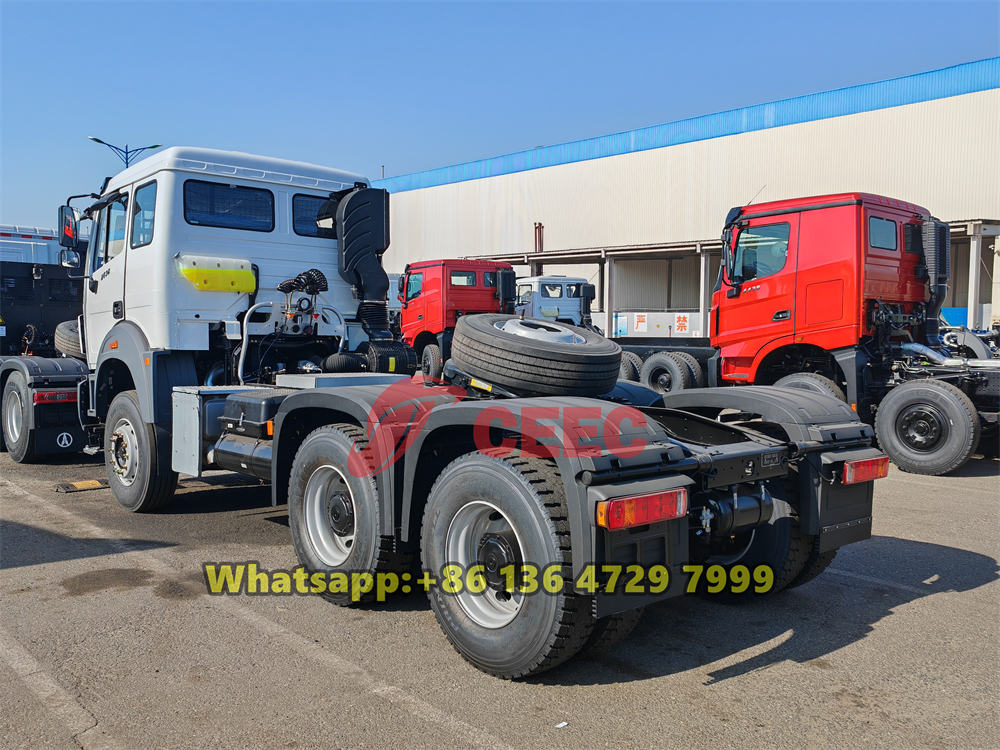

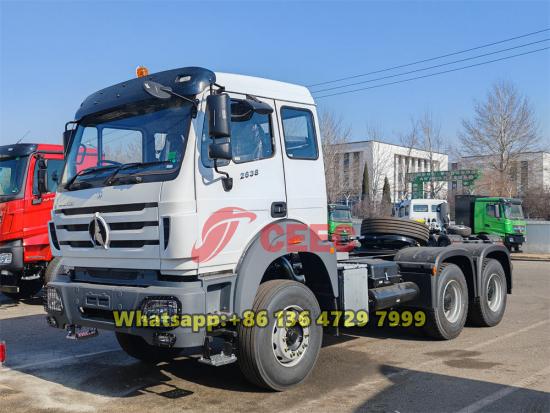

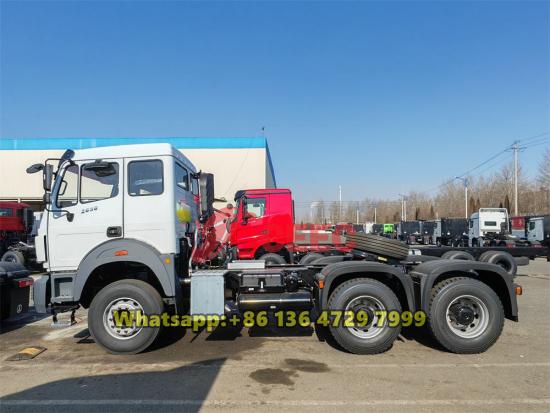

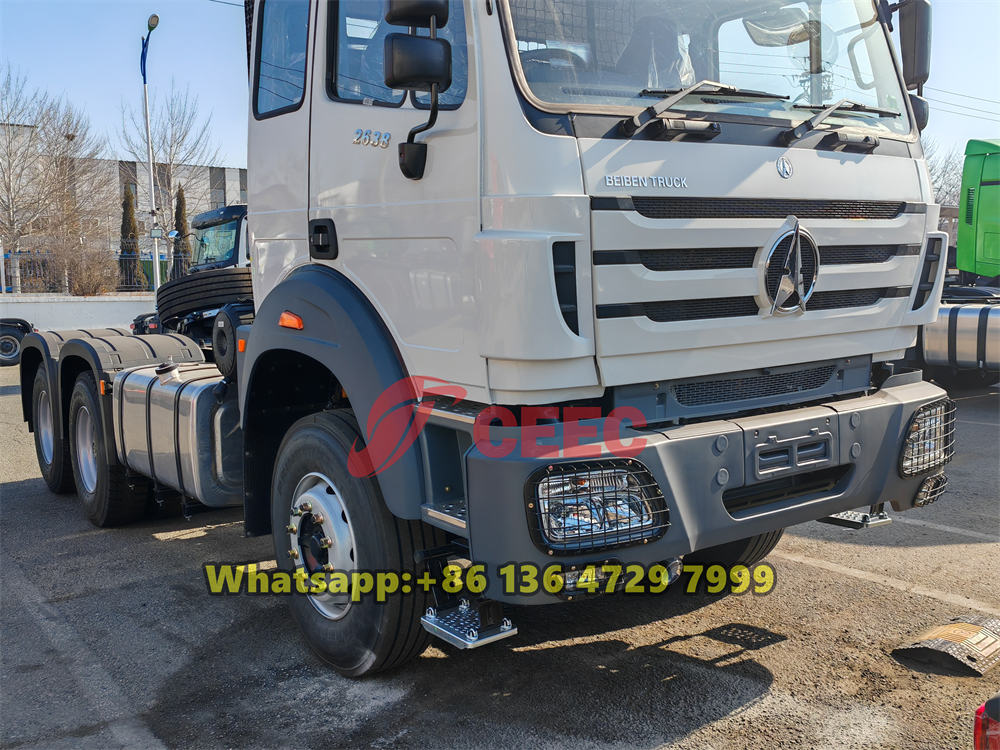

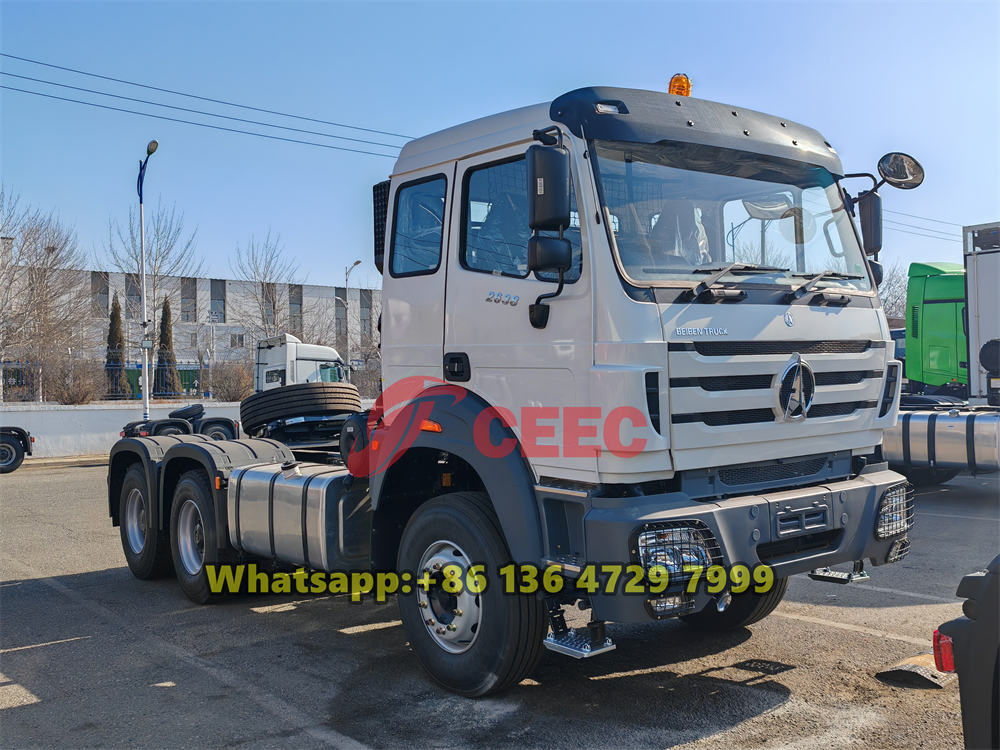

The Beiben NG80 6×4 right-hand drive tractor is specifically designed for heavy-duty transportation. It is equipped with a Weichai 380HP engine, matched with a 12-speed transmission, and has a maximum traction weight of 40 tons. The vehicle features an all-steel frame cab with double berths, a sturdy chassis structure, an efficient braking system, and is equipped with 12.00R20 radial tires. With an approach angle of 26 degrees and a departure angle of 64 degrees, it is suitable for complex road conditions. It is an ideal transportation partner for logistics, mining, construction, and other industries.
Working capcity:
40 tonsCabin type:
Beiben NG80 cabin, with sleeper bedDimension ( mm ) :
7150×2500×3200mmDrive system:
6×4, RHDWheelbase (mm):
3450+1450Engine power / Model:
380 HPGear Box:
12JS200TARemark:
6×6 drive is optionalProduct Description
The Beiben NG80 6×4 RHD tractor is a specialized vehicle designed for heavy-duty transportation, featuring a 6×4 drive configuration and right-hand drive design, suitable for countries and regions where right-hand drive is the norm. With its powerful engine and robust chassis structure, it ensures efficient and safe cargo transportation. The vehicle has a wheelbase of 3450+1450 mm, with front and rear overhangs of 1410 mm and 740 mm, respectively, and overall dimensions of 7150×2500×3200mm. This dimensional design balances vehicle flexibility with ample carrying capacity. The curb weight of the vehicle is 9200 kg, with a maximum towing capacity of 40 tons and a maximum speed of no more than 90 km per hour. This design ensures stability and safety even when the vehicle is fully loaded.

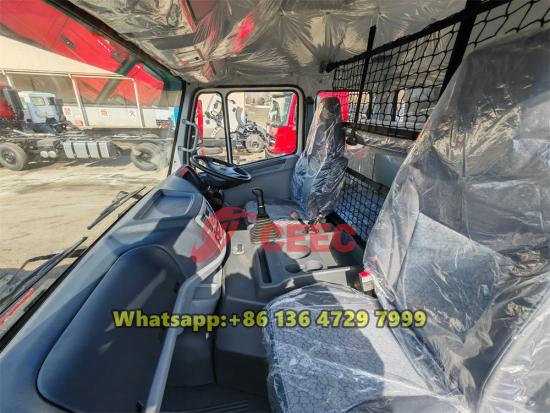

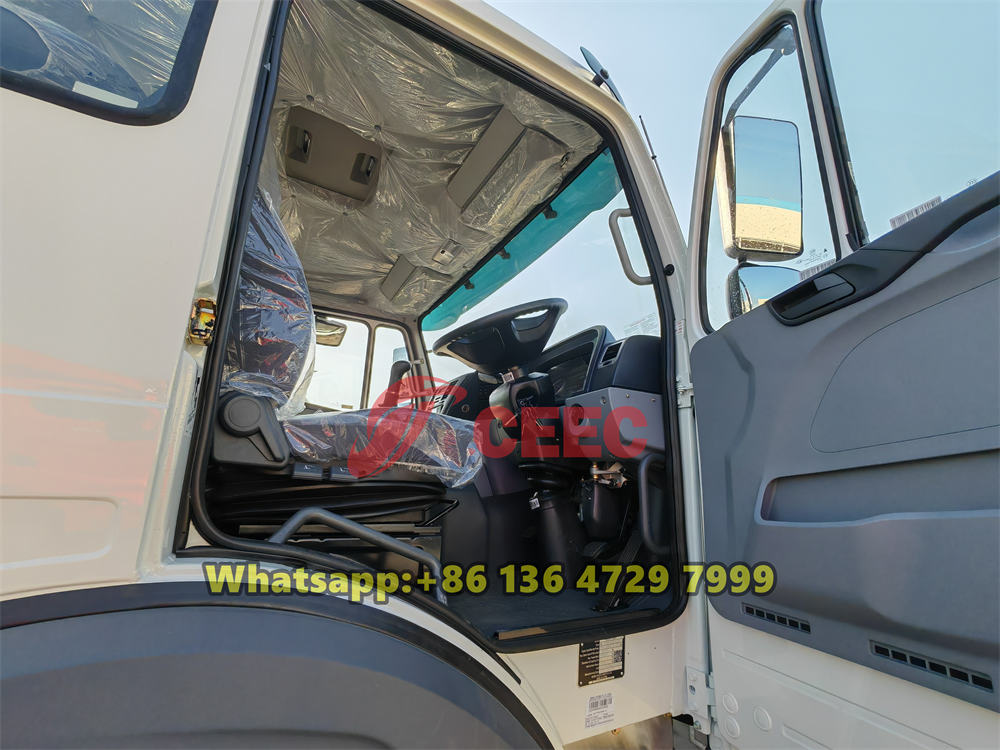

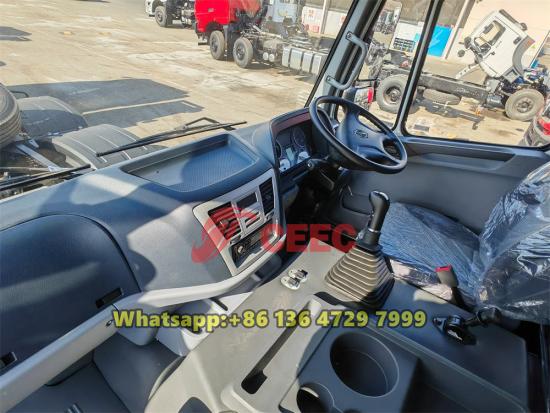

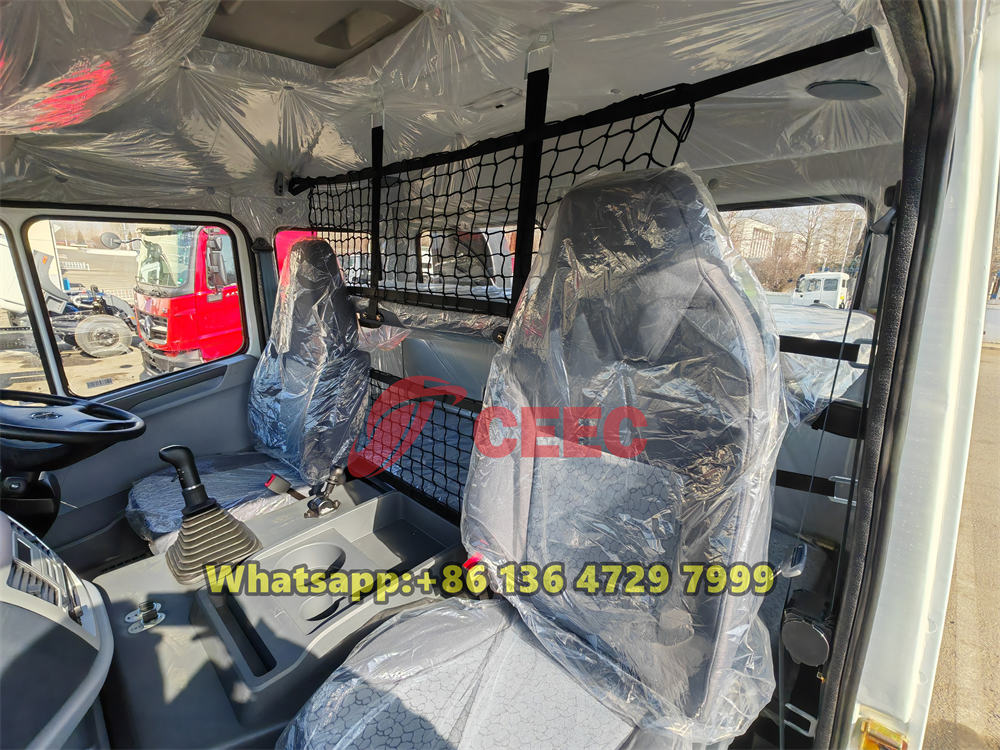

The cab of the Beiben 10 wheeler RHD tractor truck adopts the NG80B long cab design, equipped with double sleeper berths, ideal for long-distance transportation. The cab features a full steel frame structure with double-layer steel plate covering, providing excellent impact resistance and durability. The cab can be tilted forward for easy maintenance of the engine and chassis components. The interior of the cab is humanely designed, equipped with a multifunctional steering wheel, air conditioning system, audio system, etc., providing a comfortable driving environment. The instrument panel is logically laid out with clear information display, allowing the driver to monitor the vehicle's status at all times.
The Beiben 6×4 RHD tractor is powered by the Weichai WP10.380E32 engine, a water-cooled, four-stroke, 6-cylinder inline turbocharged diesel engine with a displacement of 9.726 liters and a maximum power output of 380HP. The engine is mated to a FAST 12JS200T mechanical transmission, offering 12 forward gears and 1 reverse gear. This transmission design ensures smooth shifting and flexible operation, accommodating the frequent starts and stops required in heavy-duty transportation. The clutch is a Φ430 diaphragm spring clutch with hydraulic assistance, known for its high durability and ability to withstand the rigors of intense operational demands.

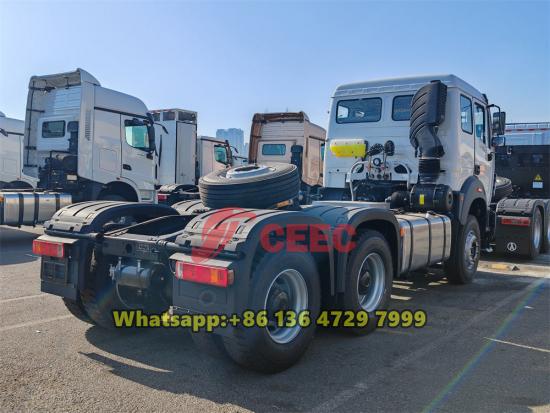

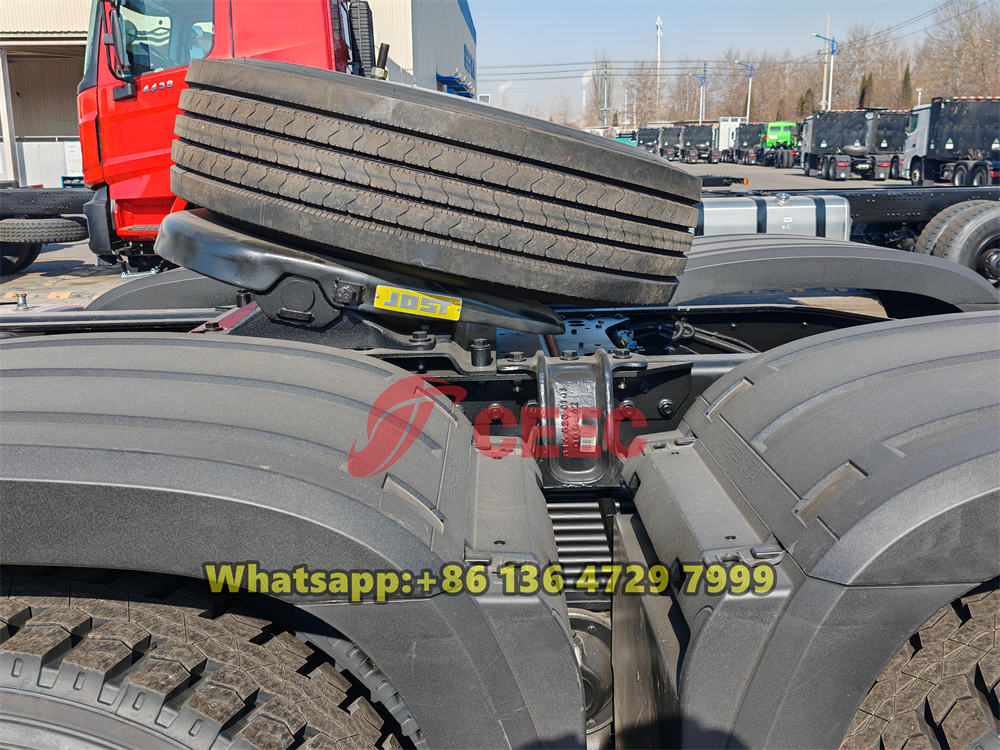

The chassis structure of the Beiben 2638 RHD tractor head is designed to be sturdy and durable. The front axle adopts a double-shoe pneumatic brake non-driving steering axle with Mercedes-Benz technology, with a load-bearing capacity of 7.5 tons. The middle and rear axles also incorporate Mercedes-Benz technology, offering strong load-bearing capabilities suitable for heavy-duty transportation. The suspension system is designed to effectively absorb road vibrations, enhancing driving comfort and vehicle stability. The fifth wheel adopts a #90 one-way traction pin, providing a secure connection suitable for various trailer towing needs.
Product Specifications
|
Beiben NG80 6×4 RHD tractor truck |
|||
|
Wheel base (mm) |
3450+1450 |
||
|
Curb weight (kg) |
9200 |
||
|
Max. towing weight (kg) |
40 tons |
||
|
Max Speed (Km/h) |
≤90 |
||
|
Dimension (Length*Width*Height) |
7150×2500×3200mm |
||
|
Front overhang/rear overhang (mm) |
1410/740 |
||
|
Approach angle/Departure angle |
26/64 |
||
|
Engine |
Brand |
Weichai |
|
|
Model |
WP10.380E32, water-cooled, four strokes,6 cylinders straight in line, turbocharged |
||
|
Fuel type |
Diesel |
||
|
Power |
380HP/280 kW |
||
|
Emission |
EURO III |
||
|
Displacement(L) |
9.726 |
||
|
Fuel tanker capacity (L) |
400L Aluminum alloy |
||
|
Clutch |
Φ430, Diaphragm Spring, Hydraulic boosting |
||
|
Gearbox |
FAST 12JS200T, mechanical type,12 Forward speed gear. |
||
|
Steering system |
ZF8098 |
||
|
Front axle (Mercedes Benz |
Double-shoe pneumatic brake,7.5tons non-driving steering axle |
||
|
Middle and Rear axle |
Middle axle: HD7/016DGS-13/5.263 |
||
|
Tire |
12.00R20 radial tire 11 (10+1) |
||
|
Cab |
NG80B Long cab with two sleepers, |
||
|
Fifth wheel |
#90 single direction |
||
Product Details
