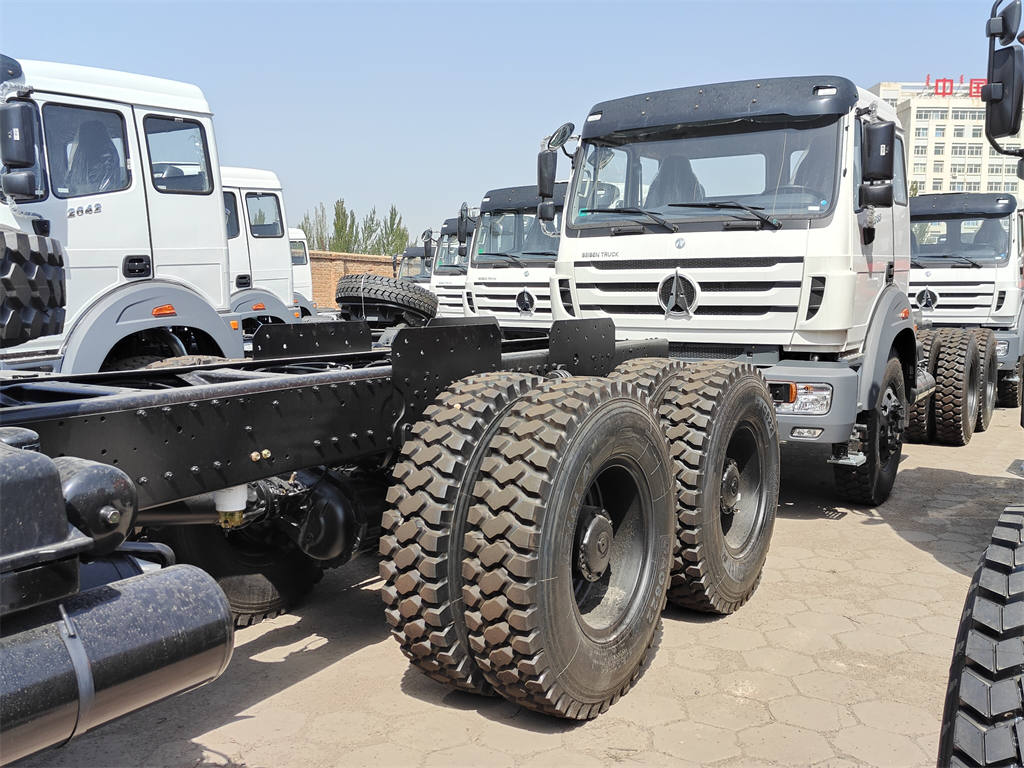

Beiben 2642 cargo chassis is a truck chassis designed for heavy-duty transportation, with dimensions of 10500×2500×3840mm, a total mass of up to 25000kg, and a strong carrying capacity. It is equipped with a WP12.420E32 engine with a maximum power of 309kw/2100rpm and a maximum torque of 1600Nm/1800rpm, which is powerful. It is equipped with a 12JS200T gearbox with 12 forward gears and 2 reverse gears, and shifting is smooth. In addition, it also has excellent braking and steering systems, as well as a comfortable driving environment, making it a leader in the freight field.
Working capcity:
30 tonsCabin type:
Beiben NG80 cabin, with sleeper bedDimension ( mm ) :
10500×2500×3840Drive system:
6×4Wheelbase (mm):
4450+1450Engine power / Model:
420 HP/WP12.420E32Gear Box:
12JS200TARemark:
6×6, RHD is optionalProduct Description

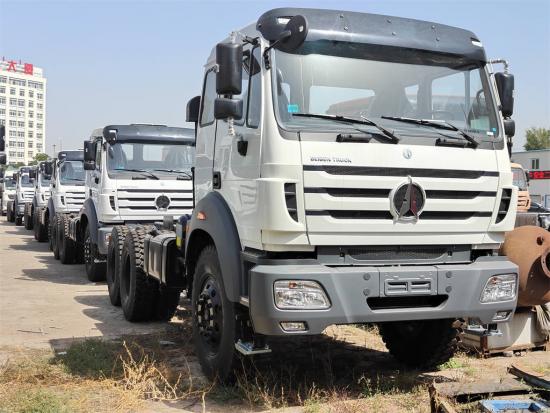

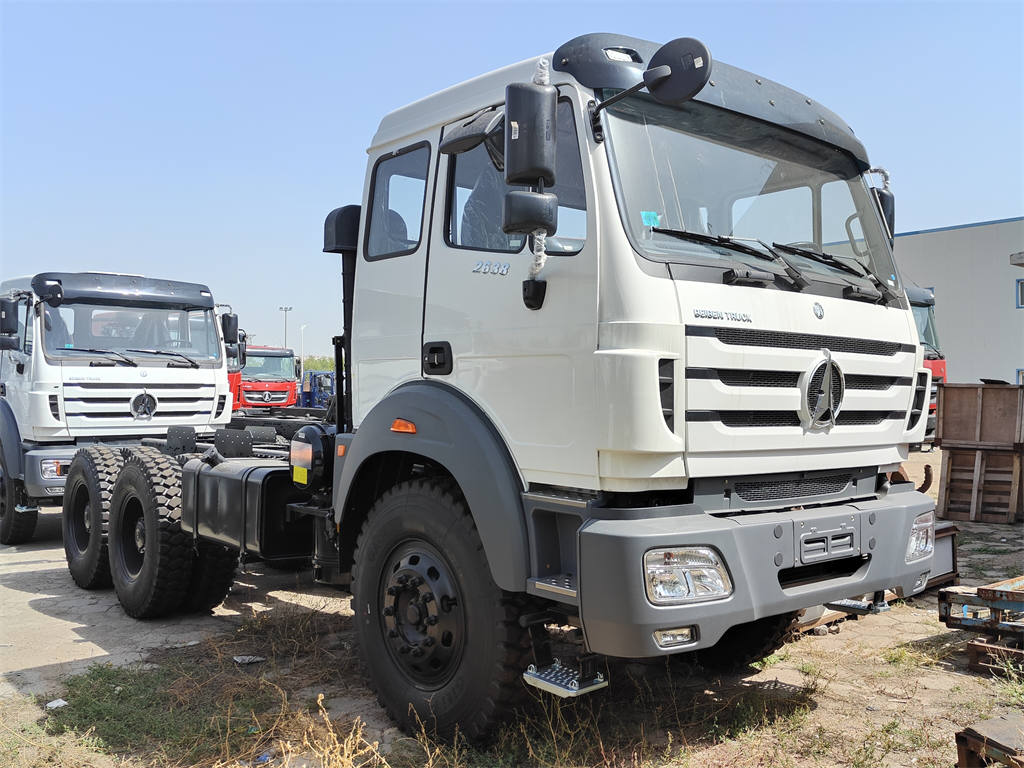

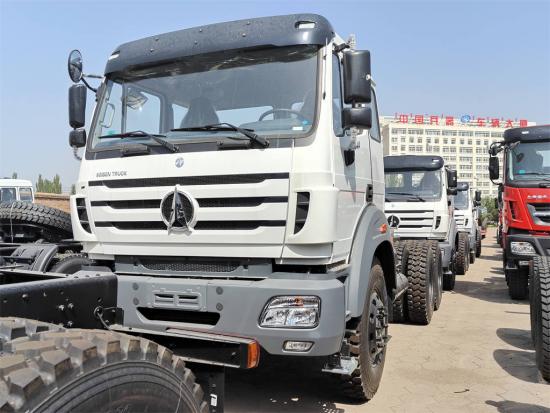

Beiben 6×4 2642 cargo chassis is a high-performance chassis designed for heavy-duty cargo transportation. Its outstanding design and powerful functions make it a leader in the market. The cab of this chassis is a NG80B long flat-top single-berth cab, which adopts a full steel frame structure, covered with double-layer steel plates, and can be flipped forward. The high-back seat provides a comfortable riding experience for the driver, and the electric lifting windows and built-in air conditioning further enhance the comfort of the cab.
The size of the Beiben 2642 chassis is 10500×2500×3840mm, providing enough space to install various cargo boxes and accessories. Its approach angle/departure angle is 17/20°, ensuring good passability. The front overhang/rear overhang are 1515/2505mm respectively, and the wheelbase is 4450+1450mm, providing a stable driving foundation for the vehicle. The maximum speed of this chassis can reach 99km/h, meeting the needs of high-speed transportation.
Beiben 2642 truck chassis is equipped with WP12.420E32 engine, which is a water-cooled, four-stroke, inline six-cylinder, turbocharged, direct injection diesel engine. Its displacement is 11.596L, the maximum power is 309kw/2100rpm, and the maximum torque is 1600Nm/1800rpm, which provides strong power output for the vehicle. The fuel tank capacity is 400L, ensuring long-distance endurance.

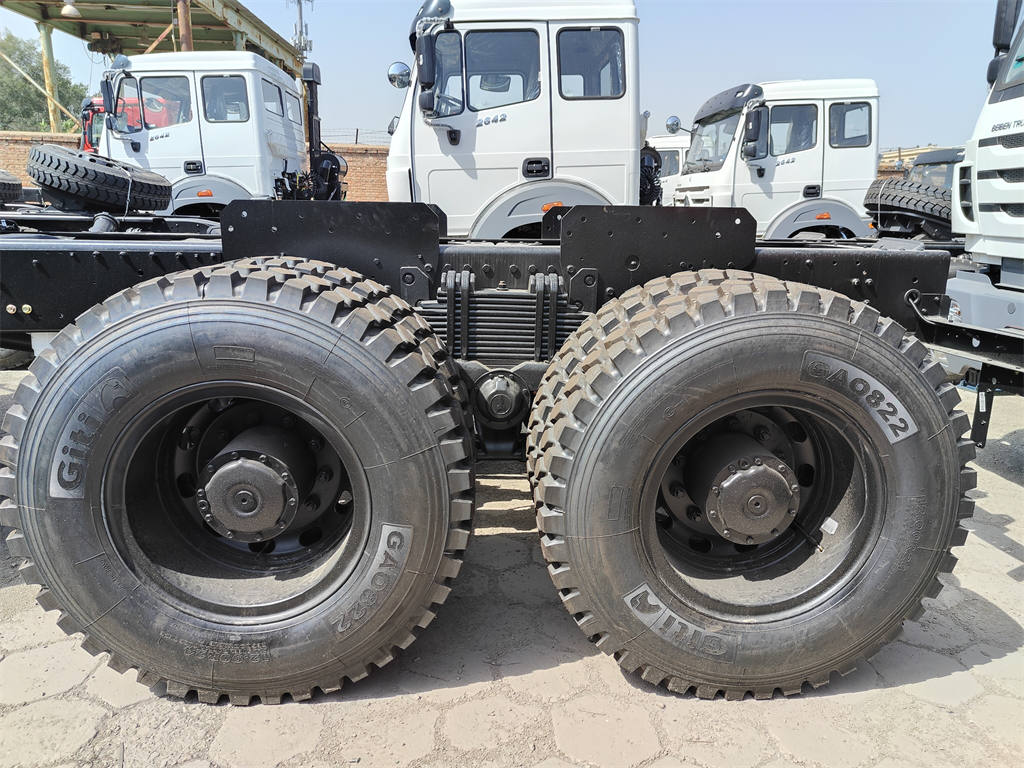

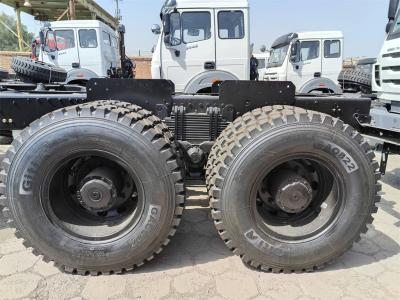

The Beiben cargo truck chassi is equipped with L2000 transfer box and fish belly-shaped, variable width, variable cross-section frame, which further enhances the overall stability and carrying capacity. The front axle adopts Mercedes-Benz technology, which is a double-shoe pneumatic brake and drive steering axle with a carrying capacity of 7.5 tons; the middle and rear axles also adopt Mercedes-Benz technology, which is a double-shoe pneumatic brake, ductile iron shell, and a double-stage reduction drive axle with wheel side reducer, with a carrying capacity of 13 tons. The tire specification is 12.00R20, which can adapt to various road conditions.
Product Specifications
|
Beiben 6×4 2642 cargo truck chassis |
||||
|
Dimension |
10500×2500×3840(mm) |
|||
|
Approaching angle/Departure angle |
17/20° |
|||
|
Overhang(front/rear) |
1515/2505mm |
|||
|
Wheel base |
4450+1450mm |
|||
|
Max speed |
99km/h |
|||
|
Curb weight |
9400 kg |
|||
|
Gross vehicle weight |
25000kg |
|||
|
Slope climbing capability |
Max.30% |
|||
|
Engine |
Model |
WP12.420E32，water-cooled，four strokes，6 cylinders in line，turbocharged, directly injection |
||
|
Displacement |
11.596L/Diesel |
|||
|
Stroke |
126/155 mm |
|||
|
Max. power |
309/2100 (kw/rpm) |
|||
|
Max.torque |
1600/1800（Nm/rpm） |
|||
|
Fuel tanker capacity |
400L |
|||
|
Clutch |
∮430, Single dry frictional disc，Hydraulic boosting |
|||
|
Gearbox |
12JS200T, mechanism,12 forward gears,2 reverse gear, manual operated, with synchronizer |
|||
|
Gear ratio of gear box |
15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/2.10/1.64/1.28/1.00 R:14.86/3.33 |
|||
|
Suspension system |
Front |
Non-free standing leaf spring, telescopic shock absorber with stabilizer bar suspension , 13pcs |
||
|
Rear |
Non-free standing stabilization spring, balance suspension system, 13pcs |
|||
|
Brake system |
Service brake |
Brake gap can be adjusted automatically, double circulation air brake system |
||
|
Assistant brake |
Engine exhaust brake |
|||
|
Park brake |
Potential springs pressing on middle and rear wheels |
|||
|
Steering system |
TAS85, whole circulation in ball, hydraulic booster |
|||
|
Transfer box |
L2000 |
|||
|
Frame |
Fish belly shape, variable width, variable sections |
|||
|
Front axle (Mercedes Technology) |
Double-shoe pneumatic brake, driving steering axle, 7.5 Ton |
|||
|
Middle and Rear axle (Mercedes Technology) |
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle, 13 Ton |
|||
|
Tyre |
12.00R20 |
|||
|
Electrical system |
Battery |
2X12V/135Ah |
||
|
Generator |
28V-35A |
|||
|
Starter |
5.4Kw/24V |
|||
|
Cabin |
NG80B Long-Flat roof cabin with single sleeper Covered with double layer steel plate; |
|||
