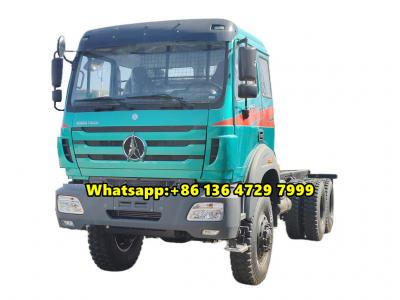

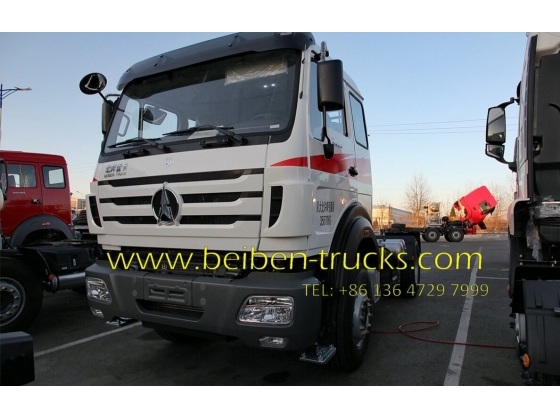

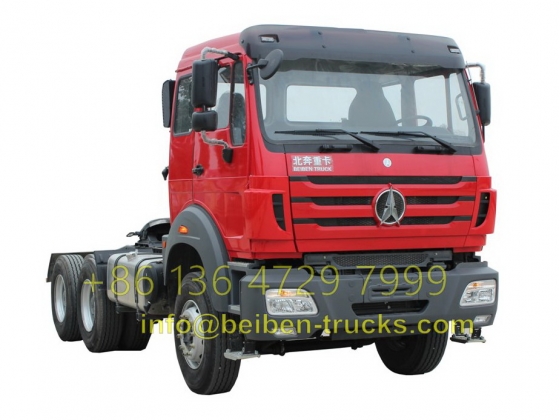

China beiben 2638 tractor truck, with extremely weichai diesel 6 cylinder strong engine, ZF8098 steering system with fuller technology, front axle is benz technology with double wheel reducer, rear axle with wheel reducer.12.00R24 tyre.
Order(MOQ):
1Goods Stock:
1Working Capcity:
40 tonsCabin Type:
Beiben NG80 short cabinDimension ( mm ) :
8560×2500×3385Drive System:
6×4Wheelbase (mm):
3450+1450Engine Power:
380 HP/WP10.380E32Gear Box:
9JS150ARemark:
6×6, RHD is optional
Applications:
The Beiben 2642 tractor truck, also known as a Beiben heavy-duty semi-trailer truck, Beiben 2642 prime mover tractor trailer, is a popular model produced by Beiben Trucks, a leading Chinese manufacturer of heavy-duty trucks and dumpers. It is typically used for long-distance hauling and transportation of large or bulky cargo such as containers, tanks, and construction materials.
The Beiben 2642 tractor truck is known for its robust construction, powerful engine, and reliable performance. It is available in several different configurations, beiben 2642SZ , 2642SY, 2642VZ model. range from heavy duty tractor truck to light duty tractor trailer truck.
Key features of the Beiben 2642 tractor truck include a spacious cabin with comfortable seating and modern amenities, a heavy-duty suspension system for enhanced stability and handling, and advanced safety systems such as ABS and EBD. It is also designed for easy maintenance and repair, with easily accessible components and a user-friendly diagnostic system.
Overall, the Beiben tractor truck is a reliable and cost-effective option for businesses and industries that require heavy-duty hauling and transportation capabilities.
Key Features:
---- BEIBEN NG80B cabin, Full steel frame.
---- Fuller technology ZF8098 steering system, easy for driving.
---- 12JS200T transmission, challenge all road .
---- 420 hp strong diesel engine.

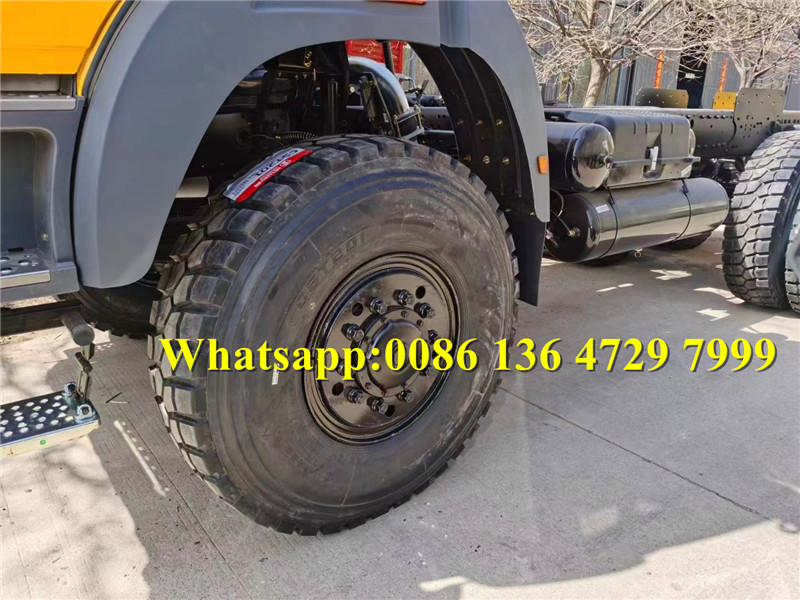

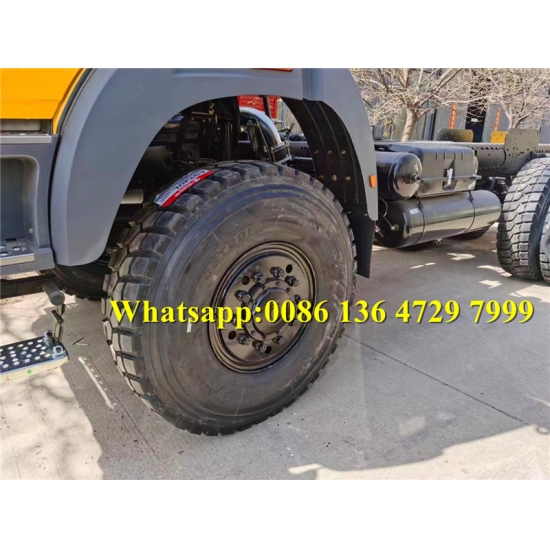

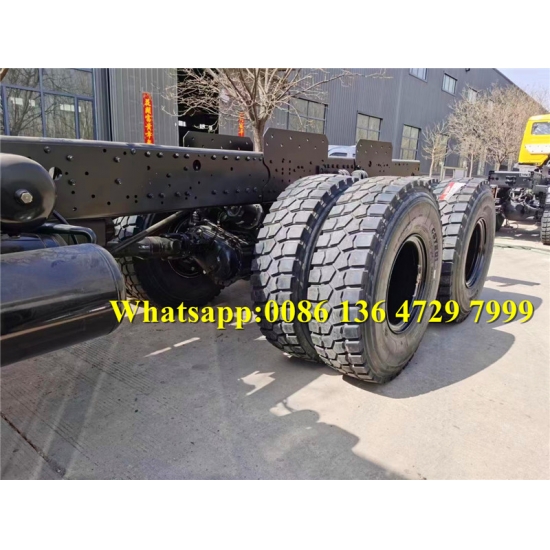

---- Off road tyres, 12.00R24 tyre.
Specifications:
|
Required Technical Specification 参数 |
||
|
Basic parameter 基础参数 |
Model 型号 |
2642PZ/6×4 |
|
Length×width×height(mm) 长×宽×高 |
8560×2500×3385 |
|
|
Wheel-base(mm) 轴距 |
3450+1450 |
|
|
Curb weight(kg) 底盘整备质量 |
12400 |
|
|
Engine parameter 发动机参数 |
Model (six cylinder in line) 型号（六缸） |
WP10.380E32 |
|
Max. Power (HP/rpm) 最大马力 |
380 |
|
|
Max. Torque(Nm/rpm) 最大扭矩 |
1600/1400～1600 |
|
|
Displacement(lit) 排量 |
9.726 L |
|
|
Fuel tank capacity 油箱容量 |
400L Iron oil tanker 400L铁 |
|
|
Transmission system 传动系统 |
Clutch 离合器 |
430 Single disc, dry type, friction clutch； 430单片，干式摩擦离合器，液压辅助可调式； |
|
Gearbox 变速箱 |
Mechanical, 9JS150A |
|
|
Steering system 转向系统 |
Steering gear 转向机 |
8098 Circulating ball steering gear, hydraulic booster；循环球式，液压助力； |
|
Brake system 制动系统 |
Service brake 行车制动器 |
Double circulation air brake system equipped； 双回路气压制动； |
|
Parking brake 驻车制动器 |
Energy storage spring brake 弹簧储能制动； |
|
|
Assisted brake 辅助制动 |
Engine exhaust brake 发动机排气制动； |
|
|
Chassis parameter 底盘参数 |
Frame 车架 |
Variable width and section 317×70×8.5+7+8.5 mm； 不等宽，变截面 317×70×8.5+7+8.5 mm； |
|
Front axle 前桥 |
7.5 T, no-driving steering axle, drum brake； 7.5吨驱动转向桥，鼓式制动； |
|
|
Middle & Rear axle 中后桥 |

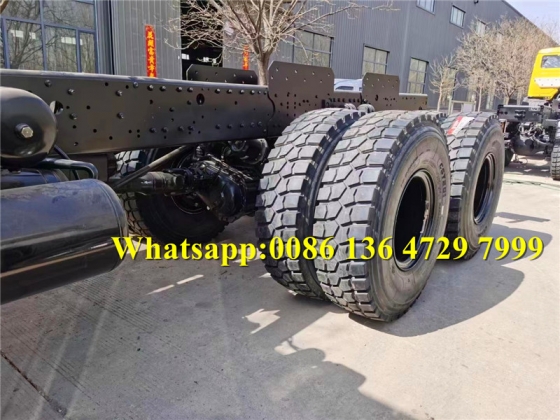

13T, Double-shoe pneumatic brake, double reduction driving axle, differential lock, speed ratio is 5.263； 双蹄片式气压制动，双减速驱动桥，差速锁，速比5.263 |
|
|
Front and rear suspension 前悬挂/后悬挂 |
Front/rear: Leaf spring, 13/13 pieces； 前/后板簧：13/13片簧； |
|
|
Tire 轮胎 |
12.00R20 |
|
|
Cab 驾驶室 |
NG80B Long Cabin/ Flat roof/Left drive Exterior trimming: Metal bumper, three steps, outer sun visor, sun roof (Manual), front under-ride bumper, rear view mirror (Manual). NG80B长驾平顶/左驾带双卧 外饰：金属保险杠、三步软车梯、外遮阳板、手动天窗、手动调节后视镜。 |
|
|
Interior trimming: Air suspension seat, Single bunk with sleeper, cooling and heating air conditioner, Steering wheel can be adjusted, door lock(Manual), radio (with MP3), digital instrument 内饰：气悬浮主座椅、单卧铺、冷暖空调、可调方向盘、手动门锁、收放机（带MP3功能）、数字仪表。 |
||
|
Offer 报价 |
1.工厂自提含税价格：以具体核算为准。 2.支付方式：30%现金定金，70%现金尾款，款到发车。 3.交货期：收到30%定金后，正常交货期为45天交付货物。交货期需要在签订合同前再次确认。 4.报价有效期：1个月 。有效期过后，需要重新报价。 5.该车辆不含质保，如需质保，需要另行商议。 |
|
Off road suspension system.
