china 45 cbm oil fuel tanker semitrailer
-
FOB Price
$16,000-$30,000
-
Production time
10 days
-
Payment terms
T/T, L/C

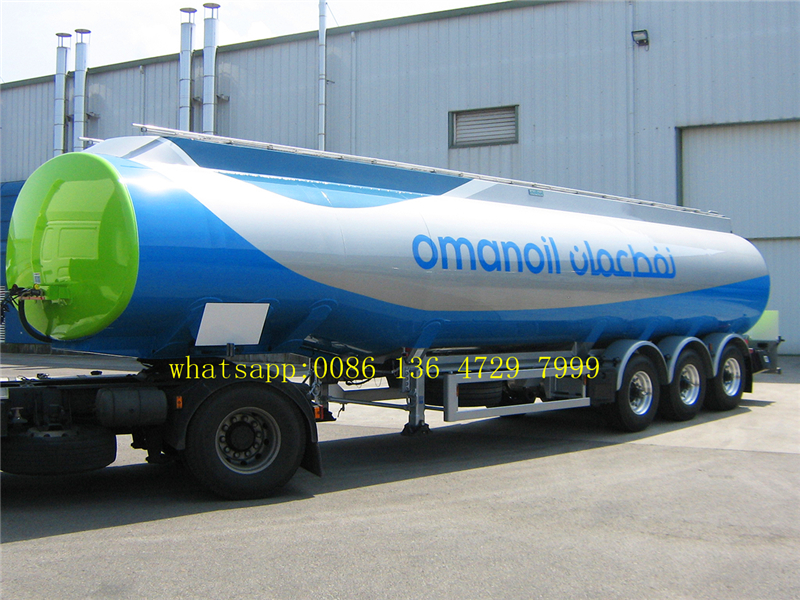

china 45 cbm oil tanker semitrailer
Applications:
china 45 cbm Fuel tanker semitrailer , also called as ADR oil tanker semitrailer, china ADR oil fuel semitrailer, china 3 axle oil semitrailer tanker ADR. As china most professional fuel oil tanker semitrailer supplier, we aim at supply ADR standard oil tanker semitrailer for all foreign customers.
** It can be divided into many compartments to load different types of fuels.
** BPW axles, JOST kingpin, JOST landing gears, Air suspension, ABS.
** Heat preservation of rock cotton or polyurethane foaming, Heating system.
** OPW (Civacon) bottom loading system can be equipped: API connections, over-fill detection system , vapor recovery vent, vapor recovery adaptors & dust cap, pneumatic control, bottom emergent valve……
** Tube or tubeless tyres, off-road single tyre for bad roads.
Key Features:
---- 30 years on semitrailer manufacturing, germany benz technology assurance.
---- All genuine spare parts , 20,000 km maintenance
---- 12 months after sale service guarantee
---- Service for more than 200 horned customer , export more than 100 countries.
---- Patented design on semitrailer, reliable and
Specifications:
| Shape |
Round or Square |
| Dimension |
12800mm×2490mm×3990mm ( The exact size depends on the final design.) |
| Tare weight |
About 8000kg-12800kg |
| Total Volume ( m3 ) |
45 m³ |
| Tanker Body Material |
5mm or 6mm/ Q235 carbon steel |
| End Plate |
5mm or 6mm /Q235 carbon steel |
| Manhole Cover |
Carbon steel or aluminum alloy API manhole cover, 500mm(diameter) |
| Bottom Valve |
Aluminum API Pneumatic Bottom Valve |
| Discharging Valve |
Diameter is 3 or 4 inch |
| Compartments |
Optional |
| Discharging Pipe |
4” rubber hose, 2 pcs , 6m/each |
| Cat Walk |
With (Common model or special design) |
| Chassis |
|
| Main Beams |
Welded design or Special design I beam, connected by bolts and nutsQ345 carbon steel material |
| Axle |
2 or 3 axles, BPW/FUWA/HUAJING brand |
| Landing Gear |
JOST (D200T ) or CHINA BRAND 28T |
| King Pin |
JOST 2.00 or 3.5 inch bolt-in king pin |
| Suspension |
Mechanical suspension/Germany or America type /air suspension |
| Leaf Spring |
90(W)mm×13(Thickness)mm×10layers or 10mm×12mm×12 /without |
| Pneumatic Braking System |
WABCO RE 6 relay valve; Spring brake chamber (TKL brand ); one piece of 45L air tank |
| Rim |
9.00-22.5/8.00-20/8.5-20 China Brand |
| Tire |
/12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand can be Optional |
| ABS |
Optional |
| Painting |
Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats. |
| Accessories |
One standard tool box |
| Shipping Terms |
By bulk cargo ,RORO or 40HQ Containers |
We are premium ADR oil tanker semitrailer exporter, can export 30 cbm ADR fuel tanker semitrailer , 40 cbm ADR fuel tanker semitrailer , 50 cbm ADR oil tanker semitrailer , 60 cbm ADR oil tanker semitrailer
Premium oil tanker semitrailer manufacturer in china, can customized 2 axle oil tanker semitrailer, 3 axle oil tanker semitrailer, 4 axle fuel tanker semitrailer.
