 SPECIFICATION

Beiben Tractor Trucks For Sale

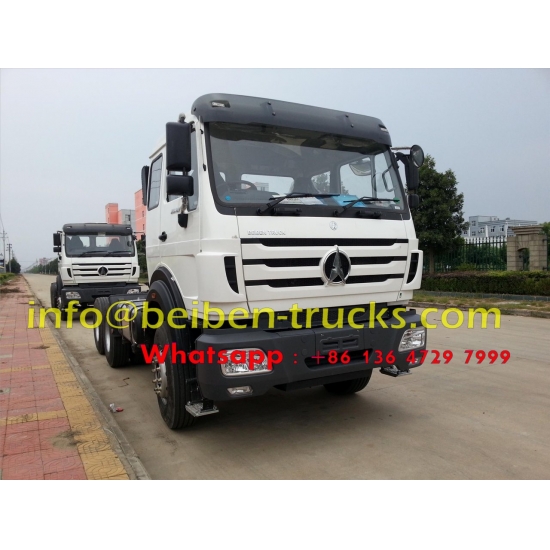

                              NORTH BENZ TRUCK 6X4 TRACTOR HEAD LHD DRIVE

Model

ND42501B34J7-SZ

Traction

6x4

Driving type

Right hand drive

Cabin

 Tractor

Truck

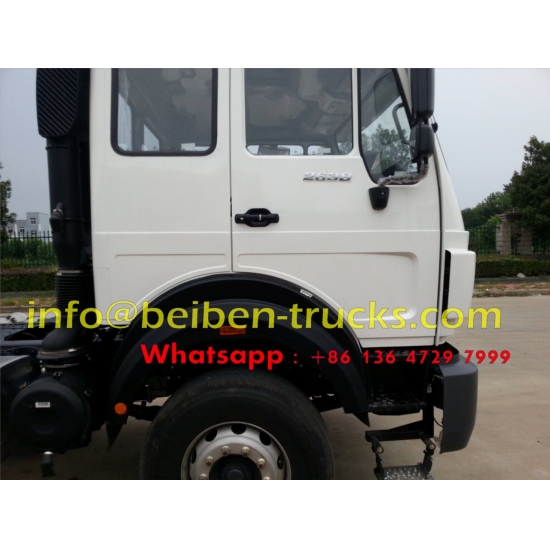

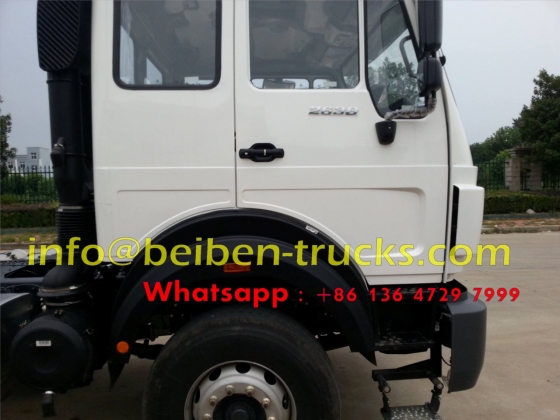

North Benz cabin with A/C, two bunks

Motor-driven Glass, 2 arm wind screen wiper system with 3 speeds, LCD Panel with LED light

Major color of cab:Ice white lacquer+ color bar, date red lacquer, dolphin grey

Vehicle Main Dimensions

L*W*H(mm)

7240x2500x3540

Wheel base(mm)

3450+1450mm

Wheel track(front/rear)(mm)

Front track (mm): 1995

Rear track (mm): 1800/1800

Approach/Departure angle(°)

16 / 60

Overhang (front/rear)(mm)

1515/825

Weight

in KGS

Tare Weight(kg)

8800kg

Trailer Total mass (kg)

40000kg

Max trailing mass on 5^th wheel

25000kg

Front axle loading capacity

7.5tons

Rear axle loading capacity

2x18tons

Driving Speed(km/h)

110

Engine

Brand

Wei chai

Model

WP12.420

Emission

EURIII

Engine type

Diesel 4-stroke direct injection engine, 6-cylinder in-line

with water cooling, turbo-charging & inter-cooling

Displacement

9.726L /Diesel

Max. output

420hp@1900rpm

Max torque

1400NM@1200-1600rpm

Bore/Stroke(mm)

126/130

Specific fuel consumption

198g/Kwh

Gear box

Model

12JS200T

Brand

Fast 12 speeds

Clutch

Φ430 Diaphragm type, Single dry frictional disc, Hydraulic boosting

Steering

TAS85

Tyre

Tyre

12.00R20 Tyres

No. of tyres

Option

10+1spare

12R22.5                             +USD0.00

Fuel tank

400L Aluminum Tank

Front axle

Use Mercedes Benz Technology, Double-shoe pneumatic brake, non-driving steering axle

Rear axle

Use Mercedes Benz Technology, Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle

Frame

Use Mercedes-Benz technology, Strengthened frame 317x70x8.5+7+12mm

Fish belly, various width, various sections, side beam structure

Gradeability

28%

Brake system

Double-circulate brake system, 60L Air tank, Higher Air Pressure, 220mm Brake pad, Air chamber 30/24''

Service brake

Brake gap can be adjusted automatically, double circulation air brake system

Assistant brake

Engine exhaust brake

Park brake

Potential springs pressing on middle and rear wheels

Electrical system

Battery

2X12V/135Ah

Generator

28V-35A

Starter

5.4Kw/24V

Fifth wheel

3.5'

Made in China

Option

2.0' JOST Brand              +USD160

Option

3.5' JOST Brand              +USD320

Manufacturer

 BEIFANG BENCHI  HEAVY  DUTY  TRUCK  CO.,LTD

Origin
