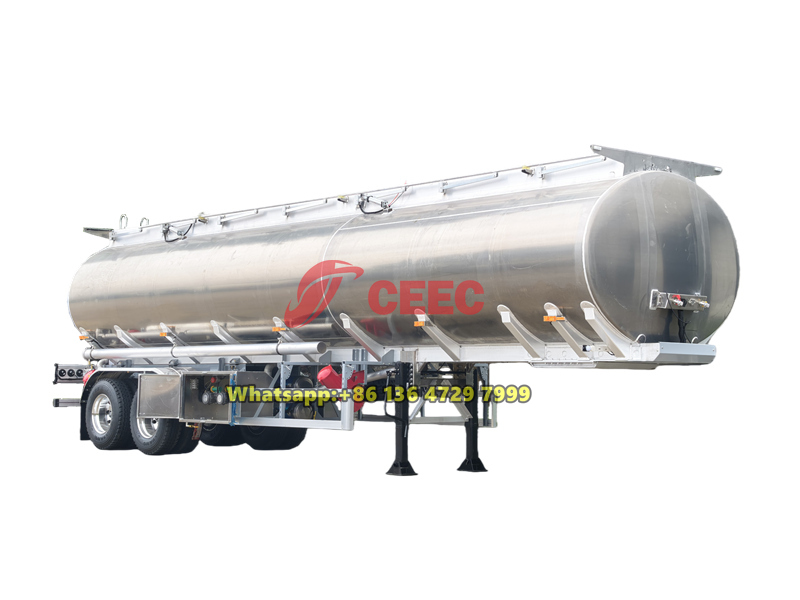

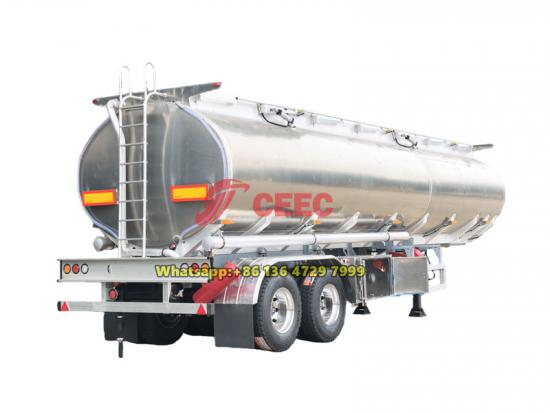

The 2-axle 36m³ aluminum alloy oil tank semi-trailer is specifically designed for the transport of light fuels such as gasoline and diesel. The tank is made of 5182 aluminum alloy, with an unladen weight of only 4.5 tons. The vehicle features three independent compartments, each equipped with a European-standard manhole and an API discharge valve, allowing simultaneous loading and unloading of different fuel types. The square-round tank body, combined with disc-shaped baffles, ensures a low center of gravity and high impact resistance. Equipped with safety devices including vapor recovery, overfill protection, and emergency shut-off valves, it is corrosion-resistant, requires no painting, and has low maintenance costs.
Working Capcity:
36000 litersDimension ( mm ) :
9650×2500×3500Axle Type:
FUWA, 13-ton, 2 pcsLand Gear:
JOST, 28 tonKingpin:
3.5'' bolted typeSuspension:
Leaf springTyres:
315/80R22.5, 8 pcsRemark:
3 compartments※ Ⅰ.Product Introduction:
The 2-axle 36m³ aluminum alloy oil tank semi-trailer is a hazardous materials transport vehicle designed for light fuels such as gasoline and diesel. The tank is manufactured using 5182 aluminum alloy, with a shell thickness of 5.5mm and head thickness of 6mm, and an unladen weight of just 4.5 tons, achieving an excellent balance between lightweight construction and structural strength. The vehicle comes standard with vapor recovery, overfill protection, emergency shut-off valves, and static discharge devices, meeting industry safety standards.
This aluminum alloy fuel tanker trailer is suitable for refined oil delivery and short-distance transfer applications. The tank adopts a 3-compartment independent design, with each compartment equipped with a European-standard manhole and an independent API discharge valve, enabling separate loading and unloading of different fuel types for flexible operation. The square-round tank body with disc-shaped baffles effectively lowers the center of gravity and reduces liquid surge during transport. Thanks to the corrosion-resistant, paint-free properties of aluminum alloy, subsequent maintenance costs are low.
CEEC factory is premium supplier of oil tanker semi-trailers,
guarantee all fuel tanker semi-trailers Brand-New and High-Quality.
※ Ⅱ. Product Specifications:
|
Type |
ALUMINUM FUEL TANK SEMI TRIALER |
|
|
Configuration |
Loading property |
Gasoline, diesel, petrol |
|
Tank shell materia |
5182H111 aluminum alloy |
|
|
Tank shell thickness |
5.5mm |
|
|
Dish ends material |
5182O aluminum alloy |
|
|
Dish ends thickness |
6mm |
|
|
Surge plate material |
5182O aluminum alloy |
|
|
Baffle plate thickness |
5mm |
|
|
Overall size |
9650×2500×3500 mm |
|
|
Tank volume |
36000 liters |
|
|
Dead weight (Kg) |
4500KG |
|
|
Manhole |
3 units, European standard |
|
|

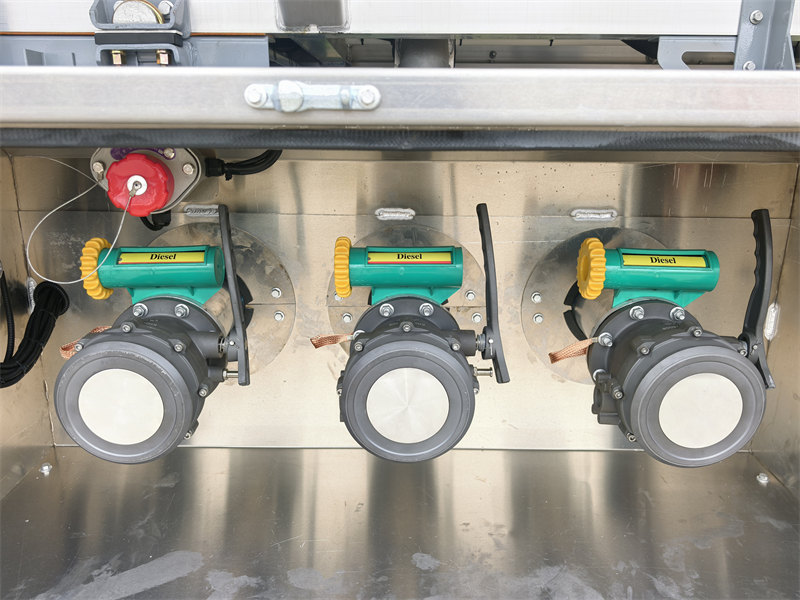

Unloading valve |
3 units API valve with bottom loading system |
|
|
Overfill protection system |
With |
|
|
Gas recovery system |
With |
|
|

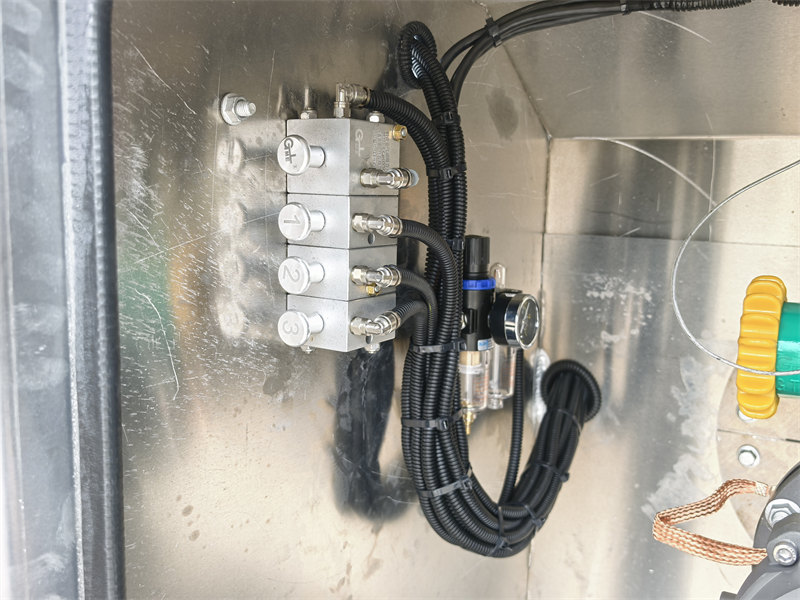

Bottom valve pneumatic switch |
1 unit |
|
|
Emergency valve |
3 units aluminum emergency valve |
|
|
Discharge tube |
2 units 3inch 6 meters long |
|
|
Tube box |
Aluminum alloy |
|
|

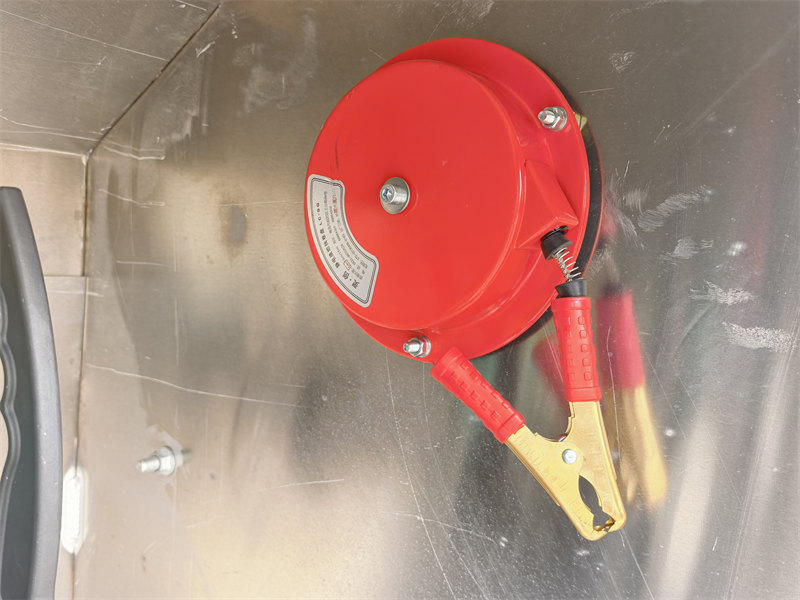

Antistatic device |
1 pc Static conducting electrostatic towing,1pc Automatic telescopic conductive reel |
|
|
Vehicle frame |
Steel |
|
|
Axle |
FUWA 13T*2 axle , 2 axle with ABS |
|
|
Suspension system |
Leaf spring suspension |
|
|
Tire |
315/80R22.5, 8 units |
|
|
Rim |
9.0-22.5, 8 units, aluminum rim |
|
|

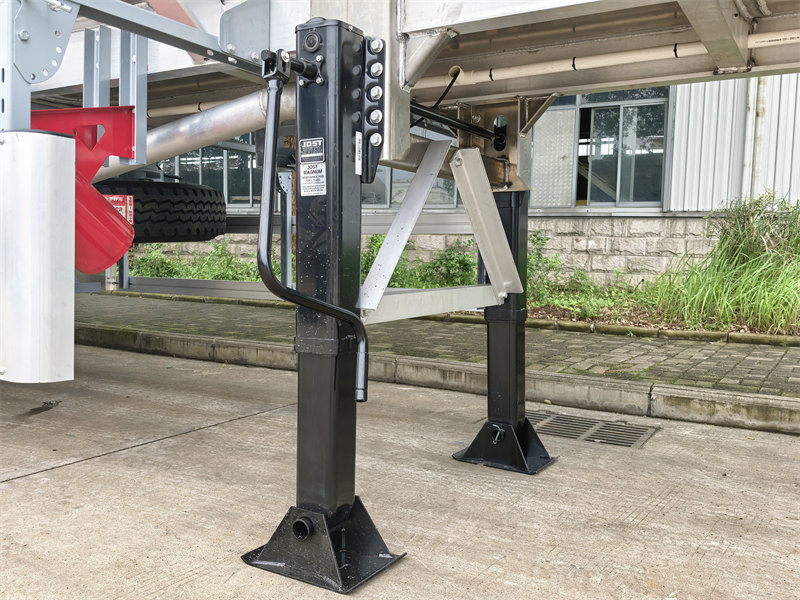

Landing gear |
JOST, 28T |
|
|
Kingpin |
3.5'' bolted type |
|
|
Brake system |
T30/30 and T30 type , WABCO brake valve |
|
|
ABS system |
ABS 4S/2M, WABCO brand |
|
|
Spare Tire Rack |
1 unit |
|
|
Fender |
Aluminum |
|
|

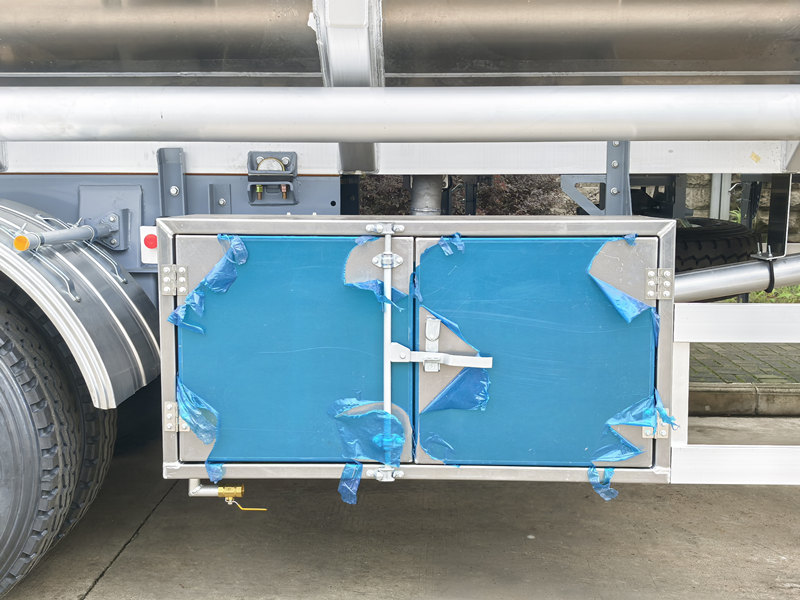

Tool box |
1 unit |
|
|
Ladder |
Front or Rear Ladder with Antislip checkered plates for better grip |
|
|
Handrail |
Floding type handrails |
|
|
Decals |
Factory standard |
|
|
Fire Extinguisher |
2 units |
|
|
Electrical system |
24V, LED light ,7 core socket |
|
|
Painting |
As customer requirement |
|
※ Ⅲ. Advantages of aluminum alloy oil tanker trailer:
▶ Lightweight, High Payload: Made of 5182 aluminum alloy, the entire vehicle weighs only 4.5 tons—approximately two-thirds lighter than a steel tank—significantly improving per-trip transport efficiency.
▶ Corrosion-Resistant, Maintenance-Free: The aluminum alloy naturally forms an oxide film on its surface, eliminating the need for painting or rust removal, ensuring a long service life and low maintenance costs.
▶ 3-Compartment Independent Loading: Equipped with three independent compartments, each with a European-standard manhole and an independent API discharge valve, allowing simultaneous transport of different fuel types for flexible loading and unloading.
▶ High Safety: Comes standard with overfill protection, vapor recovery, emergency shut-off valves, and static discharge devices. Combined with the square-round tank body and disc-shaped baffles, it lowers the center of gravity and reduces liquid surge, meeting hazardous materials transport safety standards.

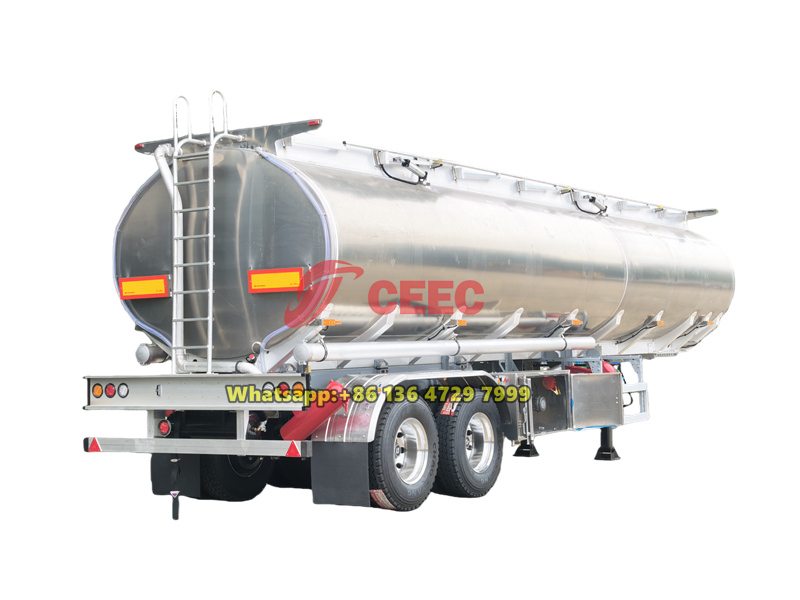

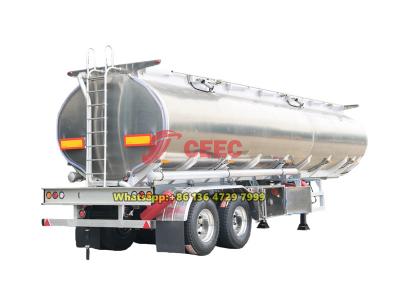

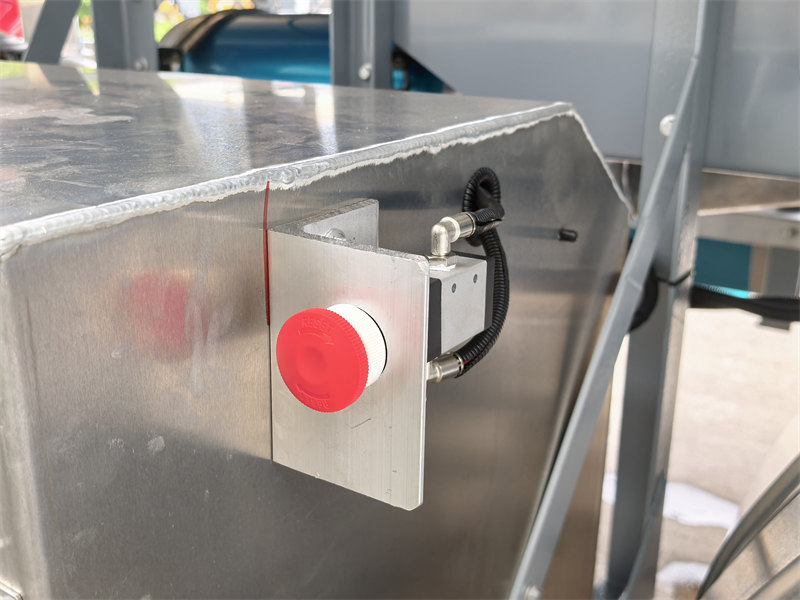

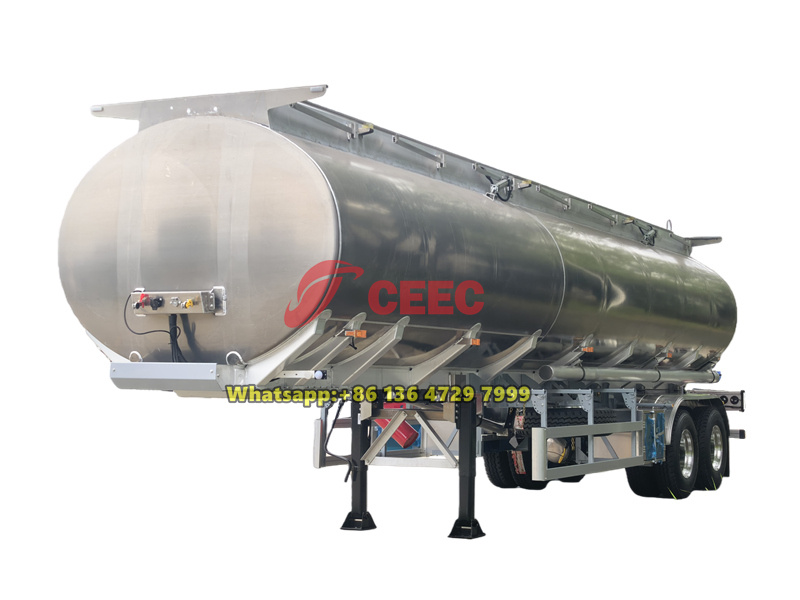

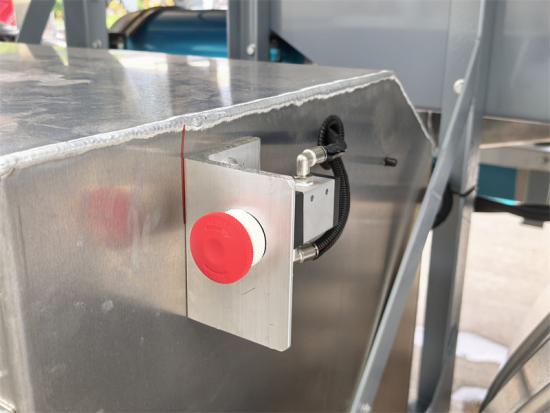

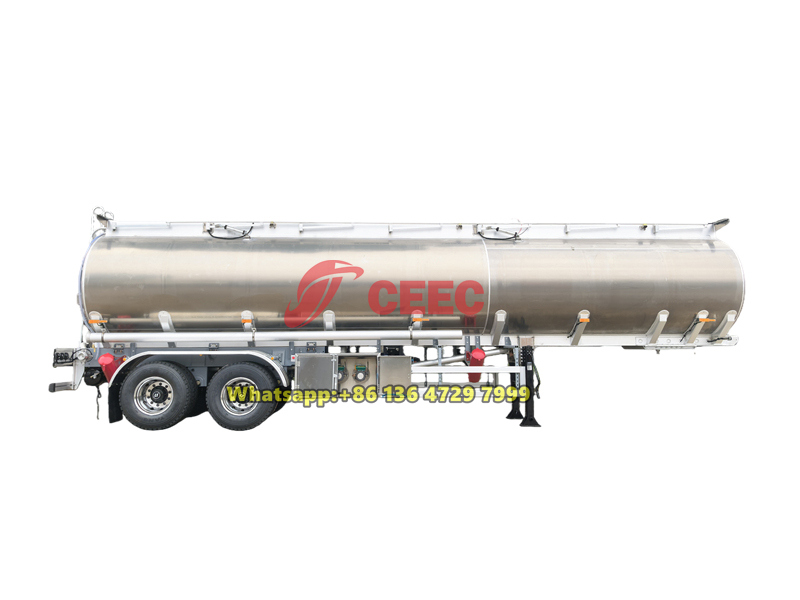

» Ⅳ. Product Details:

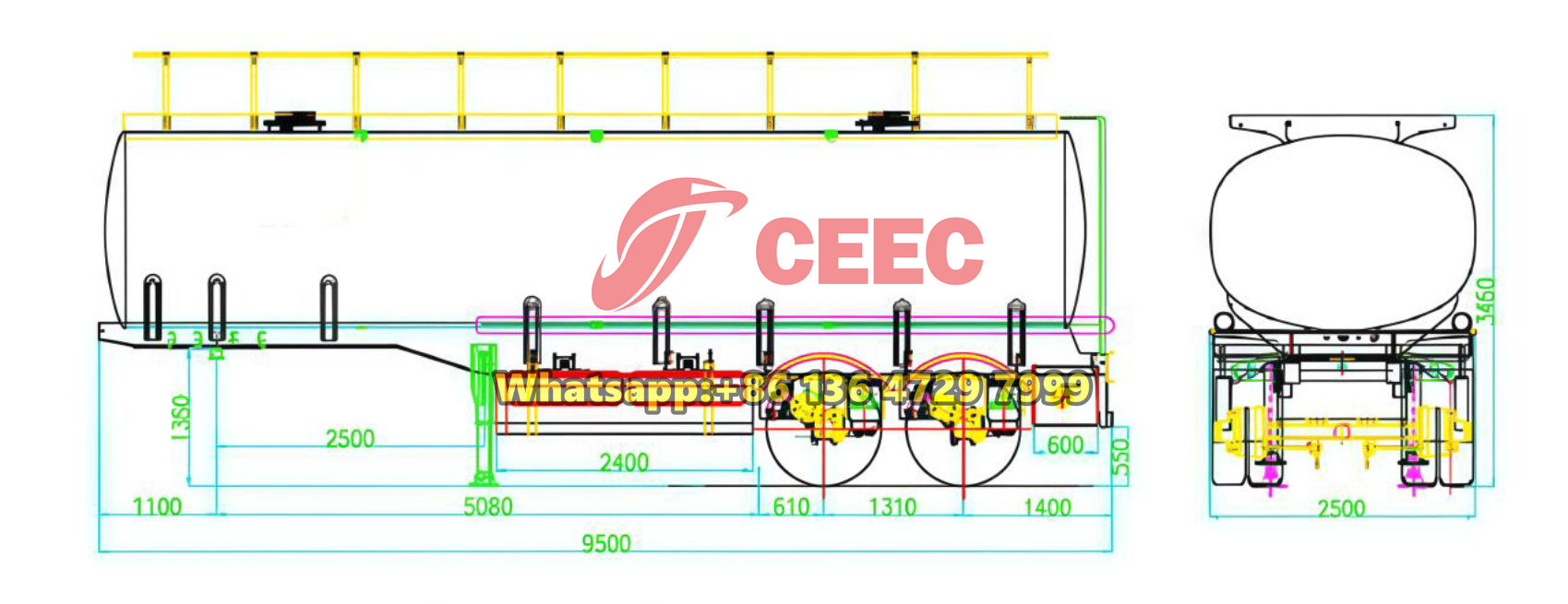

※ Ⅴ. Product Drawing:

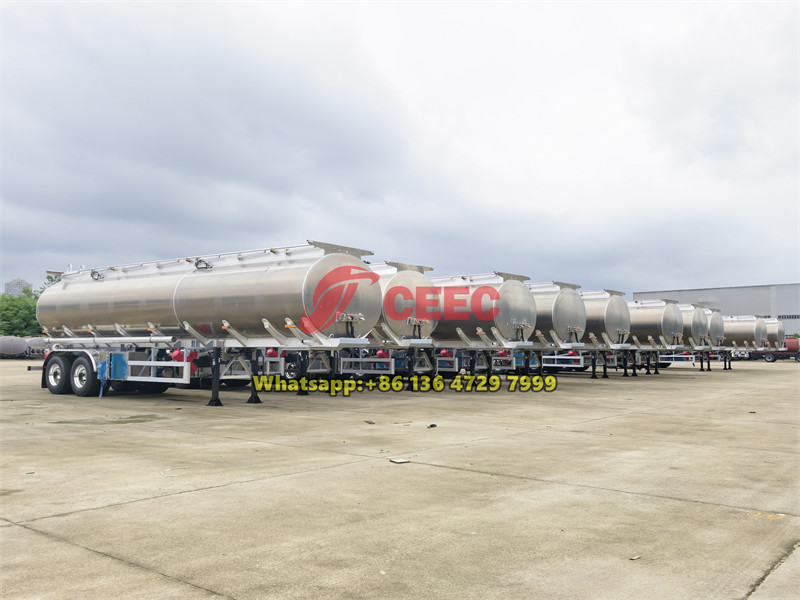

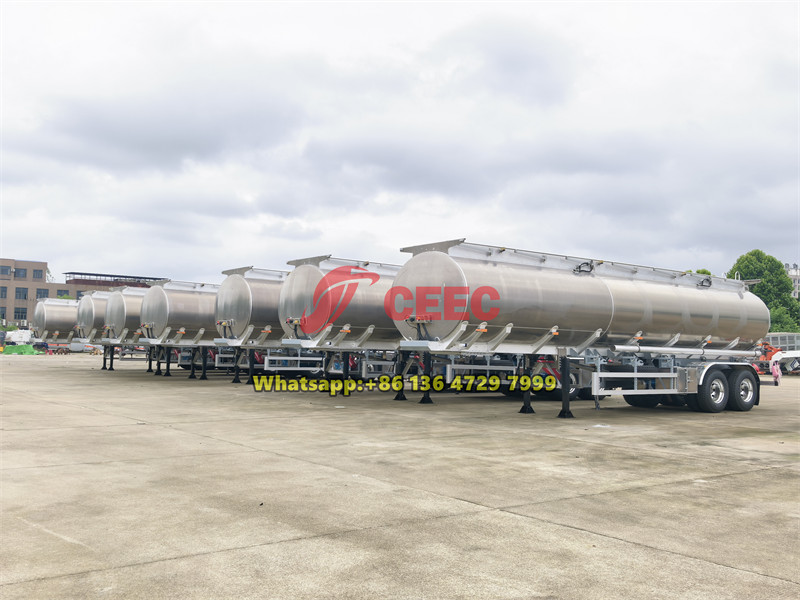

※ Ⅵ. Batch Delivery of Aluminum Alloy Oil Tanker Trailers:
