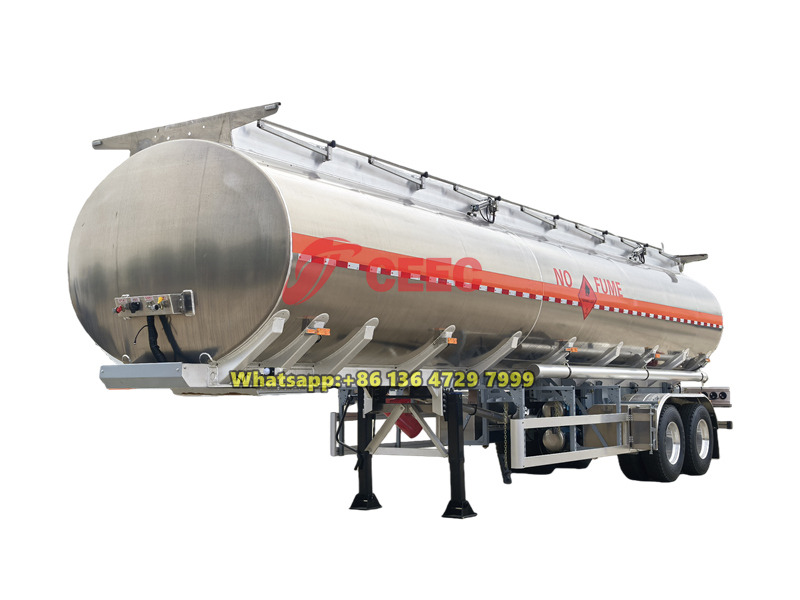

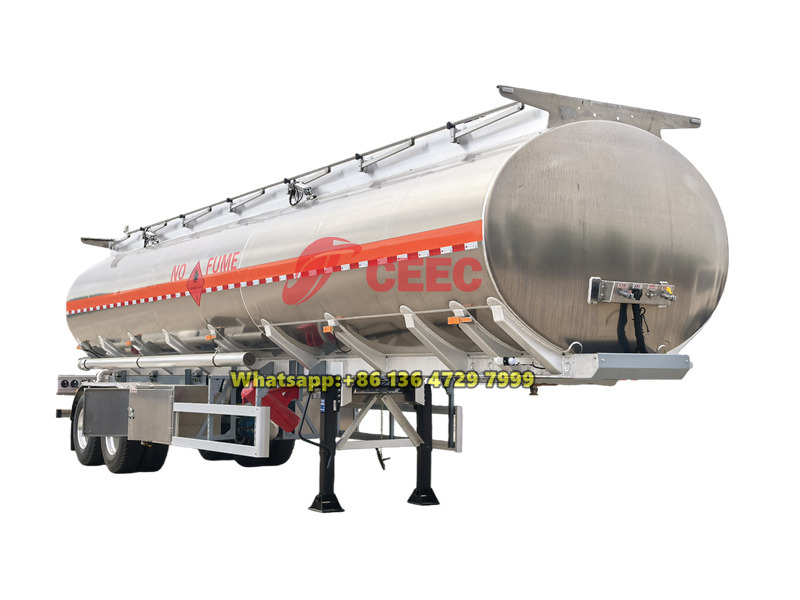

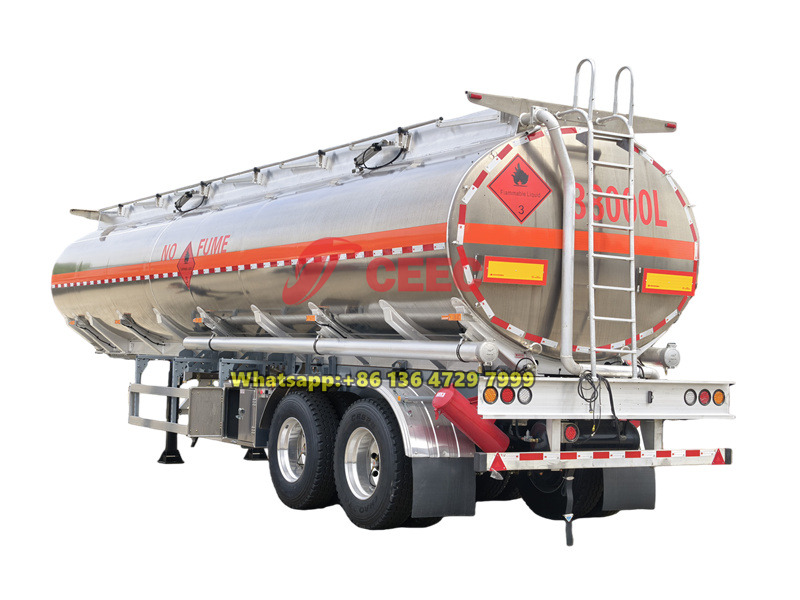

This 2-axle aluminum alloy oil tank semi trailer is purpose built for hazardous materials transportation. With an effective volume of 38,000 liters, it is suitable for a wide range of petroleum products. The vehicle is equipped with emergency shut off valves, a bottom loading system, and an ABS anti lock braking system to ensure safety and regulatory compliance. The aluminum alloy body is lightweight, corrosion resistant, and offers excellent electrical conductivity and energy absorption. Combined with multi compartment baffle designs, it effectively ensures transport stability, making it an efficient and reliable ideal transport equipment.
Working Capcity:
38000 litersDimension ( mm ) :
10300×2500×3450Axle Type:
FUWA, 13-ton, 2 pcsLand Gear:
JOST, 28 tonKingpin:
3.5'' bolted typeSuspension:
Leaf springTyres:
315/80R22.5, 8 pcsRemark:
3 compartments▤Ⅰ.Product Introduction:
This 2‑axle aluminum alloy fuel tanker semi‑trailer is specifically designed for hazardous materials road transport. The tank has an effective volume of 38,000 liters and can accommodate various petroleum products with a density not exceeding 830 kg/m³. The vehicle strictly follows API and European standards and is equipped with emergency shut‑off valves, a bottom loading system, electrostatic grounding devices, and a full set of safety valve assemblies. Core configurations include FUWA axles, leaf spring suspension, JOST landing gear, and the Kemi ABS system, providing comprehensive safety during loading, unloading, and transit.
The key advantages of this aluminum alloy fuel tanker trailer lie in the lightweight and high safety performance of its aluminum alloy construction—low dead weight, excellent corrosion resistance, and superior electrical conductivity and energy absorption, which effectively reduce static accumulation and collision risks. It is well‑suited for regional distribution of flammable media such as gasoline and diesel. The internal 3‑compartment design with baffles reduces liquid surge, while anti‑slip walkways, an emergency brake button, and firefighting equipment facilitate easy operation and rapid emergency response. This makes it an ideal, compliant, and efficient transport solution for oil companies and logistics fleets.
CEEC factory is premium supplier of diesel tanker semi-trailers,
guarantee all fuel tanker semi-trailers Brand-New and High-Quality.
▤ Ⅱ. Product Specifications:
|
2-Axle Fuel Tanker Semi-trailer Specifications |
|
|
Tank capacity |
38000 liters |
|
Material |
Aluminum alloy |
|
Size(L*H*W)(mm) |
10300*2500*3450 |
|
Weight (Kg) |
5200 |
|
Tank Shell/Head Thickness/Material |
Shell: Aluminum alloy, thickness 5.5mm Heads: Aluminum alloy dished & flanged head, thickness 6mm |
|
Number of compartments |
3 compartments |
|
Number of baffle plate |
4 baffle plates |
|
Aluminum mudguards |
Supply and fit 4 aluminum mudguards, 1½" CED-40 support tubes, for 2-axle configuration |
|
Manhole Covers |
3 units, European standard manhole cover |
|
Discharge Valves |
3 unit, API standard bottom discharge valve |
|
Emergency Valves (Bottom Valves) |
1 unit, 4-inch emergency shut-off valve |
|
Discharge Hoses |
3-inch diameter, 2 hose, each 6 meters long, equipped with male and female end fittings/connectors |
|
Bottom-loading system |
safety valve, vent valve, optic sensor, vapor-recovery valve, Dixon optic socket, 4"×3" reducer, pressure gauge, emergency shut-off; includes 20" manhole and orange rear flags |
|

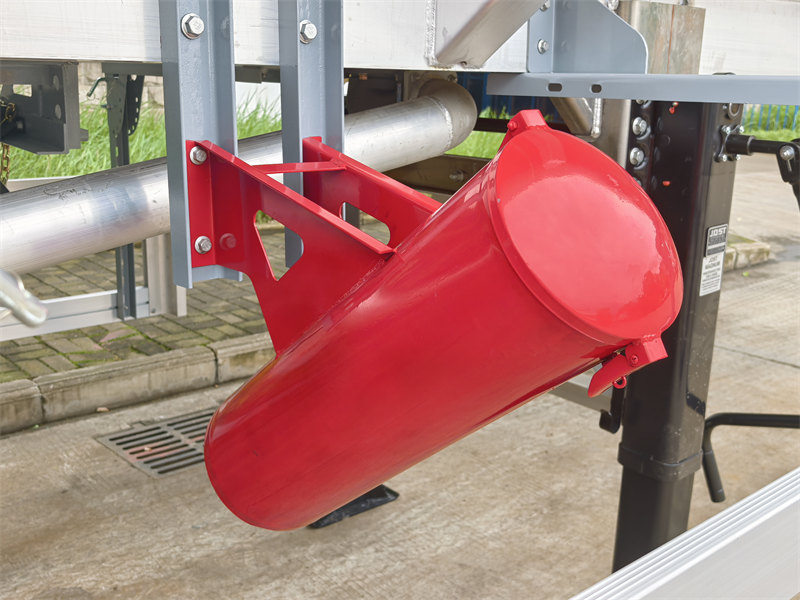

Fire Extinguishers and Brackets |
2 fire extinguishers with protective covers, standard brackets |
|

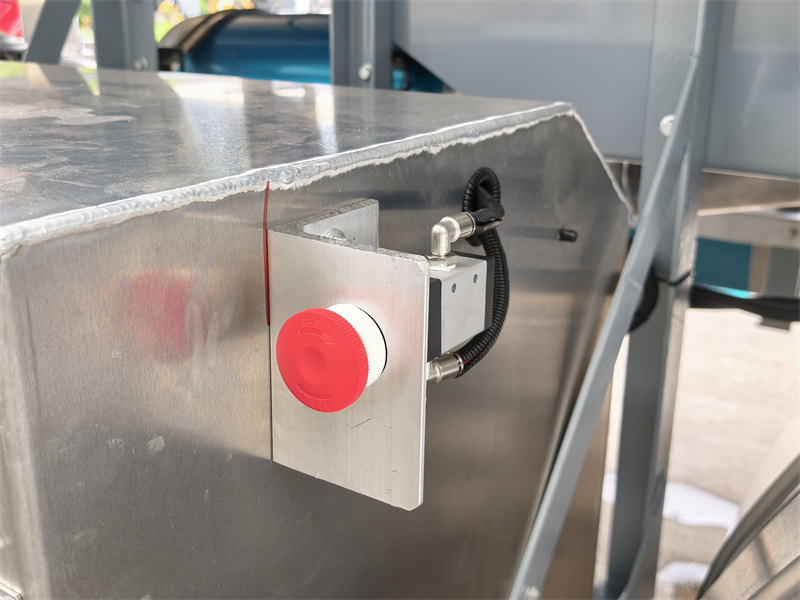

Emergency Brake Button |
Standard configuration (customizable) |
|
Walkway |
Anti-slip walkway with folding handrails |
|
Ladder |
Standard configuration (customizable) |
|
Rear Markings |
Standard configuration, marking frame designed for easy insertion/removal |
|
Axles |
FUWA brand 13-ton axles, 2 units |
|
Suspension System |
Mechanism |
|
Tires/Rims Model and Quantity |
24.5" radial tires, 16-ply rating, total 8 units, steel disc wheels, Triangle brand |
|
Static Grounding Chain |
Standard static grounding chain |
|
Spare Tire Carriers |
2 units |
|
Toolbox |
1 unit |
|
Coupling kit |
10 high-tensile bolts & safety washer, standard compliant |
|

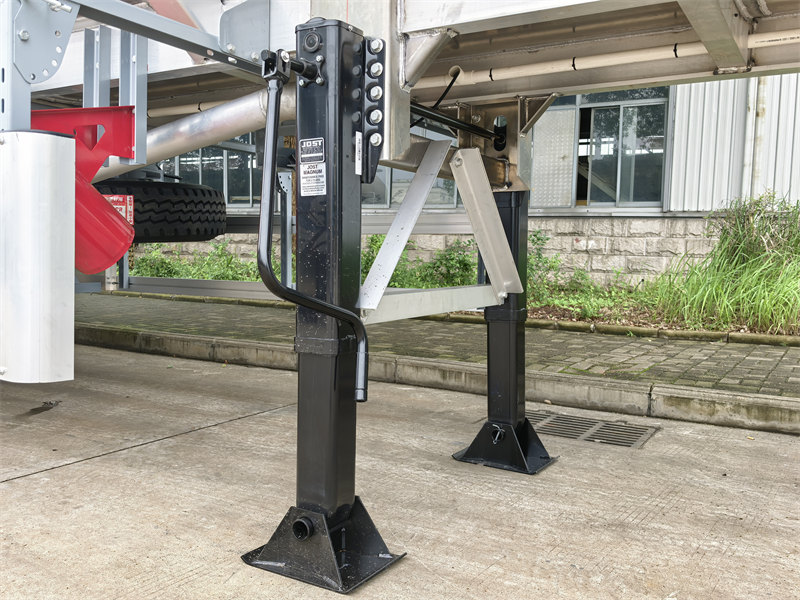

Landing Gear |
Reinforced dual-speed landing legs, JOST brand |
|
ABS System |
12 volts independent ABS system for 1 axle, 2S1M, Kemi Brand |
|
Remarks: Fire extinguishers and anti-static devices are fully equipped; discharge hoses provided with male and female fittings; landing gear equipped with diagonal braces; electrical lines fully installed |
|
▤ Ⅲ. Features of aluminum alloy fuel tanker trailer:
 |
 |

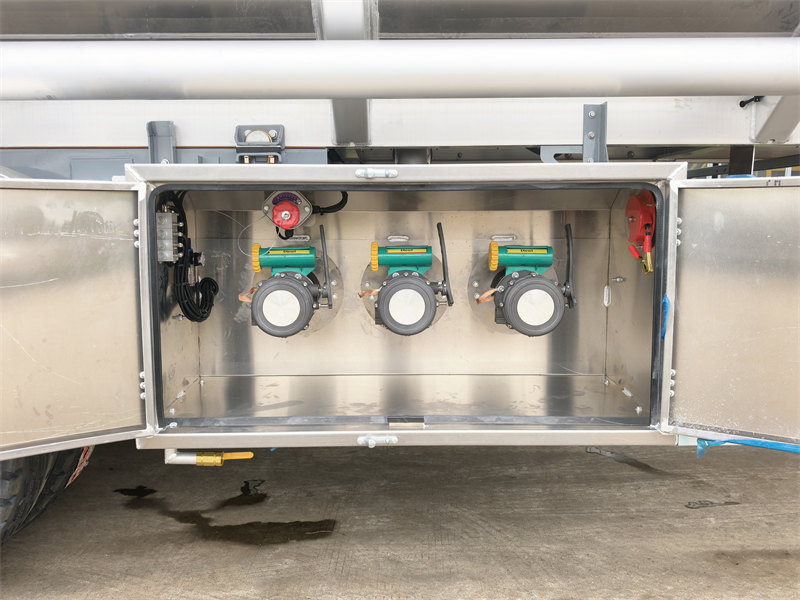

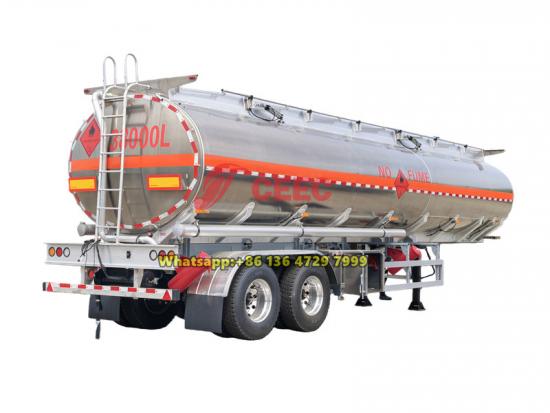

▤ Ⅳ. Product Details:

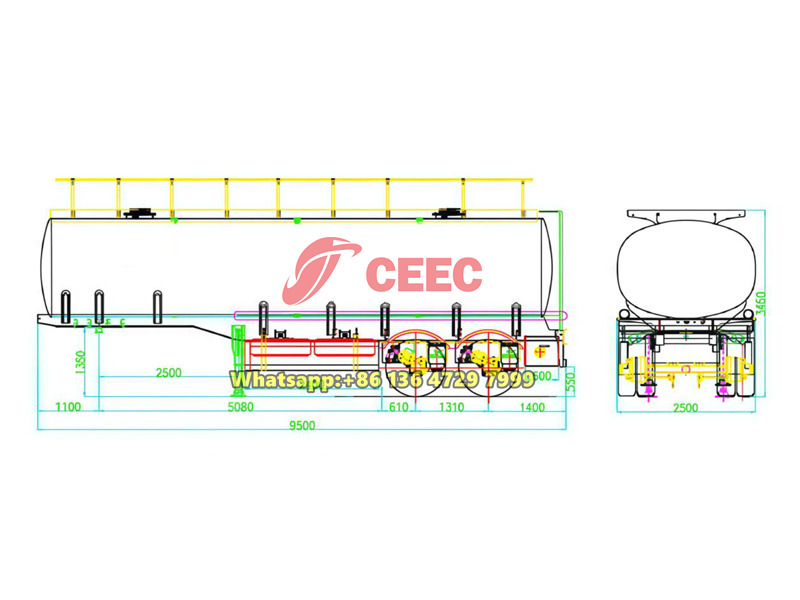

▤ Ⅴ. Product Drawing:

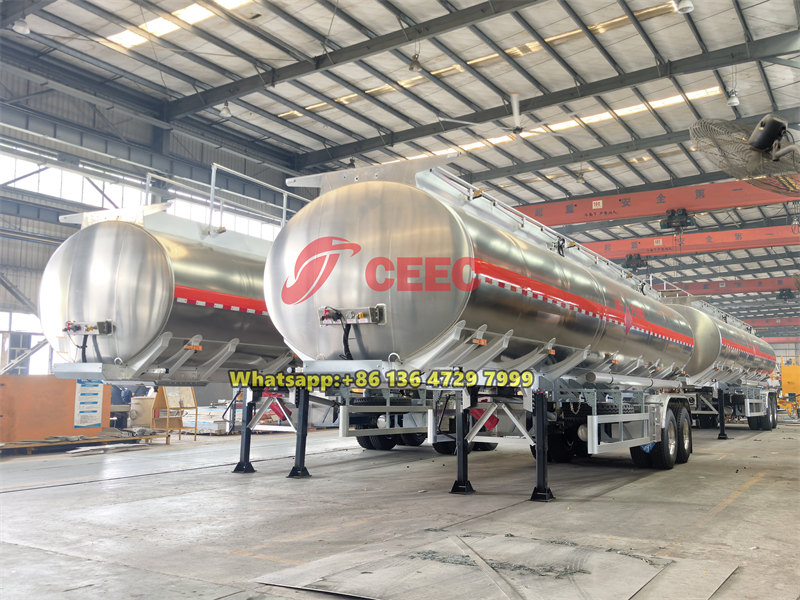

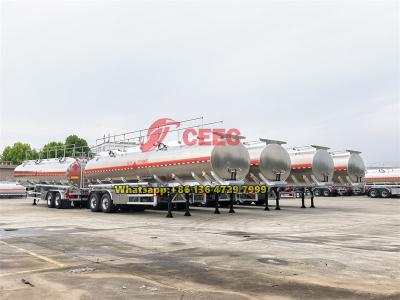

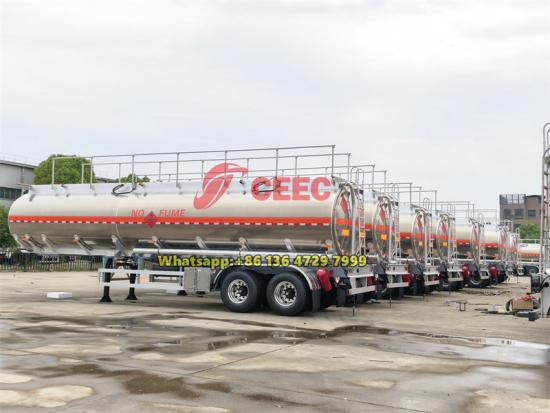

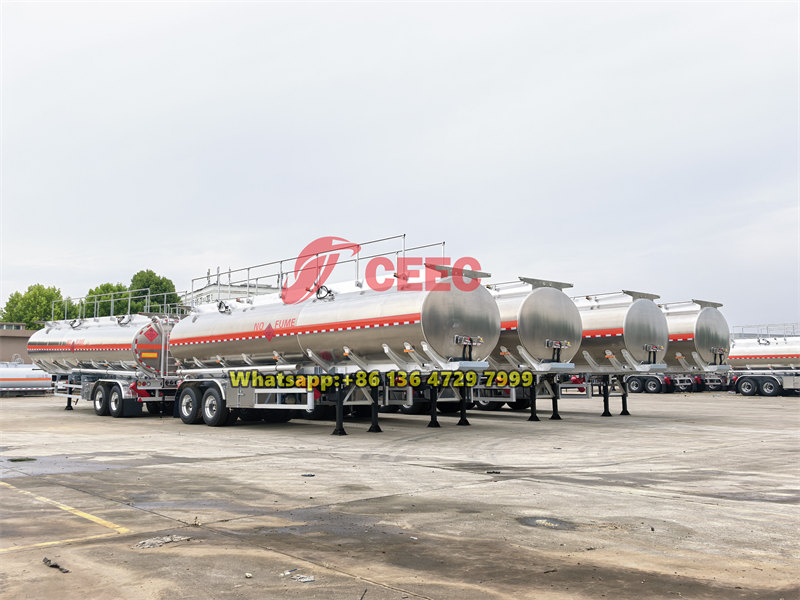

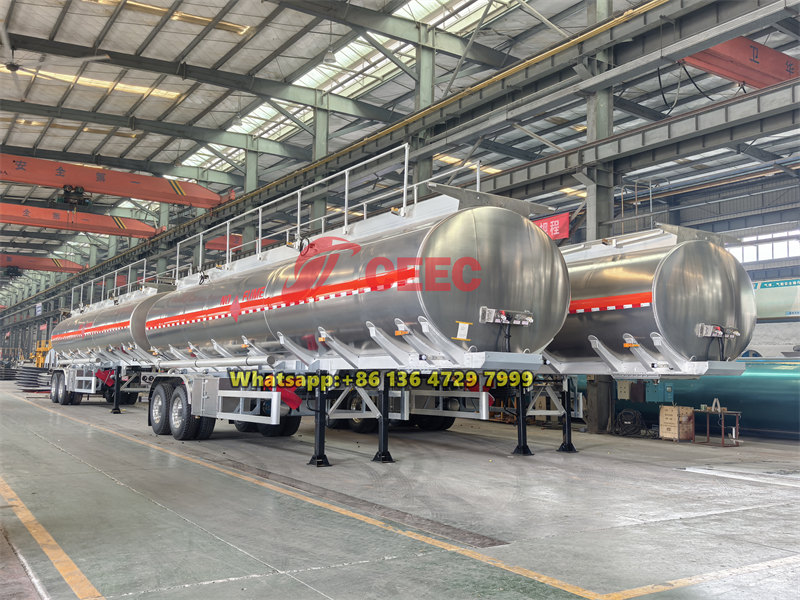

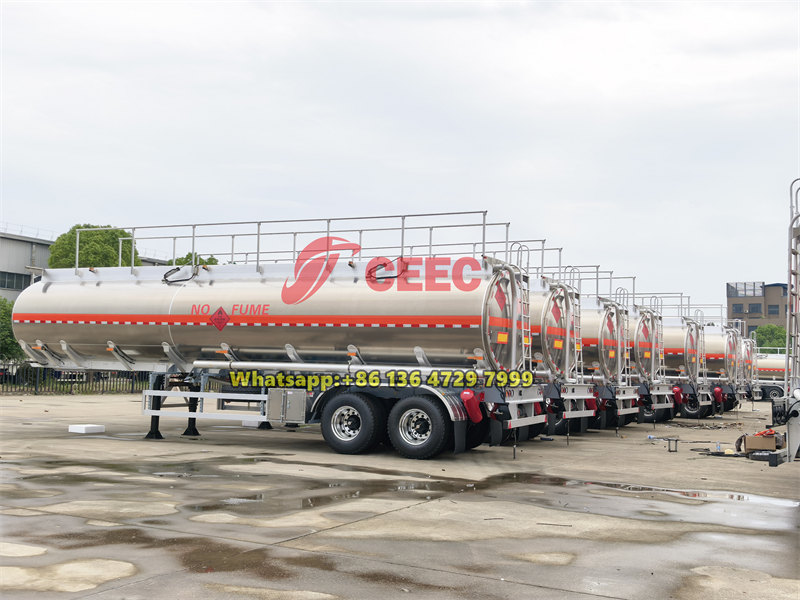

▤ Ⅵ. Aluminum Alloy Oil Tanker Trailers Batch Delivery:
 |
 |
 |
 |
Products --100% China tanker trailer factory!
Shipping --100% fast, Convenience, Efficient!
1. Customized 2 axles, 3 axles, 4 axles fuel tanker semi-trailers
2. FUWA/BPM alxes and air suspension system for option
3.Factory bottom price, strict quality control
4. Fast delivery, common models can be supplied within 15 days.
Fuel tanks semi trailer is designed to carry any liquid oil items like fuel, crude oil, cooking oil, petrol, water, diesel and so on. china best flammable fuel tanker semitrailer manufacturer, can supply kinds of oil fuel tanker semitrailer for all foreign customers. We have different Tanker Trailer capacity starts from 30,000 Liter to 70,000 Liter capacity
Fuel Tanker Semi Trailers , 45000 Litres 5 compartments Diesel Fuel Oil Tanker Trailers As the Professional Fuel tanker semi trailer manufacturer, we have the large rolling and welding equipments.Paying attention to the details of producing, we undertake a variety of carbon steel tanker trailer, stainless steel tanker trailer, aluminum tanker trailer, mirror aluminum tanker trailer and all kinds of liquid tank trailers based on the custom requirements from Africa, South American and South east country.
As the Professional Fuel tanker semi trailer manufacturer, we have the large rolling and welding equipments.Paying attention to the details of producing, we undertake a variety of carbon steel tanker trailer, stainless steel tanker trailer, aluminum tanker trailer, mirror aluminum tanker trailer and all kinds of liquid tank trailers based on the custom requirements from Africa, South American and South east country. We are china best factory of petroleum tanker semitrailer manufacturer, can produce kind of oil tanker semitrailer, fuel tanker semitrailer and other fuel tanker semtirailers.
Oil Tanker Crude Oil Tank Trailer Fuel/petroleum 45000l Steel Fuel Tanker Semi Trailer Tri-axle Fuel tanker semi trailers are desinged to carry any liquid items like fuel, Petrol,Cooking Oil,water, diesel Jet A1 and else. We have different Tanker Trailers opportunity starts from 30.000 Liters to 60.000 liter capacity. with 1 to 10 compartments 1.We Exported Zimbabwe more Aluminium Tank trailer . and this country weight limit serious ,So only Aluminium Tank satisfied the request ; 2.Like Zimbia ,Rwanda ,Tanzania and so on , Other country have rough road condition , So we can provide Thicken Mechnical Suspension for these country; 3.The folding arm rest can be design hydraulic ,It's convenient for your operate ; 4.Axles brand can be choose by yourself ,Like BPW/FUWA/L1/FD Brand
Tri-axle Fuel tanker semi trailers are desinged to carry any liquid items like fuel, Petrol,Cooking Oil,water, diesel Jet A1 and else. We have different Tanker Trailers opportunity starts from 30.000 Liters to 60.000 liter capacity. with 1 to 10 compartments. CEEC factoryTrailer gives its customers wide range of Tanker Trailers assortment and find the best solution according to customer road regulations. All of our oil tanker semitrailer have long guarantee more than 12 months.
Premium 12 Wheeler 50000 Liters Oil/Fuel Tank Trailer ,can exporting best quality oil tanker semitrailer for africa customer , supply 30 T, 40 T, 50 T, 60T fuel wagon semitrailer , all of our oil wagon semitrailer can comply with ADR, DOT standard.
Premium africa fuel tanker semitrailer manufacturer,can exporting best quality oil tanker semitrailer for africa customer , supply 30 T, 40 T, 50 T, 60T fuel wagon semitrailer , all of our oil wagon semitrailer can comply with ADR, DOT standard.
Welded design or Special design I beam, connected by bolts and nutsQ345 carbon steel material 2 or 3 axles, BPW/FUWA/HUAJING brand JOST (D200T ) or CHINA BRAND 28T
Tri axle oil tanker trailers 50000 liters fuel tank semi trailer gasoline transport tank trailer,Fuel Tanker semi trailers optional: 36cbm fuel tank trailer, 38cbm oil tank trailer, 40m3 diesel tank trailer, 45cbm liquid tanker truck trailer, 48cbm crude tanker semi trailer, 50,000liters fuel tank trailer, 55,000 liters oil tanker truck trailer, 60,000 liters tank truck trailer
