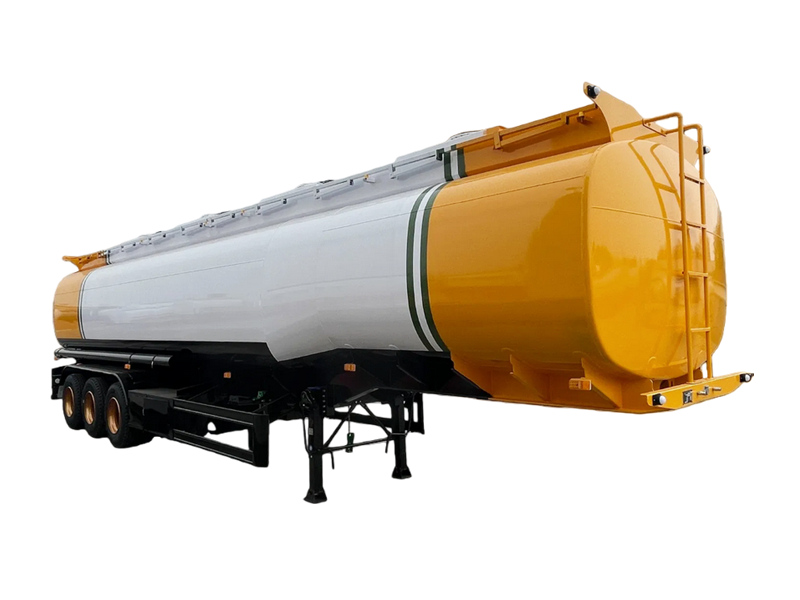

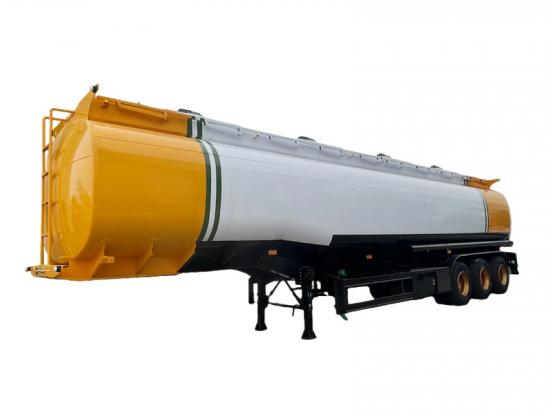

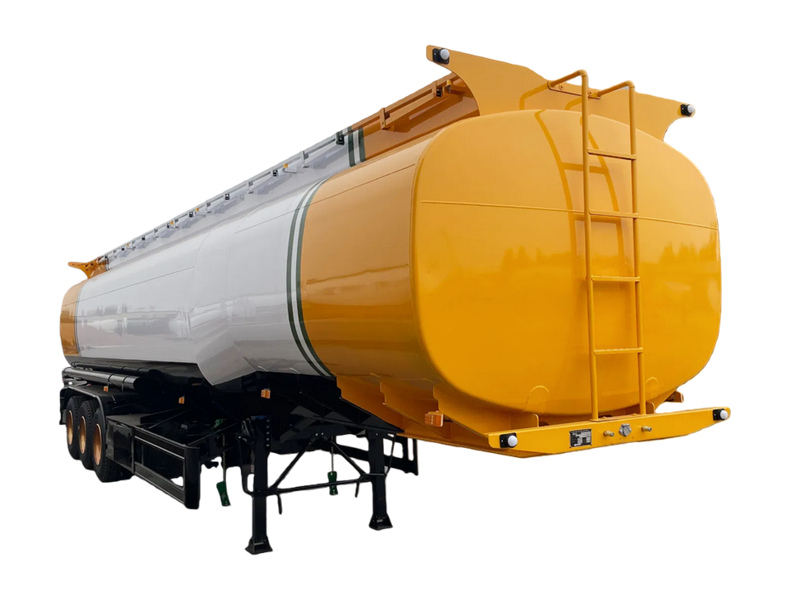

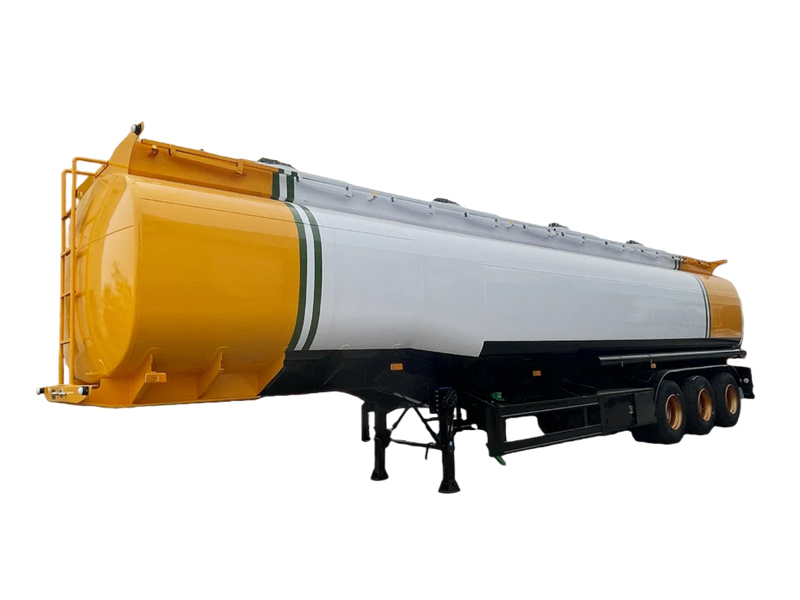

This 3-axle oil tank semi-trailer has a tank capacity of 50,000 liters, which is made of carbon steel, with a tank thickness of 5mm and head thickness of 6mm. It is equipped with 13-ton Fuwa axles, paired with JOST 28-ton landing gear, and equipped with 12 Triangle brand 12.00R20 tires. The tank is divided into 5 compartments with baffles, effectively reducing liquid surge. Standard safety devices include static elimination systems and emergency shut-off valves, making it suitable for bulk transportation of diesel, gasoline, and other petroleum products.
Working Capcity:
50000 litersDimension ( mm ) :
12000×2500×3700Axle Type:
FUWA, 13-ton, 3 pcsLand Gear:
JOST, 28 tonKingpin:
90#Suspension:
Leaf springTyres:
12.00R20, 12 pcsRemark:
5 compartments※ Ⅰ.Product Introduction:
The tri-axle fuel tank trailer is a large semi-trailer specifically designed for transporting liquid fuels (e.g., diesel, gasoline, etc.). Its tank has a capacity of 50,000 liters and is made of high-quality carbon steel. The tank interior is fitted with baffles to minimize liquid surge during transport, ensuring driving safety. Both the interior and exterior of the tank are typically coated with anti-corrosion layers to extend service life. The oil tank semi-trailer is equipped with multiple safety features, including anti-static devices, emergency shut-off valves, and fire/explosion protection systems. Thanks to its high efficiency and safety, it is especially suitable for large-scale fuel distribution.
CEEC factory is premium supplier of tanker semi-trailers,
guarantee all fuel tanker semi-trailers Brand-New and High-Quality.
※ Ⅱ. Product Specifications:
|
Basic Information |
||
|
Overall dimension |
12000x2500x3700mm |
|
|
Tank Capacity |
50000 L |
|
|
Tare weight |
11900 kg |
|
|
Type |
Tri-axle semi-trailer |
|
|
Coupling height |
Unladen 1320 mm |
|
|
Tank assembly |
||
|
Compartment |
5 |
|
|
Front/Rear end plate |
Material |
Carbon steel |
|
Front/Rear end plate |
Thickness |
6mm |
|
Tank body |
Material |
Carbon steel |
|
Thickness |
5mm |
|
|
Wave-proof baffle plate thickness |
4mm |
|
|
Manhole cover |
Diameter |
500mm |
|
Material |
Aluminum Alloy |
|
|
Number |
5 pcs |
|
|

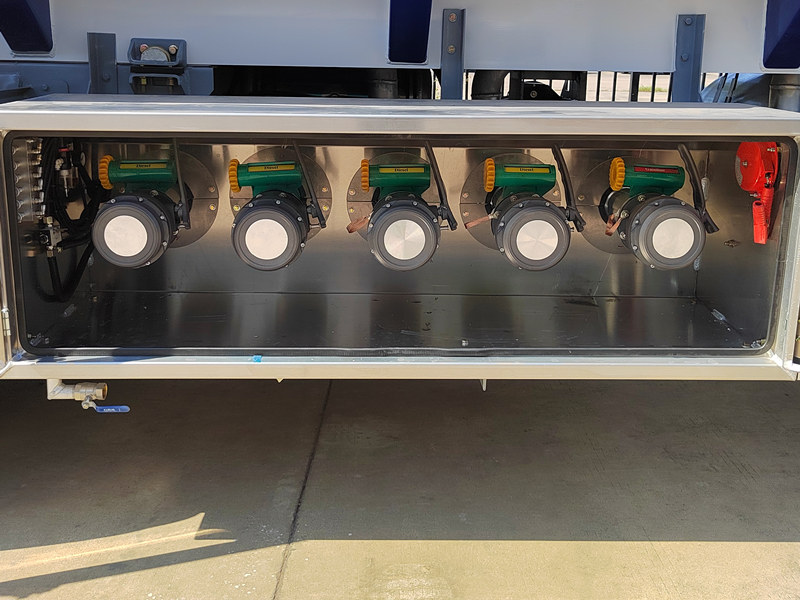

Discharging valve |
Diameter |
3 inch |
|
Material |
Aluminum Alloy API valve |
|
|
Number |
5 pcs |
|
|
Bottom safety valve |
Aluminum Alloy 4 inch |
|
|
Discharging pipe |
Diameter |
3 inch |
|
Type |
Rubber hose,2pcs |
|
|
Cat walk |
Standard |
|
|
Chassis |
||
|
Axle |
Brand |
Fuwa |
|
Type |
13t |
|
|
Number |
3pcs |
|
|
Rim |
Type |
8.5-20 |
|
Number |
12 pcs |
|
|

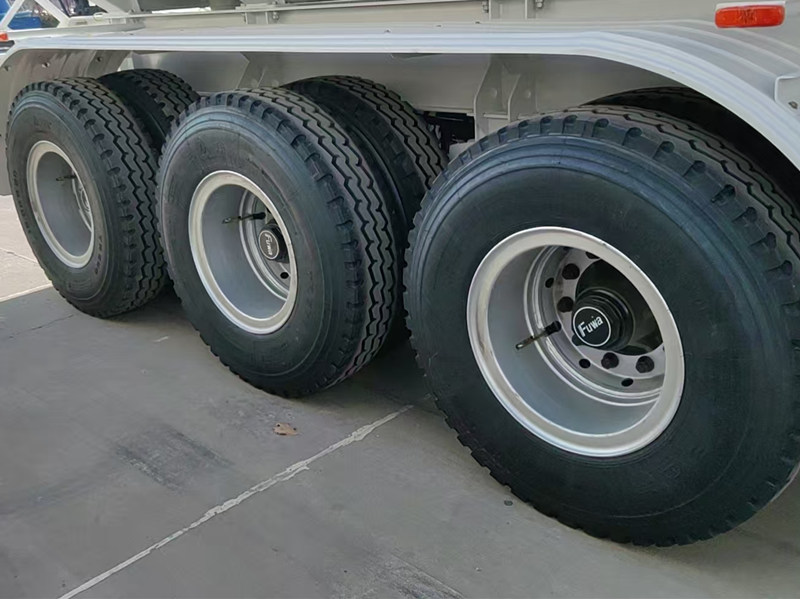

Tire |
Brand |
Triangle brand |
|
Type |
12.00R20 |
|
|
Number |
12 pcs |
|
|
Suspension |
Mechanical suspension |
|
|
Spring leaf |
Leaf width |
90mm |
|
Leaf thickness |
13mm |
|
|
Layer/set |
10 Layer |
|
|
King pin |
Type |
Bolts type |
|
Diameter |
90# |
|
|
Brake system |
Air tank |
45L air tanks |
|
Brake chamber |
WABCO RE6 relay valve; T30/30+T30 Spring brake chamber |
|
|
ABS |
Optional |
|
|
Landing gear |
Brand |
JOST |
|
Type |
A300C, 28 ton, two speed |
|


※ Ⅲ. Features of 50000L oil tanker trailer:

• Tank Material: High-quality carbon steel, 5mm tank body thickness, 6mm head thickness
• Internal Structure: Multiple reinforced anti-surge baffles with bottom holes to balance liquid flow impact and improve driving stability
• Compartment Design: Divided into 5 compartments, allowing simultaneous transport of different densities and types of oil products (e.g., gasoline, diesel, kerosene, lubricating oil)
• Safety Devices: Static elimination system, vapor recovery system, breather valve, emergency shut-off valve, etc.

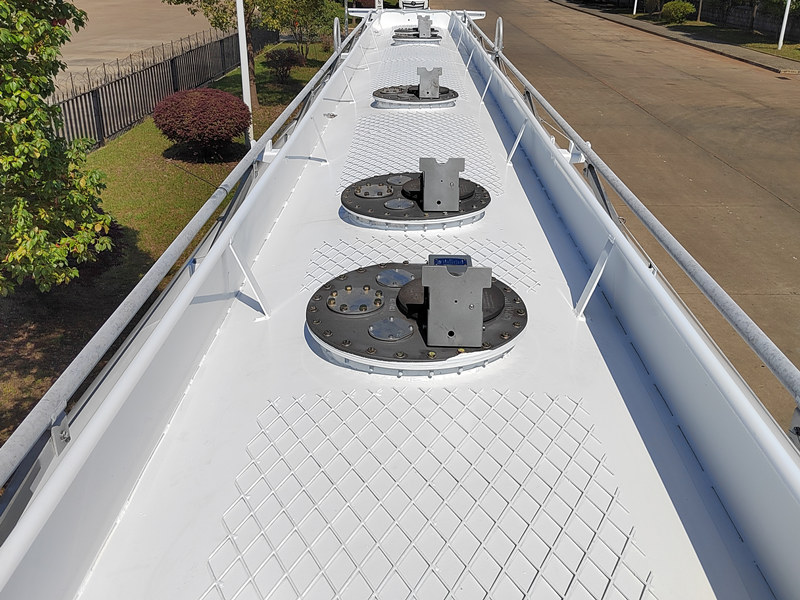

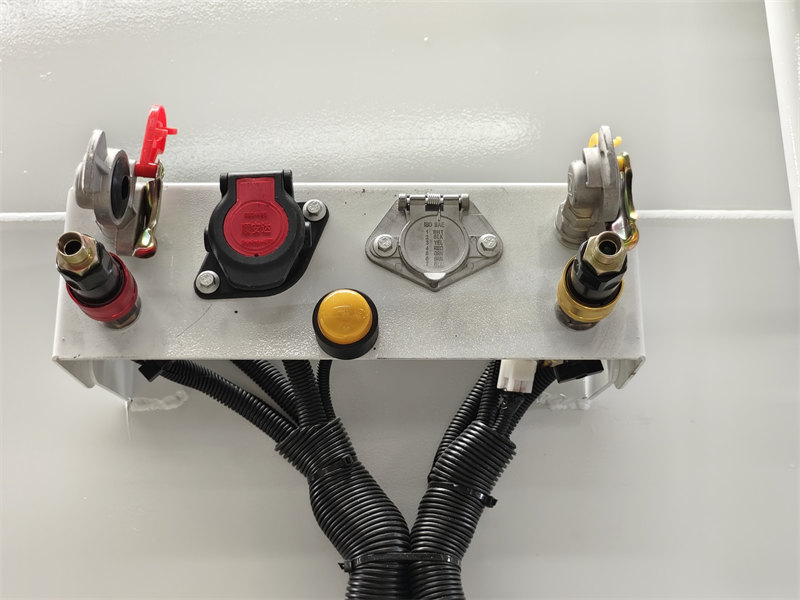

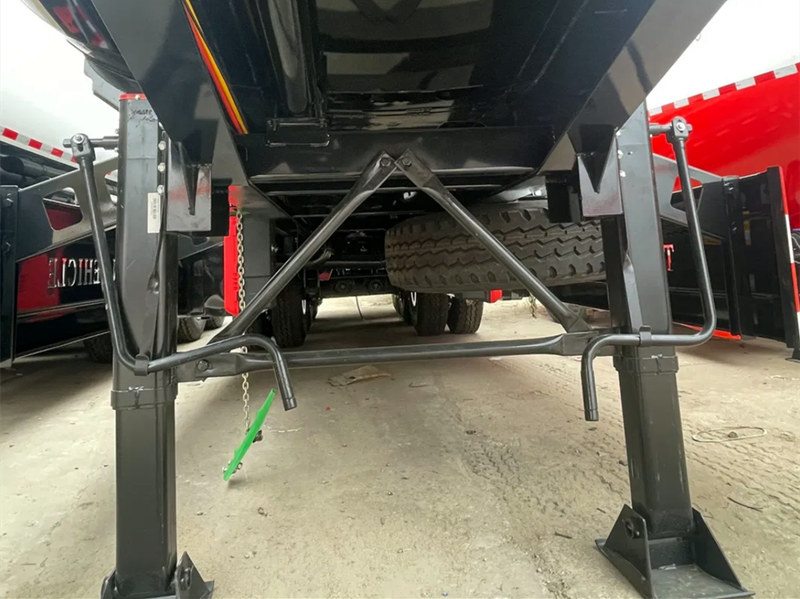

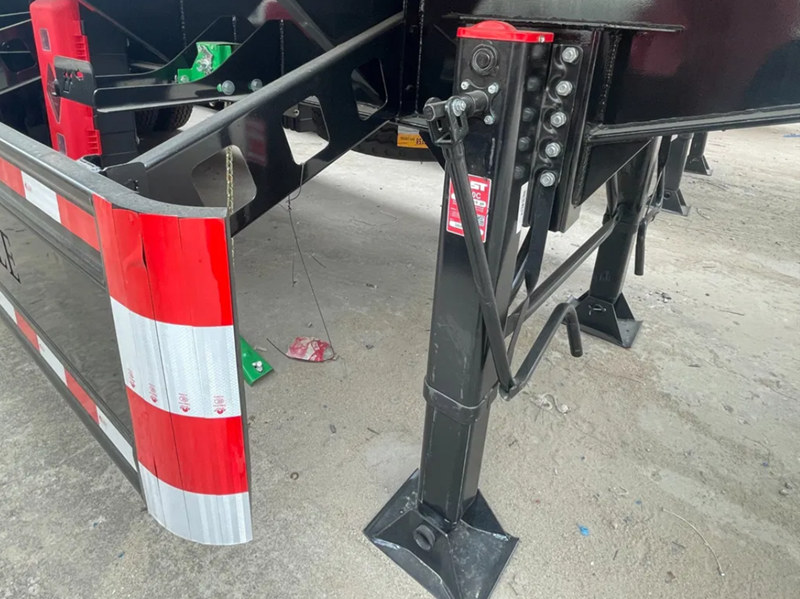

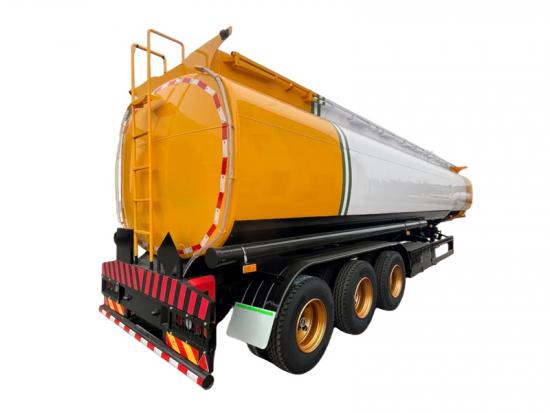

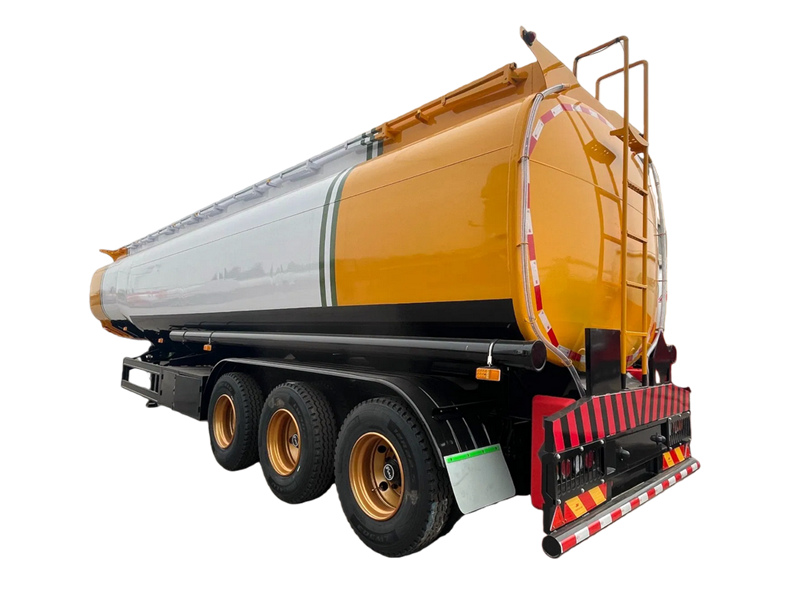

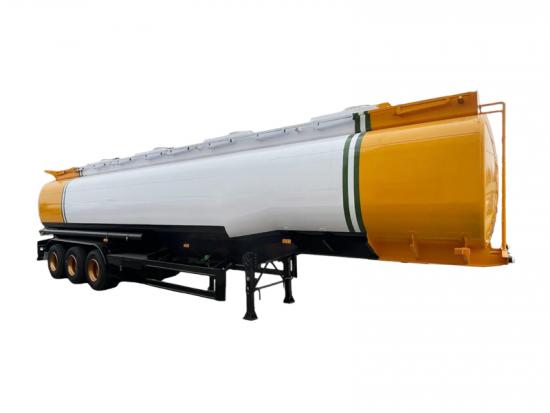

» Ⅳ. Product Details:

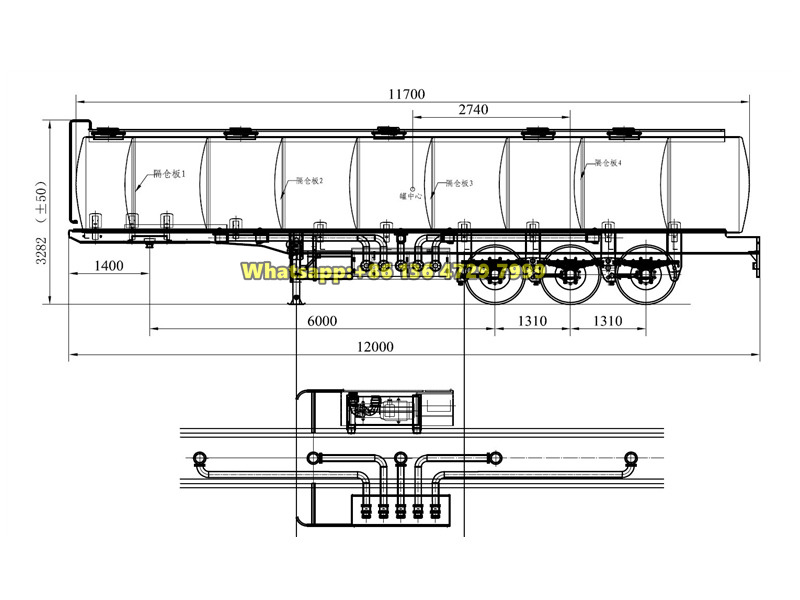

※ Ⅴ. Product Drawing:

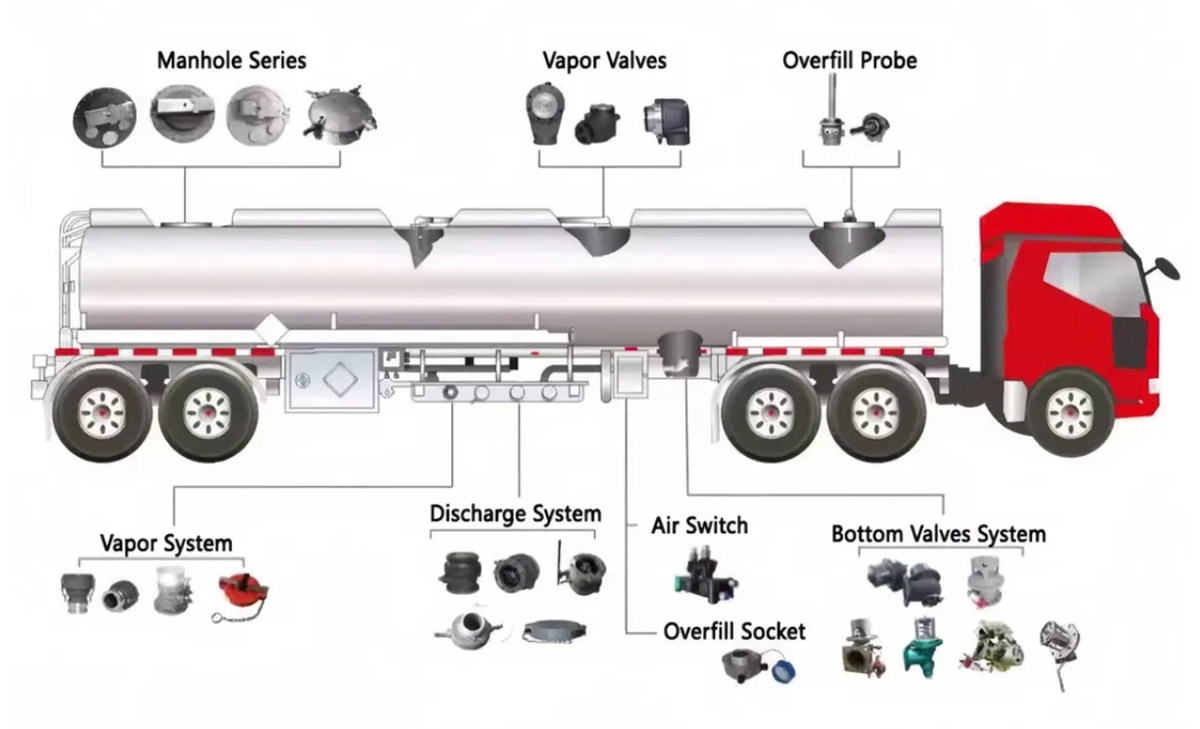

※ Ⅵ. Components of Fuel Tanker Trailers:
