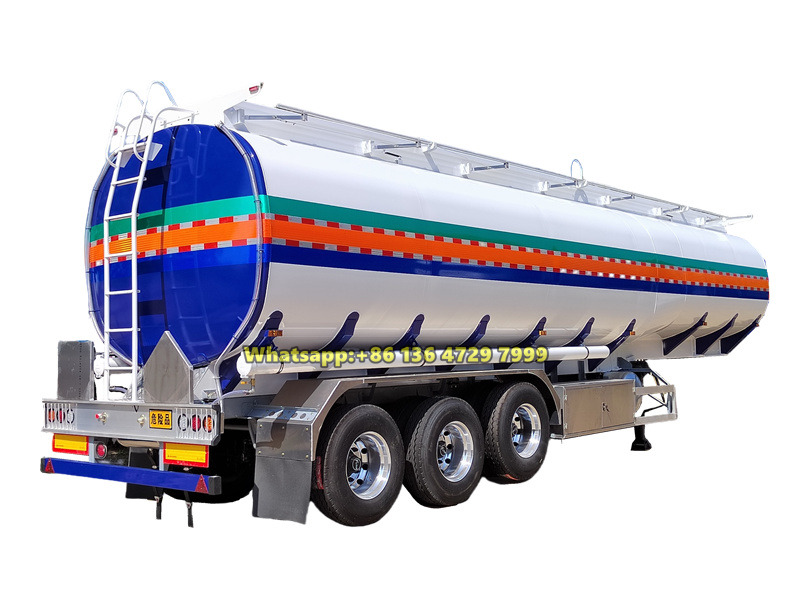

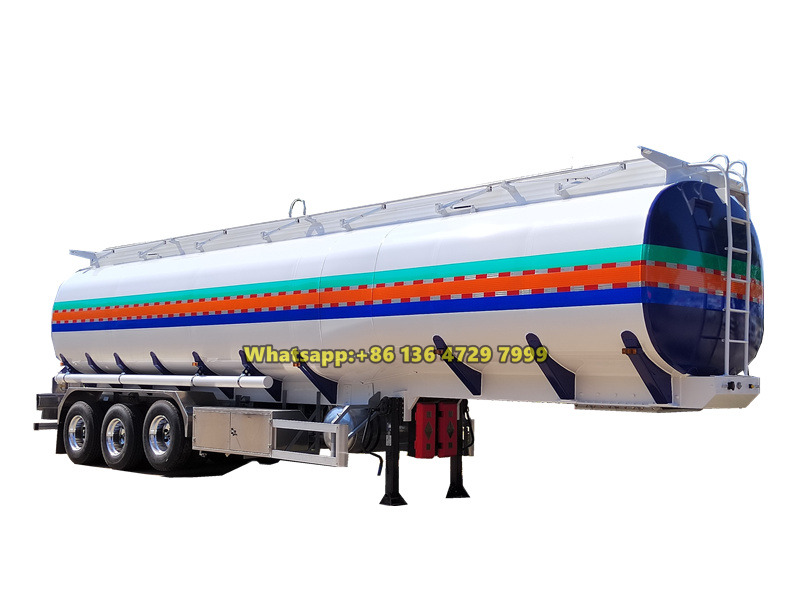

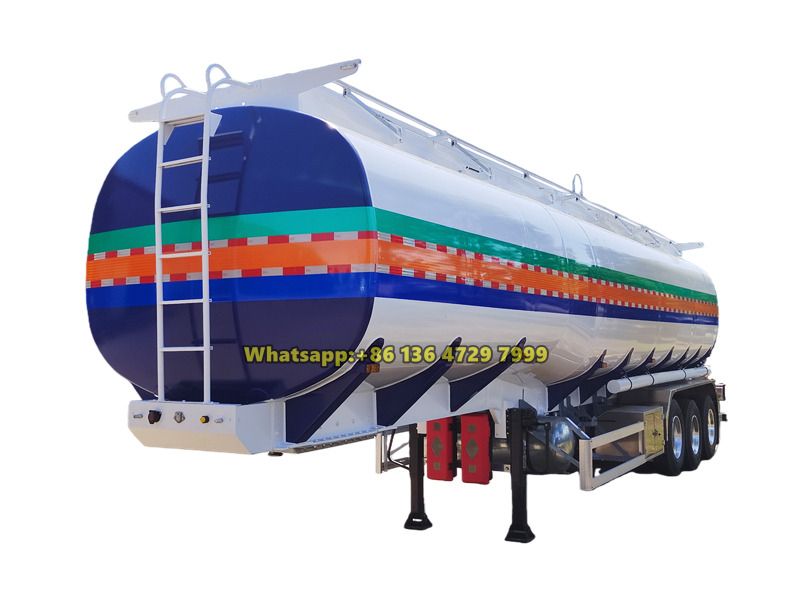

This 3-axle 50m³ oil tank semi-trailer features a Q235A carbon steel tank body with a thickness of 6mm and internal anti-corrosion treatment. The tank is divided into 5 independent compartments, each with a capacity of 10m³, suitable for transporting different types of oil products. It is equipped with three FUWA 13-ton axles, mechanical suspension, and a WABCO braking system. Anti-surge baffles are installed inside the tank, along with safety devices such as a breathing valve, electrostatic grounding, and emergency shut-off valves, balancing transport efficiency with hazardous chemical safety requirements.
Working Capcity:
50000 litersDimension ( mm ) :
11700×2550×3280Axle Type:
FUWA, 13-ton, 3 pcsLand Gear:
FUWA, 28 tonKingpin:
3.5'Suspension:
Leaf springTyres:
12R22.5, 13 pcsRemark:
5 compartments※ Ⅰ.Product Introduction:
The 3-axle oil tank semi-trailer is a large-scale hazardous chemical transport vehicle specifically designed for the transportation of liquid fuels. With a total tank volume of 50m³ divided into 5 independent compartments, it is suitable for carrying different types of oil products. It is primarily used for transferring gasoline, diesel, and other light fuel oils from refineries and oil depots to gas stations or end users, and can also transport other chemical liquids. The tank body is made of 6mm thick Q235A carbon steel with anti-corrosion treatment, and multiple anti-surge baffles are installed inside. The running gear includes three FUWA 13-ton axles, and the braking system uses WABCO valves. A full set of safety devices, including a breathing valve, emergency shut-off valves, and electrostatic grounding, ensures reliable and stable transport.
CEEC factory is premium supplier of tanker semi-trailers,
guarantee all fuel tanker semi-trailers Brand-New and High-Quality.
※ Ⅱ. Product Specifications:
|
No |
ITEM |
Unit |
Quantity |
MODEL |
|
Chassis |
Axle |
piece |
3 |
13T FUWA, 220mm width braking pad |
|
Tire |
piece |
13 |
12R22.5， with a spare tire |
|
|
Tire carrier |
set |
1 |
Factory standard |
|
|
Rim |
piece |
13 |
9.0-22.5 |
|
|
Suspension |
Set |
3 |
Mechanic suspension |
|
|
Leaf-sping |
Set |
6 |
90width*10piece*13thiness |
|
|
Kingpin |
piece |
1 |
3.5''bolted type.JOST |
|
|
Landing gear |
set |
1 |
FUWA 28T, two sides operation |
|
|

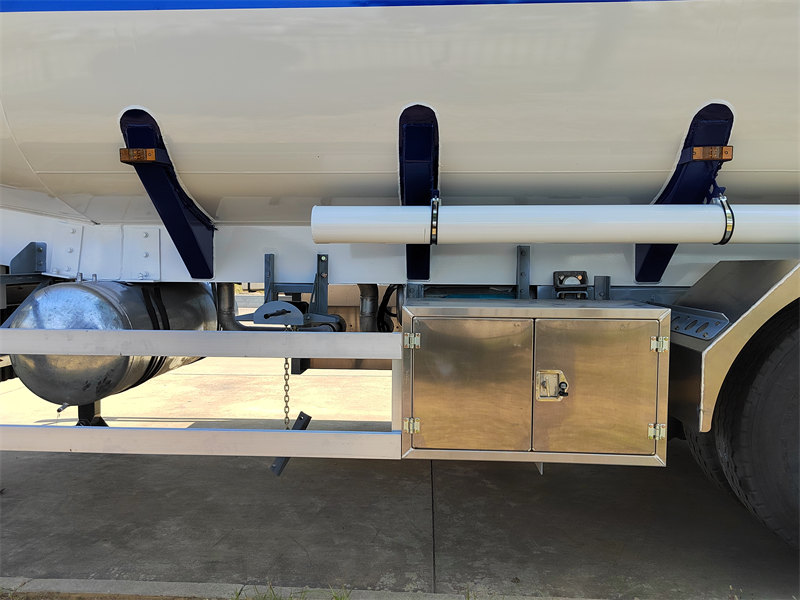

Toolbox |
piece |
1 |
Stainless steel |
|
|
Braking system |
Emergency relay valve |
1 |
WABCO |
|
|
Double braking chamber |
4 |
T30/30 spring brake chamber |
||
|
Single braking chamber |
2 |
T30,brake chamber on rear axle |
||
|
Tie-in |
1 |
Haldex |
||
|
Electrical system |
set |
1 |
24 volt electrical system.7 pin electrical connector.parking .stop,reverse,number plate and indicator lights.rear lights conform to European standard,rear front and side reflectors |
|
|
Main Specification of Trailer |
||||
|
Body |
Specification |
numerical value |
||
|
Volume(L) |
50000 |
|||
|
Body/conver thinkness(mm) |
6mm/6mm |
|||
|
Compartments |
5 compartments |
|||
|

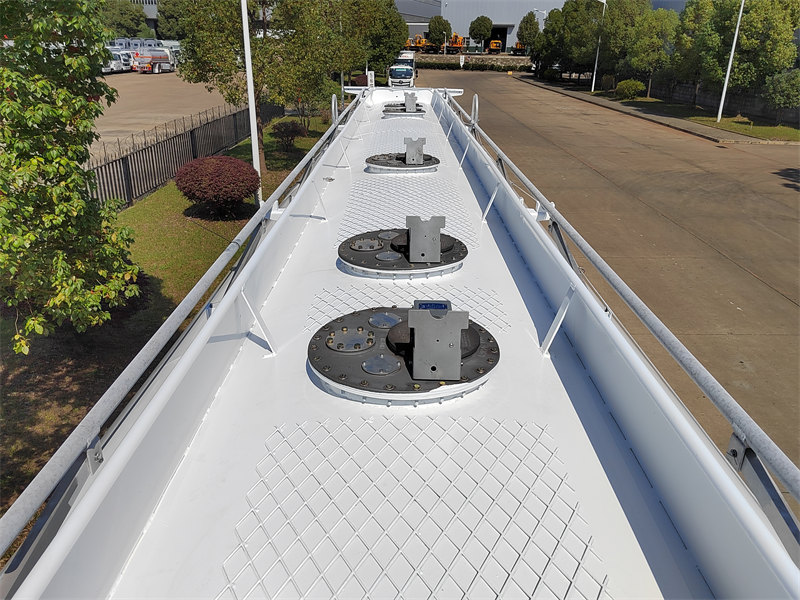

Manwhole |
5 piece |
|||
|

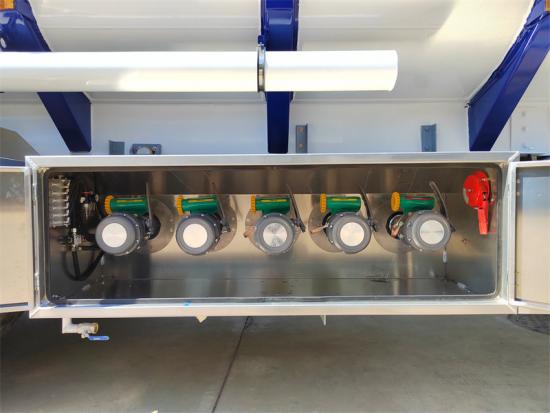

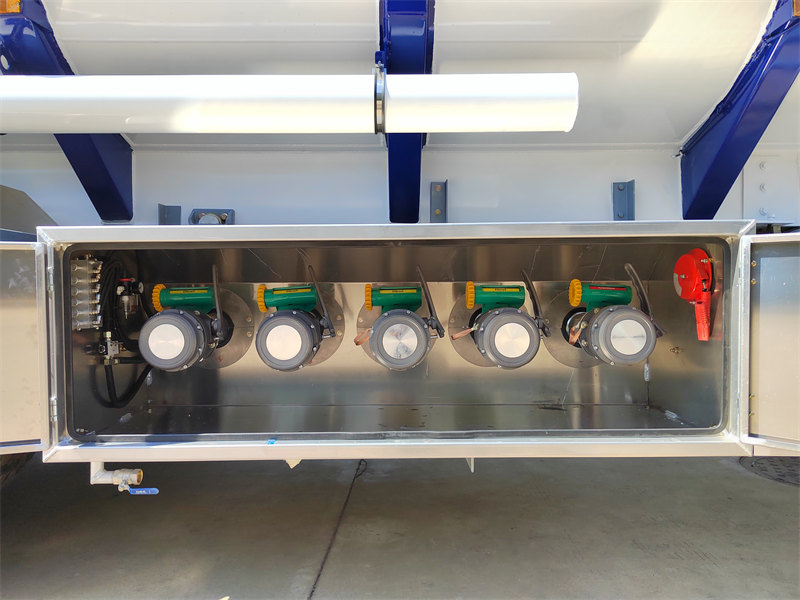

Unload valve |
5 piece 3 inch Al. ball valve |
|||
|
Oil hose box |
2 units/circular single hole tube/steel |
|||
|
Oil hose |
2units/black rubber 6m length |
|||
|
Anti-static electricity system |
pulling, wire carrier, sheet copper (7 sheet-standard layout) |
|||
|
Accessories |
Sea suction valve |
5pcs Aluminum, pneumatic |
||
|
Label |
according to oil type |
|||
|
Side guard |
cross bar structure |
|||
|
Wheel guard |
factory standard |
|||
※ Ⅲ. Product Features:
▲ Tank Volume: Total volume of 50 cubic meters, divided into 5 compartments with a single compartment capacity of 10 cubic meters, facilitating the transport of different types or densities of liquids.

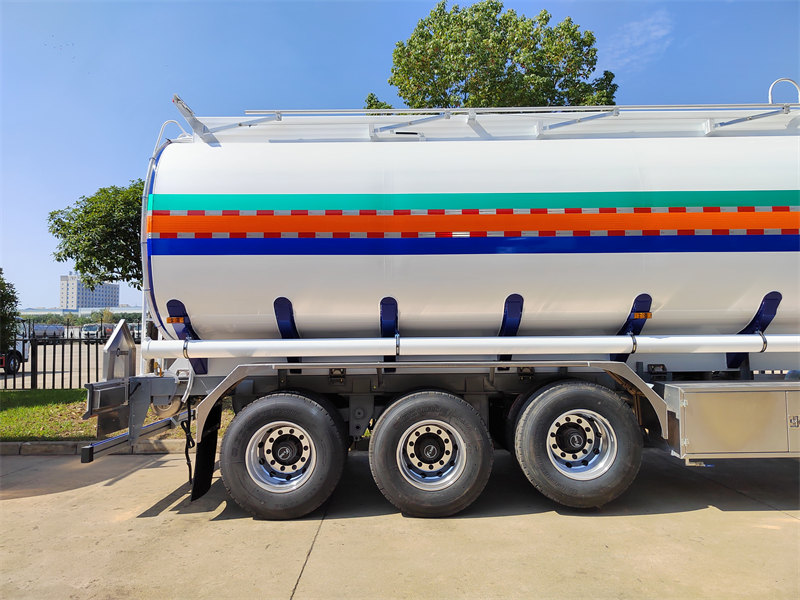

▲ Axles: Equipped with 3 FUWA 13-ton axles, providing good driving stability and load-bearing capacity.
▲ Tank Material: Made of Q235 carbon steel with a thickness of 6mm and internal anti-corrosion treatment.
▲ Internal Structure: Equipped with anti-surge baffles inside the tank to reduce the impact of liquid sloshing on vehicle stability.
▲ Safety Devices: Fitted with breathing valves, vapor recovery system, electrostatic grounding cable, emergency shut-off valve, overfill prevention device, etc., meeting the safety regulations for hazardous chemical transportation.

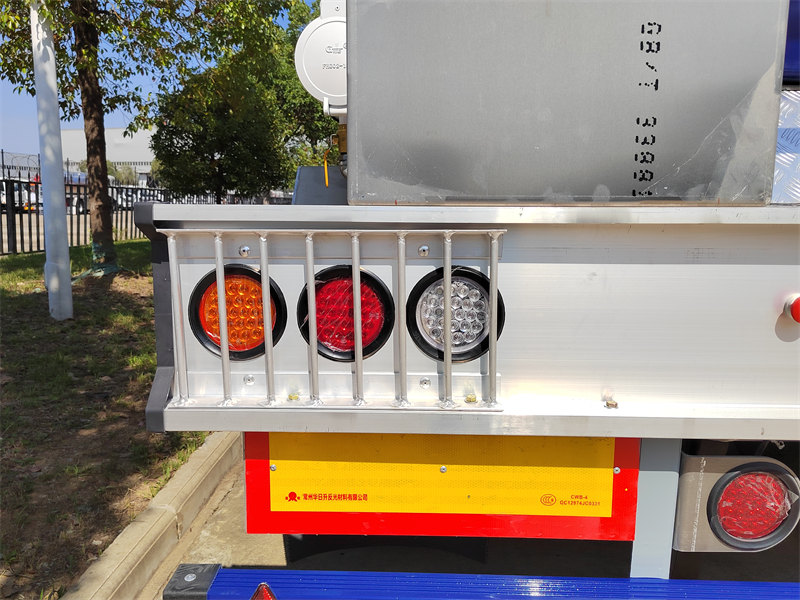

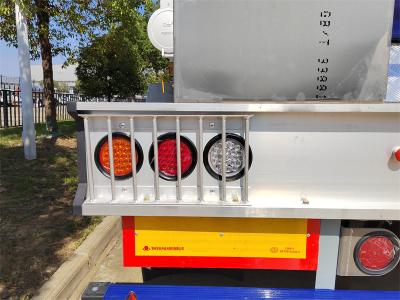

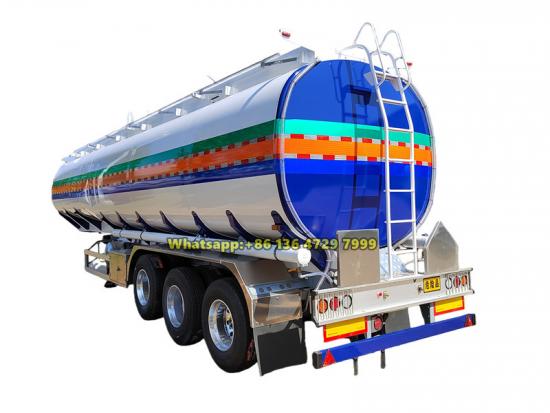

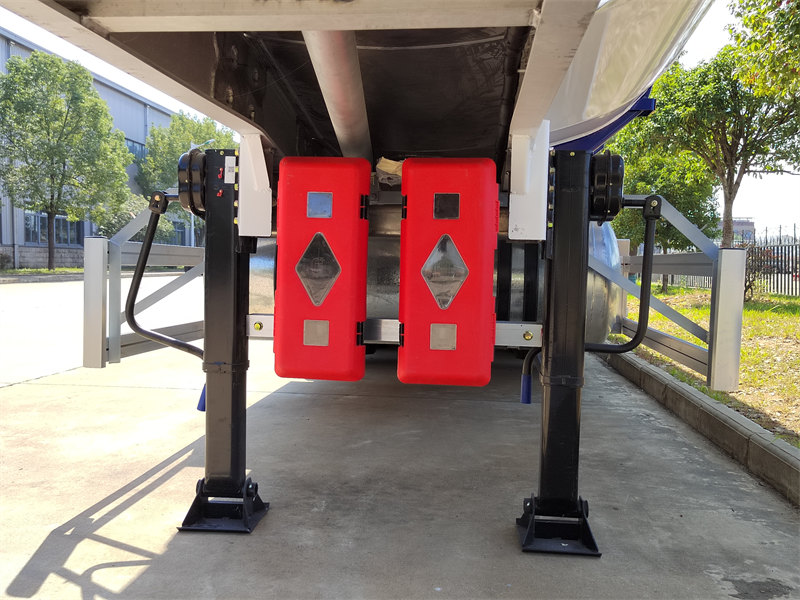

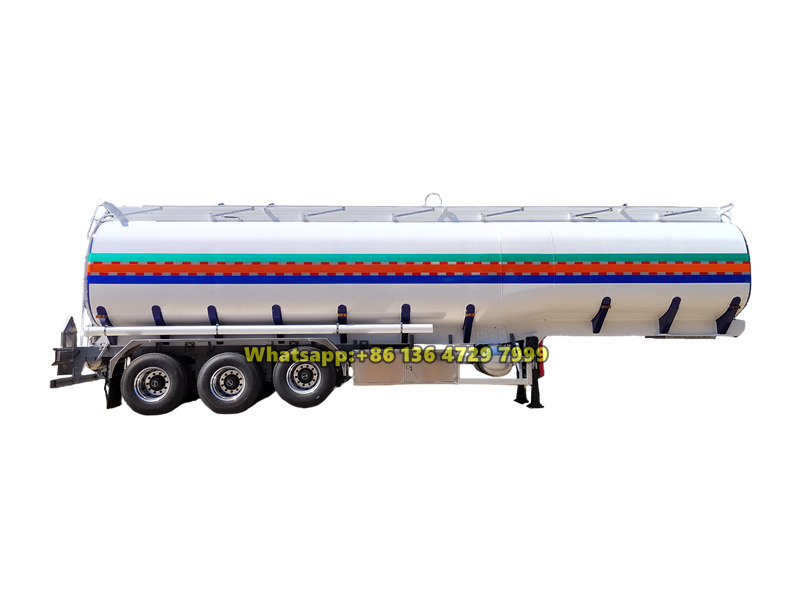

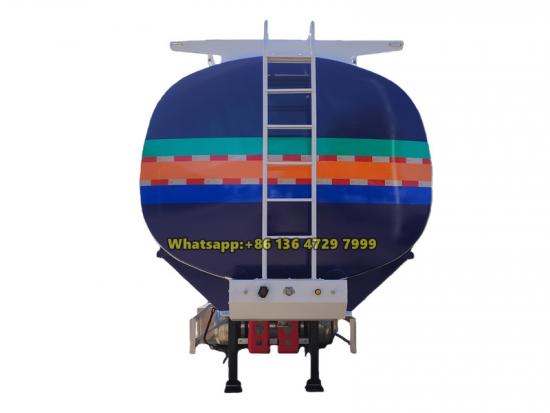

» Ⅳ. Product Details:

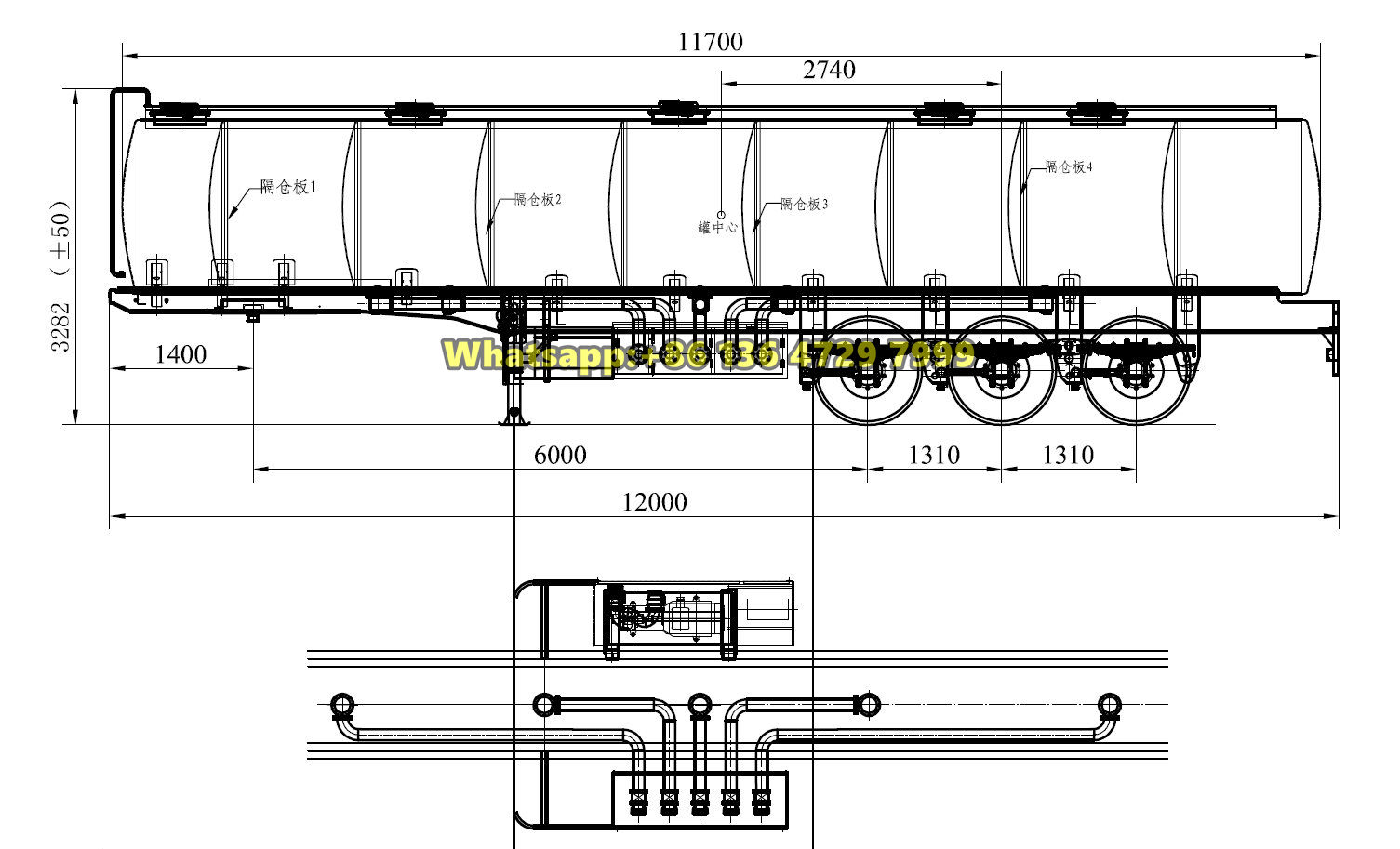

※ Ⅴ. Product Drawing:

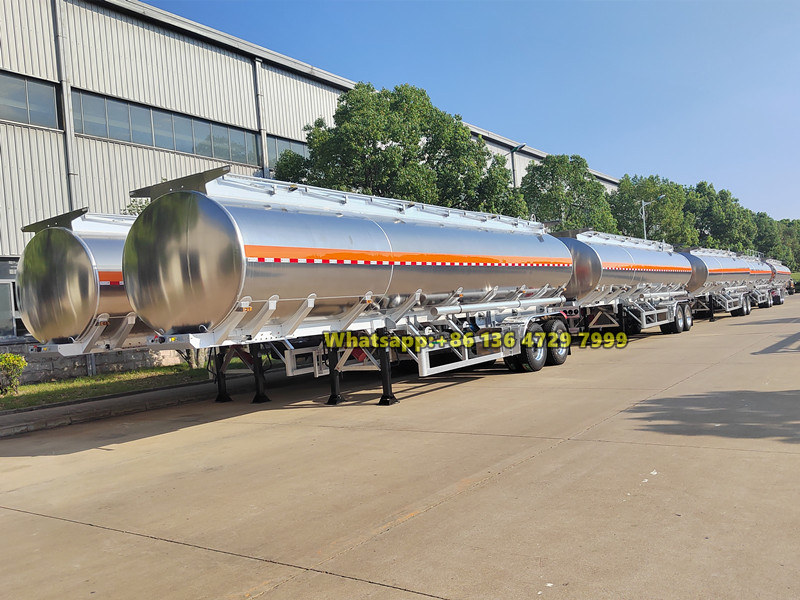

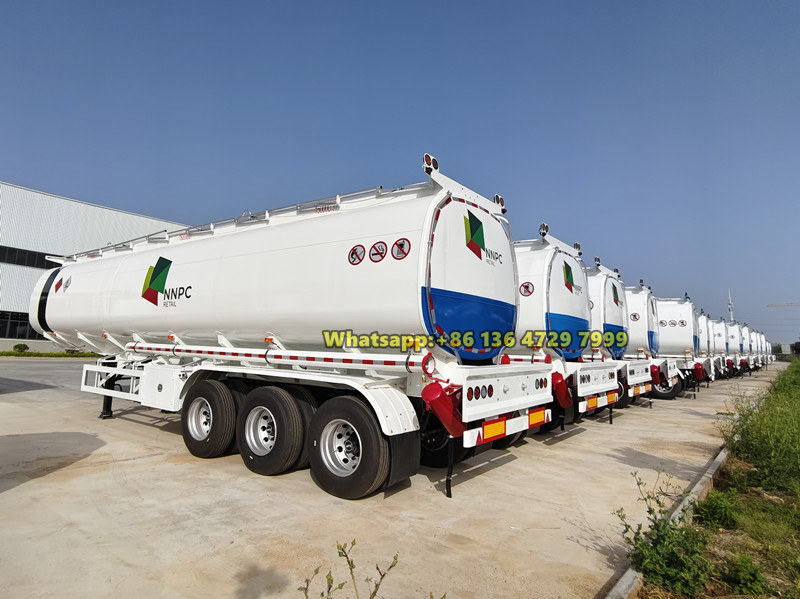

※ Ⅵ. Batch Delivery of Fuel Tanker Trailers:
 |
 |
| Aluminum alloy fuel tanke trailers for export | Fuel tanker semi-trailers ready for shipment |
Products --100% China tipper trailer factory!
Shipping --100% fast, Convenience, Efficient!
1. Customized 2 axles, 3 axles, 4 axles fuel tanker semi-trailers
2. FUWA/BPM alxes and air suspension system for option
3.Factory bottom price, strict quality control
4. Fast delivery, common models can be supplied within 15 days.
Fuel tanks semi trailer is designed to carry any liquid oil items like fuel, crude oil, cooking oil, petrol, water, diesel and so on. china best flammable fuel tanker semitrailer manufacturer, can supply kinds of oil fuel tanker semitrailer for all foreign customers. We have different Tanker Trailer capacity starts from 30,000 Liter to 70,000 Liter capacity
Fuel Tanker Semi Trailers , 45000 Litres 5 compartments Diesel Fuel Oil Tanker Trailers As the Professional Fuel tanker semi trailer manufacturer, we have the large rolling and welding equipments.Paying attention to the details of producing, we undertake a variety of carbon steel tanker trailer, stainless steel tanker trailer, aluminum tanker trailer, mirror aluminum tanker trailer and all kinds of liquid tank trailers based on the custom requirements from Africa, South American and South east country.
As the Professional Fuel tanker semi trailer manufacturer, we have the large rolling and welding equipments.Paying attention to the details of producing, we undertake a variety of carbon steel tanker trailer, stainless steel tanker trailer, aluminum tanker trailer, mirror aluminum tanker trailer and all kinds of liquid tank trailers based on the custom requirements from Africa, South American and South east country. We are china best factory of petroleum tanker semitrailer manufacturer, can produce kind of oil tanker semitrailer, fuel tanker semitrailer and other fuel tanker semtirailers.
Oil Tanker Crude Oil Tank Trailer Fuel/petroleum 45000l Steel Fuel Tanker Semi Trailer Tri-axle Fuel tanker semi trailers are desinged to carry any liquid items like fuel, Petrol,Cooking Oil,water, diesel Jet A1 and else. We have different Tanker Trailers opportunity starts from 30.000 Liters to 60.000 liter capacity. with 1 to 10 compartments 1.We Exported Zimbabwe more Aluminium Tank trailer . and this country weight limit serious ,So only Aluminium Tank satisfied the request ; 2.Like Zimbia ,Rwanda ,Tanzania and so on , Other country have rough road condition , So we can provide Thicken Mechnical Suspension for these country; 3.The folding arm rest can be design hydraulic ,It's convenient for your operate ; 4.Axles brand can be choose by yourself ,Like BPW/FUWA/L1/FD Brand
Tri-axle Fuel tanker semi trailers are desinged to carry any liquid items like fuel, Petrol,Cooking Oil,water, diesel Jet A1 and else. We have different Tanker Trailers opportunity starts from 30.000 Liters to 60.000 liter capacity. with 1 to 10 compartments. CEEC factoryTrailer gives its customers wide range of Tanker Trailers assortment and find the best solution according to customer road regulations. All of our oil tanker semitrailer have long guarantee more than 12 months.
Premium 12 Wheeler 50000 Liters Oil/Fuel Tank Trailer ,can exporting best quality oil tanker semitrailer for africa customer , supply 30 T, 40 T, 50 T, 60T fuel wagon semitrailer , all of our oil wagon semitrailer can comply with ADR, DOT standard.
Premium africa fuel tanker semitrailer manufacturer,can exporting best quality oil tanker semitrailer for africa customer , supply 30 T, 40 T, 50 T, 60T fuel wagon semitrailer , all of our oil wagon semitrailer can comply with ADR, DOT standard.
Welded design or Special design I beam, connected by bolts and nutsQ345 carbon steel material 2 or 3 axles, BPW/FUWA/HUAJING brand JOST (D200T ) or CHINA BRAND 28T
Tri axle oil tanker trailers 50000 liters fuel tank semi trailer gasoline transport tank trailer,Fuel Tanker semi trailers optional: 36cbm fuel tank trailer, 38cbm oil tank trailer, 40m3 diesel tank trailer, 45cbm liquid tanker truck trailer, 48cbm crude tanker semi trailer, 50,000liters fuel tank trailer, 55,000 liters oil tanker truck trailer, 60,000 liters tank truck trailer
