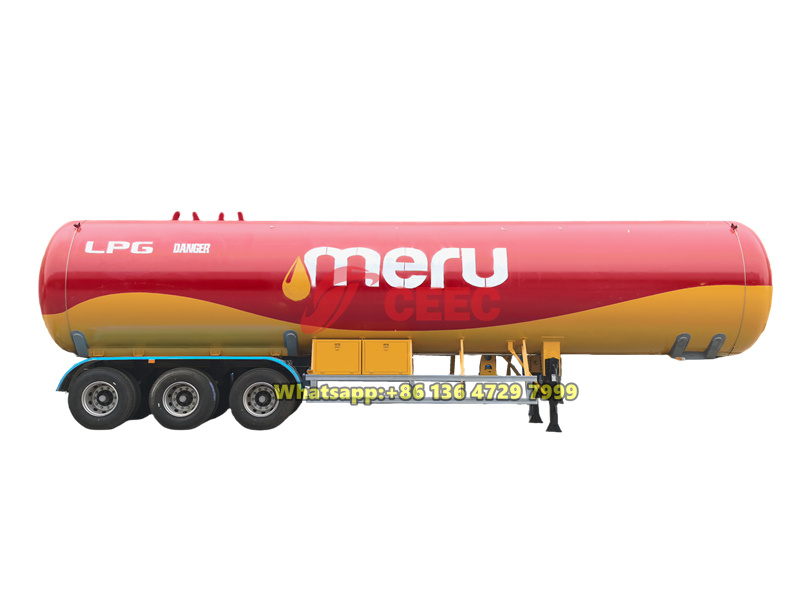

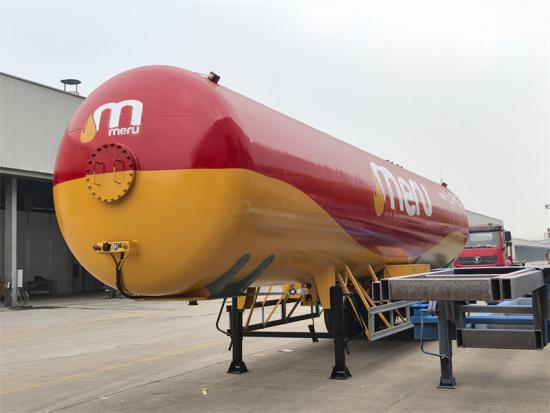

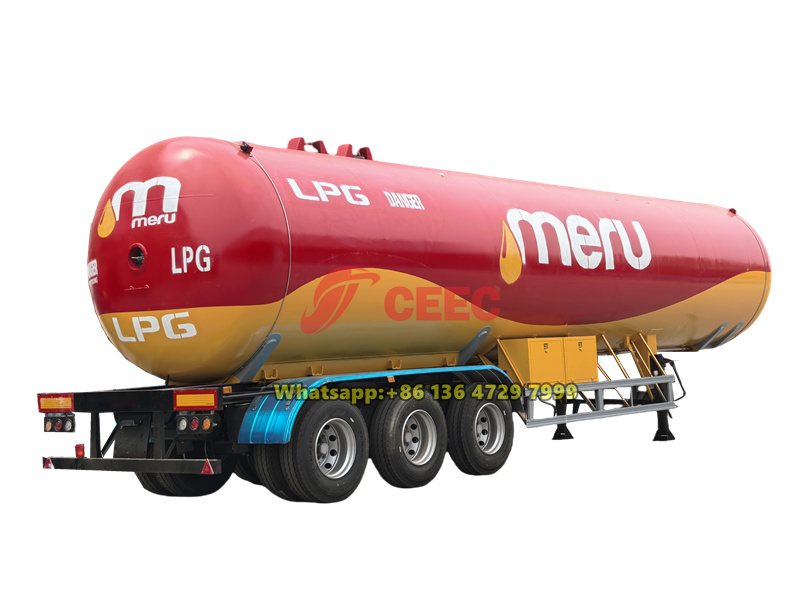

The tri-axle 56CBM LPG tanker semi-trailer is specifically designed for the transportation of liquefied gases. It is equipped with three BPW 13-ton axles, a JOST support leg, and a WABCO ABS system. The tank, made of Q345R steel plate, has a working pressure of up to 17.2 bar. It also features anti-surge baffles, safety valves, and an emergency shut-off device, ensuring comprehensive safety and operational efficiency with its superior configuration.
Working capcity:
56000 litersDimension ( mm ) :
12500×2500×3900Remark:
Tank volume, axle brand is optionalThe LPG tanker semi-trailer is a specialized vehicle used for the highway transportation of liquefied gases such as propane and propylene. The Uganda tri-axle 56CBM LPG tanker trailer is equipped with three BPW 13-ton axles, a JOST Landing gear, and a WABCO ABS system, ensuring chassis stability and braking safety. The tank is constructed from 11-mm Q345R special steel plate, with a design pressure of 17.2 bar.
It is fitted with internal anti-surge baffles and integrates multiple safety devices, including level gauges, safety valves, and emergency shut-off valves, providing comprehensive safety protection. With its high-quality configuration and optimized weight design, the vehicle achieves an excellent balance of safety, load efficiency, and operational economy.
» Ⅰ.Product Defination and Introduction:
CEEC factory is premium supplier of tanker semi-trailers,
guarantee all fuel tanker semi-trailers Brand-New and High-Quality.
» Ⅱ. Product Specifications:
|
Tri-axle 56000L LPG tanker trailer specifications |
|
|
Capacity |
56 CBM |
|
Type |
Cylindrical Type Half Chassis LPG Tanker |
|
GVW |
41190KG |
|
Fifth Wheel load |
15700 |
|
Tare Weight |
15200 |
|
Payload |
25990 |
|
Height |
4050 mm |
|
Width |
2500 mm |
|
Fifth Wheel Height |
1250 mm (for single truck) will be arranged according to truck |
|
Total Length |
12945 |
|
Design Pressure |
17.2 bar |
|
Test Pressure |
22.4 bar |
|
Design Temperature |
min -20 °c, max +70 °c |
|
Dished Ends Type |
Ellipsoidal |
|
Tank Body |
Cylindrical lime Truck made of 12 mm Special Lpg steel plate. |
|

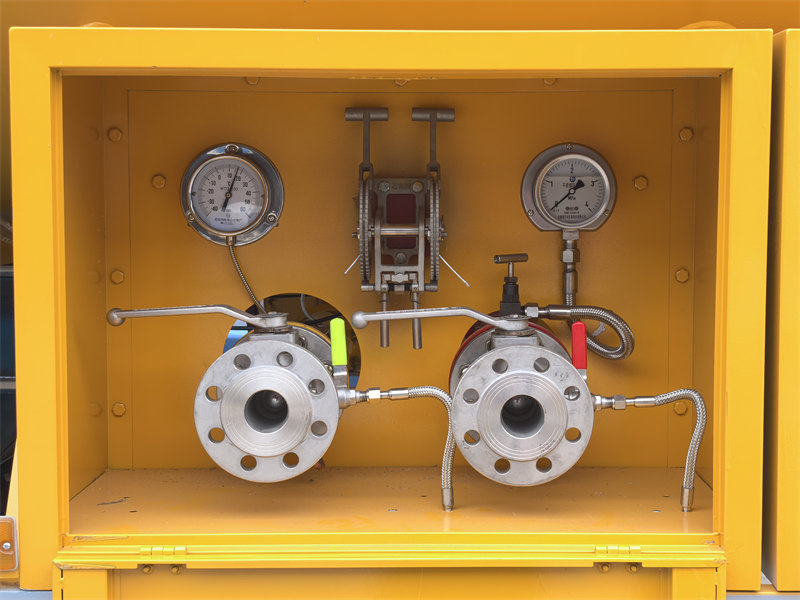

Equipment Tanks Over |
Block Flange DN 50, 2 units |
|
Block Flange DN 80, 1 unit |
|
|
Hydraulic Operator, 1 unit |
|
|
3 “Ball Valves, 3 units |
|
|
2 “Safety Valve, 2 units |
|
|
Vapor Discharge Valve |
|
|
Check valve, 2 units |
|
|
Rotogauge (Rotary Level Indicator),1 unit |
|
|
Glycerine pressure gauge (0-25 bar), Ø 63 1 unit |
|
|
Thermometer (-30 / 60 ' C) Ø63, 1 unit |
|
|
Acme Filler Cap, 3 units |
|
|
Manhole, 1 unit 400 mm |
|
|
Filter, 1 Unit |
|
|
2 fixed out gauges 80 % and 85 %. |
|
|
Pressure gauge 0 – 30 Kg/cm² complete with valves |
|
|
Chassis |
Half Chassis Has been produced in welding constructions with gas metal arc welding as “I” crossing from high resistant ST 52 considering overloads proper to capacity and intended usage |
|
Axles |
BPW, 3 x 13 Ton axles with Leaf spring suspension |
|
Brake |

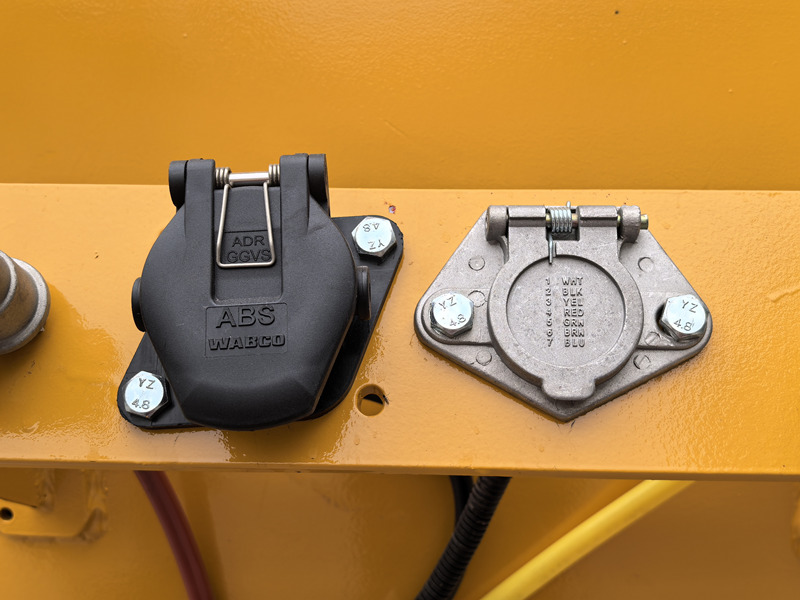

With WABCO ABS brake system |
|
Dual circuit brake hardware, 24” Service brake bellows fitted to axle 3 24×30” Emergency brake fitted to axle 1 and axle 2 Load balancing distribution valve, Automatic brake adjusters |
|
|
Electric Installation |
2×7 pin sockets – 24V, lights accord to standard in SAE rear stop lamps, side marker lamps, brake safety warning lamps and signal light fitted at the rear |
|
2 tail & stop combined lamps (red) |
|
|
2 turn signal combined lamps (orange) |
|
|
1 license lamp (white) |
|
|
Tires and Rims |
12 pieces 385/65R/22.5” |
|
Landing gear |
Jost Type Two speed, telescopic, mechanical conveyor legs, with the capacity of 24 tons each |
|
King Pin |
Jost Type Steel kingpin which is 50# suitable |
|
Kin pin Height will be arranged according to your truck. |
|
|
Blasting and Painting |
SA2.5 the quality of the exterior of the tank shot blasted, epoxy primer after sanding the surfaces with shopprimer is to be implemented and the boat will be painted |
|
Accessories |
1 pc Steel Bumper cover |
|
1 pc Spare wheel carrier |
|
|
2 pcs Food and Toolbox |
|
|
2 pcs fire extinguisher |
|
|
1 pc Side Protection Bar |
|
|
1 pc Water Tank |
|
|
2 pcs Wheel chocks |
|
» Ⅲ. Product Features:

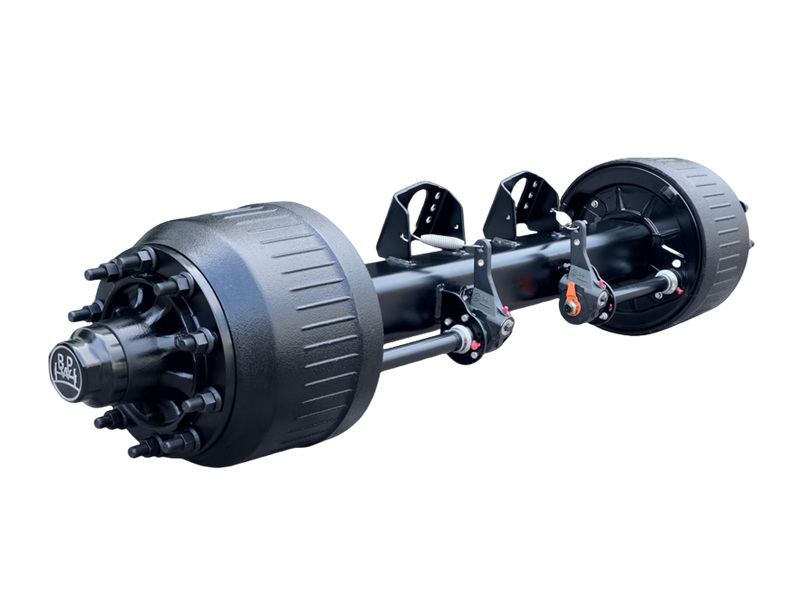

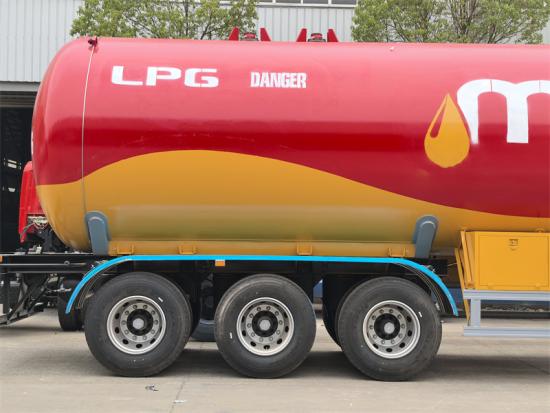

BPW 13-Ton Axles:
1. Robust and durable, the axles exhibit strong resistance to bending and torsion.
2. Excellent braking capability with strong thermal stability
3. Capable of adapting to more complex operating conditions

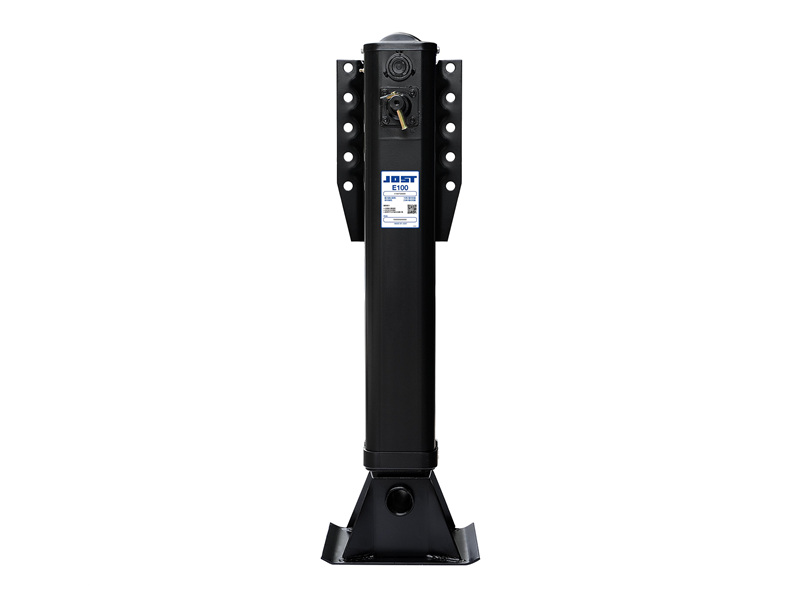

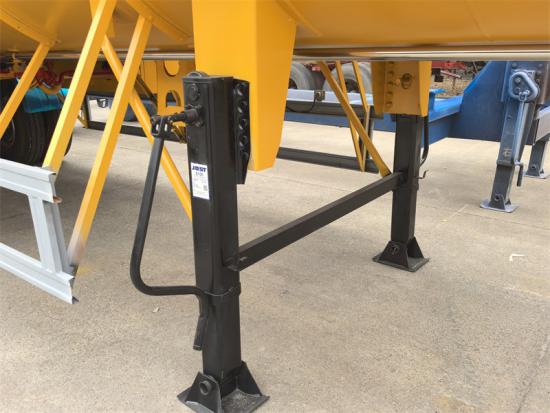

JOST Landing gear
Model: E100
Static Load Capacity: 70t
Lifting Capacity: 25t
High/Low Gear: 7.50mm / 0.83mm per revolution
Optional Support Feet: T type
Optional Stroke: 14" / 17" / 19" (355mm / 430mm / 480mm)
Tanker Body
Body material: Q345R special steel
Thickness: 12mm
End cover shape: Dished head
Effective volume: 56CBM
Designed pressure: 17.2 bar

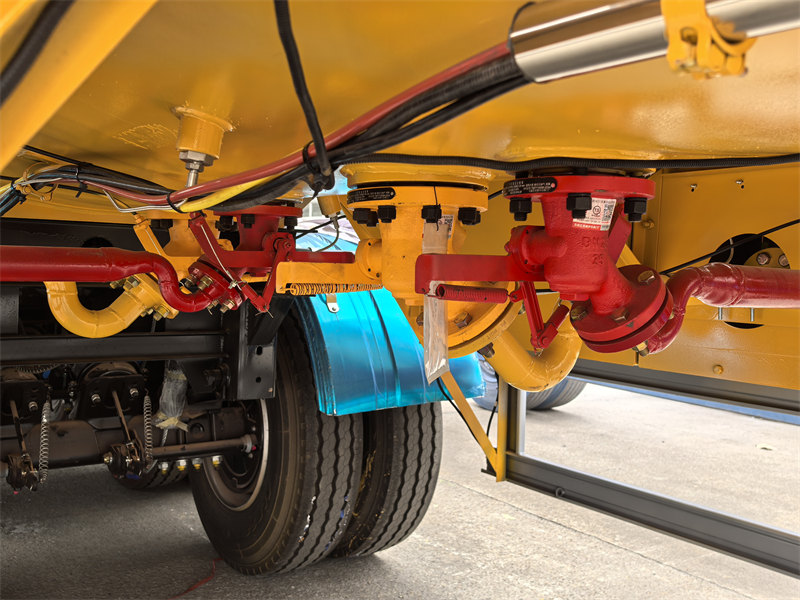

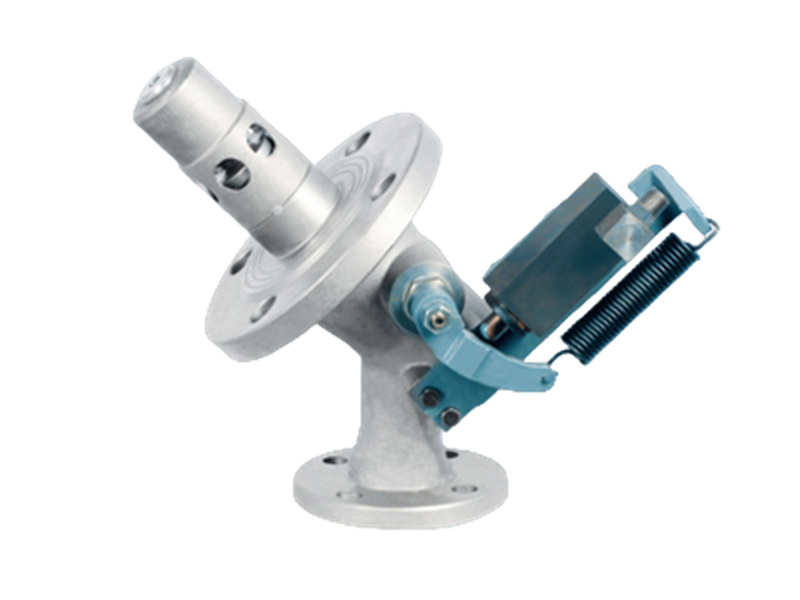

Emergency Shut-off Valve
• Nominal Pressure: 2.5 MPa
• Shell Test Pressure: 3.75 Mpa
• Seal Test Pressure: 2.75 Mpa
• Low-Pressure Seal Test Pressure: 0.1 Mpa
• Applicable Temperature Range: -40℃ ~ +50℃
• Maximum Flow Rate: 5-7 m/s
» Ⅳ. Product Details:

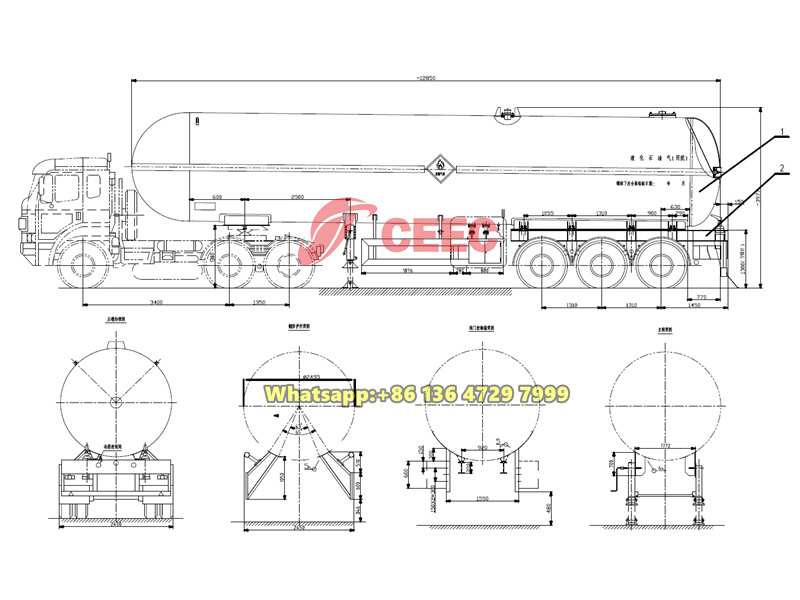

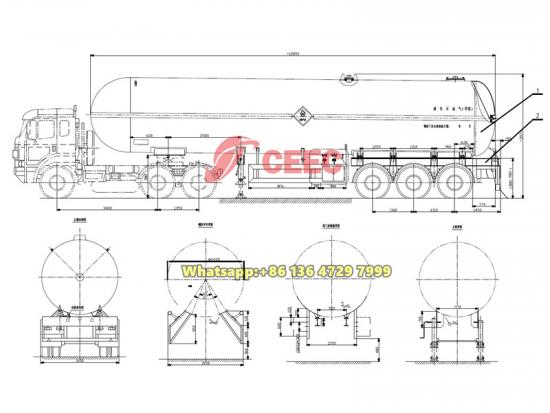

» Ⅴ. Product Drawing:
