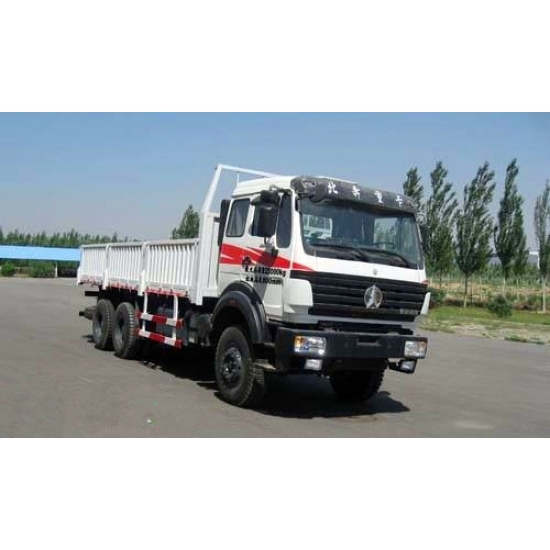

Beiben 2534 cargo truck chassis, 6*4 drive, benz technology 7 Ton front axle, benz technology 16 T rear axle, europen technology weichai 340 hp engine, 12.00R20 tyre.
Order(MOQ):
1Best quality beiben 2534,2532,2538,2540,2542,2546 cargo trucks manufacturer is china CEEC TRUCKS plant. Beiben cargo truck for bulk goods like rice, vegetable,
|
Technical Parameters |
||
| Brand | BEIBEN TRUCK | |
| Vehicle model | 2534P | |
| Cabin | Full steel skeleton structure, covered with double layer steel plate | |
| Anticorrosion treatment processes complex, anti-corrosion, durability of sustainable vehicles | ||
| Long/Day cab, made by full steel material, anti-crash performance can be ensured by double hollow chamber structure | ||
| Persons in cab: 3 | ||
| Driving | 6×4 | |
| Wheel base (mm) | 4450+1450/5050+1450 | |
| Weight data | Curb Weight(kg) : 11300 | |
| Engine | Model | Brand WeiChai WP10.336 / Diesel, Straight in line，water-cooled，turbocharged, intercooled, 6 cylinders, |
| Power | 340HP | |
| Emission | EUR III | |
| Rated power(kw/rpm) | 247Kw/2200rpm | |
| Transmission | FAST GEAR Model:12JS160T 12-forward &2-reverse gears | |
| Option:9JS150A | ||
| Clutch | single disc, dry type, diaphragm spring, φ430 | |
| Frame | BeiBen Unique frame, Mercedes-Benz technology, Strengthened frame | |
| Fish belly, various width, various sections, side beam structure | ||
| Axle | Front: | Mercedes Benz Technology, 7.5 ton, non-driving steering axle |
| Middle/Rear: | Mercedes Benz Technology, 13 Ton, ductile casting casing, with hub redactor, double reduction driving axle | |
| Suspension | Non-free standing stabilization spring, hydraulic shock absorber， stabilization suspension， | |
| Steering | ZJ120D/TAS85/ ZF8098 (Original ZF technology) | |
| Wheels and tyre size | 10+1/12.00-R20 | |
| Fuel tank (L) | 400L | |
| Up Body Volume(m) | 7.5/8.0x2.3x0.8(m); | |
| Colour | Metal white, multi-colored options | |
IVECO 340 Hp cursor engine water truck, the best quality IVECO 340 Hp cursor engine water tanker truck, best supplier for IVECO 340 Hp cursor engine water tanker manufacturer in china.
China IVECO 682 cargo truck, cheap price for IVECO 682 cargo truck, specially exporting to africa ethopia country.
Beiben Concrete pump truck supplier, beiben V3 truck cabin, weichai 460 hp engine, 8*4 driving system, fast 12 shift transmission, Benz technology front axle and rear axle, 12.00-20 tyre.
Beiben 6*4 wrecker truck, with benz technology truck cabin , benz 7 T front axle, benz 16 T double rear axle, 12.00R20 tyre, 5050+1350 mm wheelbase. 30 T towing capacity.
North Benz, V3 cabin, made by full steel material, anti-crash performance can be ensured by double hollow chamber structure, high back and shock absorption seat for the driver, with One Sleeper
Beiben NG80 tractor truck Bei ben truck best price
BEIBEN 10 roues camion-tracteur/tractor truck
North benz 8cbm 6x4 concrete mixer truck sale in Africa PRODUCTS ADVANTAGE * Original Price: FOB, CNF/CFR, CIF * Certificates: CCC, ISO, BV, GJB, CQC * Promptly Delivery: 15-30 days * Excellent After-sale Service and Customization Service. Product Description 2529BY /6×4/3450+1450/Short Cab/LHD Dimension 尺寸 9300*2500*3900mm Approaching angle/Departure angle 26/20° Overhang(front/rear) 1410/2640mm Wheel base 3800+1450mm Max speed 80km/h Curb weight 13650kg Loading capacity 11220kg Slope climbing capability Max.40% Engine Model WP10.340E32，water-cooled，four strokes，6 cylinders in line，turbocharged, directly injection Displacement 9.726L/Diesel Stroke 126/130mm Max. power 250/2200 (kw/rpm) Max.torque 1350/1200-1600（Nm/rpm） Emission stantard EuroⅢ Fuel tanker capacity 300L Clutch ∮430, Single dry frictional disc，Hydraulic boosting Gearbox 9T-160, mechanism,9 forward gears,1 reverse gear, manual operated, with synchronizer Gear ratio of gear box 12.60/8.39/6.31/4.64/3.43/2.45/1.84/1.35/1.00 R: 11.02 Suspension system Front Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 10pcs Rear Non-free standing stablization spring, balance suspension system, 13pcs Brake system Service brake Brake gap can be adjusted automatically, double circulation air brake system Assistant brake Engine exhaust brake Park brake Potential springs pressing on middle and rear wheels Steering system TAS85,whole circulation in ball, hydraulic booster Frame Fish belly shape, variable width, variable sections Front axle (Mercedes Technology) Double-shoe pneumatic brake, non-driving steering axle Middle and Rear axle (Mercedes Technology) Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle Tyre 12.00R20 Radial Electrical system Battery 2X12V/135Ah Generator 28V-35A Starter 5.4Kw/24V Cabin NG80B Long cabin with single sleeper; Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly; High back with arm seat for driver, high back seat for co-driver; With inner A/C Main technical parameters of concrete mixer Drum performance parameter Geometric Volume m3 15.5 m3 Effective Volume m3 10 m3 Filling Ratio % 64.5% Gradient of the Drum ° 15° Filling speed m3/min ≥3 Discharging Speed m3/min ≥2 Surplus Ration % <1% Range of Slump mm 20～300 Hydraulic System Pump Eaton 54 (ACA542337R) Motor Eaton 54 (HHD542337R) Gear Box PMB6sp Water supply system Volume of water tank 400L Water supply type Air pressure Type
North Benz 6x4 Tractors Prices Mercedes Benz Technology High Quality Best After - Sales Servic SGS BV TUV
