Beiben 2534 fuel tanker truck 6 wheel drive

Product Details

Beiben 2534 fuel tanker truck 6 wheel drive for congo country.

The most professinal beiben 2529,2534,2538,2542 fuel tanker truck, water tanker truck, truck mounted crane, fire truck manufacturer in china.

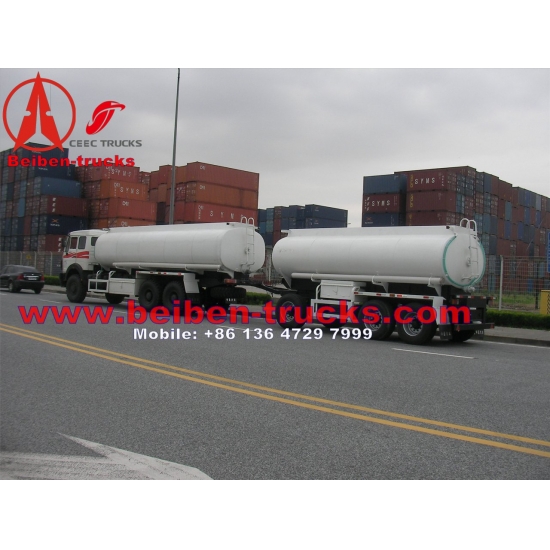

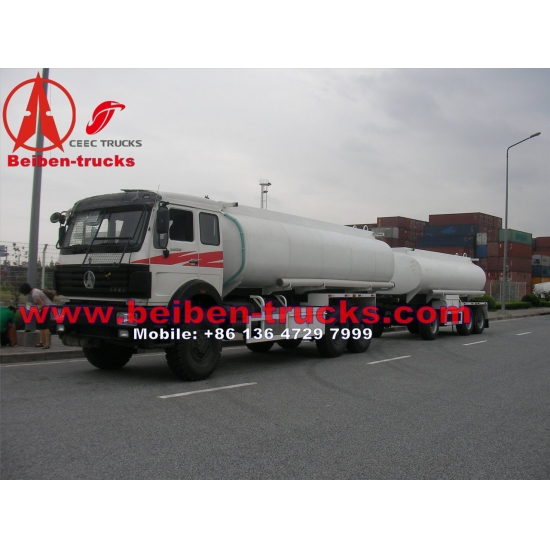

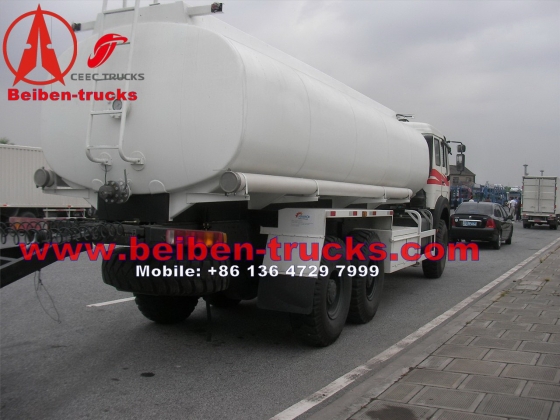

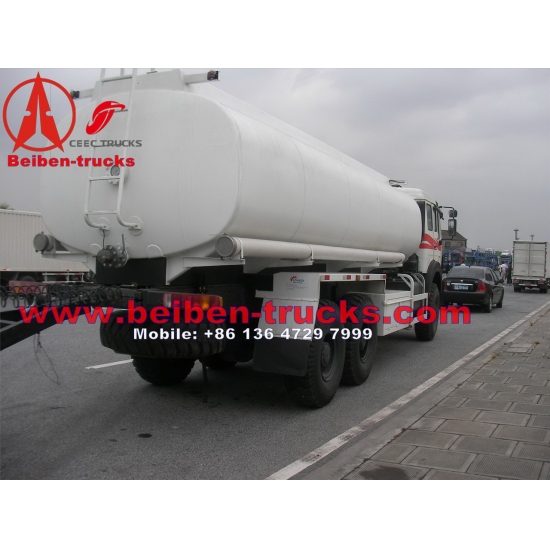

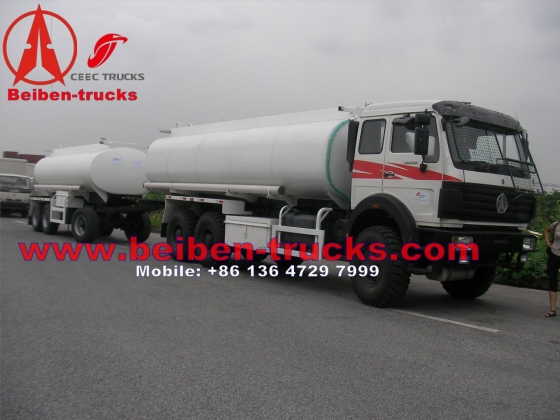

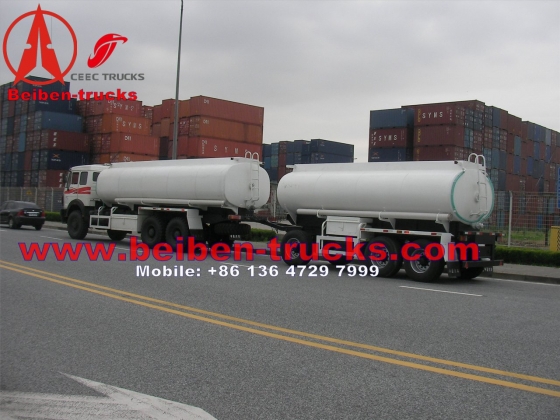

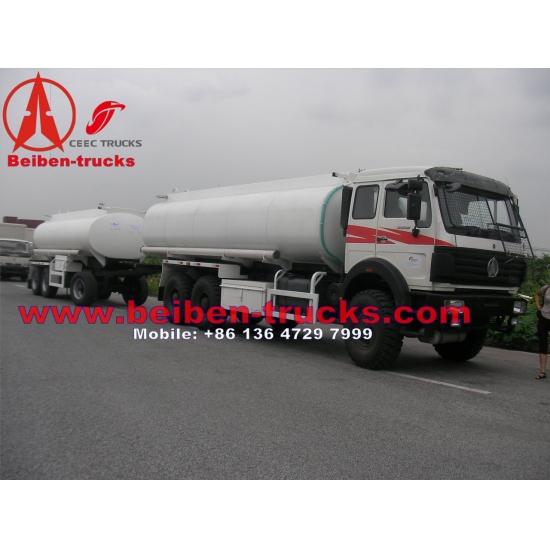

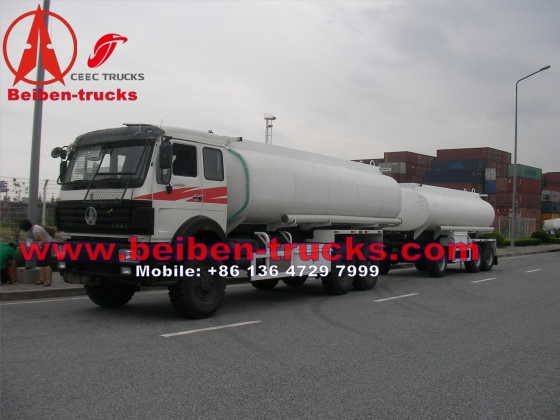

16m3 BeiBen 6*6  fuel tanker truck



Item

Descriptions

Spesifications and Types



Vehicle

Brand

CEEC



Model

CEEC5256GJYZ



Overall Dimensions L*W*H

10465x2500x3420mm



Weights

GVW.

25,000kgs



Curb Weight

12,270kgs



Rated Payload

12,600kgs



Chassis

Brand

BeiBen



Model

ND1250F50J



Drive Type

6x6



Steering

RHD or LHD, power assisted steering



Engine

Brand

WeiChai



Model

WP10.375



Power

276Kw /375HP



Displacement

9726ml



Emmission Level

EURO 3



Max. Torque

970Nm at 1400rpm



System

Inline six-cylinder electronic control system Enhanced high pressure common rail particle filter



Performance

Max. Speed

80km/h



Wheel base

5050+1450mm



Tyre Specifications

12.00-20



No. of Tyre

13pcs (1 spare tyre included)



Axle Capacity

Front 8 Tons & rear 12Tons



Transmission

8 forward gears & 1 reverse, Manual



Brake

Oil brake,drum brake



Suspension

Leaf spring



Electics

24V



Cab

Cab Capacity

3 persons allowed



Cab Type

One and a half row



Body/Superstructure

Tank

Capacity

16 m³



Material

tank shell 5mm ,dished ends 6mm,compartment boards 5mm,the material is carbon steel



Loading System

Top filling from manhole or pump fuel into tank from oil inlet valve.



Discharging System

Pump fuel out from tank or gravity discharge.



Basic
Equipments

Install fuel pump drive by truck engine through PTO; One manhole, two pcs of fuel hoses (3inches) with complete quick connectors, access ladder, tank top anti-slip steel mesh installed, anti-static device, one fire extinguisher, with two corners’ lights and reflective tape.




Paint

Rust proofing primer + undercoat +2 finish coats = 4;
Tank color is according to client’s requirements.



Optional Equipments

Air Conditioner



Tyre type:12.00R20



Tank material:Stainless steel



The tank thickness :5mm carbon steel



Bottom loading



Flow meter, rolling hose with nozzle, emergency valve, compartment number, epoxy coating inside tank
