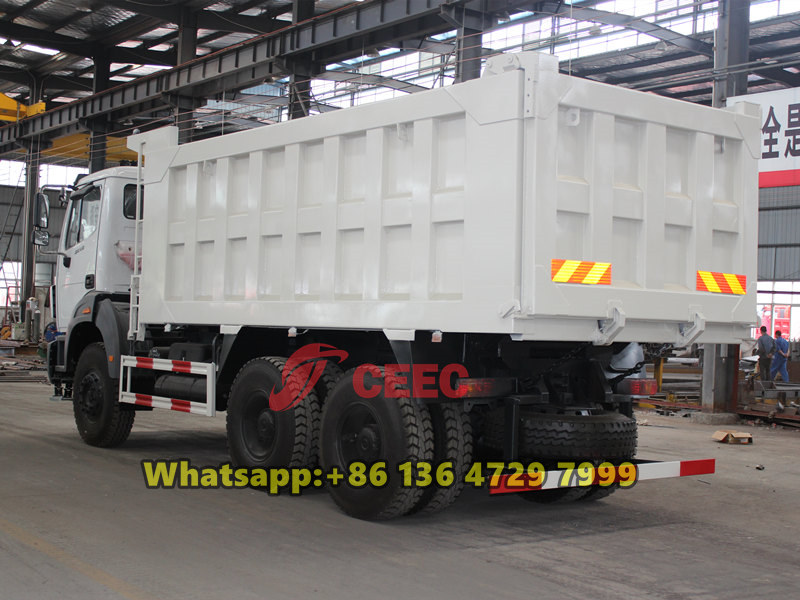

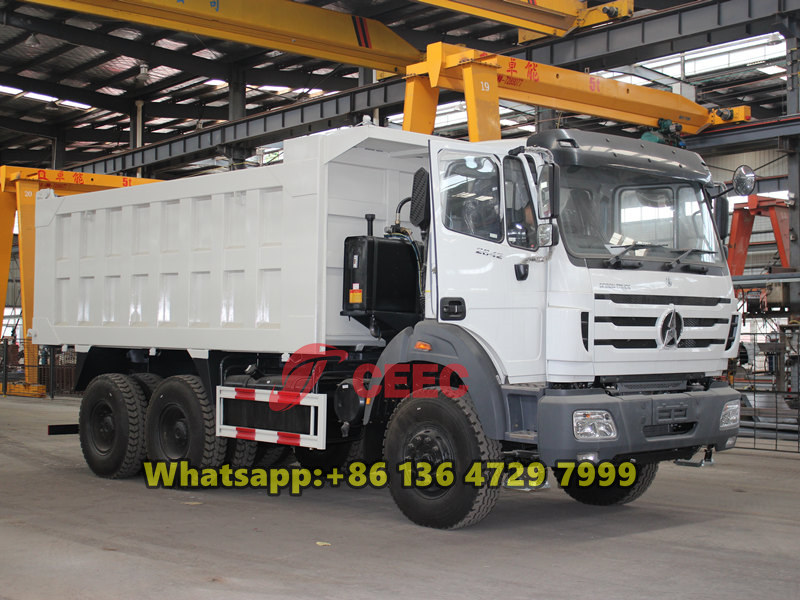

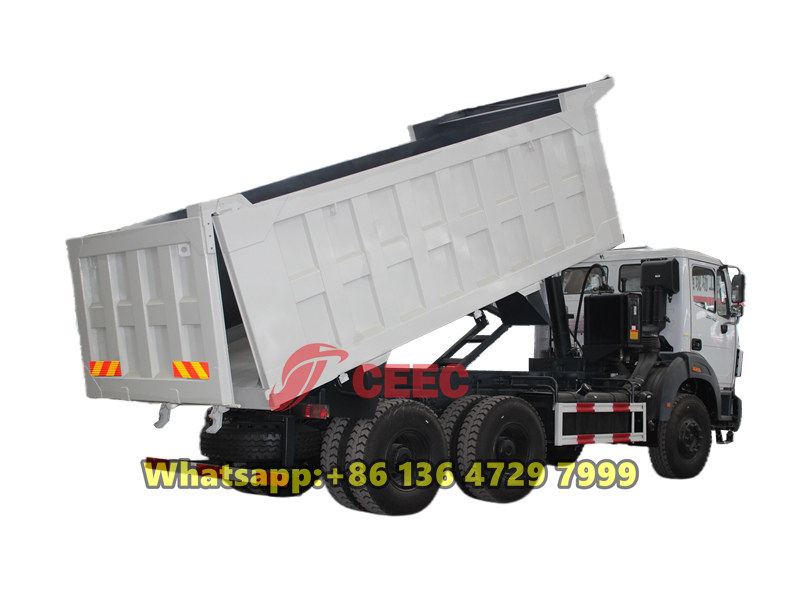

Kenya Beiben 2642 mining tipper truck

Proudct Description

The Beiben 6×4 dump truck is an engineering transport vehicle specifically developed for Africa's heavy-duty working conditions. With its exceptional load-bearing capacity, powerful performance, and high-temperature adaptability, it has become a star product in Tanzania's mining, road construction, and other heavy-duty operations. Based on Beiben 6×4 heavy-duty chassis, it features a 420HP Weichai engine, 12-speed FAST transmission, and a large 5600mm forward-tipping cargo box, perfectly meeting Africa's urgent demand for efficient transport equipment in infrastructure development.

The Beiben 2642 dump truck is powered by the Weichai WP12.420E32 engine. This 11.6L displacement power core delivers formidable 420HP (309kW) output, fully capable of handling Tanzania's complex terrain and heavy-load conditions. Compliant with Euro 3 emission standards, the engine maintains environmental performance while ensuring fuel efficiency and maintenance convenience. It's paired with a FAST 12JS200 manual transmission offering 12 forward gears and 2 reverse gears, with optimally designed gear ratios that allow drivers to precisely select gears according to varying road conditions, maximizing engine performance.

As a purpose-built heavy-duty truck, the Beiben 2642 tipper truck utilizes Beiben's proprietary reinforced chassis system. The front axle has a load capacity of 7500kg, while the tandem rear axles can bear up to 13000kg, giving the vehicle a gross vehicle weight rating of 26000kg. The well-proportioned 3800+1450mm wheelbase ensures both off-road capability on rough terrain and loading stability. 12.00R20 large-size tires provide excellent ground grip and cushioning performance, particularly suitable for Tanzania's common unpaved roads. With a 19° approach angle and 24° departure angle, the truck demonstrates outstanding passability in complex construction environments. The overall dimensions of 9200×2550×3250mm combine with the spacious 5600×2500×1500mm cargo box, which features a robust structure with 8mm thick floor and 6mm thick side plates, completely meeting the transport requirements for high-density materials like mine ores and construction debris.

Product Specifications

Product Features

Outstanding Power and Performance

• Beiben 2642 dumper truck is equipped with Weichai WP12.420E32 engine, delivering powerful 420HP (309kW) output to easily handle heavy-load climbing and complex working conditions
• 11.6L large displacement design with low-speed high-torque characteristics, specially suitable for African unpaved roads
• 12-speed FAST gearbox + 430mm large clutch for higher transmission efficiency and enhanced reliability
• High-temperature adaptive calibration ensures continuous stable operation in Africa's hot climate



Professional Heavy-Duty Chassis

• 6×4 drive configuration paired with Beiben reinforced chassis provides load capacity up to 25 tons
• 7.5-ton front axle + 13-ton rear axle load distribution perfectly matches African heavy-load transportation needs
• 3800+1450mm optimized wheelbase balances passability and stability
• 12.00R20 large-size tires enhance performance on complex road conditions



Efficient Loading/Unloading & Extreme Durability

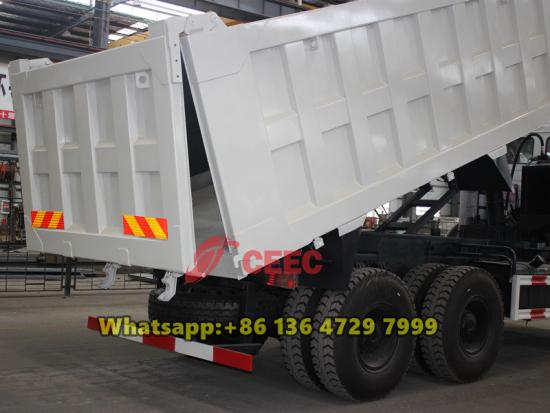

• 5.6m large-capacity cargo box with 8mm floor + 6mm side plate thickened design for superior impact resistance
• Front-tipping unloading method ensures simple operation and high unloading efficiency
• Reinforced critical components extend service life
• Simple and reliable mechanical structure reduces failure rate and simplifies maintenance



Humanized Driving Experience

• Hydraulically suspended cab + shock-absorbing seat significantly reduces driver fatigue
• Standard AC system improves working environment in African high temperatures
• ZF steering system provides light and precise operation
• USB port + MP3 audio system enhances driving comfort
