Beiben heavy duty sand tipper truck

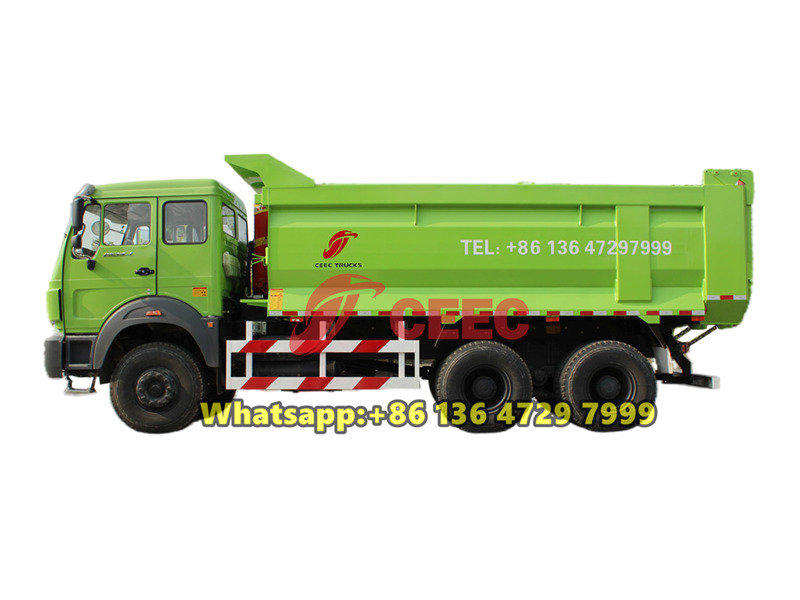

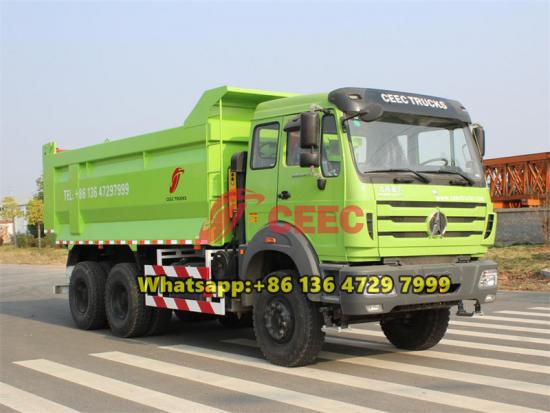

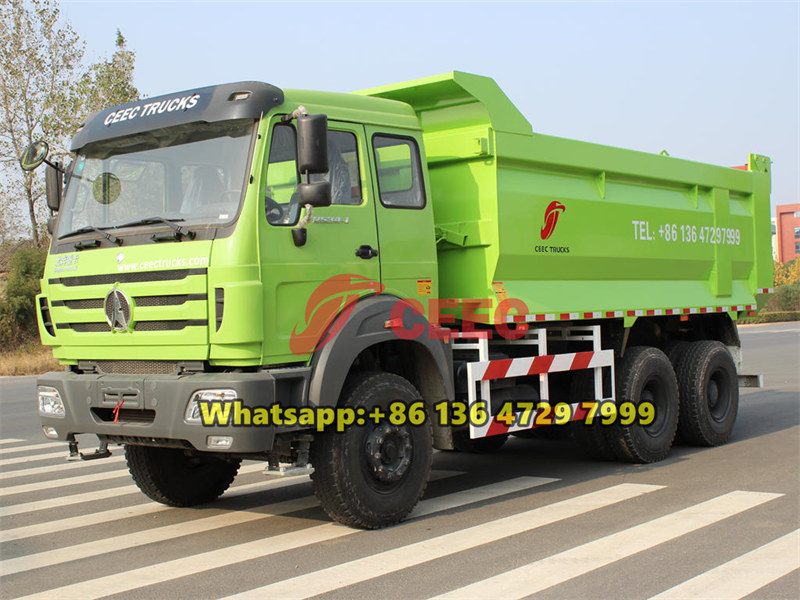

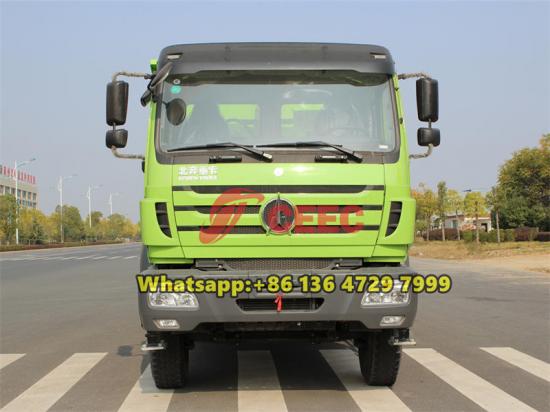

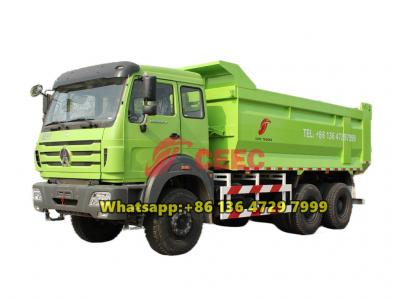

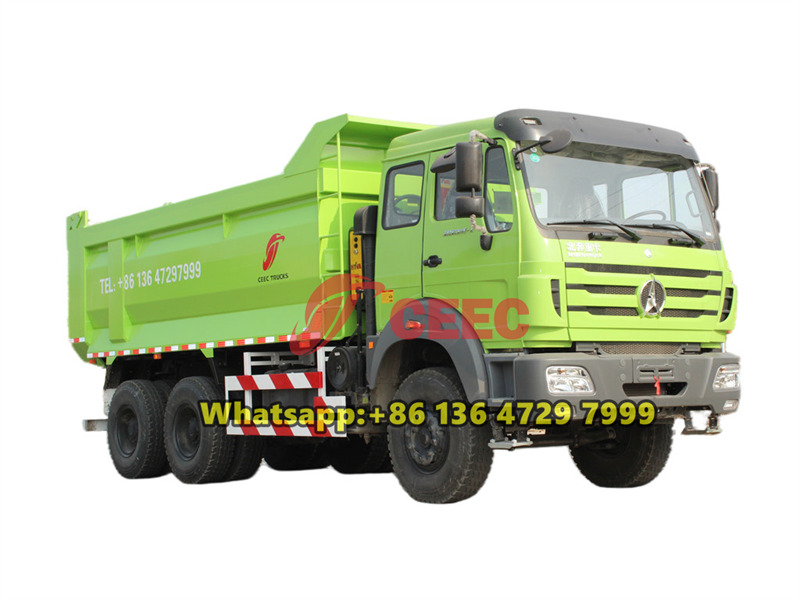

The Beiben NG80 6×4 heavy-duty tipper lorry is a large-scale engineering vehicle specifically designed for heavy-load transport conditions. It adopts a 6×4 drive configuration with left-hand drive and measures 9880×2500×3630mm overall. The model is built on the Beiben NG80 long cab platform, featuring a sleeper berth and air conditioning system. With a curb weight of 12,800kg and a maximum gross weight of 25,000kg, it is suitable for various heavy-load transport scenarios, including mining and construction sites.

This Beiben construction sand tipper truck is powered by a Weichai WP10.340E32 engine with a displacement of 9.726L, delivering a rated power of 250kW (340 HP) at 2200 rpm and a maximum torque of 1250N·m between 1400-1600 rpm, complying with Euro III emission standards. The drivetrain is paired with a FAST 9JS180 manual transmission offering 9 forward gears and 1 reverse gear. It utilizes a Φ430mm single-plate dry diaphragm spring clutch with hydraulically assisted pneumatic operation. The braking system consists of dual-circuit air drum brakes, enhanced by a WEVB engine brake for improved downhill safety.

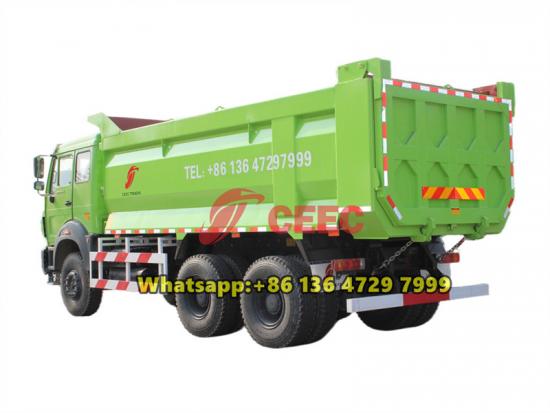

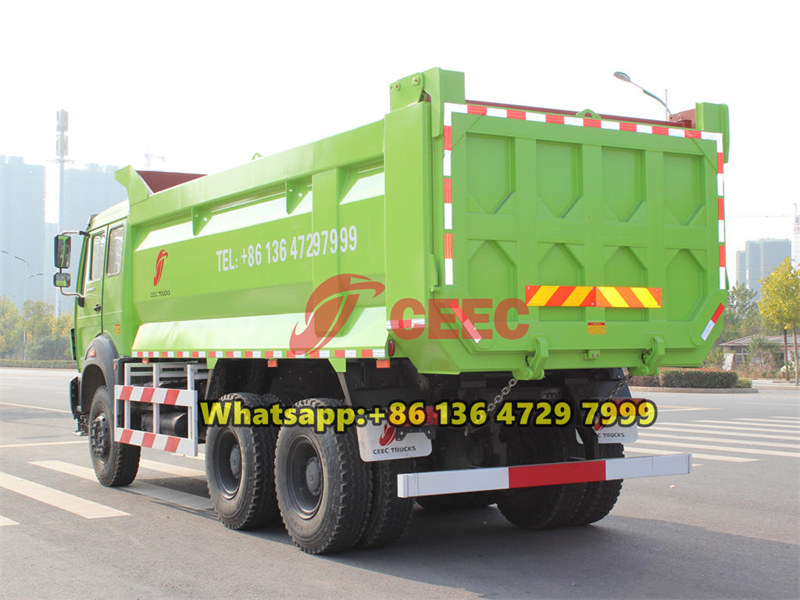

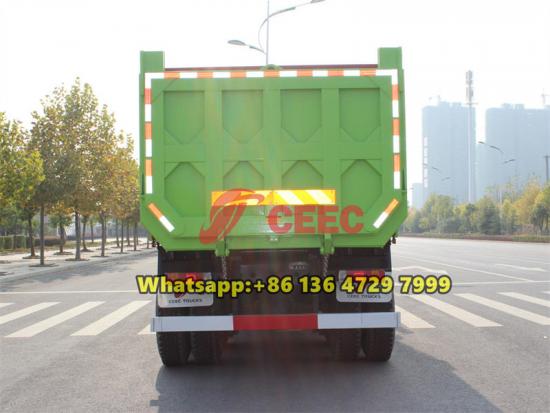

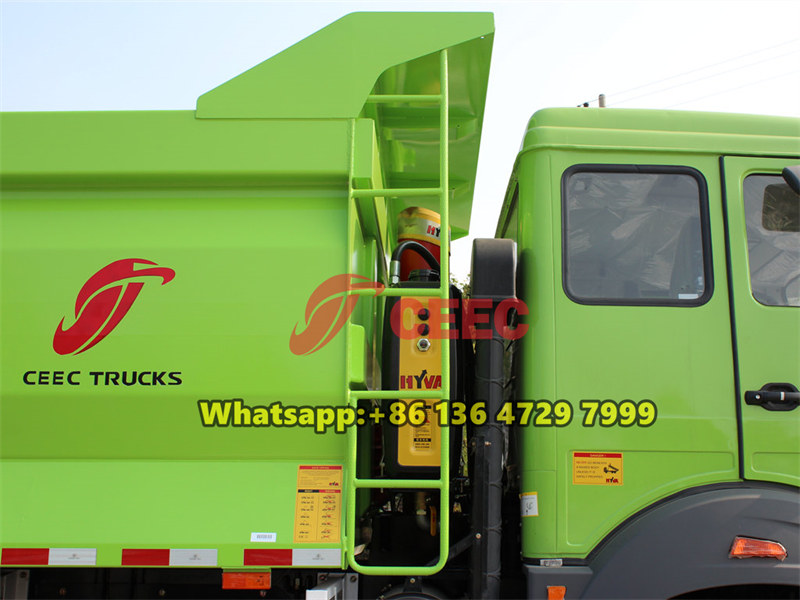

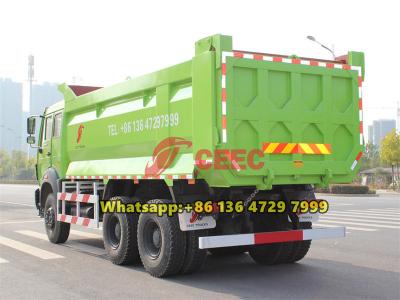

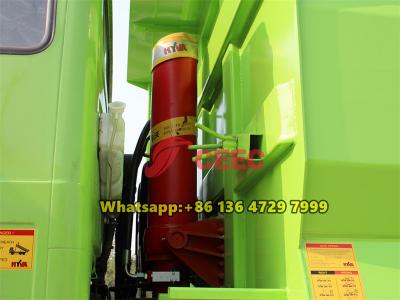

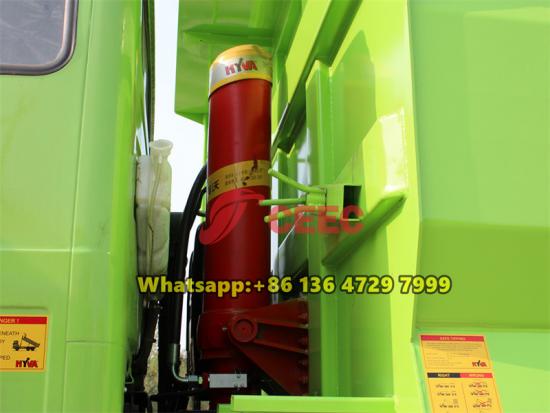

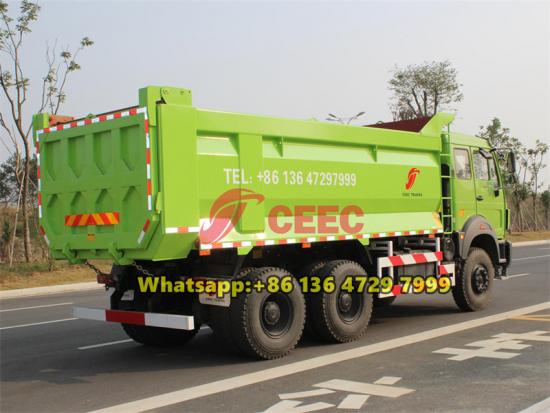

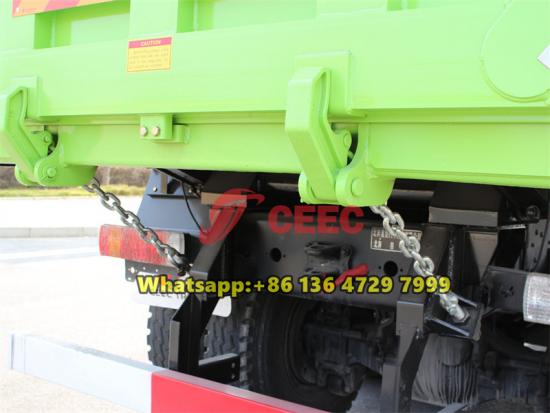

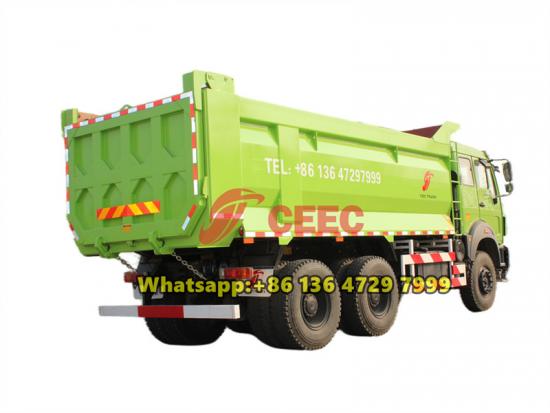

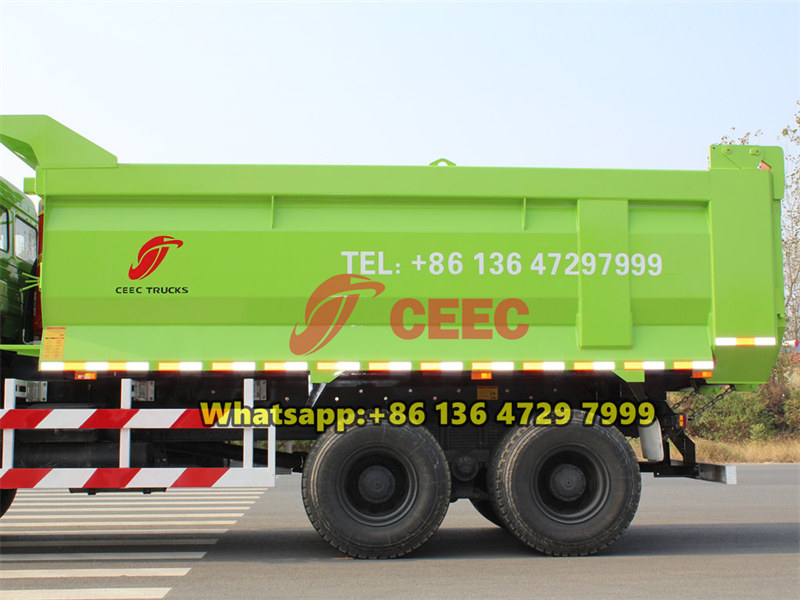

The Beiben heavy-duty construction dump truck incorporates a professionally engineered U-shaped cargo box with dimensions of 5600×2500×1500mm, providing significant technical advantages in engineering transport applications. The cargo box is constructed from high-strength steel, with an 8mm-thick floor and 6mm-thick side panels, balancing structural integrity with weight efficiency. The lifting system employs HYVA front-mounted hydraulic cylinders, designed to ensure stability under heavy-load conditions. During operation, the hydraulic system maintains steady pressure output, enabling smooth tipping even at full capacity. Reinforced connection points between the cargo box and chassis optimize load distribution, extending the service life of critical components.

Product Specifications

Product Pictures
