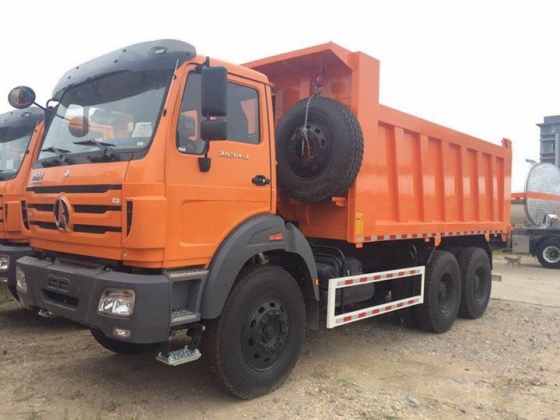

Beiben 2536 dumper
-
FOB Price
$40,000-50,000
-
Production time
40 days
-
Payment terms
T/T, West union

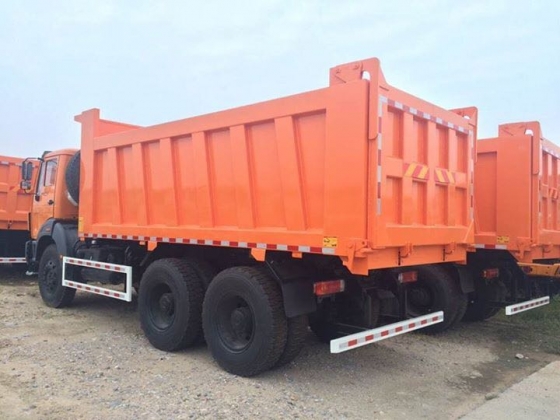

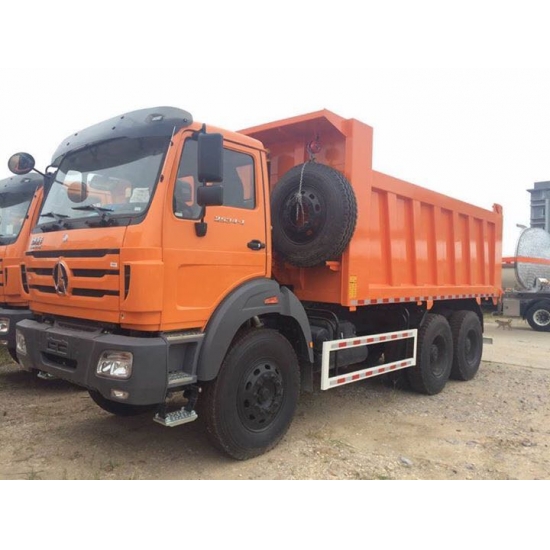

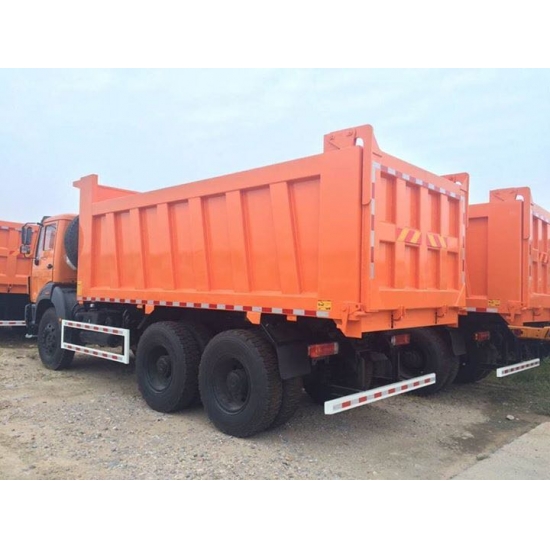

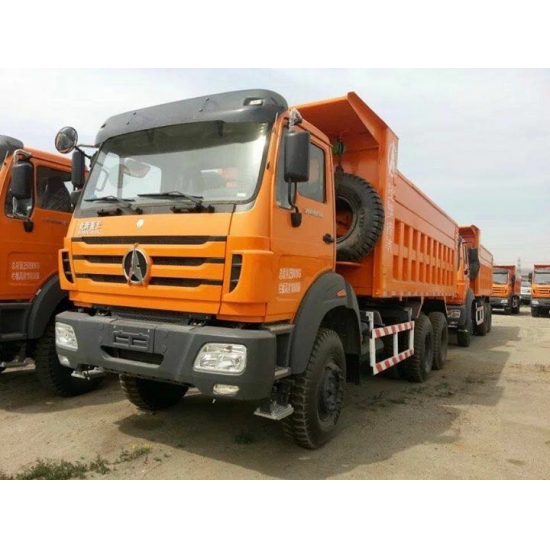

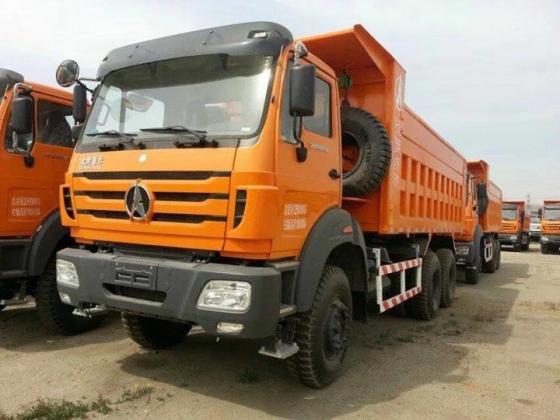

Beiben 2536 dump truck
Function:
◆ Sand, earth, Gravel transportation
◆ Construction site project.
◆ Municipal road construction
◆ Transport of light density stone, sand, gravel
Feature:
◆ Super reliable benz dumper technology, 100 years quality assurance.
◆ Famous weichai engine combined with original benz typerear axle reducer gear and differential gear
◆Continuous welding throughout body for additional strength, Full depth rear corner post with full depth rear crossmember.
◆ Special beiben tipper Body Design are optional
◆ 15 years great experiences on beiben dump truck upper structures designing and supplying.
Similar key words: beiben 2536 dump truck, beiben 2536 tipper, congo beiben dumper supplier, congo beiben tractor truck supplier, north benz 2536 dump truck, north benz 2536 dump truck supplier, china beiben dump truck supplier.
Authorized beiben 2529dump truck manufacturer in china, we produce good quality beiben 290 hp engine tipper truck, north benz 2529 dump truck. CEEC TRUCKS plant supply more than 200 units kind of beiben earth transportation truck to congo, kenya, ghana, algeria, nigeria, ethopia, myanmar,thailand. We welcome foreign customer to visit our beiben dump truck plant.
The best north benz dump truck supplier from china baotou beiben heavy duty dump trucks. The most professional beiben dump truck work experience on beiben 2527,2628,2632,3630,2629,2634,2638 dump trucks. Currently, we supply beiben LHD dump truck with 2534 cabin, beiben RHD dumper with 2534 cabin. Also beiben off road dumper , beiben mining dump trucks are also avaiable .
|
Beiben Dumper Body |
Body type |
Rectangle reinforced standard body (more body type refer to using environment) |
|
Inner size |
5600x2250x1400 mm |
|
|
Side/front/tail plate thickness |
4 mm Q235A carbon steel |
|
|
Deck plate thickness |
6 mmQ235A carbon steel |
|
|
Lifting system, |
HYVA 149 famous hydraulic lifting system |
|
|
Lifting Type |
Middle tipping |
|
|
Tipper body lifting time, |
≤ 20 S |
|
|
Tipper body Falling Time |
≤ 20 S |
|
|
Max. lifting angle |
52° |
| Sales No. | 2636 |
|
| Dimension（mm) | Long | 8250 |
|
|
Wide | 2500 |
|
|
High | 3690 |
| Wheel base（mm） | 3800+1450 | |
| Drive | 6×4 | |
| Engine | Model | WP10.360E32 |
| Cabin | NG80B/Long cab | |
| Clutch（mm） | Φ430 | |
| Front Axle | 7.5T | |
| Rear/Mid Axle | Model/speed radio | Double Reduction Driving Axle /5.263 |
| Steering System | ZF8098 | |
| Braking System | Dual Circulation Air Brake System | |
| Fuel Tank（L） | 400L | |
| Frame/mm | 317×70×8.5+7+8mm | |
| Tire | 12.00R20 | |
| Front/Rear Overhang | 1410/1590 | |
| Transmission | Fuller 9JS150TA | |
| Curb Weight（kg) | 12470 | |
| Up Body Volume(m³) | 5.6mx2.3mx1.3m | |
| Max Speed（km/h) | 90 | |

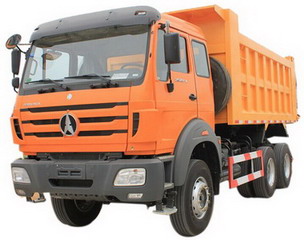

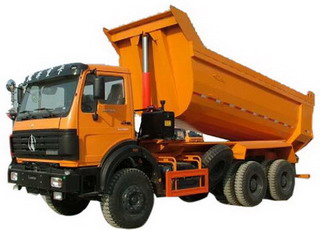

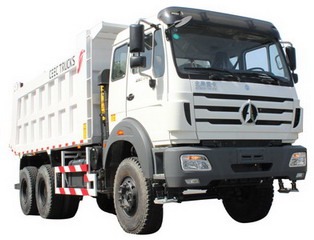

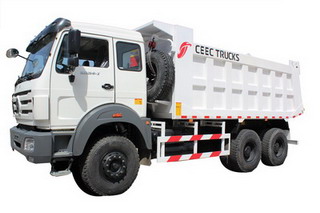

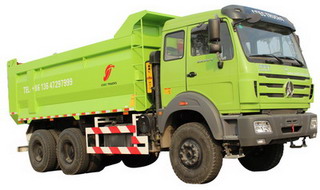

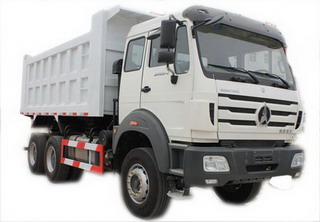

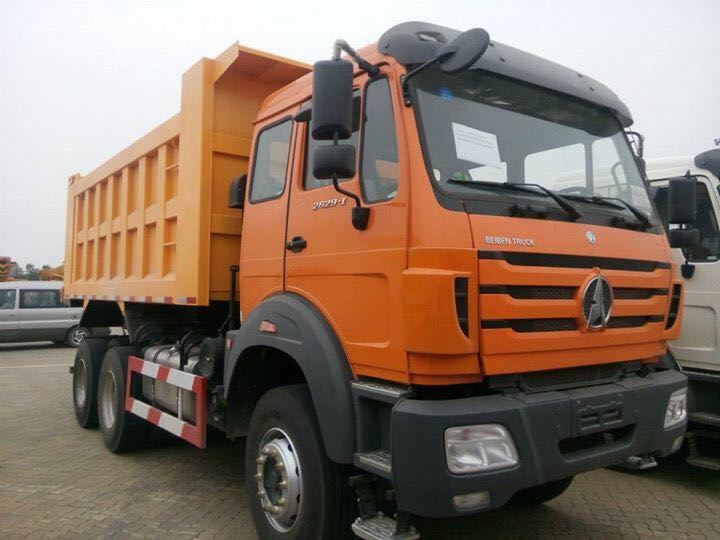

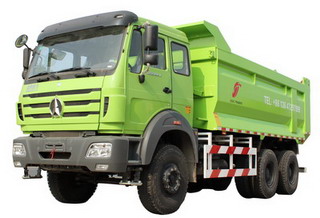

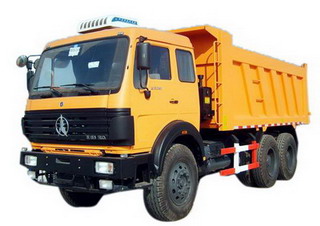

Beiben dump truck
|
Model |
Engine Model |
Rated Power |
Payload |
Driving Mode |
|
WP10.380N |
380 Hp |
60 Ton |
6*4 |
|
|
WP10.340 |
340 hP |
50 Ton |
6*4 |
|
|
WP10.340 |
340 Hp |
30 Ton |
6x4 |
|
|
WP10.340 |
340 Hp |
36 Ton |
6*4 |
|
|
WP10.380 |
380 Hp |
40 Ton |
6*4 |
|
|
Beiben 2529 |
WP10.290 |
290 Hp |
45 Ton |
6*4 |
|
WP10.380 |
380 Hp |
40 Ton |
6*4 |
|
|
WP10.380N |
380 Hp |
45 Ton |
6*4 |
|
|
Beiben 2529 |
WP10.290N |
290 hp |
30 Ton |
6*4 |
|
Power star 2628 |
WP 10.280N |
280 Hp |
40 Ton |
6*4 |
|
WP 10.290N |
290 Hp |
40 Ton |
6*4 |
|
|
WP 10.340N |
340 Hp |
35 Ton |
6*4 |
|
|
WP 10.290N |
290 Hp |
35 Ton |
6*4 |
|
|
WP10.340 |
340 Hp |
40 T |
6x4 |
|
|
WP10.290 |
290 Hp |
25-30 T |
6x4 |
Watch Beiben 2529 tipper on YOUTUBE.
Beiben 2529 dumper in shipping :
http://www.beiben-trucks.com/CONGO-customer-order-26-units-Beiben-NG80B-340-hp-dump-truck_n21
Congo customer use the beiben 2529 dumper:
http://www.beiben-trucks.com/Congo-Pointe-Noire-customer-purchase-18-units-beiben-dump-trucks_n20
http://www.beiben-trucks.com/Best-supplier-for-China-beiben-dump-trucks-in-CONGO-pointe-noire_n104
http://www.beiben-trucks.com/Beiben-2529-dumper-in-congo-customer-working-site_n28
How to build a good quality beiben dump truck ?
http://beibentruck.blogspot.jp/2016/02/how-to-build-qualified-beiben-dump-truck.html
