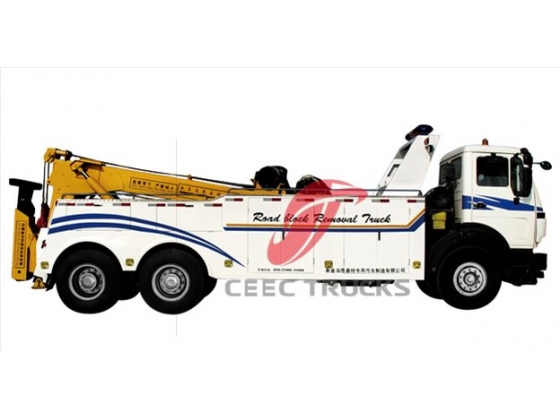

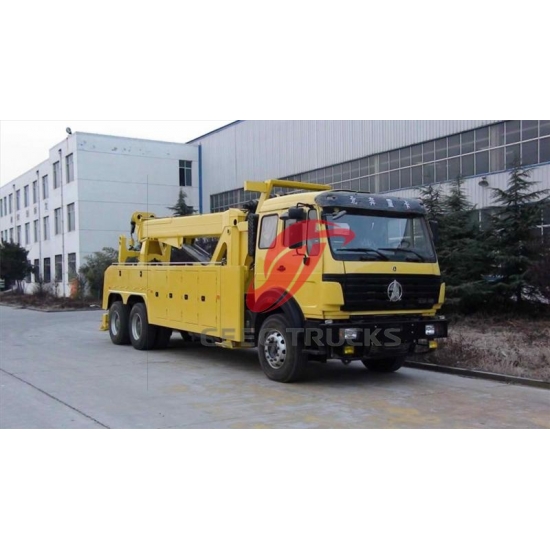

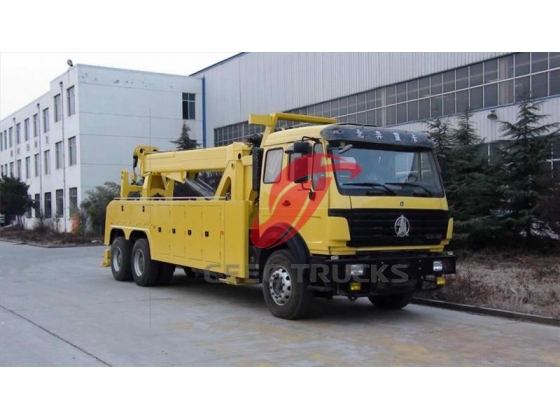

1Best china beiben Wrecker truck manufacturer in china, we can produce beiben 4*2 wrecker truck, beiben 6*4 towing truck, and beiben 8*4 wrecker trucks. As the most experienced north benz wrecker truck manufacturer ,our beiben wrecker truck can be 30 T, 40 T, 50 T, and 60 Ton.
Best desgin on beiben wrecker truck in china, CEEC TRUCKS is the No 1 wrecker truck manufacturer .
Beiben 4*2 wrecker truck drawing
|
Technical Parameters |
||
| Brand | BEIBEN wrecker TRUCK | |
| Vehicle model | 2632EM | |
| Cabin | Full steel skeleton structure, covered with double layer steel plate | |
| Anticorrosion treatment processes complex, anti-corrosion, durability of sustainable vehicles | ||
| Long/Day cab, made by full steel material, anti-crash performance can be ensured by double hollow chamber structure | ||
| Persons in cab: 3 | ||
| Driving | 6×4 | |
| Wheel base (mm) | 5050+1450 | |
| Gross Towing Weight(kg) | 12220 | |
| Engine | Model | Brand WeiChai WD615.44 / Diesel, Straight in line，water-cooled，turbocharged, intercooled, 6 cylinders |
| Power | 320HP | |
| Emission | EUROⅡ | |
| Rated power(kw/rpm) | 235Kw/2200rpm | |
| Transmission | RT11509C, 8-forward &1-reverse gears | |
| Clutch | GFX420, single disc, dry type, diaphragm spring | |
| Frame | BeiBen Unique frame, Mercedes-Benz technology, Strengthened frame | |
| Fish belly, various width, various sections, side beam structure | ||
| Axle | Front: | Mercedes Benz Technology, 7.5 ton, non-driving steering axle |
| Middle/Rear: | Mercedes Benz Technology, 13 Ton, ductile casting casing, with hub redactor, double reduction driving axle | |
| Suspension | Non-free standing stabilization spring, hydraulic shock absorber, stabilization suspension | |
| Steering | ZF8098 (Original ZF technology) | |
| Wheels and tyre size | 10+1/12.00-R20 | |
| Fuel tank (L) | 300L | |
| Dimension of Cargo Box | 5000x2500x500mm | |
| Colour | White, multi-colored options | |
| Specification of the Upper body | ||
| Wrecker body capacity： | 20 tons | |
| PTO | QH50 | |
|
Boom |
Max. lift weight when boom all retracted(kg): 20000 | |
| Telescopic distance(mm) :3510 | ||
| Max. lift height when boom all extender(mm): 9500 | ||
| Max. elevation angle: 50° | ||
| Rotation angle: 360°continuous | ||
| Under-lift | Max. parking lift weight when under-lift all retracted(kg): 16000 | |
| Rated running lift weight when under-lift all retracted(kg): 6500 | ||
| Max. parking lift weight when under-lift all extended(kg): 4500 | ||
| Max. effective length(mm): 2980 | ||
| Telescopic distance(mm): 1640 | ||
| Range of elevation angle: -9°～93° | ||
| Fold angle: 102° | ||
| Outriggers | Span between front and rear outriggers(mm): 6690 | |
| Transverse span between front outriggers(mm): 5110 | ||
| Transverse span between rear outriggers(mm): 4225 | ||
| Rated tow weight(kg) | 25000 | |
| Rated pull of winches(KN) | 2×100 | |
| Length of cable wire(m) | 40 | |

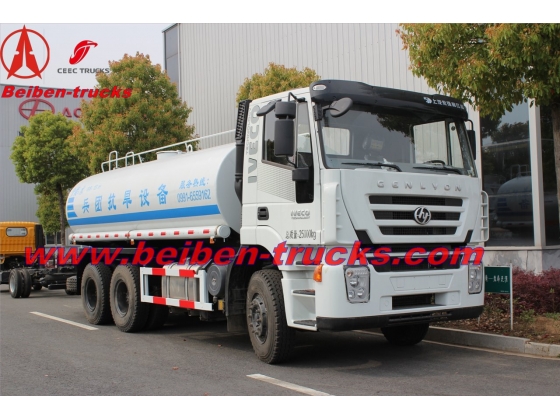

IVECO 340 Hp cursor engine water truck, the best quality IVECO 340 Hp cursor engine water tanker truck, best supplier for IVECO 340 Hp cursor engine water tanker manufacturer in china.

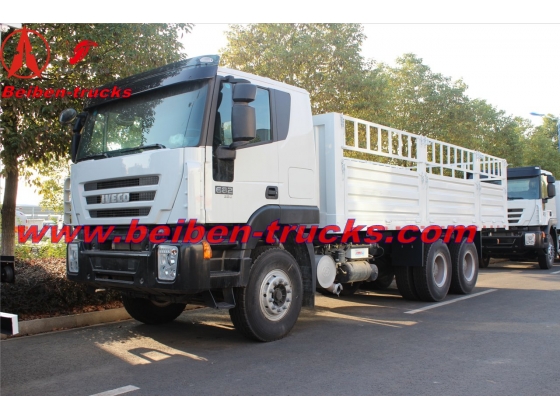

China IVECO 682 cargo truck, cheap price for IVECO 682 cargo truck, specially exporting to africa ethopia country.

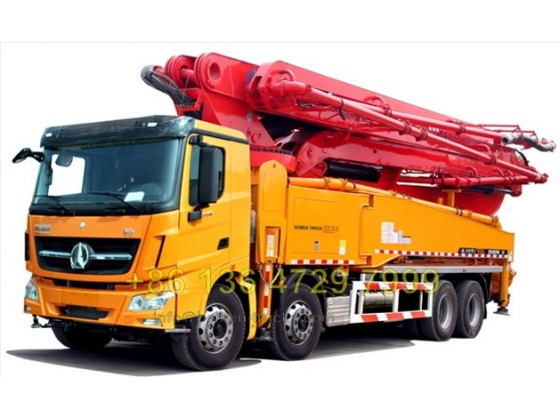

Beiben Concrete pump truck supplier, beiben V3 truck cabin, weichai 460 hp engine, 8*4 driving system, fast 12 shift transmission, Benz technology front axle and rear axle, 12.00-20 tyre.

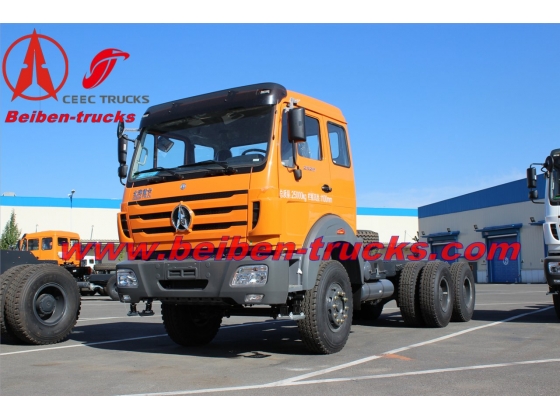

Beiben 2534 cargo truck chassis, 6*4 drive, benz technology 7 Ton front axle, benz technology 16 T rear axle, europen technology weichai 340 hp engine, 12.00R20 tyre.

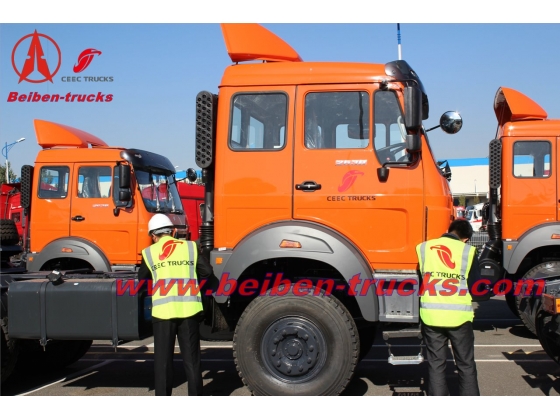

Beiben 2542S tractor truck beiben truck price, we will ensure the best price for beiben 2542 tractor trucks, best price for beiben 2542 tractor truck spare parts.
Using Mercedes-Benz Technology China beiben 30 ton dump truck sale Product Description Model 6x4 dump truck Cabin Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly; With inner A/C Engine Type: Diesel 4-stoke Direct injection,6-cylinder in line, Turbo-charging, Inner cooling. Model: WP10. 380E32 WEICHAI Diesel engine MAX Horse power: 380HP/280KW Displacement(L): 9.726liter (Euro 2 standard) Max torque: 1500NM@1200-1600rpm Bore/stoke: 126mm/130mm Gear box Max torque:2000NM Model: 12JS200T, mechanism,12gears,2reverse gear, manual, synchronization Speed: 12speed,2reverse Axle(front/rear) Front axle Double-shoe pneumatic brake, non-driving steering axle Tandem Double-shoe pneumatic brake, casting, double reduction driving axle Clutch Single dry frictional disc,Hydraulic boosting Brake Service brake: Brake gap can be adjusted automatically, double circulation air brake system Parking brake: Potential springs pressing on middle and rear wheels Engine brake: Engine exhaust brake(EVB) Steering TAS85, driver sit at the left hand side Electric Equipment Operating voltage: 24Vnegative grounded Starter: 24V,5.4KW Alternator 28V,758W Battery voltage 12V/135Ah,cigar lighter Frame Fish belly, shape, variable width, variable sections, side beam structure. Tyre 12+1 spare tyre with rim 12.00-R20 Suspension system: strongthen heavy duty Leaf spring type Front/Rear 12/12/13 Dump body: Inside size of Body(mm): 8900x2300x1000,6x8mm, made of high intensity steel Lifting type: Front lifter “T” type hydraulic system. Overall dimension(mm): 11730x2500x3484(Length x width x height) Wheelbase 1950+4600+1450mm Track: Front/Rear 2045/1872 Approach/Departure angle 26/27 Front /Rear overhang 1410/2320 Max speed 90km/h Kerb weight: 15500kg Oil tank capacity 300L fuel tank
china north benz 380 hp engine camions benne manufacturer , based on beiben 2638 6*4drive camions benne chassis. We are the best supplier for CONGO north benz 2534,2538,2542 camions benne.

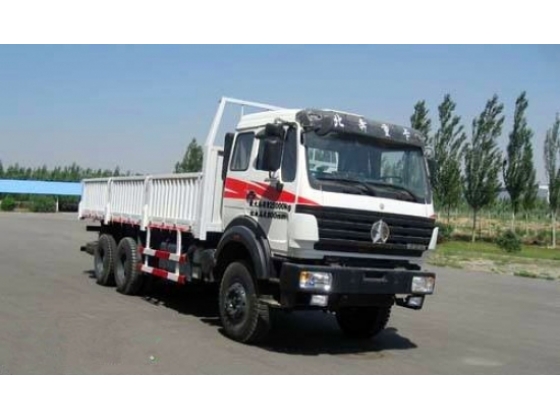

China beiben 2638 cargo truck chassis, equipped with 12.00R20 off road tyre, weichai diesel 380 hp engine,benz technology cabin , full equipped with wheel reducer. off road 12.00R20 tyre
