Driving type

4x4

Dimension(Lx W x H) (unloaded) (mm)

8826x2500x3215

Inner dimension (mm)

6500x2300x600

Approaching angle/Departure angle(°)

30/26

Overhang(front/rear) (mm)

1410/2616

Wheel base (mm)

4800

Max speed (km/h)

90

Curb weight (kg)

7980

Engine Styr technology, made in China

Model (WP10.300N)

WEICHAI Diesel engine, water-cooled, four strokes, 6 cylinders in line, turbocharged, directly injection

Displacement (L)

9.726/Diesel

Bore x stroke (mm)

126/130

Max power (kw/rpm)

221/2200

Max torque (Nm/rpm)

1390/1200-1500

Emission

EURO III

Clutch

Model

Single dry frictional disc, Hydraulic boosting

Gearbox

Model

RT11509C, mechanism,9gears,1reverse gear, manual

Brake system

Service brake

Double circulation air brake system

Assistant brake

Engine exhaust brake

Park brake

Potential springs pressing on middle and rear wheels

Steering system

(ZF company)

Model

TAS85,whole circulation in ball, hydraulic booster

Frame

Fish belly, shape, variable width, variable sections, side beam structure

Front axle

(Mercedes Benz)

Double-shoe pneumatic brake, non-driving steering axle

Middle and Rear axle

(Mercedes Benz Technology)

Double-shoe pneumatic brake, casting, double reduction driving axle

Tyre

12.00-20

Electrical system

Battery

2X12V/135Ah

Generator

28V-35A

Starter

5.4Kw/24V

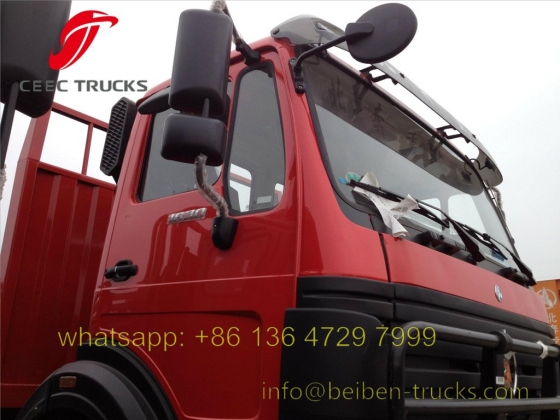

Cab

Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly, short cabin without sleeper
