China beiben 3134AP 8 wheel drive truck chassis

Product Details

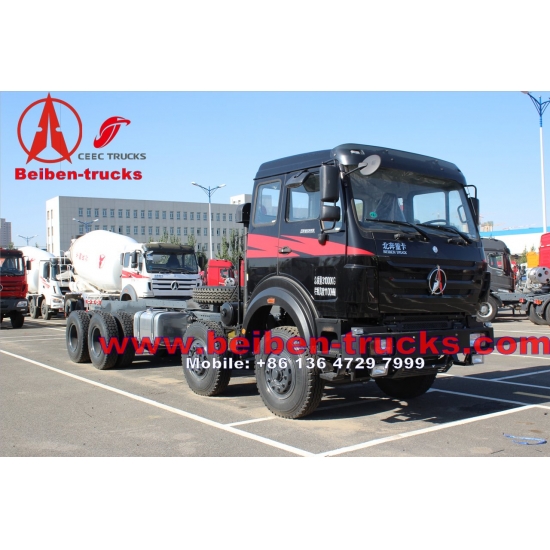

China beiben 3134AP 8 wheel drive truck chassis

Beiben dump truck for africa congo

The series products of our Beiben military all wheel drive trucks are ideal transport with outstanding performance and high quality, they are widely used in industries and sectors, such as national defense, aviation, postal service, railways, highways, harbors, petroleum, chemicals, water and electricity, forests, fire fighting, banks and peace keeping forces.

Originate from Mercedes-Benz Germany and Chinese local manufacturers,Beiben truck is the Chinese best truck brands and best quality, technical performance properties index and conform to the state and military standard.

Beiben dump truck for africa congo

Beiben truck features and advantages:

1: Driving room: the steel structure, high safety,lower wind resistance coefficient

2:Power system dynamic matching technology of mercedes-benz: less power loss and more efficient

3: The suspension system: Mercedes suspension, high intensity

4: Benz axle: double deceleration bridge, high efficiency, carrying large

5: Transmission system: high efficiency, bigger torque, climbing superior performance

6: Steering system:high safe and reliable, and flexible

7:Braking system, high security, brake with high efficiency

8: Electric system: stronger load ability, high reliability and easy maintenance



Beiben truck manufactured under the license of Mercedes Benz technology, which has excellent performance with reasonable price.

Technique Parameters

Brand BEIBEN TRUCK
Vehicle model 3134AP
Cabin Full steel skeleton structure, covered with double layer steel plate
Anticorrosion treatment processes complex, anti-corrosion, durability of sustainable vehicles
Long/Day cab, made by full steel material, anti-crash performance can be ensured by double hollow chamber structure
Persons in cab: 3
Driving 8x8
Wheel base (mm) 1500+4150+1450/1500+5050+1450
Weight data Curb Weight(kg) :13550
Engine Model Brand WeiChai WP10.336 / Diesel, Straight in linewater-cooledturbocharged, intercooled, 6 cylinders,
Power 340HP
Emission EUR III
Rated power(kw/rpm) 247Kw/2200rpm
Transmission FAST GEAR Model:9JS150A 9-forward &1-reverse gears
Option: 12JS160T
Clutch single disc, dry type, diaphragm spring, φ430
Frame BeiBen Unique frame, Mercedes-Benz technology, Strengthened frame
Fish belly, various width, various sections, side beam structure
Axle Front: Mercedes Benz Technology, 7.5 ton, non-driving steering axle
Middle/Rear: Mercedes Benz Technology, 13 Ton, ductile casting casing, with hub redactor, double reduction driving axle
Suspension Non-free standing stabilization spring, hydraulic shock absorber stabilization suspension
Steering ZJ120D/TAS85/ ZF8098 (Original ZF technology)
Wheels and tyre size 12+1/12.00-R20
Fuel tank (L) 400L
Colour Metal white, multi-colored options
