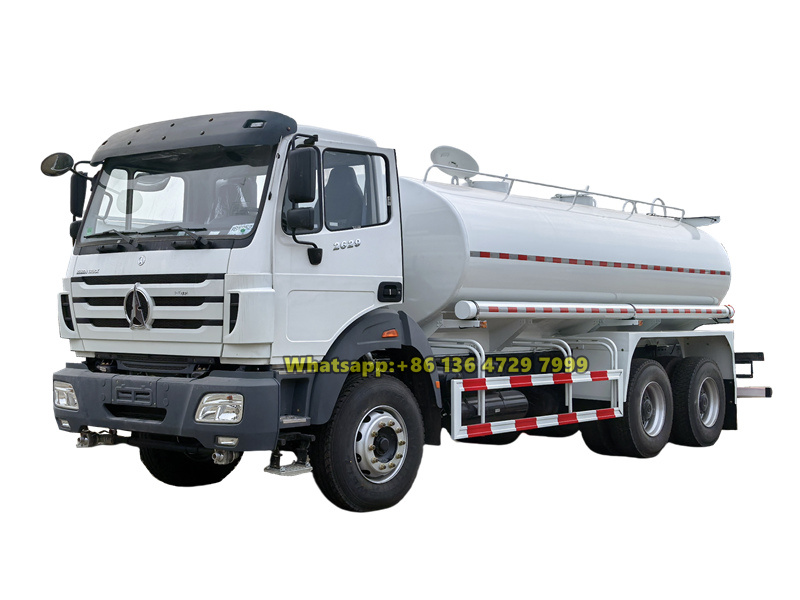

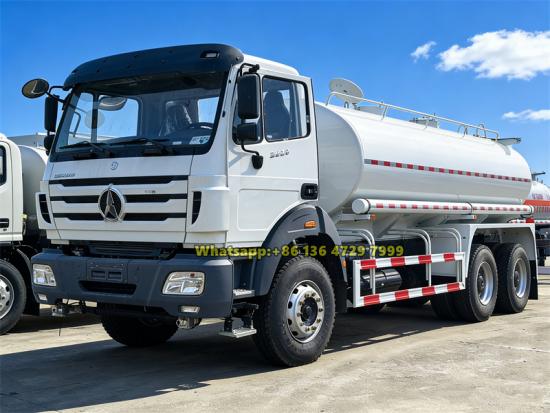

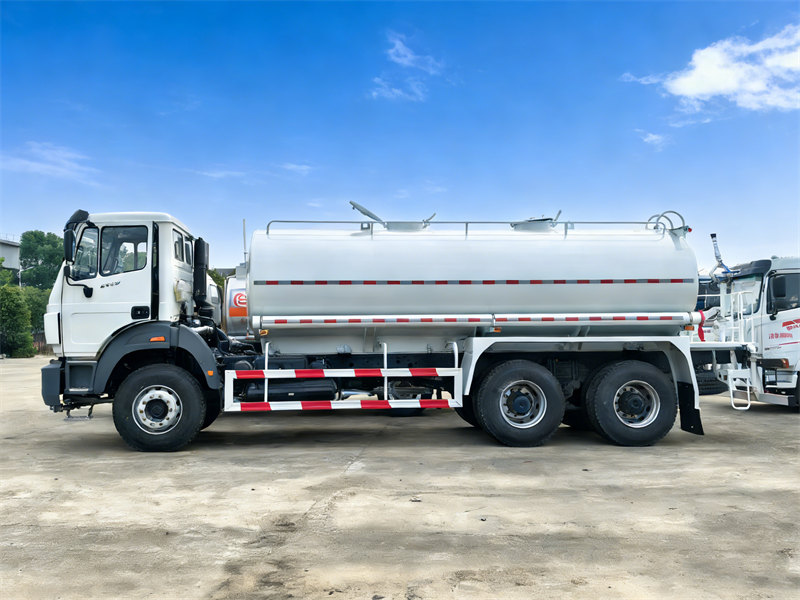

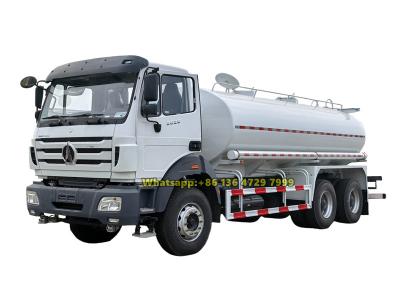

The Beiben 20,000-liter water bowser is a versatile heavy-duty vehicle, specifically designed for large-scale road cleaning, dust suppression, and emergency firefighting. Built on the robust Beiben NG80B chassis and powered by a reliable 290-horsepower Weichai engine, it delivers dependable performance. Equipped with a 20-cubic-meter carbon steel water tank, an efficient water pump, and a high-pressure water cannon with a range of up to 50 meters, its comprehensive spraying system is well-suited to handle the complex road conditions and diverse operational needs in regions like Liberia.
Market Price:
$43200Working Capcity:
20000 litersCabin Type:
NG80B short cabin, 2 seatsDimension ( mm ) :
9800×2500×3250Drive System:
6×4, LHDWheelbase (mm):
4450+1450Engine Power:
290HP/WP10.290E32Gear Box:
9JS150ARemark:
6×6 drive, stainless steel water tanker is optionalThe Beiben 20,000-liter water bowser is a multi-purpose special vehicle modified on a Beiben 6×4 heavy-duty chassis, tailored for road maintenance, environmental sprinkling, and emergency support tasks in regions such as Liberia. Powered by a reliable Weichai 290-horsepower Euro III engine, the vehicle combines a 9-speed manual transmission with a reinforced suspension system. Its balanced load distribution between the front and rear axles, paired with 12R22.5 tires, ensures high load-bearing capacity and off-road performance under complex road conditions. The solid overall structure makes it suitable for long-distance and heavy-duty operations.

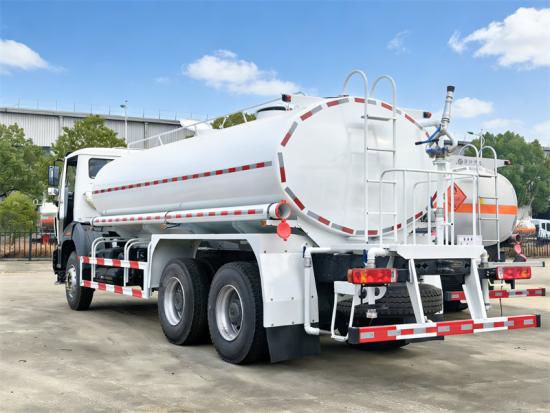

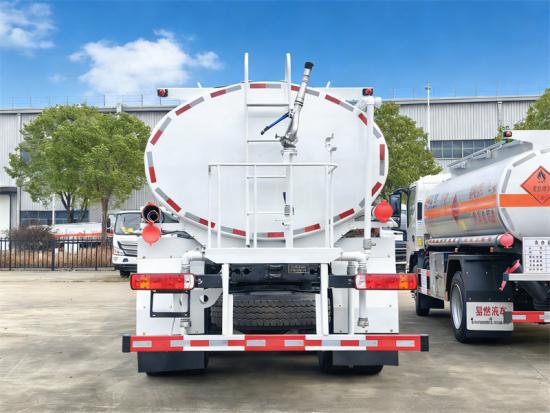

The superstructure of this Beiben water tanker truck features a 20000L large-capacity water tank made of 4mm carbon steel, coupled with a high-efficiency water pump that offers long suction range and fast drainage. The spraying system includes front flushing nozzles, rear sprinkling nozzles, side spraying nozzles, and a high-pressure water cannon with a range of up to 50 meters, covering a spraying width of over 14 meters. This design enables it to efficiently perform various daily tasks such as road cleaning, dust suppression, and green space irrigation.
CEEC factory is authorized supplier on beiben water trucks,
guarantee all beiben water tanker trucks Brand-New and High-Quality.
» Ⅰ.Product Introduction:
Manufacturer: CEEC TRUCKS
▶ Chassis: Beiben 6×4 heavy-duty chassis, Weichai 290HP diesel engine, Fast 9-speed gearbox

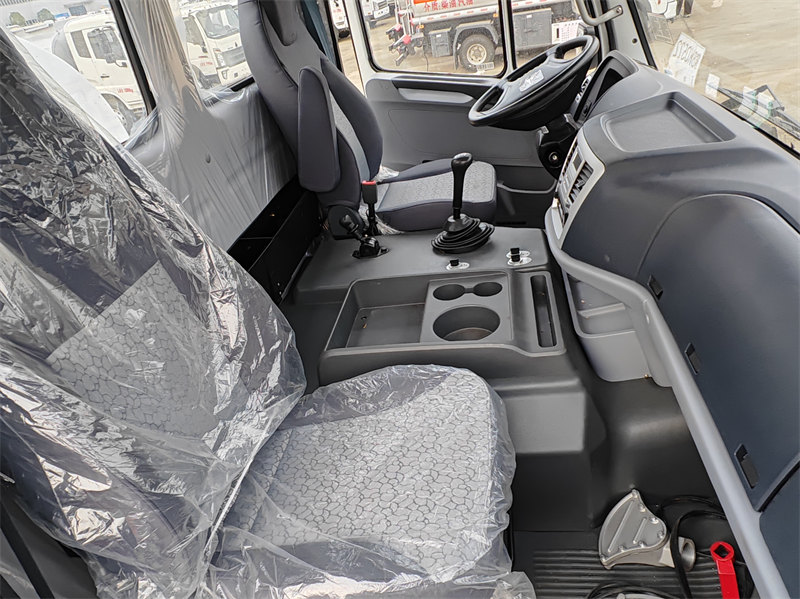

▶ Cabin: Beiben NG80B short cabin, 2 seats, with A/C
▶ Tank capacity: 20000 liters, with baffles, anti-rust treatment inside
▶ Tank material: Carbon steel tanker body, 4mm thickness
▶ Water pump: China well-known brand water pump, with flow rate 60m3/h
» Ⅱ. Product Specifications:
|
Beiben 20000 liters water tank truck for Liberia |
||
|
Cabin |
Beiben NG80B, short cabin,2 seats, with A/C |
|
|
Vehicle Main Dimensions |
Overall dimensions (L x W x H) mm |
9800×2500×3250 |
|
Wheel base (mm) |
4450+1450 |
|
|
Wheel track (front/rear) (mm) |
1995; 1800/1800 |
|
|
Weight in KGS |
Gross vehicle weight |
26000 |
|
Curb weight |
11800 |
|
|

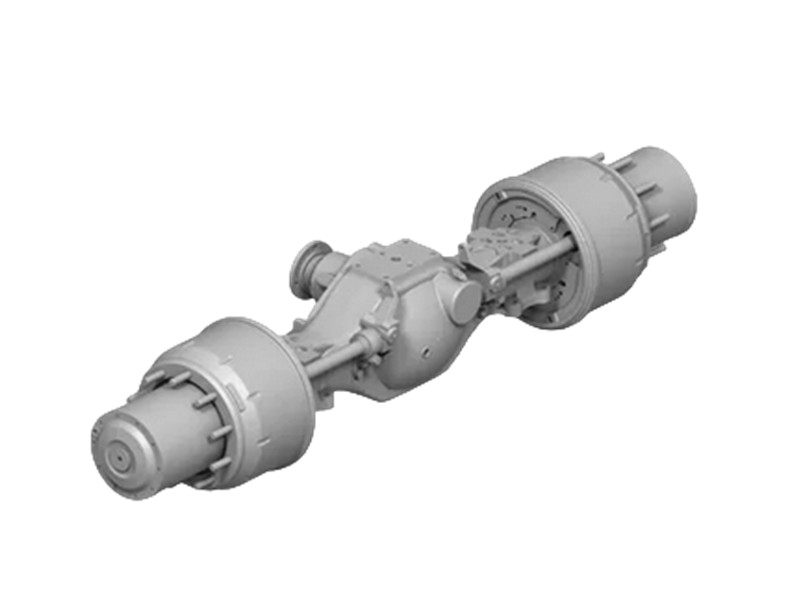

Front axles loading capacity |
7500 |
|
|
Rear axles loading capacity |
13000kg+13000kg |
|
|
Max. driving speed(km/h) |
90 |
|
|
Engine |
Brand |
Weichai Engine |
|
Model |
WP10.290E32 |
|
|
Type |
4-stroke direct injection,6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
|
|
Power |
290HP/213KW |
|
|
Displacement |
9726 ml |
|
|
Emission standard |
Euro 3 |
|
|
Gearbox |

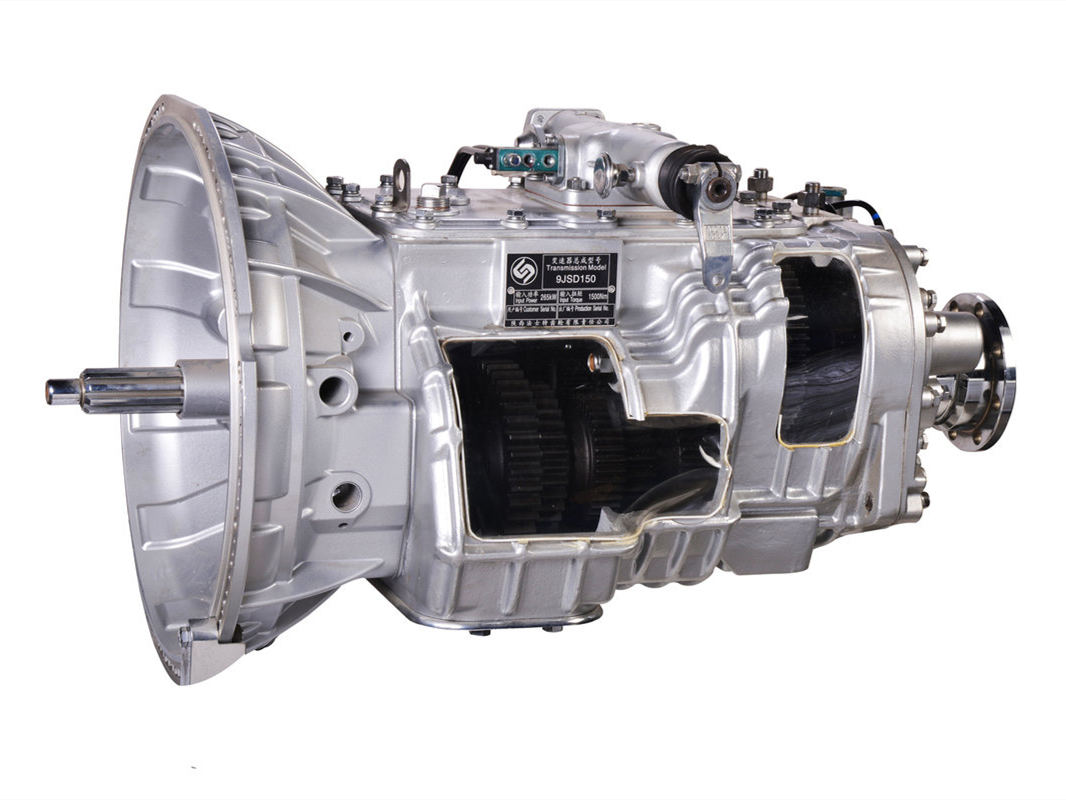

Manual operation, FAST 9JS150A, 9 speed forward and 1 reverse gear |
|
|
Steering |
Hydraulic steering with power assistance |
|
|
Clutch |
Reinforced diaphragm clutch |
|
|
Tire |
12R22.5, 10+1 pcs including one spare tire. |
|
|
Superstructure specifications |
||
|
Tank |
Capacity |
20000 liters |
|
Material |
4mm carbon steel |
|
|
Water pump |
Model |
80QZ60/90 |
|
Flow |
60m3/h |
|
|
Vertical Suction |
≥6 m |
|
|
Priming Time |
<8 min |
|
|
Lift of pump |
45 m |
|
|
Spraying system |
Spray width |
≥14 m |
|
Water cannon range |
50 m |
|
|
Nozzles |
Front, rear and side nozzles |
|
» Ⅲ. Chassis Advantages:
» Ⅳ. Feul Tanker Features:

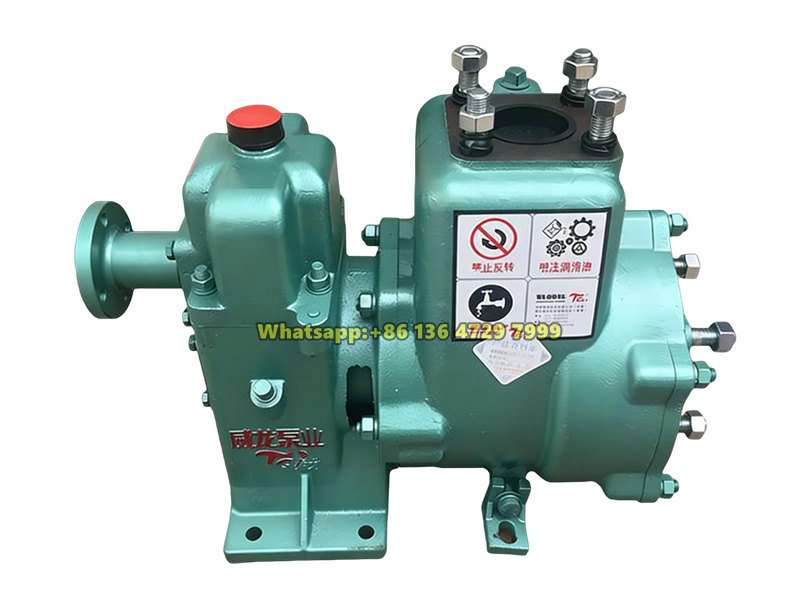

Water pump
Model: 80QZ60/90
Flow Rate : 60 m³/h
Head: 90 m
Input shaft speed: 1180 rpm
Shaft power: 22.5 kw
Self suction height: 6.5 m

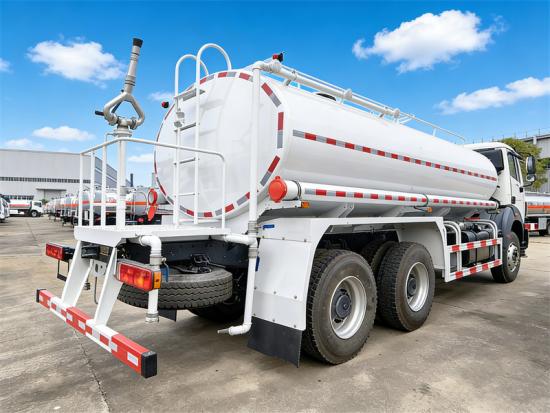

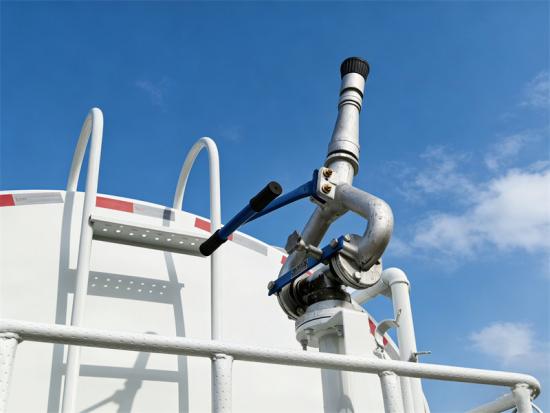

Water cannon
Model: PQ-50
Working pressure: 0.6 Mpa
Range: 50 m
Flow rate: ＞60 L/min
Rotation angle: 360°

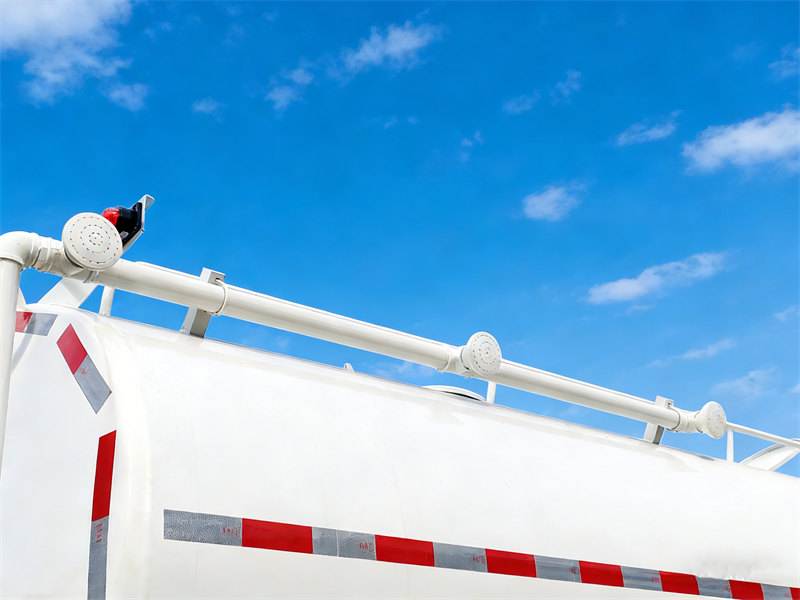

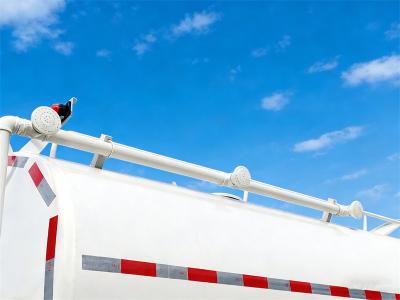

Shower head nozzle
Connection method: Threaded connection
Pipe diameter: 2''
Material: Aluminum Alloy
Working pressure: 0.9 Mpa

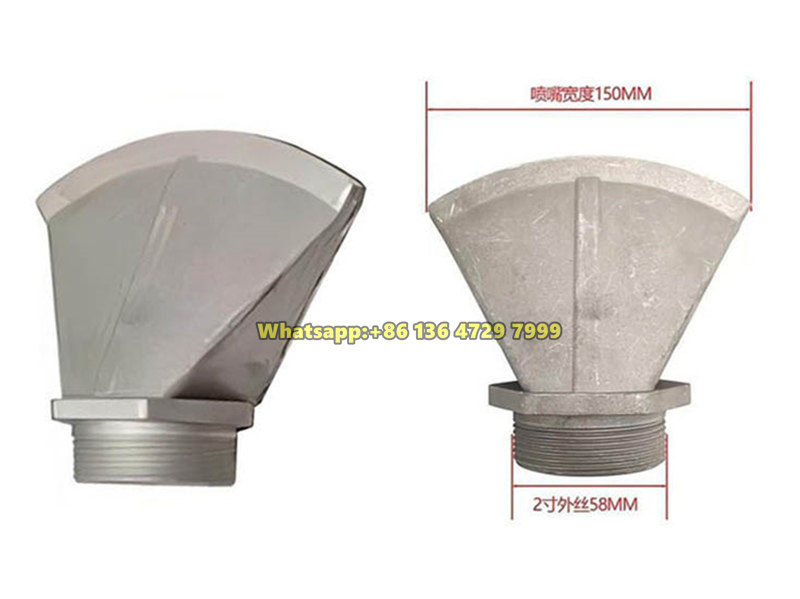

Duck bill spray nozzle
Connection method: Threaded connection
Pipe diameter: 2''
Material: Aluminum Alloy
Working pressure: 0.9 Mpa
Elbow spray nozzles
Connection method: Threaded connection
Pipe diameter: 2''
Material: Aluminum Alloy
Working pressure: 0.9 Mpa

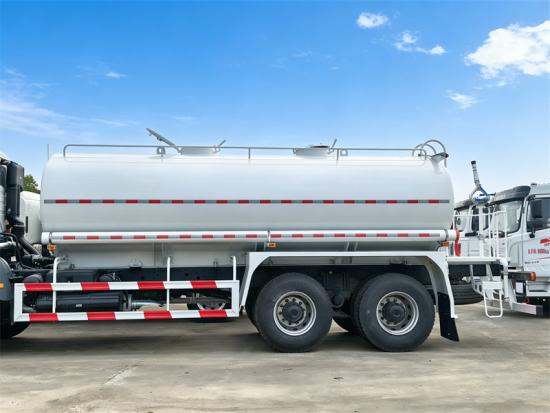

» Ⅴ. Product Details:

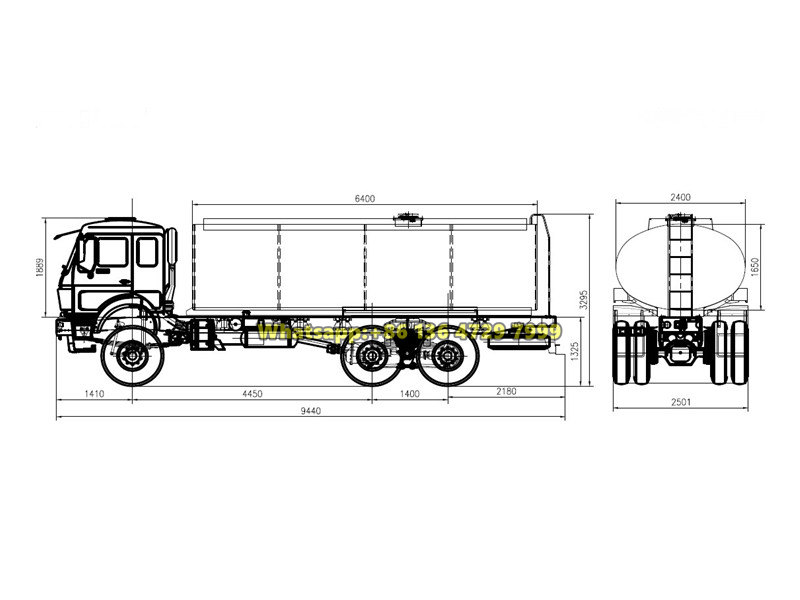

» Ⅵ. Product Drawing:

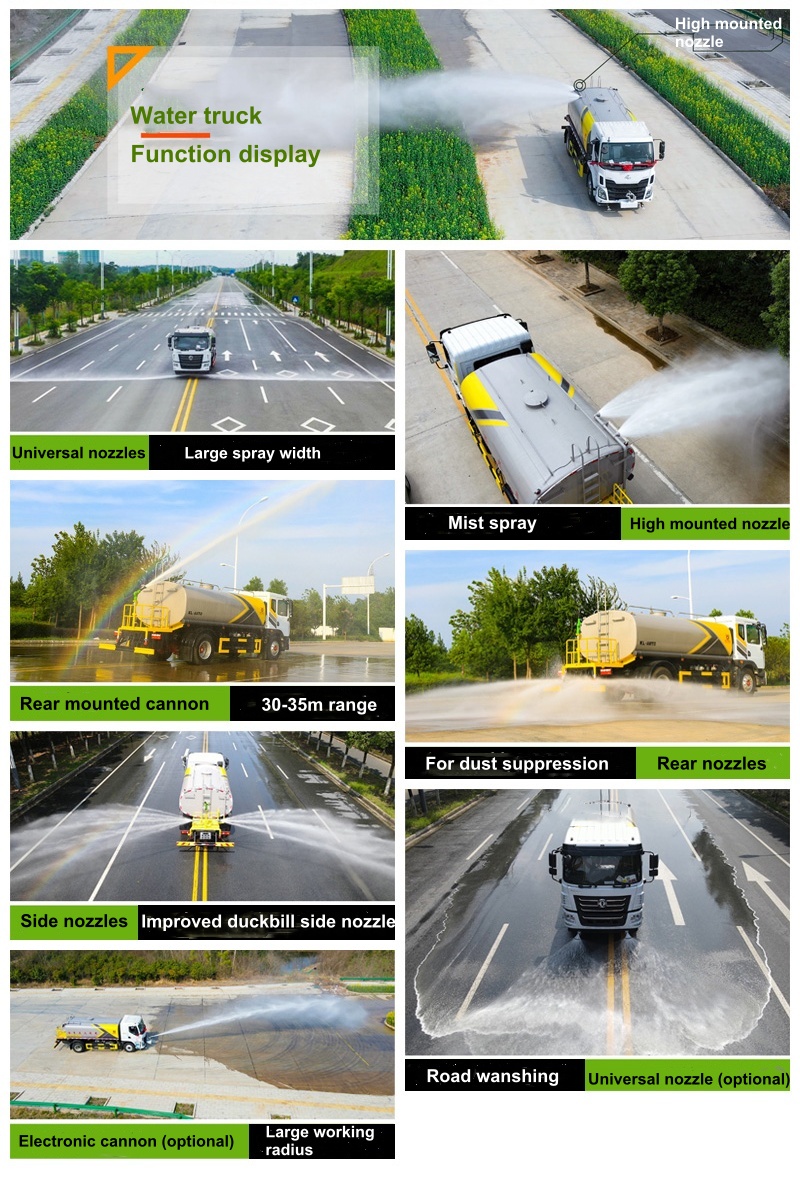

» Ⅶ. Product function display:

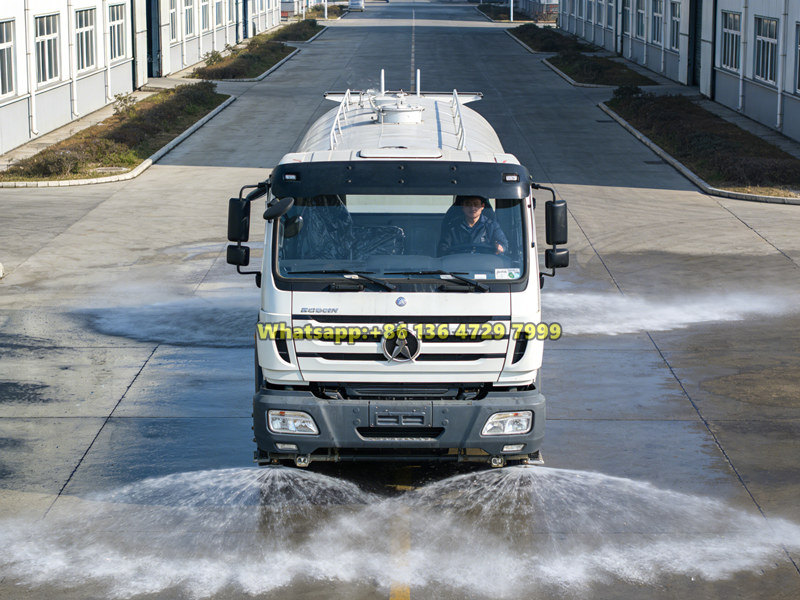

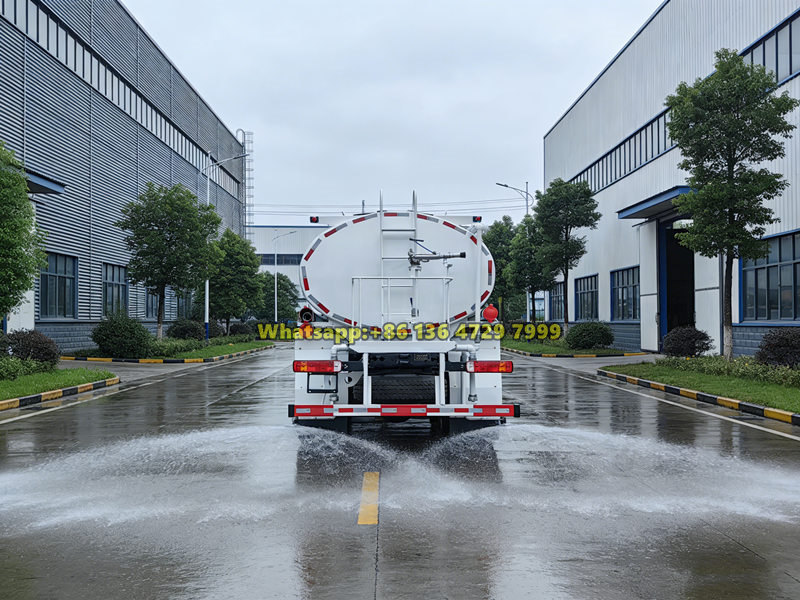

» Ⅷ. Product Applications:
Products--100% china beiben factory trucks!
Shipping --100% fast, Convenience, Efficient!
1.Beiben 4x2, 4x4, 6x4, 6x6, 8x4, 8x8 drive water tanker trucks for option
2. Factory direct sale, supply Beiben 10000 liters~30000 liters water trucks at best price
3.Front, rear, side spraying nozzles are optional for different applications
4. Carbon steel, stainless steel tank and stainless steel water pump is optional.
