The Beiben 6×4 heavy duty water tanker is a heavy-duty specialized vehicle built on the Beiben 2528 chassis, equipped with a 280HP Weichai engine and a large 20,000L carbon steel water tank. It features a professional-grade water pump with a flow rate of 60m³/h, a vertical suction lift of ≥6 meters, and a pump head of 45 meters, ensuring high-efficiency operation. The combination of front duckbill nozzles and rear cylindrical nozzles achieves a spraying width of ≥14 meters, while the rear-mounted water cannon has a range of ≥23 meters, enabling versatile tasks such as road cleaning, green space irrigation, industrial dust suppression, and auxiliary firefighting. With a 7.5T front axle and a 13T rear axle, it guarantees stability under heavy loads, making it an ideal choice for municipal sanitation and industrial cleaning.
Working capcity:
20000 litersCabin type:
Beiben NG80 short cabinDimension ( mm ) :
9880×2550×3630Drive system:
6×4Wheelbase (mm):
4450+1450Engine power / Model:
280HP/WD615.50Gear Box:
9JS150ARemark:
6×6, RHD is optionalThe Beiben 6×4 Water Bowser Truck is a versatile water-spraying vehicle designed for diverse applications. Built on the Beiben 2528 chassis and featuring an NG80B cab with a 6×4 drive configuration, it ensures stable performance across various complex road conditions. This vehicle integrates multiple functions, including road cleaning, dust suppression, irrigation, and pesticide spraying, meeting a wide range of environmental maintenance needs. Whether for urban street washing or garden irrigation, the Beiben 6×4 Multi-functional Greening Sprinkler Truck excels as a reliable tool for urban beautification.
The structural design of the Beiben 6×4 Water Tank Lorry emphasizes practicality and durability. Its tank is constructed from 4mm high-quality carbon steel, offering a capacity of 20,000 liters to support extended, large-scale operations. The robust and corrosion-resistant tank material ensures long-term performance stability. Additionally, the vehicle is equipped with Beiben's self-developed 430 diaphragm spring clutch and a 9JS150A transmission, providing smooth gear shifts and an excellent driving experience.

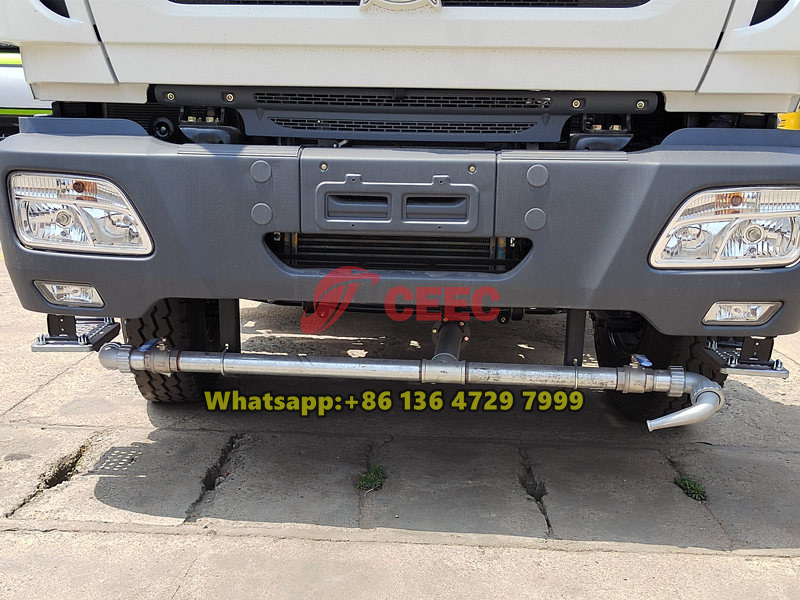

As a professional-grade multi-functional sprinkler, the Beiben water cannon truck retains all traditional sprinkler functions while enhancing specialized features. Its self-priming pump, with a vertical suction lift of ≥6 meters, completes water priming within 8 minutes, and the 45-meter pump head ensures long-distance water delivery. The front duckbill nozzles and rear cylindrical spray nozzles create a ≥14-meter spraying width, catering to diverse cleaning scenarios. The rear work platform includes a water cannon with a ≥23-meter range, capable of high-altitude cleaning and auxiliary firefighting, truly embodying the concept of "multi-purpose functionality."
Product Specifications
|
Beiben 6×4 water cannon truck specifications |
|
||
|
Chassis Model |
Beiben 2528 |
|
|
|
Series |
NG80 |
|
|
|
Wheel Traction / Drive Style |
6×4 |
|
|
|
Gross Vehicle Weight |
kg |
25000 |
|
|
Steering Wheel Position |
LHD/RHD |
LHD (Left Hand Drive) |
|
|
Engine |
|
||
|
Model |
WD615.50 |
|
|
|
Brand |
WEICHAI |
|
|
|
Displacement |
9.726L |
|
|
|
Type |
In-line, Six-cylinder, Four-stroke, Water-cooled, Direct Injection, Intercooled Turbocharged Diesel Engine |
||
|
Engine Classification / Standard |
EURO III EGR |
|
|
|
Bore/Stroke |
mm |
126/130 |
|
|
Rated Horse Power |
hp |
280 |
|
|
Net Power |
KW/rpm |
206KW/2200rpm |
|
|
Torque (Nm/rpm): |
Nm/rpm |
1160Nm @ 1100-1600rpm |
|
|
Clutch & Gear Box Systems |
|
||
|
Clutch |
BEIBEN's 430 diaphragm spring clutch |
|
|
|
Gear Box |
9JS150A |
|
|
|
Gear Speed/Lever |
9 forward/ 1 reverse |
|
|
|
Gear Ratio |
12.57,8.39,6.15,4.59,3.4,2.47,1.81,1.35 |
||
|
Axle & Steering |
|
||
|
Steering Model |
8098 |
|
|
|
Front Axle |
7.5T |
|
|
|
Rear Axle |
13T, Drum Brake |
|
|
|
Ratio of Rear Axle |
5.263 |
|
|
|
Loading Capacity per Axle |
front |
7500kg |
|
|
rear |
13000kg |
|
|
|
Brake System & Suspension |
|
||
|
Service Brake |
dual circuit compressed air brake |
|
|
|
Auxiliary Brake |
engine exhaust valve brake |
|
|
|
Parking Brake |
front |
spring energy |
|
|
rear |
compressed air |
|
|
|
Suspension Type |
front |
10pcs leaf spring |
|
|
rear |
13pcs leaf spring |
|
|
|
Wheels & Tires |
|
||
|
Wheel Type |
Radial Tires |
|
|
|
Number of Tires |
10+1 (spare tire) |
|
|
|
Tire Type/Size |
12.00R20 |
|
|
|
Wheel track |
front |
1995mm |
|
|
rear |
1800mm |
|
|
|
Upper body specifications |
|
||
|
Tank |
Capacity |
20000 liters |
|
|
Material |
4mm carbon steel |
|
|
|

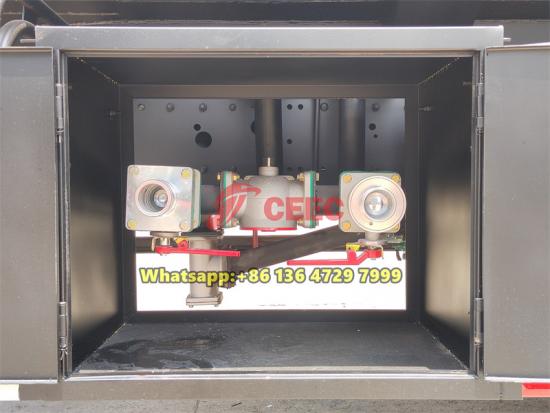

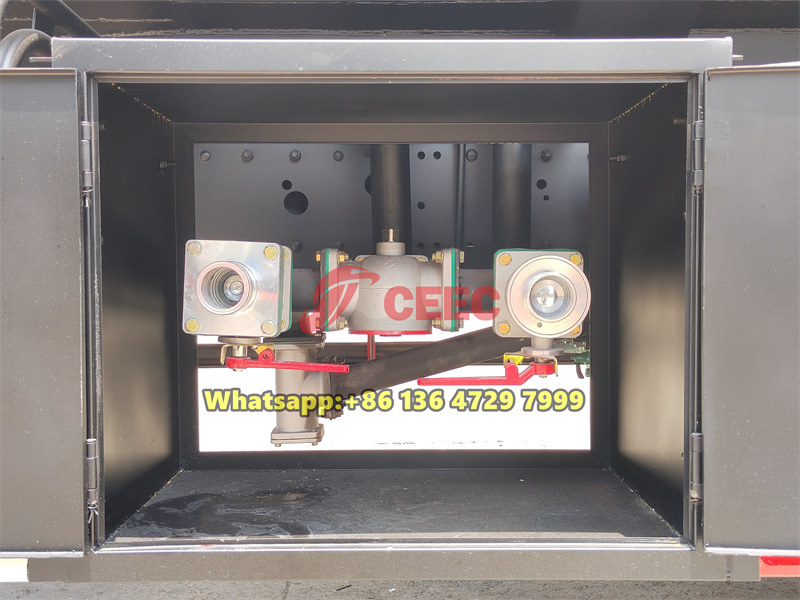

Water pump |
Flow |
60m3/h |
|
|
Vertical Suction |
≥6 m |
|
|
|
Priming Time |
<8 min |
|
|
|
Lift of pump |
45m |
|
|
|
Spraying system |
Spray width |
≥14 |
|
|
Water cannon range |
≥23 |
|
|
|
Nozzles |
Front and rear nozzles |
|
|

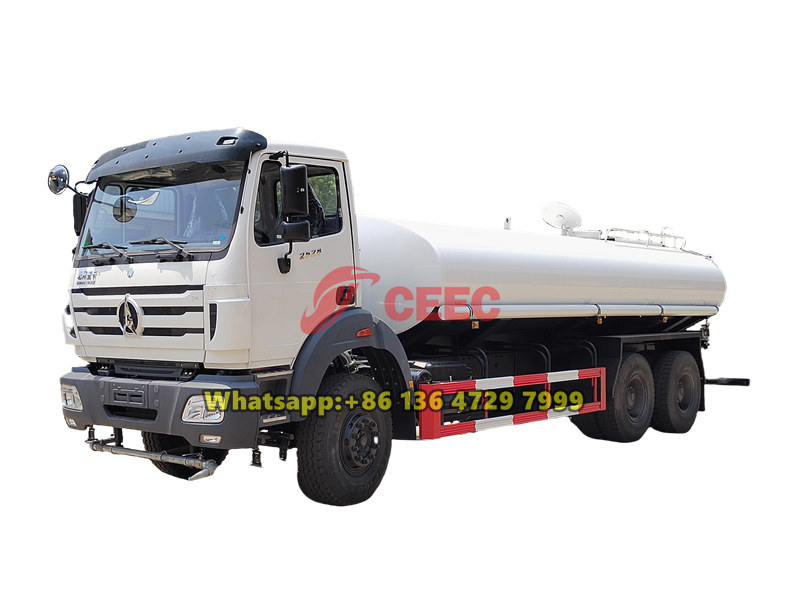

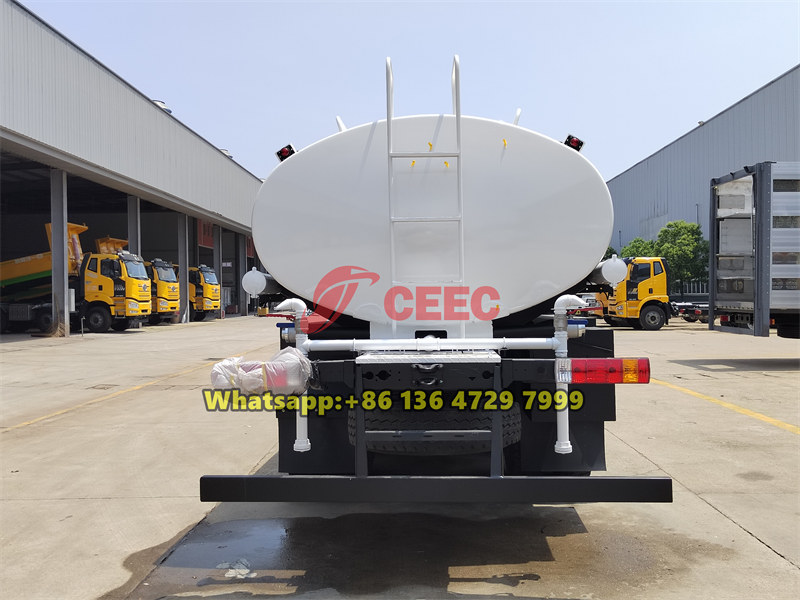

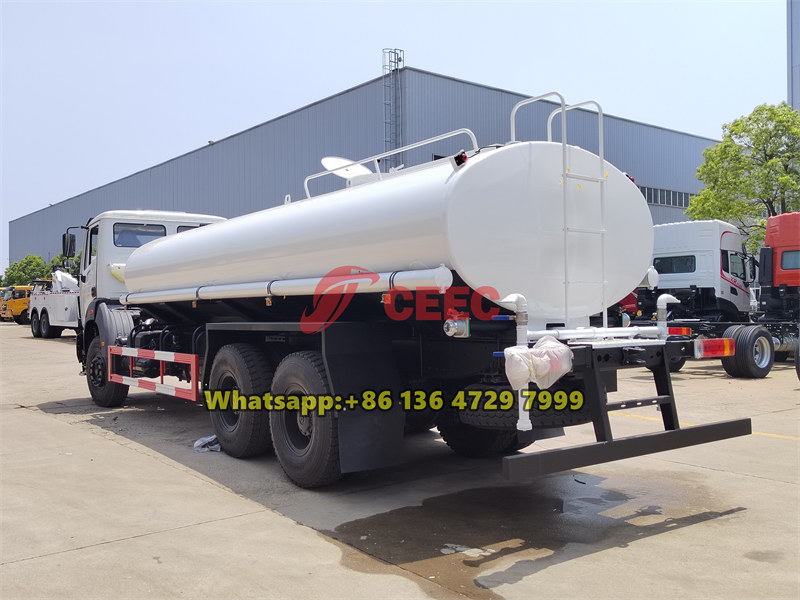

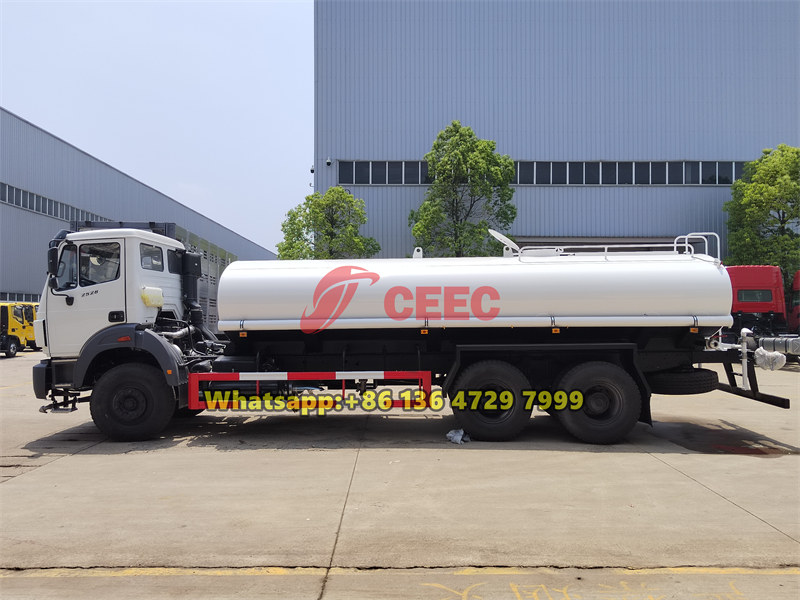

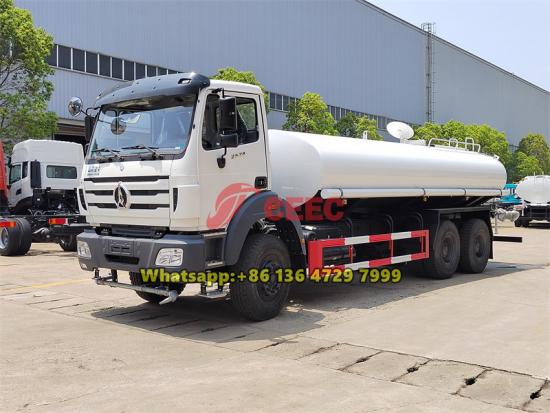

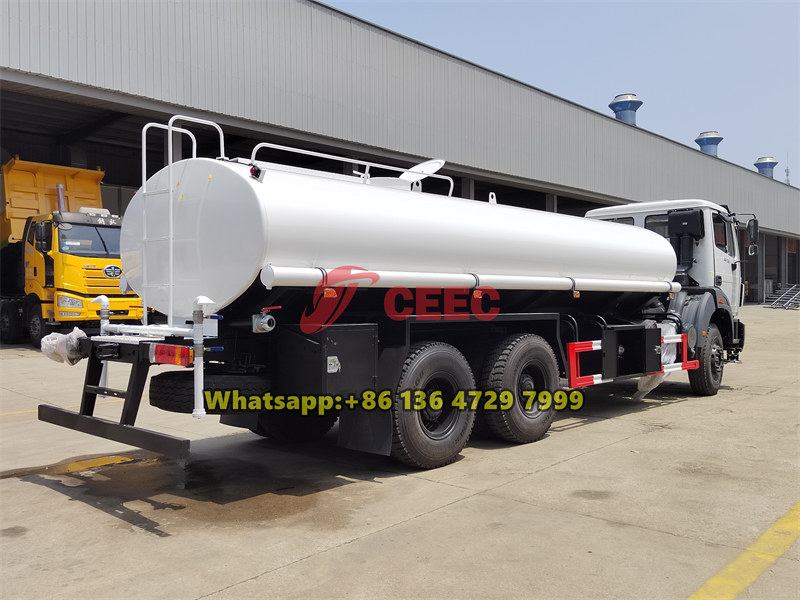

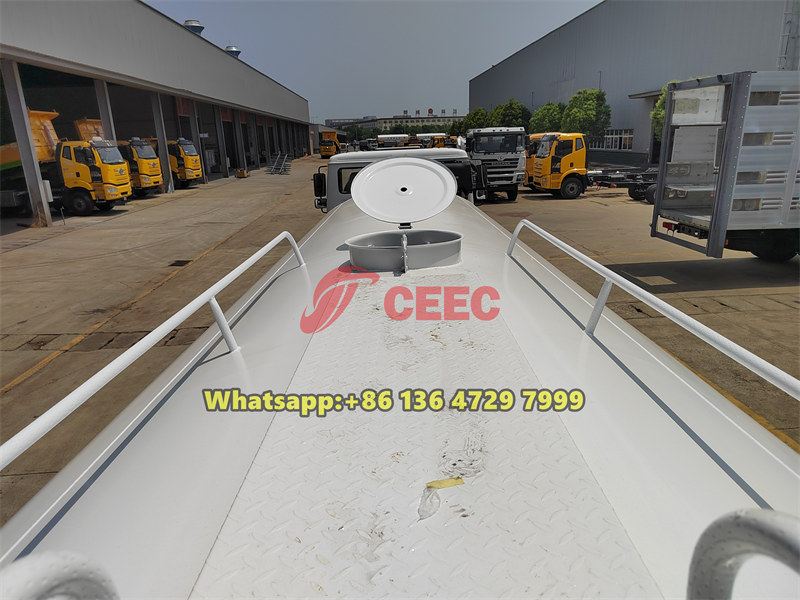

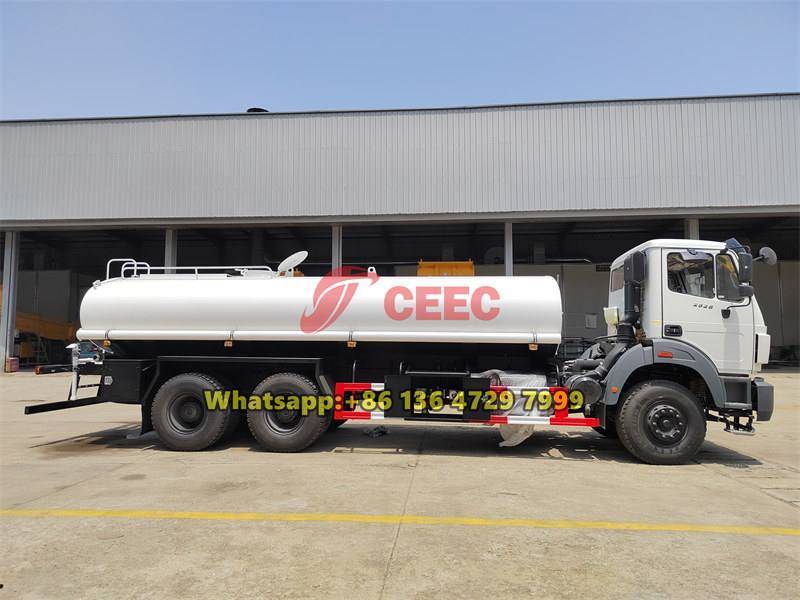

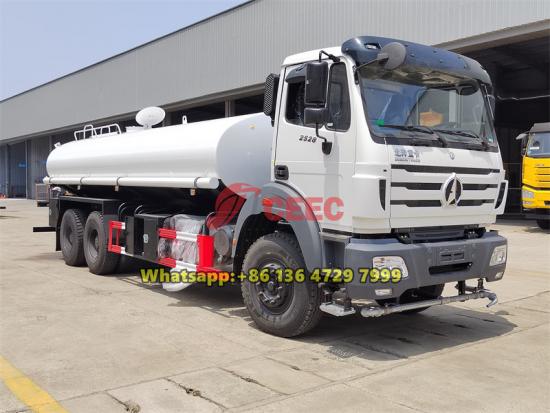

Product Pictures
