Beiben 2642 20000 liters water bowser

Product Description

The Beiben 20,000L water tanker truck is built on the ND1252 chassis, equipped with a WP12.420E32 engine that boasts a power of 309 kW (420HP) and complies with the Euro 3 emission standard. The water tank has a capacity of 20,000 liters, constructed from carbon steel with an oval design, and measures 6000×2300×1500 mm. It is fitted with a WEILONG 80QZF60/90S water pump, capable of delivering a flow rate of 60m3/h and a lift of 90m, supporting multi-functional operations including front flushing, rear sprinkling, side spraying, and high-position spraying. This vehicle is suitable for various applications such as urban cleaning, green space irrigation, dust suppression at construction sites, and emergency fire fighting, offering high efficiency and versatility.

The Beiben 20,000L Water Tanker Truck is a large-scale sanitation vehicle built on the Beiben ND1252 chassis, primarily used for various scenarios including urban road cleaning, green space irrigation, dust suppression at construction sites, and emergency firefighting. Renowned for its large capacity, high efficiency, and multifunctionality, the truck boasts a water tank capacity of up to 20,000 liters, capable of meeting the demands of large-area operations. It is equipped with a WP12.420E32 engine that complies with the Euro 3 emission standard, offering powerful performance and excellent environmental protection. Additionally, its WEILONG brand water pump and efficient spraying system ensure high operational efficiency and reliability. The Beiben 20,000L Water Bowser is not only suitable for urban sanitation tasks but also for dust suppression and green space maintenance in industrial parks, construction sites, and other locations, making it a multifunctional and highly efficient sanitation equipment.

The water tank is one of the core components of the water tanker truck. The Beiben 2642 Water Spraying Truck features a water tank with a capacity of 20,000 liters, designed in an oval shape with dimensions of 6000×2300×1500 mm. This design not only lowers the vehicle's center of gravity, enhancing driving stability, but also effectively reduces water sloshing within the tank, ensuring operational safety. Made of carbon steel, the water tank exhibits excellent corrosion resistance and durability, adapting to various water qualities and environmental conditions.

The water pump system utilizes the WEILONG brand, model 80QZF60/90S, with a flow rate of 60 cubic meters per hour, a lift of 90 meters, and a self-priming height of 6.5 meters, delivering superior performance. The water pump system supports rapid water filling and efficient spraying, capable of meeting the demands of large-area operations. Furthermore, the water pump features a self-priming function, allowing it to directly draw water from water sources, further enhancing operational convenience.

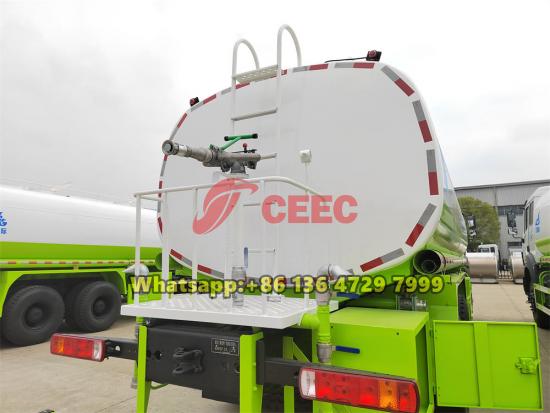

The spraying system of the Beiben 2642 20,000L Water Truck includes multiple functions such as front flushing, rear sprinkling, side spraying, and high-position spraying, catering to the operational needs of different scenarios. The front flushing function is mainly used for road cleaning, utilizing high-pressure water to wash away dirt and dust from the road surface. The rear sprinkling function is suitable for road cooling and moistening, particularly during hot weather for road maintenance. The side spraying function can be used for irrigating green belts, while the high-position spraying is ideal for tree irrigation and emergency fire fighting. The spraying system is hydraulically driven, offering easy operation and wide spraying coverage, capable of reaching large areas. The vehicle's working principle involves the water pump drawing water from the tank and delivering it through a piping system to various nozzles for efficient spraying. The pressure and flow rate of the spraying system can be adjusted according to actual needs, ensuring precise and efficient operations.

Product Specifications

Product Pictures
